Re: Gemini 4:4:4 frame Grabs

If I am to understand, S-log is the equivalent of camera raw output for video, and the Gemini is for capturing the S-log feed in a manner that preserves maximum chroma detail for subsequent grading in post. Accordingly the S-log grab appears very flat and compressed, because you intend to stretch it back out in post.

With the cinegamma or standard gamma the image is burned in, so if it needs further correction in post, there's less to work with. So if like Doug you never make a mistake, always get it right, you don't need S-log.

I usually get it right too, but then why with dslr stills do I prefer shooting raw? Must be because it's pretty good insurance for capturing the scene in the entirety.

As for the opinions about certain looks, Piotr prefers cinegamma and Doug is highly critical of clipped highlights while accepting of crushed blacks. The latter makes little sense as it seems likely to displease as many who prefer shadow detail and don't care as much about clipped highlights. Since it's just opinion, mine is for std gamma R709 with well chosen knee settings to best preserve highlight AND shadow detail, followed by post grading only if necessary.

That said, if I had S-log and the Gemini 444, that is what I would use because you could ultimately achieve any look at any time through post edits, where if you made a mistake with your picture profile in-cam, that look will be burned-in.
Tom Roper is offline   Reply With Quote
Old October 30th, 2011, 01:43 PM   #17
Trustee

Join Date: Mar 2007
Location: Sherman Oaks, CA
Posts: 1,259
Re: Gemini 4:4:4 frame Grabs

S-Log isn't raw in the way that a DSLR, Red or F65 can shoot RAW. S-Log has R, G and B data for each pixel, RAW has only an R, G or B value for each pixel and has to be reconstructed in post to create an image that's not a mosaic of colors.

What S-Log does is allow the full dynamic range of the sensor to be recorded. This is accomplished by using a logarithmic curve for the encoding that decreases sensitivity as the image gets brighter. This is similar to how film records light and how our eyes see light.

What frequently gets lost in the S-Log discussion is that many modern sensors clip well past where the recorded image clips. This is for two reasons: 1) Sensor dynamic range is wider than what you could properly record w/ many codecs, e.g. XDCAM-EX. 2) Most video applications don't need or even want the extra dynamic range b/c it surpasses what most broadcast systems are designed to handle and display.

So in truth, if the highlights roll-off gracefully, the extra dynamic range is not needed or even desirable for a lot of the jobs that video cameras are used. But for cinema type applications, the extra DR can be very helpful, and S-Log fits well into existing film workflows. A main need for extra DR is time of day color correction. This is esp. true when shooting outside b/c the light is constantly changing, but shots from the morning may need to match those from noon and later. And of course, there is day for night shooting. And there are times when indoors that you actually want to see what's walking past that window facing outside.

But Doug is right in that the end product is frequently going to have less DR than S-Log provides, so it can be a lot of work for not much benefit, depending on how you work what you want your images to look like.

Hope that all accurate and helpful.
__________________
Avid Media Composer 3.1.3. Boris Red and Continuum Complete. Vegas 8.0c. TMPGEnc Xpress Pro 4.0
Peter Moretti is offline   Reply With Quote
Old October 30th, 2011, 02:31 PM   #18
Trustee

Join Date: Jun 2004
Location: Denver, Colorado
Posts: 1,866
Re: Gemini 4:4:4 frame Grabs

Thank you for that excellent explanation.
Tom Roper is offline   Reply With Quote
Old October 30th, 2011, 07:53 PM   #19
Regular Crew

Join Date: Nov 2008
Location: NYC
Posts: 121
Re: Gamma Curves and Dynamic Range

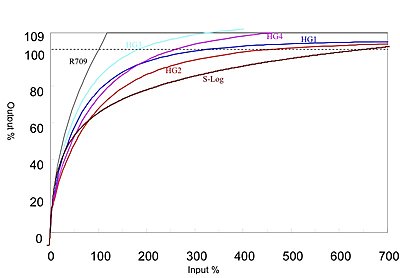

Since the crux of this discussion is about dynamic range, I thought a graph of a standard (HiDef) gamma curve versus the Hyper (Cine) and S-Log gamma curves might be interesting so I attached one at the bottom of this message.
