Sony XDCAM PXW-FS7 / FS5
Super 35 CMOS recording 4K to XQD media cards.


Reply

Thread Tools Search this Thread
Old January 17th, 2015, 11:20 AM   #1
Sponsor: Westside AV

Join Date: Dec 2008
Location: Mount Washington Valley, NH, USA
Posts: 1,365

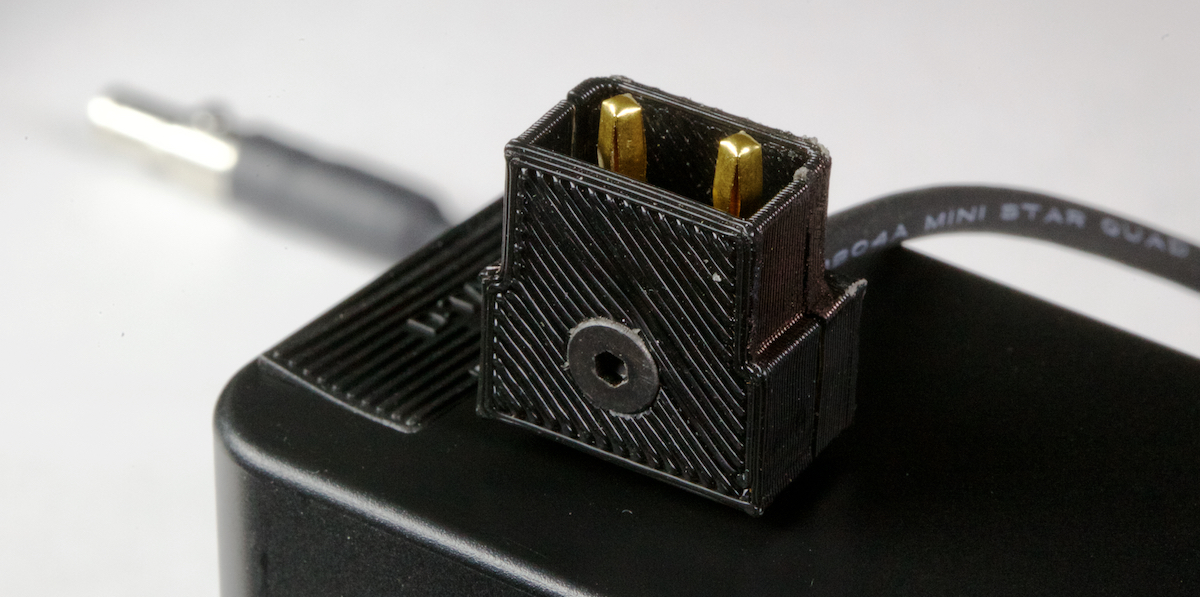

Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable

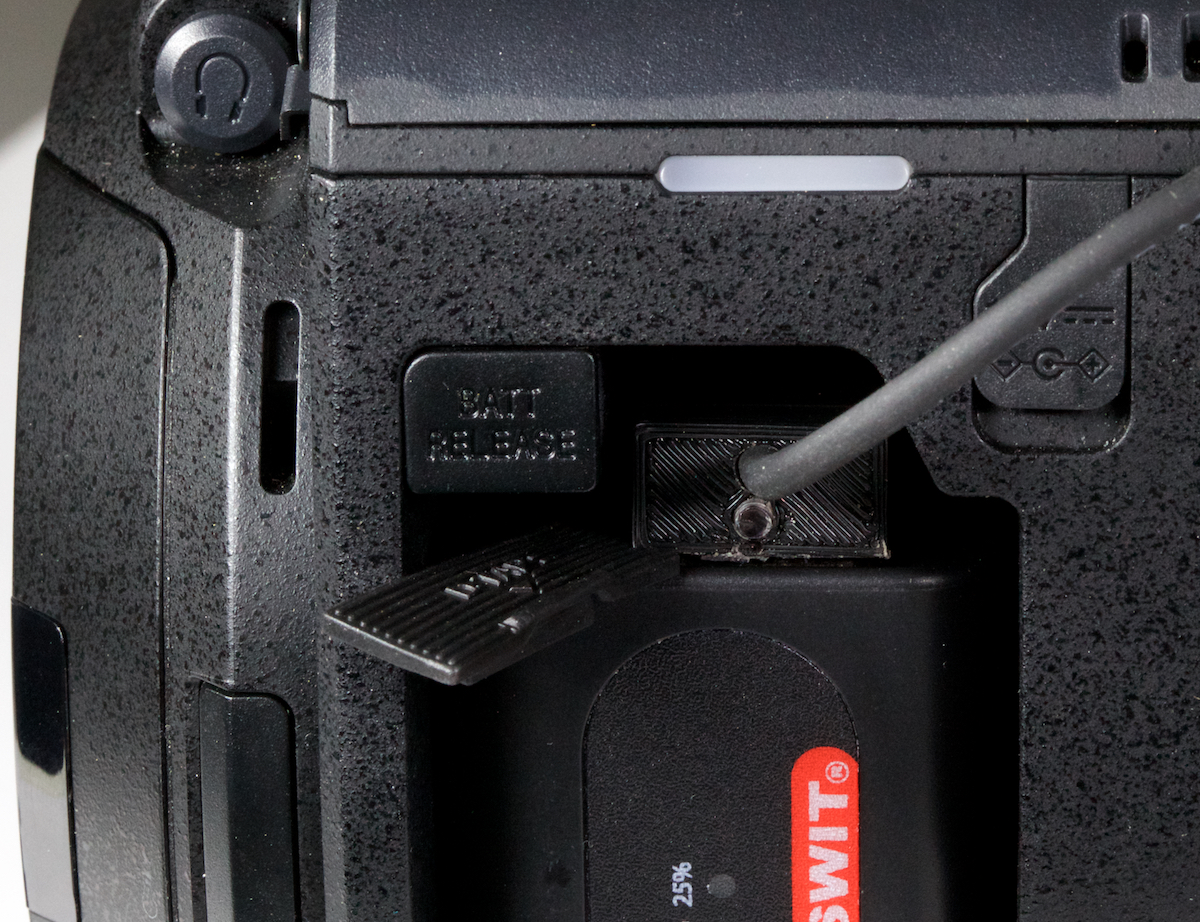

The new Swit 8U63 batteries are great they plug right in to the FS7 no need for the jumper cable. And they have both USB and D-tap ports. However the T-tap placement makes it impossible yo use a Dtap while in the FS7, so I make mini D-tap plugs.

Now bear in mind that the max draw on these batteries is 50w so don't go crazy trying to pull to much power out of them. But it can be a very nice compact solution to use an Odyssey or monitor on your FS7.

Email me if you want the STL files for 3D printing and I will email them back to you. I think sharing STL files is fantastic I love Open Source in general. And 3D printers are fantastic way to share design ideas and get more ideas from others. Long live open source!

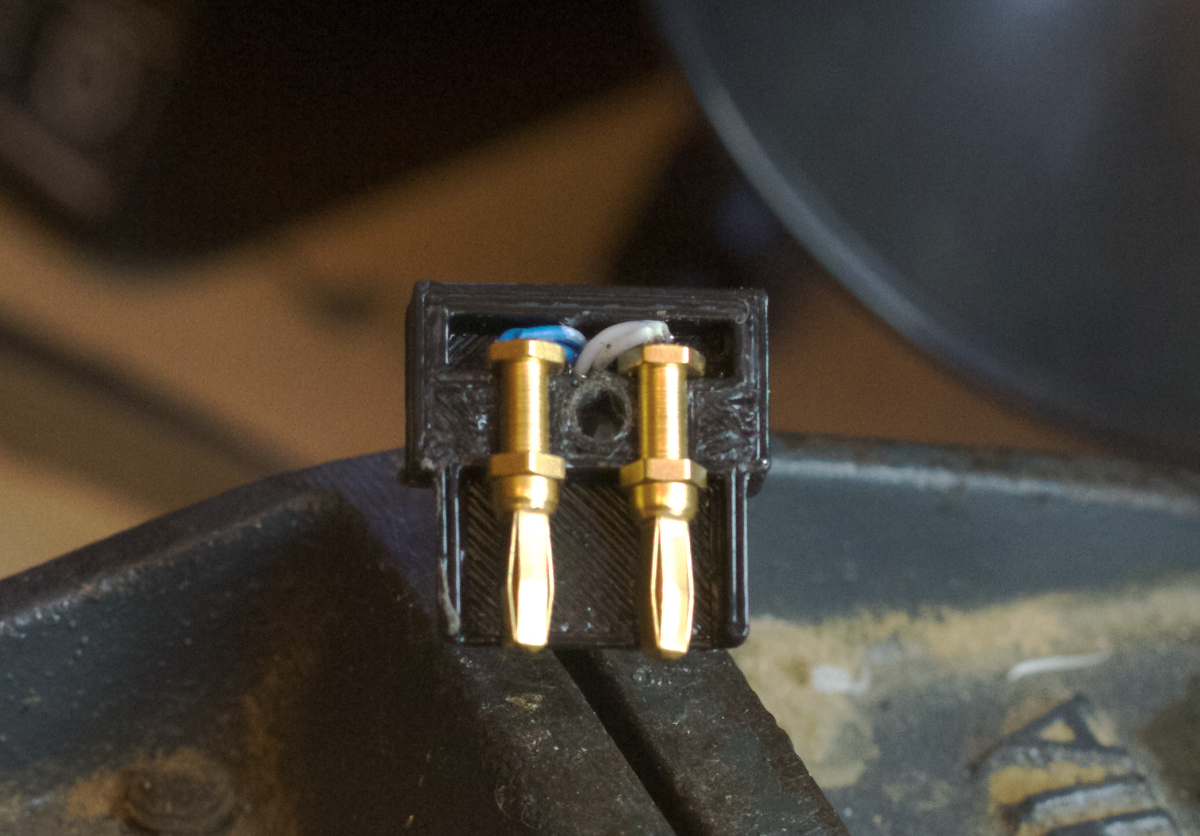

So the STL files are free, after printing you have to tap the hole for the 3mm screw and countersink the other end of the hole and generally file and finish the piece, this is standard with all 3D printed parts. I use the pins from a AB D-tap so you need one of them as well and you then solder them as in the photo, this is very tight, just take your time and do a clean job, no solder globs, just fill the solder cups to the top and insert cable when still liquid, this is the way to be neat. I also recommend filling the inside of the case with plastic resin as you do the final assembly and use 1" piece of heat shrink tube as strain relief, not shown in these photos as this is the prototype just screwed together, you also should enlarge the cable hole to the correct diameter for the cable and heat shrink tube you use.


I am also selling finished cables or just the printed parts on my WEBstore.
mini dtap cable for Swit 8U63 battery

Contact me for more info.
Attached Thumbnails

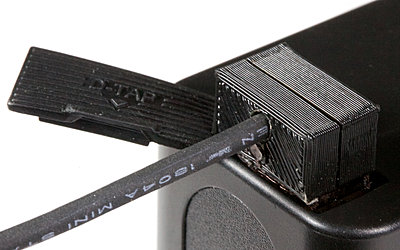

Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable-picture-6.jpg   Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable-picture-7.jpg

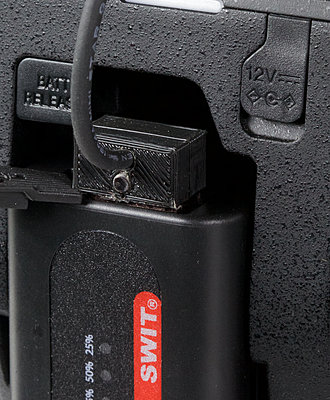

Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable-picture-5.jpg   Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable-picture-4.jpg

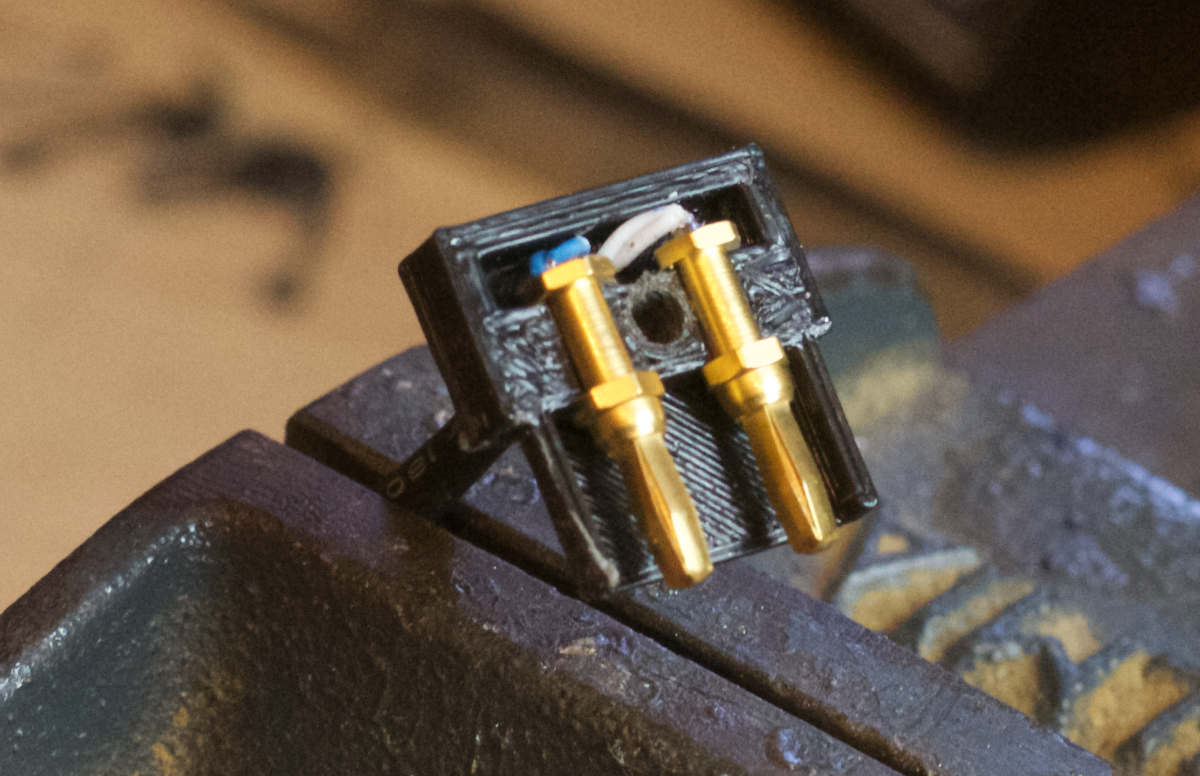

Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable-picture-1.jpg   Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable-picture-2.jpg

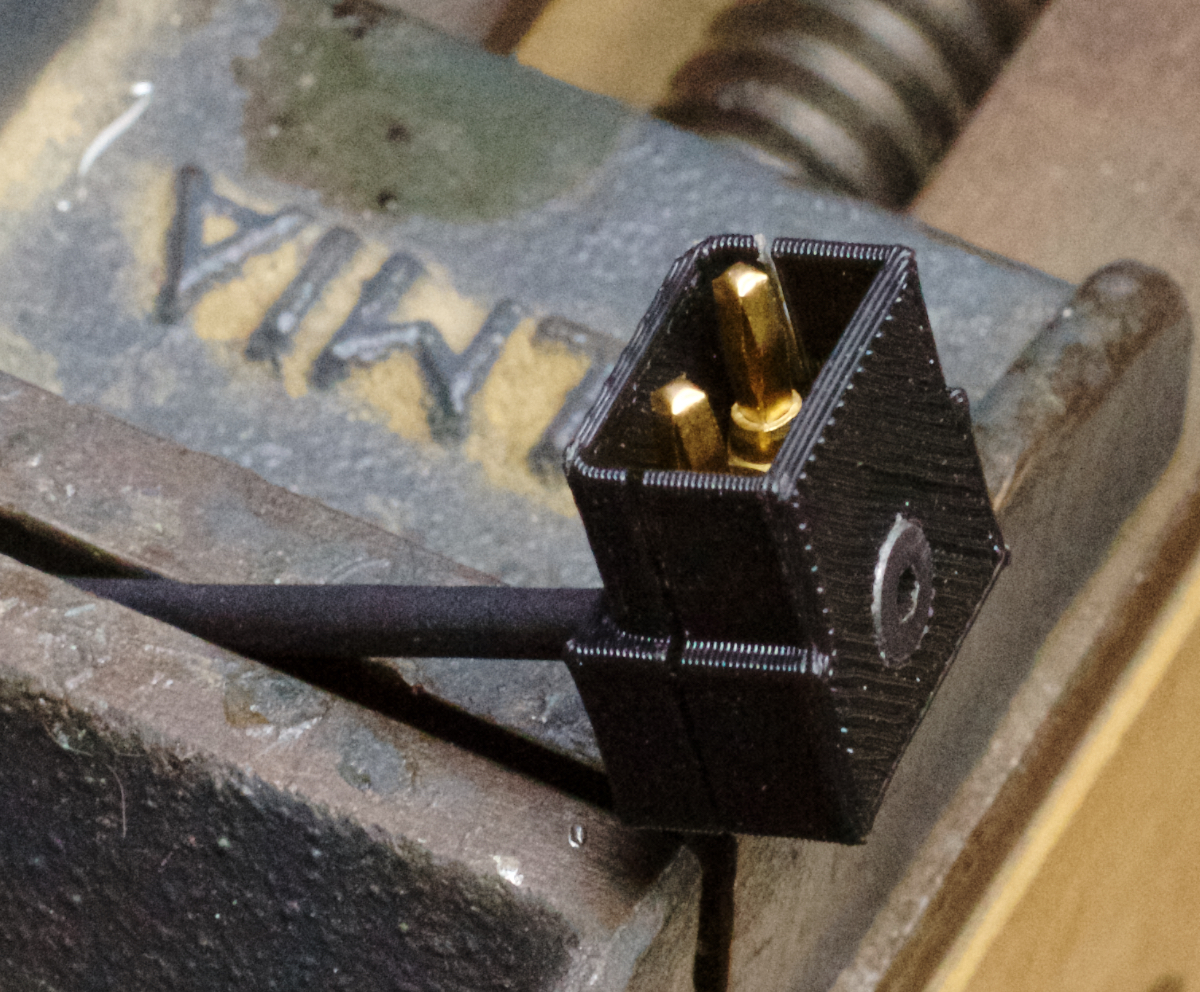

Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable-picture-3.jpg
__________________
Olof Ekbergh olof@WestsideAV.com
Westside A V Studios http://www.WestsideAVstore.com/
Olof Ekbergh is offline   Reply With Quote
Old January 24th, 2015, 06:16 AM   #2
Inner Circle

Join Date: May 2005
Location: Burnaby, BC, Canada
Posts: 2,963
Re: Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable

SWIT batteries seem to be the overwhelming choice when it comes to a D-tap alternative to the BP-U60.

This wouldn't be a problem if Switronix released their coded 96wh BP-U battery, but they've vaporwared that product. Can anyone confirm if plugging in a pigtail based battery gives the high voltage warning like the PMW-300? If so, there are (and will be) no known 96wh BP-U batteries with D-tap that are compatible with neither the PMW-300 or the FS7.

Edit: Saw a review where someone purchased a pigtail based 96wh battery for the FS7 and it reportedly works. So it's only the PMW-300 that will reject pigtails.
__________________
I wait for the day cost-efficient global shutter 60fps capable CMOS sensors emerge for use on major manufacturers' cameras. (Sony, Canon, etc.) Rolling Shutters are a plague.
Jack Zhang is offline   Reply With Quote
Old January 25th, 2015, 11:44 AM   #3
Contributor

Join Date: Oct 2001
Location: Lexington, Ma
Posts: 283
Re: Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable

Also older Swit 8U62 batteries (not in production anymore) work with FS7 using the DC cable.
__________________
Alex Dolgin
Dolgin Engineering
Camera DC Power accessories, Fast 4 position Battery Charger
http://www.dolgin.net
Alex Dolgin is offline   Reply With Quote
Old January 26th, 2015, 04:35 PM   #4
Inner Circle

Join Date: May 2005
Location: Burnaby, BC, Canada
Posts: 2,963
Re: Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable

Great to know. Don't know why Sony tried to block people using Pigtails on the PMW-300 when they've abandoned that tactic on the FS7.

Hot swapping batteries with something connected to the DC IN is also possible with the FS7?
__________________
I wait for the day cost-efficient global shutter 60fps capable CMOS sensors emerge for use on major manufacturers' cameras. (Sony, Canon, etc.) Rolling Shutters are a plague.
Jack Zhang is offline   Reply With Quote
Old April 8th, 2015, 09:34 PM   #5
Major Player

Join Date: Nov 2002
Location: Tokyo
Posts: 898
Re: Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable

Good to hear about your new cable! I've got it book marked. I too have been considering the FS7 camera as an upgrade and a camera to be used in conjunction with my EX3. It's still a major rental camera here in Asia by the way.
I had a new battery made via one of the Chinese manufacturers I have been talking to over the last 6 months and they have made a new version of the BP-U65 D-TAP/USB2 connected battery under my specifications. I have had them use Samsung cells NOT Chinese cells as those don't last long. Here's the blog (English) and a link to purchase that new battery: films & things ...
p.s. ... use google chrome for Amazon.jp to have the Japanese automatically translated.
__________________
Sony EX3, Panasonic DVX 100, SG Blade, Nanoflash, FCP 7, MacBookPro intel.
http://www.deanharringtonvisual.com/

Last edited by Dean Harrington; April 9th, 2015 at 12:30 AM.
Dean Harrington is offline   Reply With Quote
Old April 8th, 2015, 10:52 PM   #6
Inner Circle

Join Date: May 2005
Location: Burnaby, BC, Canada
Posts: 2,963
Re: Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable

SWIT has released a new S-8U63 with a blue strip instead of the red strip that will work better with the FS7 in terms of reading time remaining. Sony changed how the battery data is communicated in the FS7, X160, and X180.

I'm also looking forward to SWIT's 96wh battery that should be compatible with all current cameras (can't say for future cameras, cause they'll keep changing the protocol)
__________________
I wait for the day cost-efficient global shutter 60fps capable CMOS sensors emerge for use on major manufacturers' cameras. (Sony, Canon, etc.) Rolling Shutters are a plague.
Jack Zhang is offline   Reply With Quote
Old April 9th, 2015, 12:09 AM   #7
Major Player

Join Date: Nov 2002
Location: Tokyo
Posts: 898
Re: Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable

I'm trying to get these manufacturers I'm working with to develop Olivine battery cells. Some are already being made in China ... that type of battery LiFePO4 or LFP is a lithium iron phosphate cathode material. The beauty of this type of battery is that it is safe for travel. I had my Li-ion battery in my MacBookPro swell up ... had to discard the damn thing as it certainly was way to old to return to Apple.
Olivine and Graphene are new materials which will eventually be used by most battery makers simply because they offer longer lifetimes, better power density and are much safer. Sony has their new Olivine battery on the market but between $450 (adorama) and $600 (B&H) + $1,000 for the charger ... that's a lot of bucks. The batteries do last 7 1/2 hours however ... too bad the setup is so expensive!
__________________
Sony EX3, Panasonic DVX 100, SG Blade, Nanoflash, FCP 7, MacBookPro intel.
http://www.deanharringtonvisual.com/
Dean Harrington is offline   Reply With Quote
Old April 9th, 2015, 08:54 AM   #8
Inner Circle

Join Date: May 2005
Location: Burnaby, BC, Canada
Posts: 2,963
Re: Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable

Carbon batteries sound like the ideal next technology to replace lithium. Glad to hear Olivine is one of the steps towards carbon batteries.

A carbon BP-U battery sounds so ideal! Hope this could be a reality soon.
__________________
I wait for the day cost-efficient global shutter 60fps capable CMOS sensors emerge for use on major manufacturers' cameras. (Sony, Canon, etc.) Rolling Shutters are a plague.
Jack Zhang is offline   Reply With Quote
Old April 9th, 2015, 09:04 AM   #9
Regular Crew

Join Date: Dec 2006
Location: Kerala, India
Posts: 93
Re: Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable

Hi,

B&H selling this SWIT battery and also warning it is not compatible with FS7.

SWIT S-8U63 Li-Ion Rechargeable Battery for Sony Camera S-8U63

SWIT S-8U63 Li-Ion Rechargeable Battery for Sony Camera PMW, EX1, F3

Note: This battery is not compatible with the Sony PXW-FS7 camera.

Rajiv
Rajiv Attingal is offline   Reply With Quote
Old April 9th, 2015, 09:13 AM   #10
Contributor

Join Date: Oct 2001
Location: Lexington, Ma
Posts: 283
Re: Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable

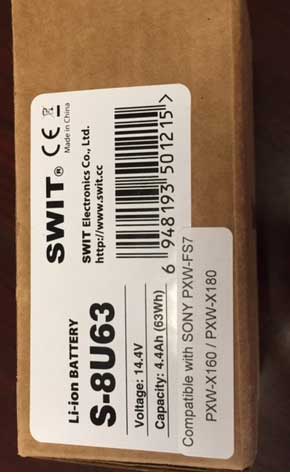

Swit updated their S-8U63 recently to make it compatible; they unfortunately did not change the model number creating confusion. The new ones have a sticker attached to it.
Attached Thumbnails
Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable-s-8u63-7.jpg
__________________
Alex Dolgin
Dolgin Engineering
Camera DC Power accessories, Fast 4 position Battery Charger
http://www.dolgin.net
Alex Dolgin is offline   Reply With Quote
Old April 9th, 2015, 06:38 PM   #11
Major Player

Join Date: Nov 2002
Location: Tokyo
Posts: 898
Re: Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable

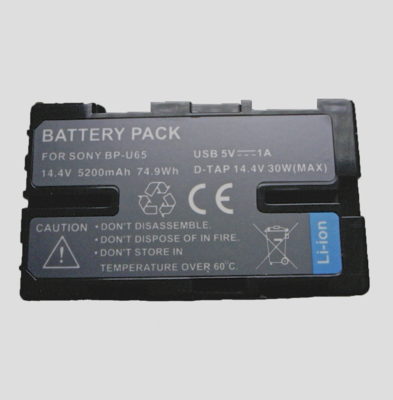

This is the bottom of the BP-U65 battery (8 internal Samsung cells 2600mAh each). Works fine on the Sony FS7 ... tested it myself.
Attached Thumbnails
Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable-bp-u65-bottom.png
__________________
Sony EX3, Panasonic DVX 100, SG Blade, Nanoflash, FCP 7, MacBookPro intel.
http://www.deanharringtonvisual.com/
Dean Harrington is offline   Reply With Quote
Old April 10th, 2015, 12:54 AM   #12
Regular Crew

Join Date: Dec 2006
Location: Kerala, India
Posts: 93
Re: Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable

Quote:
Originally Posted by Alex Dolgin View Post
Swit updated their S-8U63 recently to make it compatible; they unfortunately did not change the model number creating confusion. The new ones have a sticker attached to it.
Alex,
Can you conform this new battery has blue strip instead of the red strip.

Thanks
Rajiv Attingal is offline   Reply With Quote
Old April 11th, 2015, 10:24 PM   #13
Contributor

Join Date: Oct 2001
Location: Lexington, Ma
Posts: 283
Re: Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable

My understanding is that they started putting "FS7 compatible "stickers on the red label batteries, and soon after that they switched the labels to blue color. It does not really matter if the label is red or blue. All newly made within last 2-3 months batteries are compatible.
__________________
Alex Dolgin
Dolgin Engineering
Camera DC Power accessories, Fast 4 position Battery Charger
http://www.dolgin.net
Alex Dolgin is offline   Reply With Quote
Old April 11th, 2015, 10:35 PM   #14
Regular Crew

Join Date: Dec 2006
Location: Kerala, India
Posts: 93
Re: Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable

Alex, Thanks for the conformation.

Rajiv
Rajiv Attingal is offline   Reply With Quote
Old April 16th, 2015, 06:22 PM   #15
Inner Circle

Join Date: May 2005
Location: Burnaby, BC, Canada
Posts: 2,963
Re: Swit 8U63 miniD-tap by Westside A V free STL file or buy ready made cable

Quote:
Originally Posted by Dean Harrington View Post
This is the bottom of the BP-U65 battery (8 internal Samsung cells 2600mAh each). Works fine on the Sony FS7 ... tested it myself.
SWIT has announced the S-8U93, a 86wh battery in the same size as the 63. Not quite 96wh, but comparable to the BP-U90, and with D-tap and USB!

my pmw-300
__________________
I wait for the day cost-efficient global shutter 60fps capable CMOS sensors emerge for use on major manufacturers' cameras. (Sony, Canon, etc.) Rolling Shutters are a plague.
Jack Zhang is offline   Reply
