Old November 20th, 2015, 05:57 PM   #1
Regular Crew

Join Date: Nov 2006
Location: Ottawa, Canada
Posts: 179
Audio capabilities of the FS 5&7

I'm weighing the advantages/disadvantages of the FS5 and FS7, and the audio capabilities are of some concern to me. I'm used to having four channels on my current camera which allow me to run a stereo camera mic on 3&4, and talent mic's on 1&2.

The FS5 specifications only show two channels of audio were as the FS7 lists four channels. However in brackets Sony indicates that only two channels of record/playback is possible on the FS7.

Is it possible to record four sources at the same time on an FS7? I know there are two xlr inputs on the FS7, and integrated input capability on multi interface shoe. Can you put two wireless channels through the interface?
Peter Newsom is offline   Reply With Quote
Old November 21st, 2015, 09:39 PM   #2
Vortex Media

Join Date: Jan 2009
Location: New England, USA
Posts: 2,481
Re: Audio capabilities of the FS 5&7

Yes you can record 4 channels from a combination of 5 different possible sources on the FS7. But you need to have a XLR-K2M or XL-K1M accessory to feed channels 3 and/or 4.

Sony XLR-K2M XLR Adapter Kit with Microphone XLR-K2M B&H Photo
Sony XLR-K1M Adapter and Microphone Kit XLR-K1M B&H Photo Video

The five potential sources are:

1) XLR1
2) XLR2
3) Internal Mic
4) XLR3 via K2M or K1M
5) XLR4 via K2M or K1M

Be aware that there are also some limitations on which inputs can be routed to which of the four channels, and which channels can be monitored at any given time.

Doug Jensen's Sony PXW-FS7 Field Guide Book

.
__________________
Vortex Media http://www.vortexmedia.com/
Sony FS7, F55, and XDCAM training videos, field guides, and other production tools
Doug Jensen is offline   Reply With Quote
Old November 22nd, 2015, 06:33 AM   #3
Regular Crew

Join Date: Nov 2006
Location: Ottawa, Canada
Posts: 179
Re: Audio capabilities of the FS 5&7

Thanks Doug, that's very helpful. Now if only the FS7 had the variable ND filter! No doubt that feature will be added to the next iteration of the camera. I suppose adjusting the ISO of the camera has a similar effect?
Peter Newsom is offline   Reply With Quote
Old November 22nd, 2015, 02:31 PM   #4
Major Player

Join Date: Jan 2010
Location: Tinton Falls, NJ
Posts: 749
Re: Audio capabilities of the FS 5&7

Quote:
Originally Posted by Peter Newsom View Post
Thanks Doug, that's very helpful. Now if only the FS7 had the variable ND filter! No doubt that feature will be added to the next iteration of the camera. I suppose adjusting the ISO of the camera has a similar effect?
Hardly... a range of 1/4 to 1/128 is significantly more than you would want to do with ISO - unless you don't mind running with it really high! I love having a variable ND option when it's a partly cloudy day (going back and forth between direct sun and dense clouds!)
Dave Sperling is offline   Reply With Quote
Old November 24th, 2015, 09:23 PM   #5
Photographer

Join Date: Nov 2004
Location: Allen, Texas
Posts: 154
Re: Audio capabilities of the FS 5&7

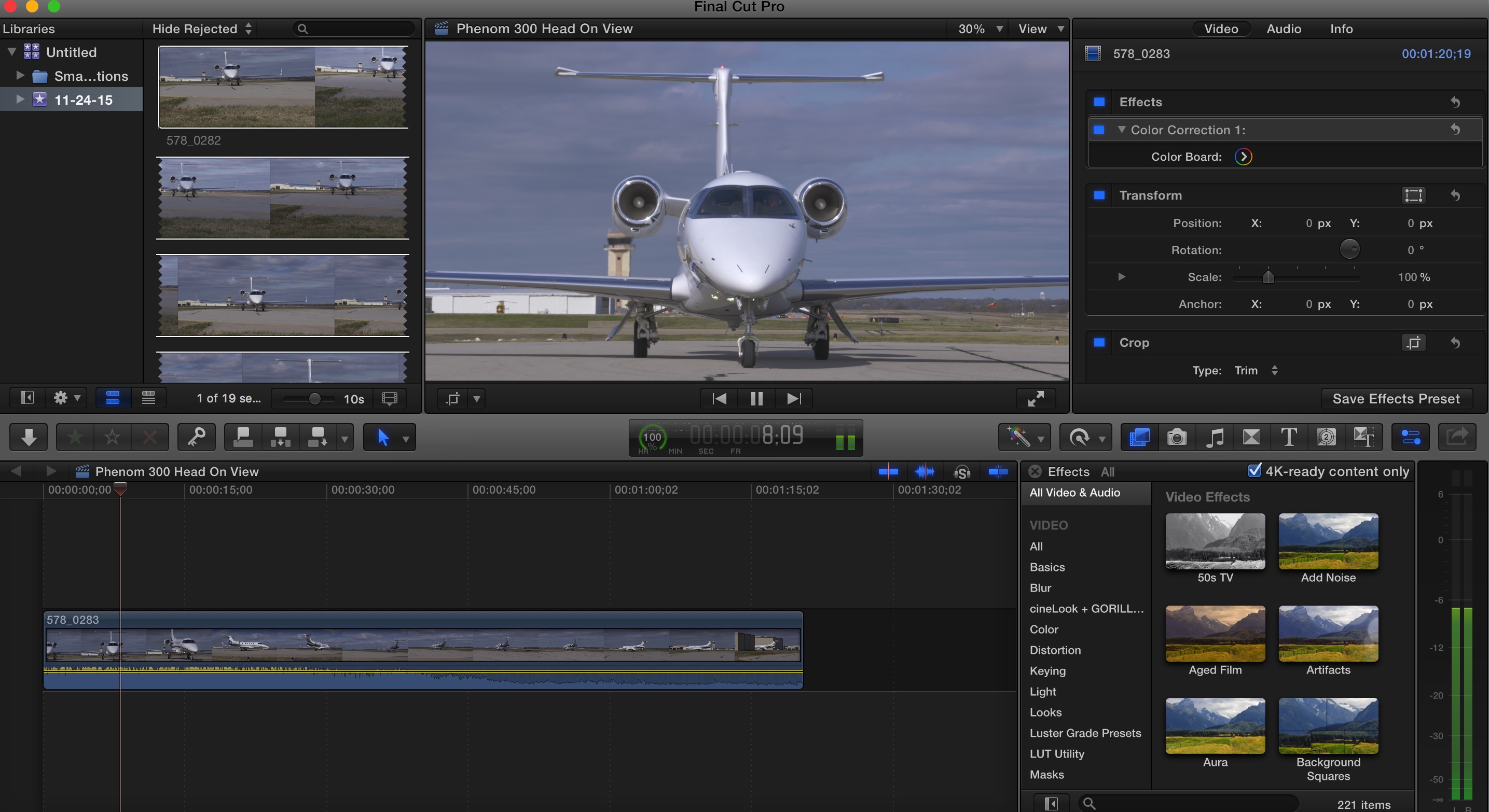

Being a relative newcomer to all things cinema, and my FS/7, I learn multiple things each time I fire it up. Apparently my audio is not set correctly because the jet engine audio is breaking up at the high end. I was working with the F/22 Raptor Demo team in August and I noticed a little clipping as they taxied close to me, less when they were performing above me. Today the audio was pretty much trash peaking at around -6 to -8.
Attached Thumbnails
Audio capabilities of the FS 5&7-screen-shot-2015-11-24-9.27.32-pm.jpg
__________________
Jim
James R. Wilson Sr. is offline   Reply With Quote
Old November 25th, 2015, 07:10 AM   #6
Vortex Media

Join Date: Jan 2009
Location: New England, USA
Posts: 2,481
Re: Audio capabilities of the FS 5&7

Quote:
Originally Posted by Peter Newsom View Post
Thanks Doug, that's very helpful. Now if only the FS7 had the variable ND filter! No doubt that feature will be added to the next iteration of the camera. I suppose adjusting the ISO of the camera has a similar effect?
The variable ND filter is a cool idea and I agree that we'll see it on more cameras but the 3 built-in ND filters of the FS7 are more than sufficient for getting your exposure in the right ballpark without touching the ISO/Gain. Personally I almost never touch the ISO/Gain setting on a shoot. The advantage of the variable ND is that you'll be able to fine-tune the exposure without touching the iris, which of course, can affect depth of field in ways you may not want.
__________________
Vortex Media http://www.vortexmedia.com/
Sony FS7, F55, and XDCAM training videos, field guides, and other production tools
Doug Jensen is offline   Reply
