Rigging the FS5

So I am starting to figure out how to use and how to rig my FS5.

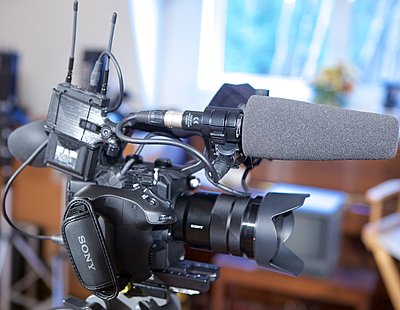

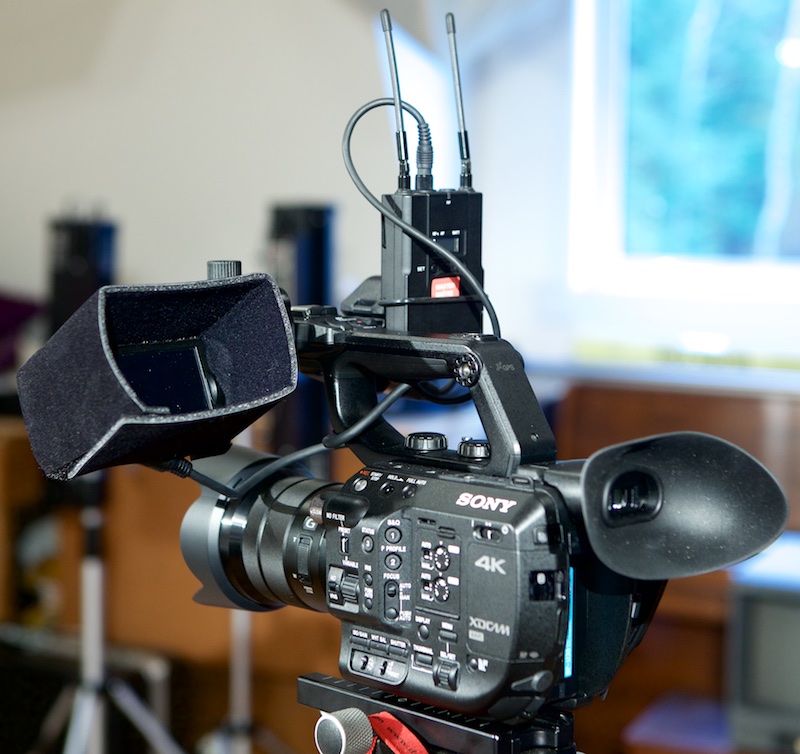

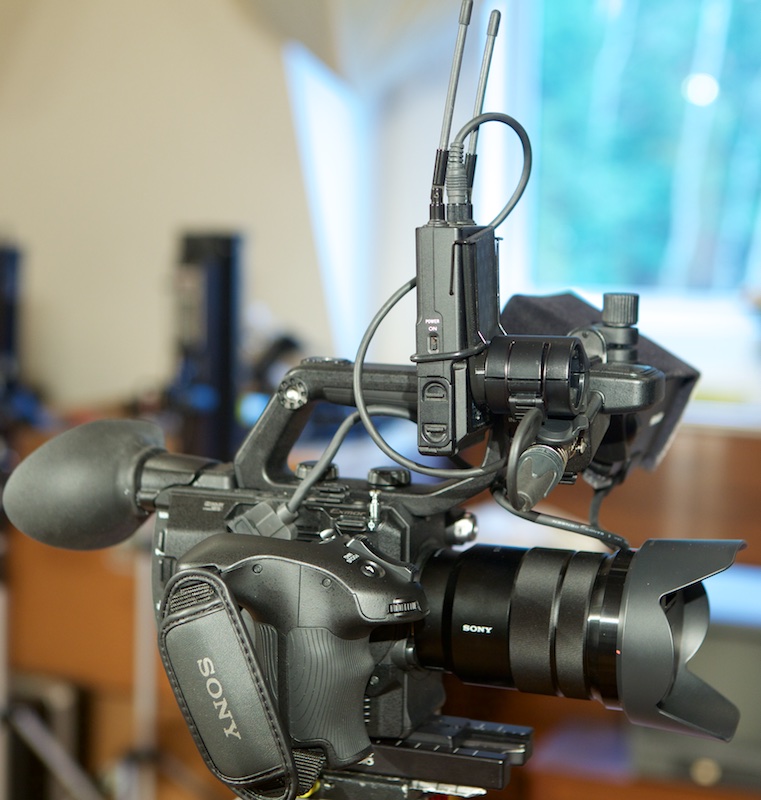

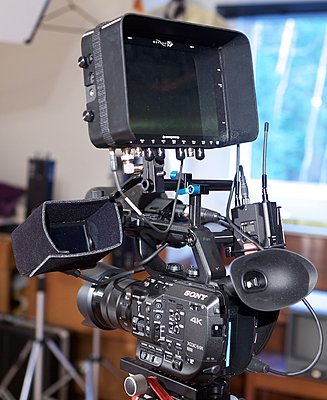

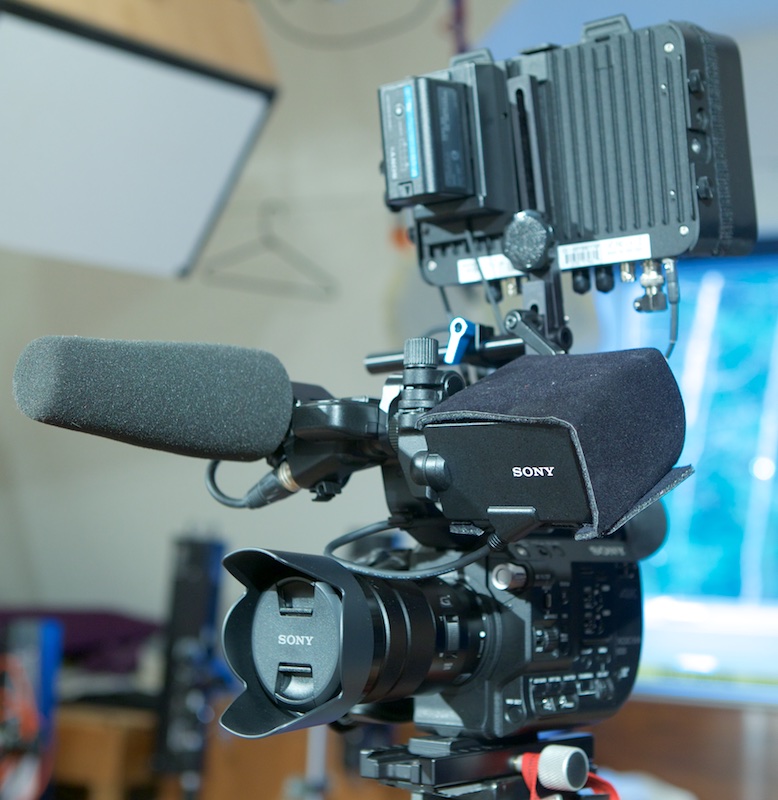

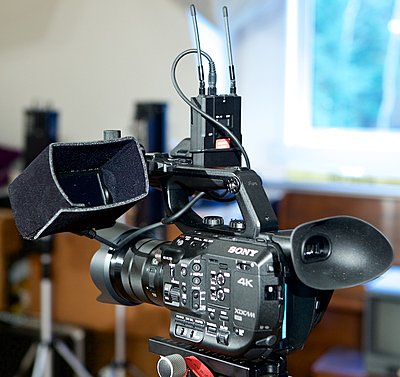

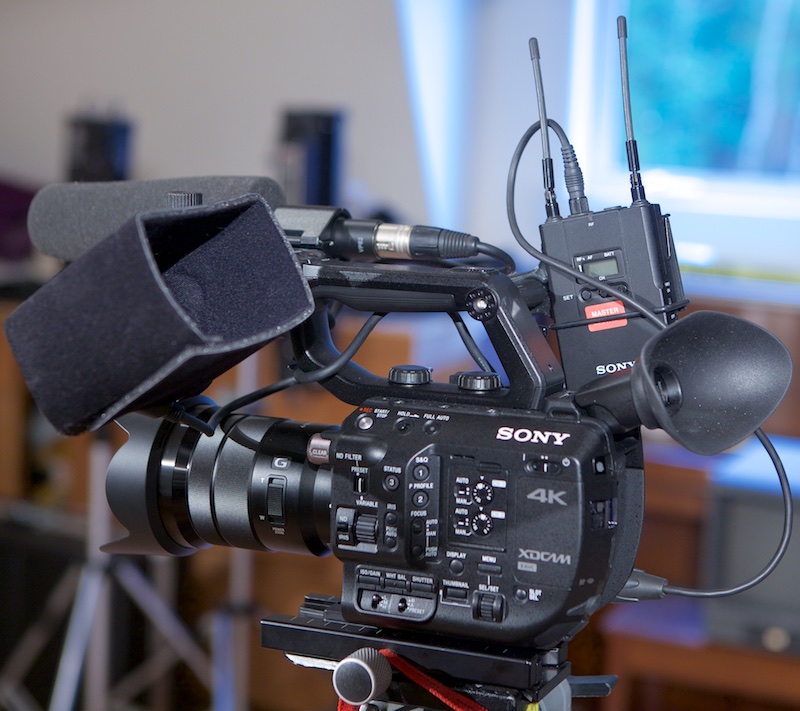

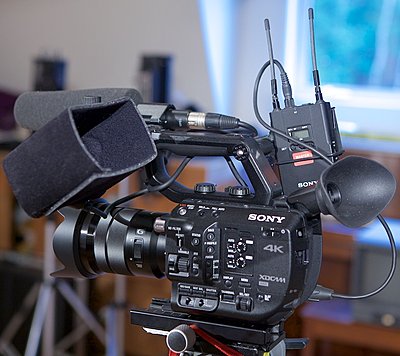

Here are my first simple kit parts. 2 ways of rigging wireless mics, with and W/O shotgun. And how to mount the Odyssey.

I am working on a quick release system for front rails for matte box and big lens support, and I already have nice simple solution for Metabones support, photos of that later, a $10.00 solution.

The 2 wireless mic supports are also very affordable. And some parts are 3D printed, I will sell them on my WEBstore but also provide them for free if you have your own 3D printer.

I am also making a very collapsible hood. It weighs nothing...

Lots more to come. Including shoulder mount kit.
Attached Thumbnails
Rigging the FS5-fs5initialrigs1.jpg   Rigging the FS5-fs5initialrigs2.jpg

Rigging the FS5-fs5initialrigs3.jpg   Rigging the FS5-fs5initialrigs4.jpg

Rigging the FS5-fs5initialrigs5.jpg   Rigging the FS5-fs5initialrigs6.jpg

__________________
Olof Ekbergh olof@WestsideAV.com
Westside A V Studios http://www.WestsideAVstore.com/
Olof Ekbergh is offline   Reply With Quote
Old December 3rd, 2015, 04:56 PM   #2
Trustee

Join Date: Aug 2006
Location: San Diego, CA
Posts: 1,076
Re: Rigging the FS5

Is that neoprene around the on-board monitor? How are you holding it on there, and does it stay okay?
Mike Watson is offline   Reply With Quote
Old December 3rd, 2015, 07:39 PM   #3
Sponsor: Westside AV

Join Date: Dec 2008
Location: Mount Washington Valley, NH, USA
Posts: 1,365
Re: Rigging the FS5

Quote:
Originally Posted by Mike Watson View Post
Is that neoprene around the on-board monitor? How are you holding it on there, and does it stay okay?
It is made the same way as my Odyssey hoods.
Odyssey 7Q Hood by Westside AV

It is a layer of velcro fabric on the inside with black velour on the outside and plastic stiffener in between. It is held on with velcro on the EVF, it is a very sturdy setup I have sold lots of them for the Odyssey, this one Is just smaller, and it does not need the extra small plastic hood I make for the Odyssey. It folds up flat when not in use and is shaped so the switches can be accessed on the EVF.
__________________
Olof Ekbergh olof@WestsideAV.com
Westside A V Studios http://www.WestsideAVstore.com/
Olof Ekbergh is offline   Reply With Quote
Old December 6th, 2015, 08:50 AM   #4
Sponsor: Westside AV

Join Date: Dec 2008
Location: Mount Washington Valley, NH, USA
Posts: 1,365
Re: Rigging the FS5

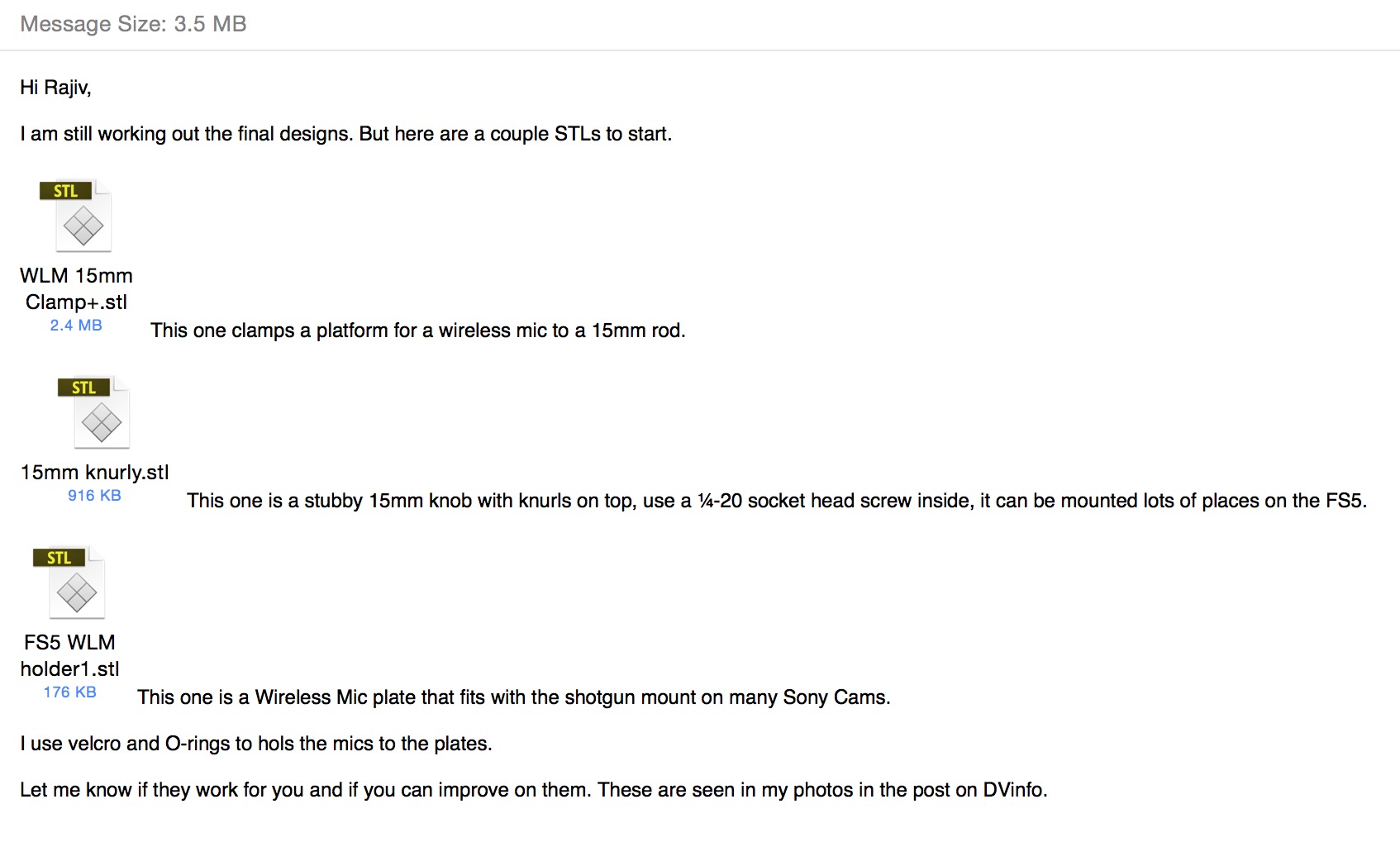

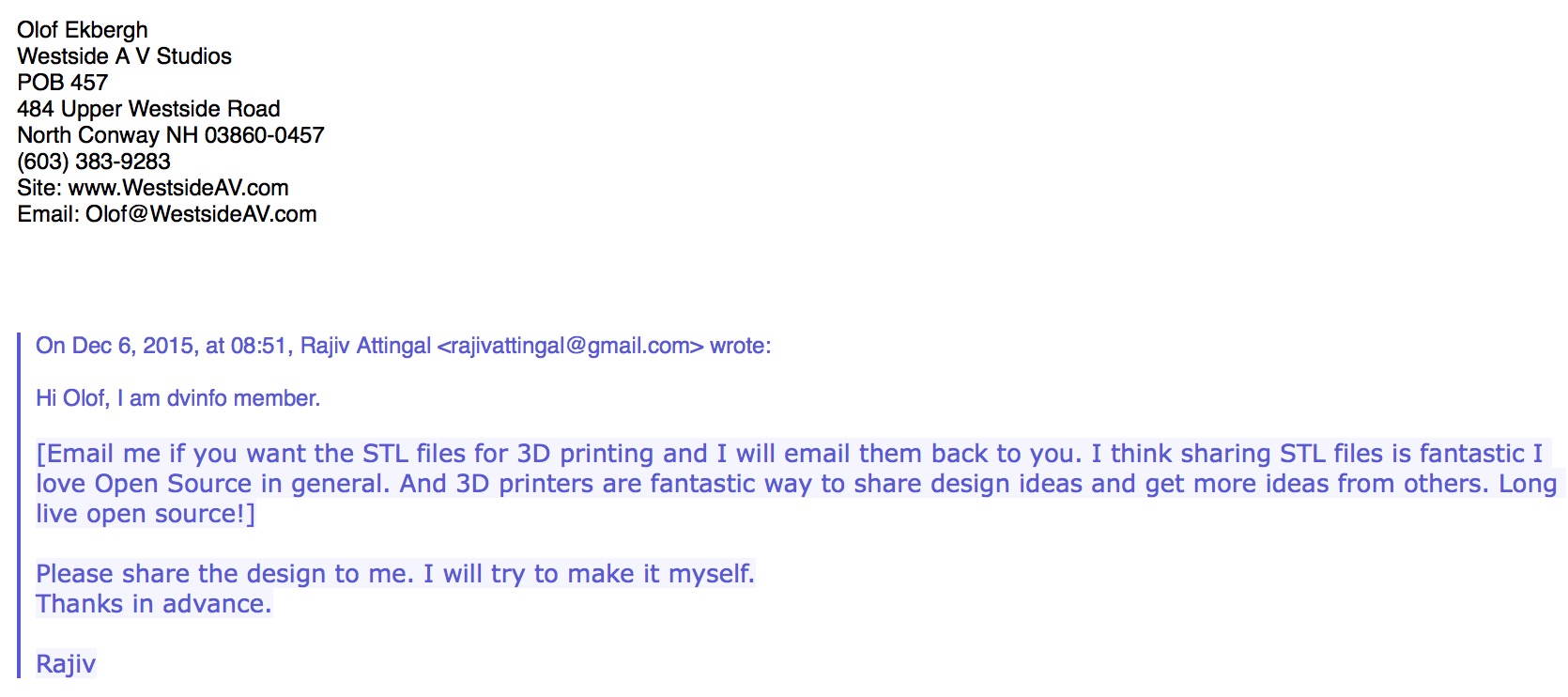

I am sharing those STLs, here is my reply to the first request.

I like open source, if any others here want to work on this contact me...
Attached Thumbnails
Rigging the FS5-screen-shot-2015-12-06-10.02.40.jpg   Rigging the FS5-screen-shot-2015-12-06-10.02.21.jpg
