Need recommendation for gimbal at DVinfo.net

Go Back   DV Info Net > The Tools of DV and HD Production > Support Your Local Camera > Stabilizers (Steadicam etc.)


Reply

Thread Tools Search this Thread
Old March 11th, 2016, 10:21 AM   #1
Wrangler

Join Date: Jan 2002
Location: Los Angeles, CA
Posts: 6,781
Need recommendation for gimbal

Hi: helping a friend with a really interesting type of shot for a TV pilot. They are looking to simulate a drone POV by putting a Blackmagic camera on an extension post on a Steadicam, getting the lens up to 10 ft. They don't want to use an actual drone because of proximity to the actors. Can anyone recommend a small/lightweight gimbal that can accommodate the BM camera and lens and has remote control capabilities, at least for tilt? (as the operator can do pan on the post). Preferably a real tilt control that can be feathered, to avoid the "security camera" feel.
__________________
Charles Papert
www.charlespapert.com
Charles Papert is offline   Reply With Quote
Old March 11th, 2016, 01:24 PM   #2
Sponsor: Camera Motion Research

Join Date: Jan 2005
Location: Raleigh, NC
Posts: 55
Re: Need recommendation for gimbal

Charles, are you talking about a Pocket camera, or MIcro studio? Do you have the weight of the camera and lens.
Rich Greb is offline   Reply With Quote
Old March 12th, 2016, 11:04 AM   #3
Wrangler

Join Date: Jan 2002
Location: Los Angeles, CA
Posts: 6,781
Re: Need recommendation for gimbal

BM pocket. Not sure about lens yet.
__________________
Charles Papert
www.charlespapert.com
Charles Papert is offline   Reply With Quote
Old March 12th, 2016, 11:53 PM   #4
Regular Crew

Join Date: Aug 2012
Location: Corvallis, OR
Posts: 65
Re: Need recommendation for gimbal

Hi Charles -

The Letus Helix Jr. is a dependable and simple gimbal for small-ish rigs up to 12lbs (I've been using it with a C100 for a year). The base is built flat to be able to attach to tripods or other support. I've never tried remote operation via an RC controller, but they also make an extra-long joystick that's probably as long as you'll need for a jib/crane setup.

Helix Joystick - Extra Long (40 ft) - Letus Corporation

You can adjust the speed of the pan, roll, and tilt easily with an app.

Cheers,
Slavik
Slavik Boyechko is offline   Reply With Quote
Old March 14th, 2016, 06:06 AM   #5
Wrangler

Join Date: Jan 2002
Location: Los Angeles, CA
Posts: 6,781
Re: Need recommendation for gimbal

Slavik: If you mount the Helix Jr onto a Steadicam or tripod by screwing directly into the base, isn't this defeating the tilt mechanism? I see they have a bracket available that spans the handles that they describe for this type of use, that makes more sense to me.
__________________
Charles Papert
www.charlespapert.com
Charles Papert is offline   Reply With Quote
Old March 14th, 2016, 04:36 PM   #6
Regular Crew

Join Date: Aug 2012
Location: Corvallis, OR
Posts: 65
Re: Need recommendation for gimbal

Charles: sorry I wish I could be more helpful. I was just passing the gimbal recommendation along, but have only ever used it solo in follow mode, where tilting the right handle/motor tilts the gimbal up.

A call to Letus in Portland would answer all your questions though, they're very responsive.

Cheers,
Slavik
Slavik Boyechko is offline   Reply With Quote
Old March 14th, 2016, 05:28 PM   #7
Regular Crew

Join Date: Jan 2006
Location: Lynnwood, WA
Posts: 89
Re: Need recommendation for gimbal

Freefly Systems MōVI M5.
Attached Thumbnails
Need recommendation for gimbal-movi_w_remote.jpeg
__________________
Michael Stevenson Sony FS7/ FS5/ A7s/Glidecam/Movi M5/Phantom 3 Pro/ifootage slider/Senheiser/FCPX/Premiere Pro/And a whole lot more
Michael Stevenson is offline   Reply With Quote
Old March 15th, 2016, 01:19 AM   #8
Wrangler

Join Date: Jan 2002
Location: Los Angeles, CA
Posts: 6,781
Re: Need recommendation for gimbal

Ha--thank you Michael but I did say "small/lightweight gimbal"--! I think the M5 is overkill for this particular application.

Slavik, thank you for your suggestion as it was interesting looking through the Letus offerings.

Rich Greb recommended the CameTV single gimbal which has an inexpensive remote and while a little clunky, has potential.

In reality, all that is needed for this application is a miniaturized remote tilt head, as stabilization isn't really needed (and pan is covered by the Steadicam post itself). However such a thing would cost far more (and do far less) because there hasn't been a run of manufacturers making them as there has been with the gimbals.

It appears my buddy isn't going to go with anything this fancy--they are going to pre-set the tilt angle for a given shot via a wedge plate.

Thanks all for your input!
__________________
Charles Papert
www.charlespapert.com
Charles Papert is offline   Reply With Quote
Old March 15th, 2016, 02:30 PM   #9
Regular Crew

Join Date: Jan 2006
Location: Lynnwood, WA
Posts: 89
Re: Need recommendation for gimbal

Charles, The remote on the movi is quite amazing. But if you really need something small it probably is not the best bet. Are you going to NAB? It would be an honor to meet you. :-)
__________________
Michael Stevenson Sony FS7/ FS5/ A7s/Glidecam/Movi M5/Phantom 3 Pro/ifootage slider/Senheiser/FCPX/Premiere Pro/And a whole lot more
Michael Stevenson is offline   Reply With Quote
Old March 15th, 2016, 11:00 PM   #10
Wrangler

Join Date: Jan 2002
Location: Los Angeles, CA
Posts: 6,781
Re: Need recommendation for gimbal

Sadly no NAB for me again this year. Starting a series the same day exhibits open.
__________________
Charles Papert
www.charlespapert.com
Charles Papert is offline   Reply With Quote
Old March 18th, 2016, 08:04 PM   #11
Inner Circle

Join Date: Feb 2004
Location: Brooklyn, NY, USA
Posts: 3,778
Re: Need recommendation for gimbal

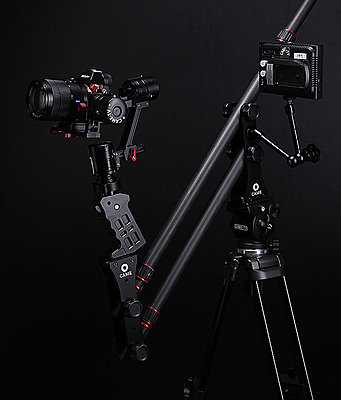

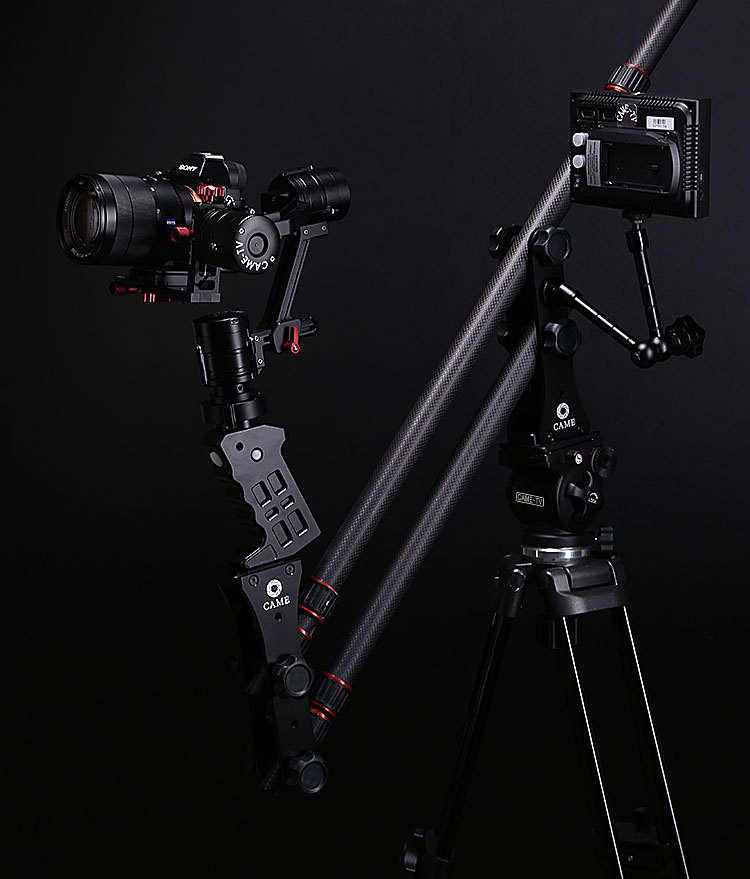

If you limit BMPCC to MFT lenses there's the CAME-TV Single

Not exactly same use as yours but they do show this on a small jib.

http://www.came-tv.com/images/catego...gx7-gimbal.jpg
Attached Thumbnails
Need recommendation for gimbal-11_came-single-panasonic-gx7-gimbal.jpg
Craig Seeman is offline   Reply With Quote
Old March 18th, 2016, 08:08 PM   #12
Wrangler

Join Date: Jan 2002
Location: Los Angeles, CA
Posts: 6,781
Re: Need recommendation for gimbal

Yes, that was recommended earlier.

I've passed on suggestions and the shoot is early next week...I have a guess they forewent any "newfangled" gear and found a mechanical way to do it.
__________________
Charles Papert
www.charlespapert.com
Charles Papert is offline   Reply With Quote
Old March 25th, 2016, 01:14 PM   #13
Major Player

Join Date: Jan 2010
Location: Maassluis, The Netherlands
Posts: 294
Re: Need recommendation for gimbal

M5 overkill?

It is a lightweight gimbal for light cameras.
It can carry the pocketcam with almost any lens, remote follow focus and, if needed wireless video.
Plus you can control it with the MIMIC if you don't like joysticks.

How did it go and what did you use?
__________________
Brainstormnavigator searching for the hole in the sky.....
Audiovisual Designer (NL) - http://www.brokxmedia.nl
Walter Brokx is offline   Reply
