Steadicam Docking Bracket - What's your story?

I just received my Steadicam Solo. Yay. (That $149 sale was too good to pass up.)

And I have light stands from a crummy, old Lowell piece to a really solid Matthews stand. (Plus I have music stands, mic stands, guitar stands...)

What I don't have is a way to dock the stabilizer on any of the stands.

The Solo manual lists part number 804-7900. It's just a simple bracket, but it costs as much as I paid for the Solo(!) And not everybody stocks it.

https://www.bhphotovideo.com/c/produ...g_bracket.html

As anybody with stabilizer experience knows, even with a little EOS-M on the Solo, it's tough to hold it long and steady enough to get a good balance. A docking station is a need more than a luxury.

So, what have others done? Are there other "budget" solutions out there?

And does anybody know the dimensions of the "pin"? I can easily craft something in the workshop, if that's the way I solve it.

And then there's the use case... I'd like to be able to take this, "solo", on the road with just my camera backpack and the Solo in hand or in a small case. I'd like to have a small docking rig without stand that I can clamp to a table, or a counter or something available. I don't want to carry a light stand around when shooting on foot.

I will probably get a carbon fiber rod that I can belt mount as a light, cheap pseudo-vest. I wouldn't use it for walking shots, but it can take weight off the arms when making like a human jib stand. I could use that rod as part of a portable docking contraption.

One nice thing about the Solo is that it quickly extends as a monopod. That means that you can simply extend it, take a load off, and shoot interviews or other somewhat locked-down shots. Collapse it, and you're back to the stabilizer configuration.

I can't be the only one who buys a stabilizer needs to mount it. Tell me your stories!
__________________
Jon Fairhurst
Jon Fairhurst is offline   Reply With Quote
Old March 11th, 2017, 08:36 AM   #2
Trustee

Join Date: Jul 2003
Location: Burlington
Posts: 1,940
Re: Steadicam Docking Bracket - What's your story?

I'm in the same boat for a couple of years now, but I've just made do with a regular sturdy (but not overly heavy) light stand for both balancing and docking. The brand-specific brackets are too expensive in my opinion. To me, the few extra inches away from the stand that the bracket gains you isn't worth the money. I think you could assemble one from readily available parts, but I haven't gone to that effort to find heavy enough components that I could be sure of standing up to the leverage of the offset load.

For "docking" while on the regular stand, I simply loop a strong rubber band around the stand to two convenient points on the bottom sled. The sled has a shape between the weight plates that the stand nestles into and it's easily secure enough to do any work on the camera including changing lenses. Crude? Yes, but it works.

I just have 3 identical regular model stabilizers, not any with monopod capabilities, so taking a stand or two along is pretty much a necessity for me. My stabilizers have standard 5/8-inch openings in the handle so they work on normal stands.

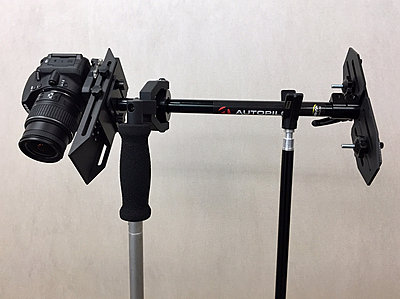

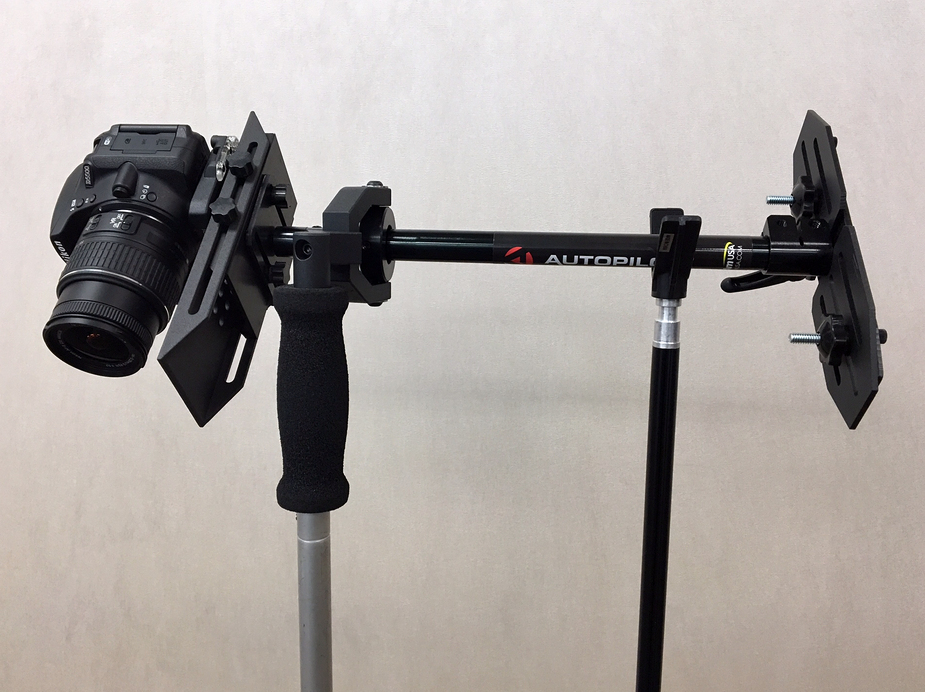

I also use a lightweight stand with a V-notch attachment at the top for help in balancing the rig around the center axis. I've posted this photo here before:
