Improved my 503 HDV head for pennies.

I was fed up with the tilt drag on my 503hdv head, the pan is ok but the tilt drag is non existant, even when wound fully on.
So i fixed it with some blu tack, before you laugh, read on.

I took the tripod apart, it's a toy, not true fluid at all, at least not on the tilt, it's just some viscous fluid between two sets of rings, as the friction damping is wound up these sets of rings come together, and start to stick together courtesy of some sticky fluid, not much fluid in there and too thin in my opinion.
So i cleaned the fluid off and spread some blu-tack over the rings and then reassembled the tripod, and what a difference.
With the drag on slightly i can feel the drag, with the drag fully on it's now too much drag, so now i can have anything between not enough and too much, perfect.
There's no wind back, i checked with the camera on full telephoto with about half of my new drag.

So here's the procedure, left and right as if you're stood behind the tripod, ie shooting with it

> wind the drag all the way off
> remove the pan handle, it stops the right hand side falling of in a minute.
> remove the four allen bolts on top of the head, watch that the spring under the red
release button doesn't spring away, also watch that the other side of the head doesn't fall
off, take it off before it falls off.
> remove the rubber from around the drag knob, just pull the rubber off
> undo the tiny allen grub screw in the side of the drag knob the undo the drag knob.
> with a pair of pin nose pliers undo the nut with the four grooves
> undo the lock knob, (left hand thread)
> remove the bearing
> pull the side of the tripod off, now you can see the rings
> clean the rings and make sure they're both dry
> stuff some blu-tack around both sets of rings
> press the left hand plate back on
> put the right hand side on
> put the four allen bolts back in whilst holding your finger under the red button
> put the bearing back on
> put the lock knob back on, remember the left hand thread, do it all the way up till it locks
> put the grooved nut on, when it's almost done up check that you can still unlock the
lock knob, if not undo the groove nut a bit
> put the drag knob back on
> tighten small allen grub screw

Now try the drag.

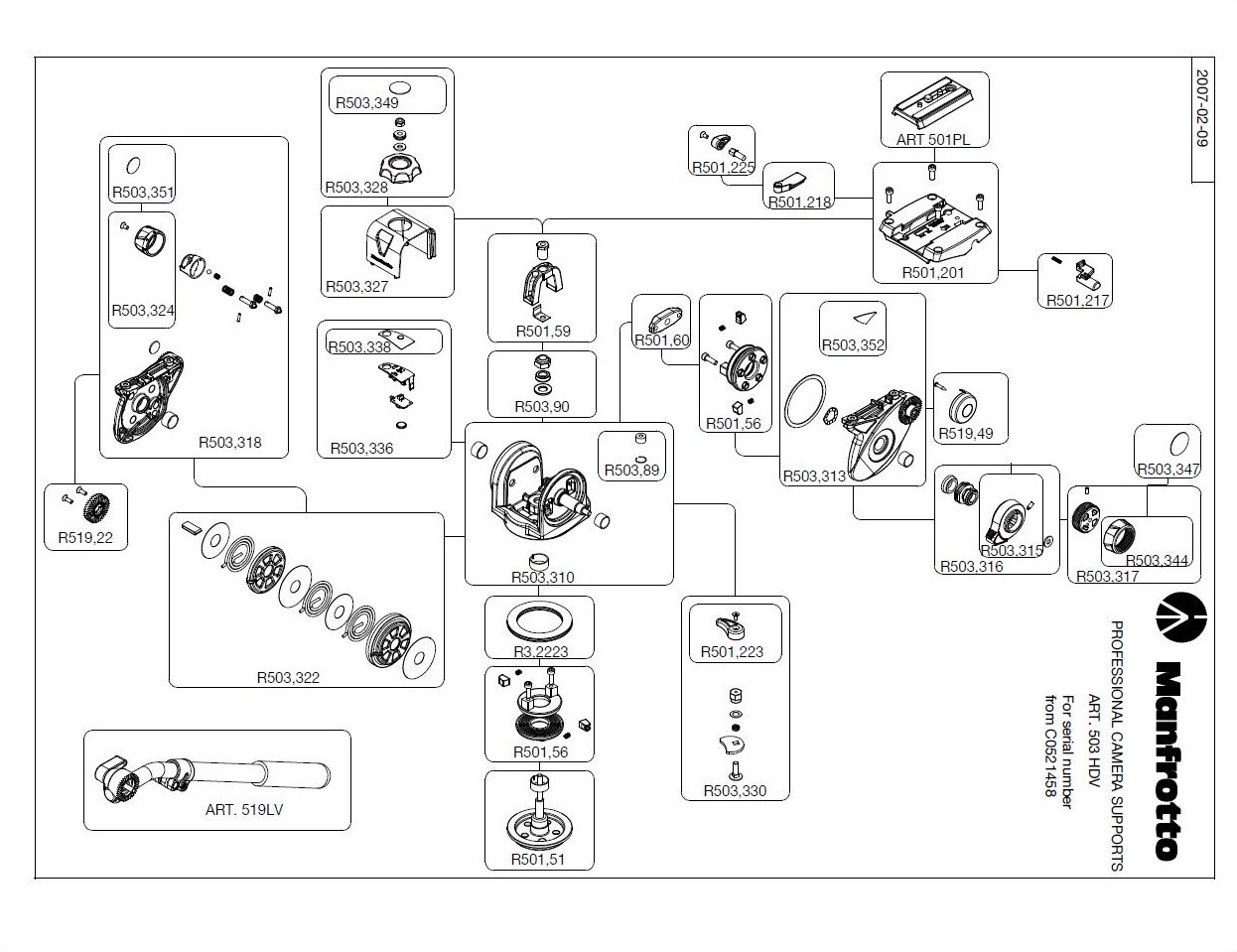

I've attached an exploded pdf of a 503 hdv head

I'll try and sort out a video tutorial soon.

Paul
Attached Thumbnails

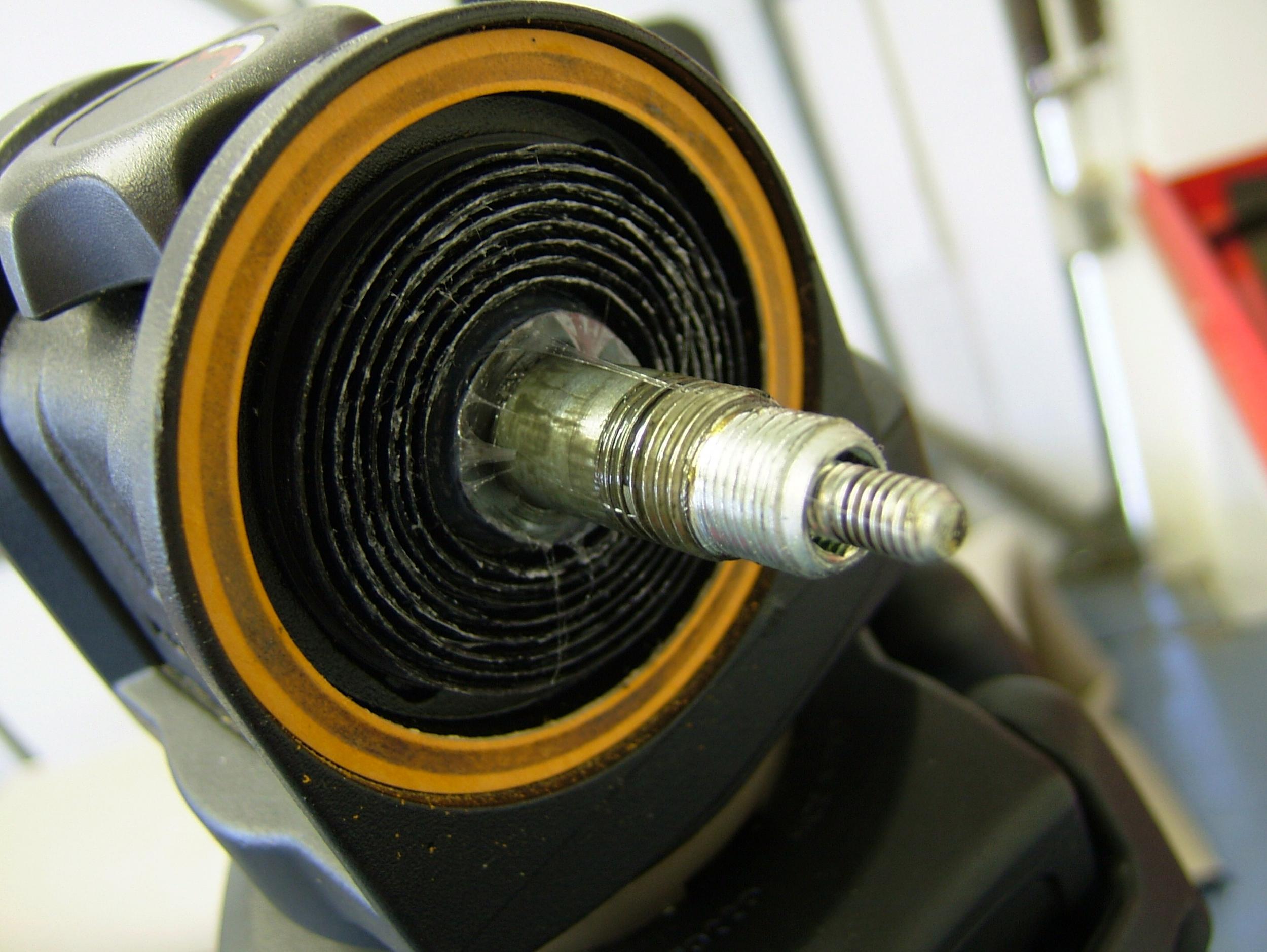

Improved my 503 HDV head for pennies.-dscf2527.jpg
Attached Files
File Type: pdf 503HDV_20070209.pdf (184.3 KB, 1073 views)
__________________
Round 2
Panasonic HC-X1, Vinten PB, Sennheiser G3 bits. Vegas pro 14 on i7,AMD Radeon RX480 8GB.
Paul Kellett is offline   Reply With Quote
Old May 1st, 2009, 11:13 AM   #2
Trustee

Join Date: Dec 2002
Location: Gwaelod-y-garth, Cardiff, CYMRU/WALES
Posts: 1,215
Paul, sounds interesting.
You're right about the awful tilt drag on the 503 - but how long do you reckon before the blu-tack works it's way out from between the rings?
Robin Davies-Rollinson is offline   Reply With Quote
Old May 1st, 2009, 11:27 AM   #3
Trustee

Join Date: Nov 2007
Location: Bristol UK
Posts: 1,271
I can't see how the blu-tack can work it's way out, it's stuffed between the rings on each side with the other set of rings up against it, blu-tak won't run out like fluid, even the original "fluid" didn't run out.
If the blu-tack does come out then it's a 5 min job to put some more in.
Rest assured, if you lay one of these 503 tripods on it's side fluid won't run out because there isn't any, these tripods are a mickey mouse toy.
I'm gonna get a decent tripod this year, probably a sachtler or maybe one of the new vintens, i only tried this mod on my manfrotto besause it seemed like i had nothing to loose.

Paul.
__________________
Round 2
Panasonic HC-X1, Vinten PB, Sennheiser G3 bits. Vegas pro 14 on i7,AMD Radeon RX480 8GB.
Paul Kellett is offline   Reply With Quote
Old June 4th, 2009, 08:57 AM   #4
Trustee

Join Date: Nov 2007
Location: Bristol UK
Posts: 1,271

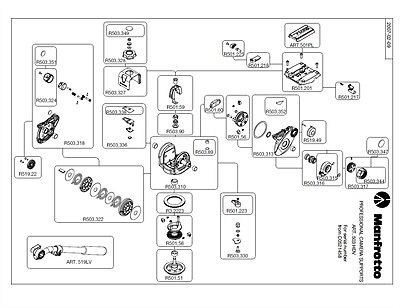

503 hdv exploded diagram.
