Broken Vinten Pro Touch 5 :(

I'm so sad right now.

Someone have an idea how to fix the tripod without buying a complete new head?

I'm very thankfull for any help

greez

J
Attached Thumbnails

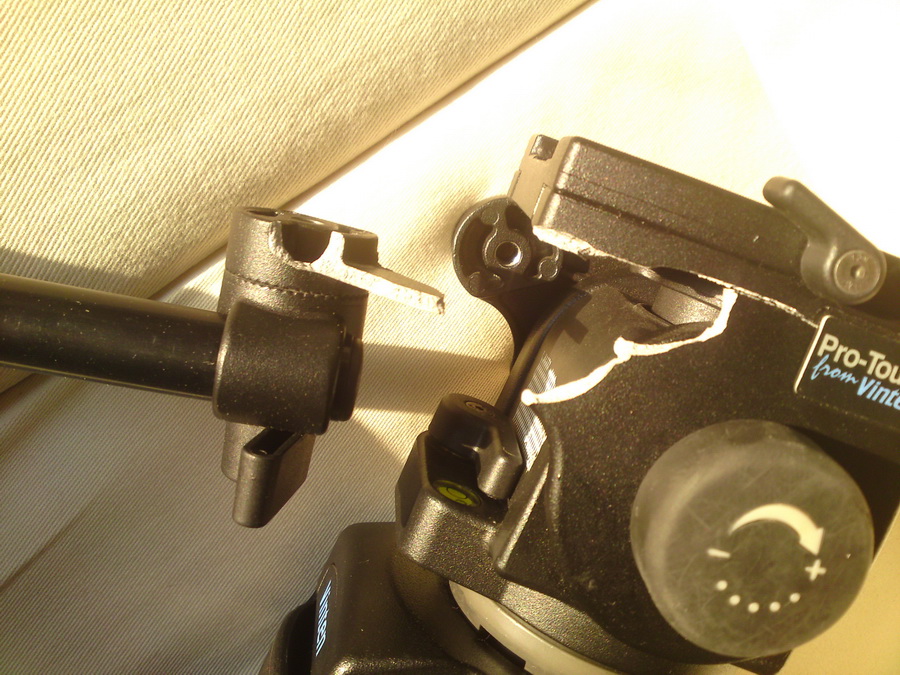

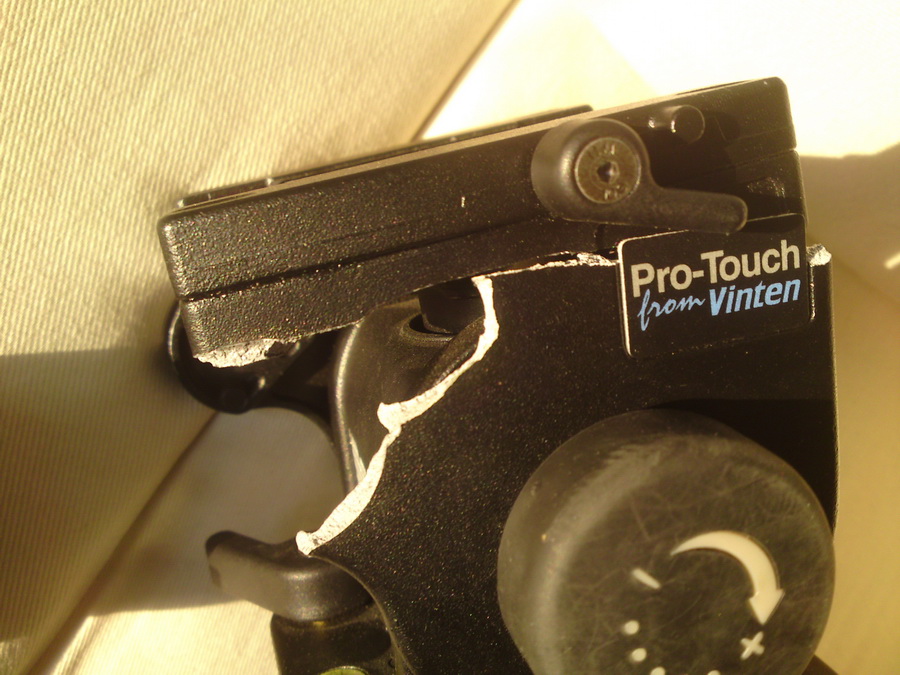

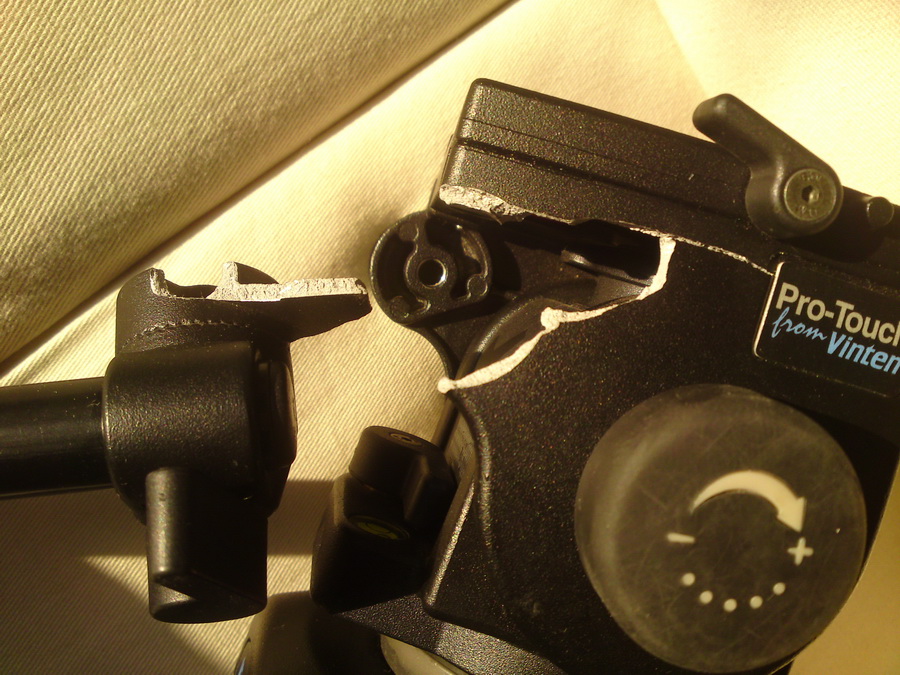

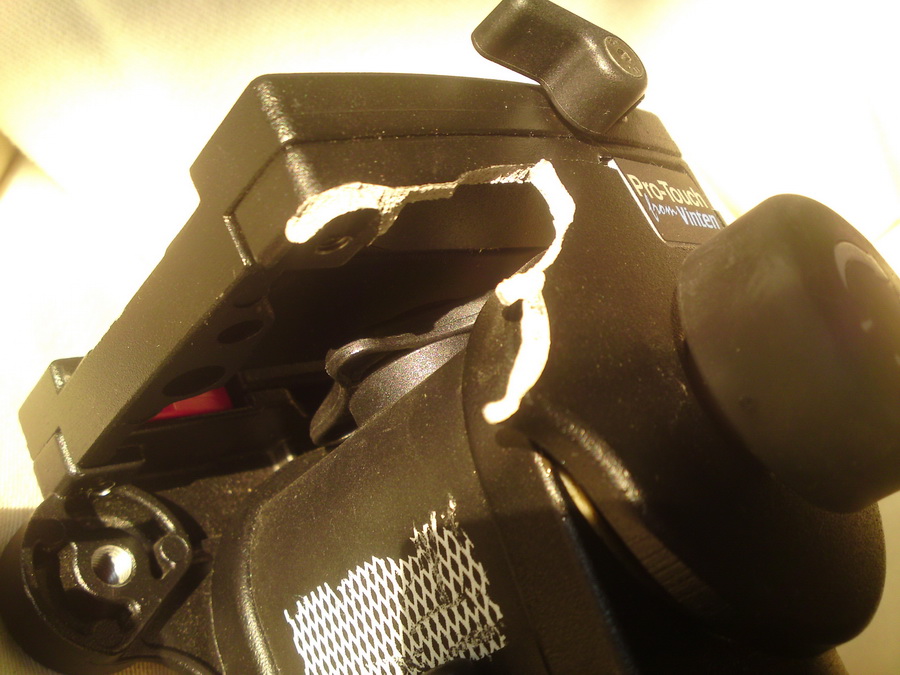

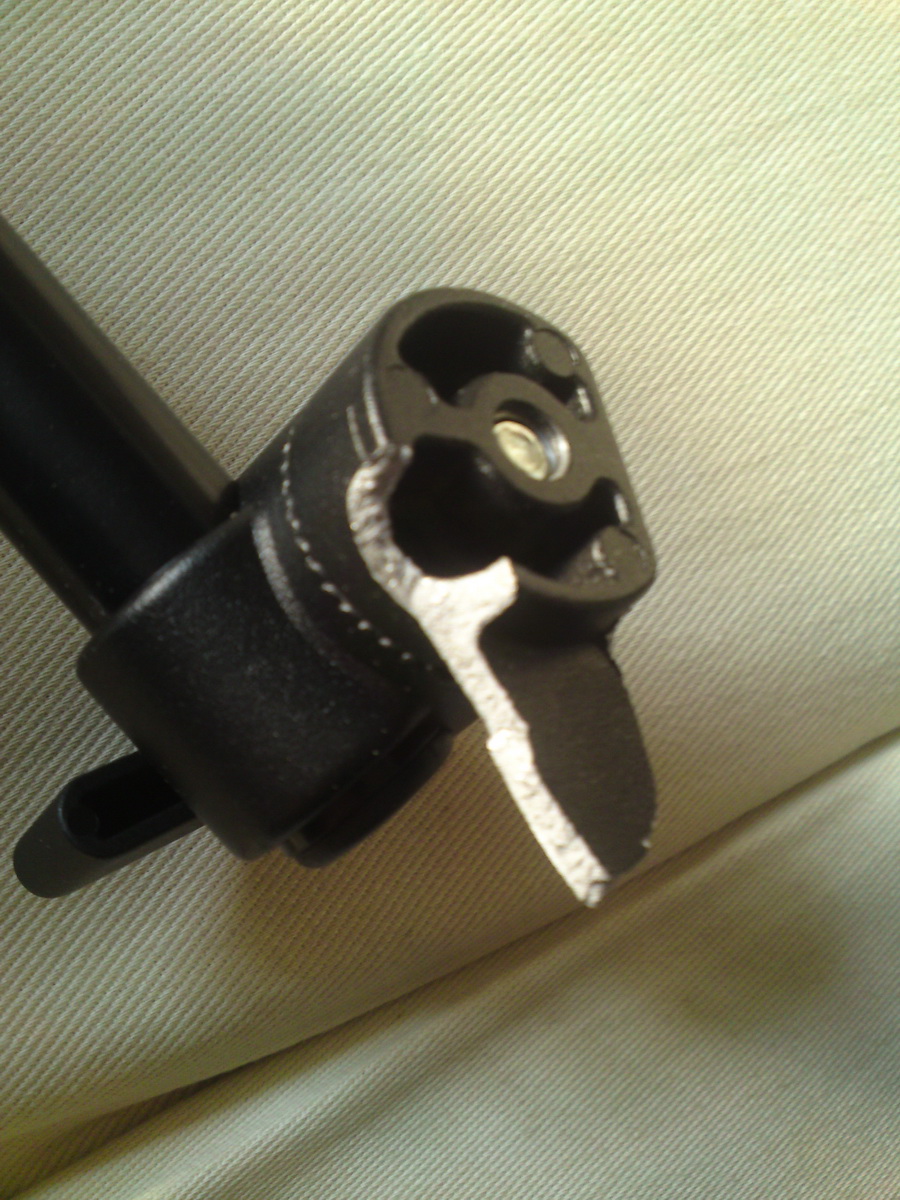

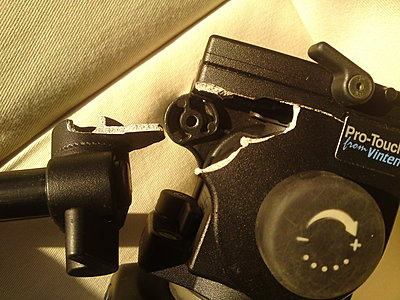

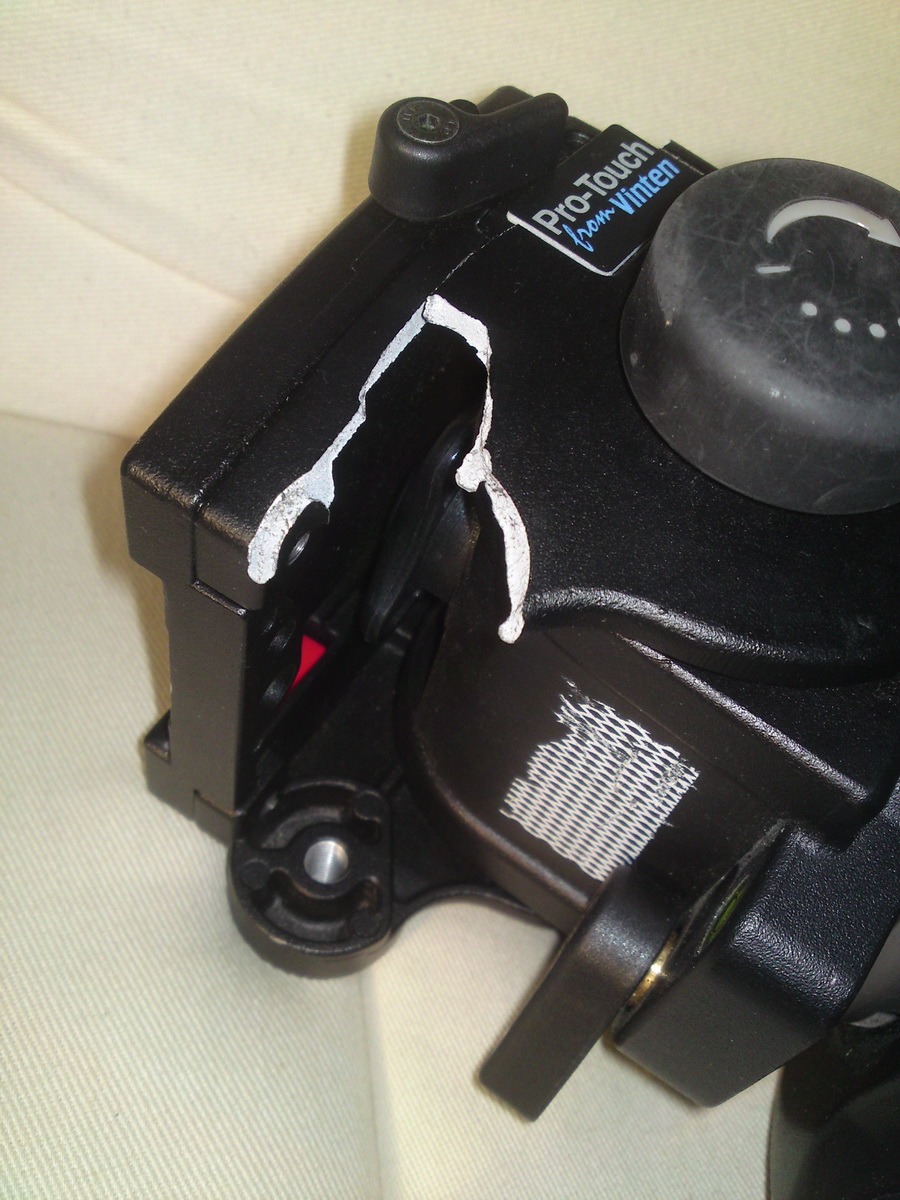

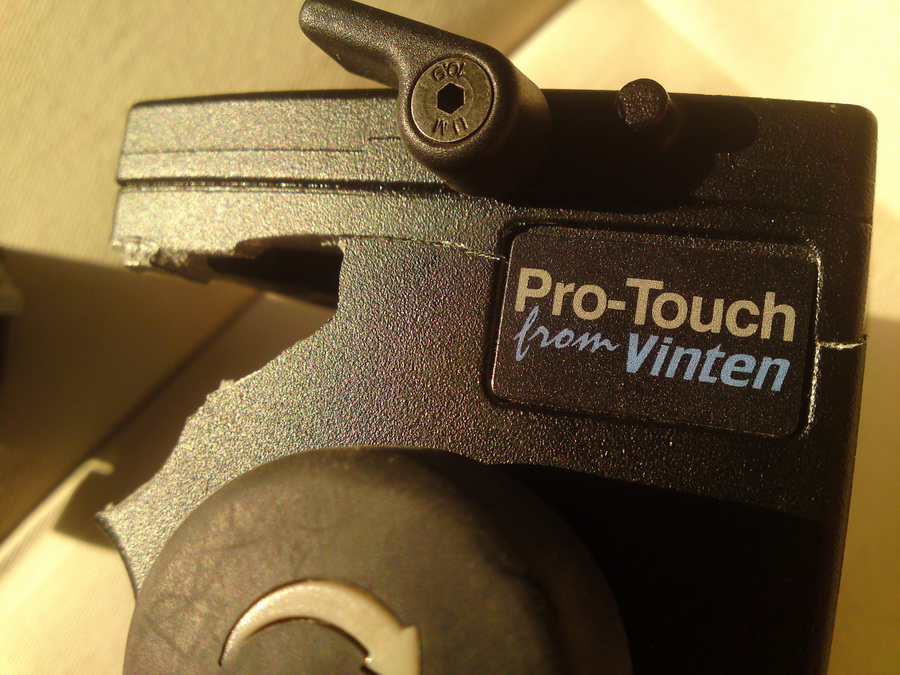

Broken Vinten Pro Touch 5 :(-dsc00543.jpg   Broken Vinten Pro Touch 5 :(-dsc00544.jpg

Broken Vinten Pro Touch 5 :(-dsc00545.jpg   Broken Vinten Pro Touch 5 :(-dsc00546.jpg

Broken Vinten Pro Touch 5 :(-dsc00547.jpg   Broken Vinten Pro Touch 5 :(-dsc00548.jpg

Broken Vinten Pro Touch 5 :(-dsc00549.jpg
Johannes Meyer is offline   Reply With Quote
Old May 4th, 2009, 10:27 AM   #2
Regular Crew

Join Date: Apr 2009
Location: North Wales, Pennsylvania
Posts: 76
It looks like you could fix that with a good epoxy or bonding agent. The break looks fairly clean and should work.
Tom Koveleskie is offline   Reply With Quote
Old May 4th, 2009, 12:36 PM   #3
Inner Circle

Join Date: Nov 2005
Location: LOWESTOFT - UK
Posts: 2,121
That's pretty severe damage! I'm afraid that I'd be consigning that one to the scrap pile. There's no way I'd wish to put a camera on that - even after careful repair. Epoxy would no doubt be strong enough, maybe even fibreglass - but you have a lot of missing aluminium to replace, and bond.

Considering the price on ebay of this or the Manfrotto version, get another!
Paul R Johnson is offline   Reply With Quote
Old May 4th, 2009, 04:07 PM   #4
Inner Circle

Join Date: Feb 2007
Location: Fairfield, Dunedin, New Zealand
Posts: 3,634
Images: 18
Hi Johannes................

What to do?

Send (e- mail) the URL of your post to:

Peter.Harman@VitecGroup.com

with a covering letter.

Peter is the Vinten Product Manager, UK, a really nice guy and can work miracles.

He's actually a member here on DVinfo, tho' I don't know if he gets much time to trawl through due to work commitments.

Without knowing details, the damage shown in your photo's looks like a serious manufacturing fault which should be eligible for a free replacement.

Let us know how it works out.


CS
Chris Soucy is offline   Reply With Quote
Old May 5th, 2009, 07:38 AM   #5
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
I would strongly recommend against using epoxy or a bonding agent. That part needs to be replaced outright. Contact Vinten directly for the replacement part and / or service & repair options.
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline   Reply With Quote
Old May 5th, 2009, 08:19 AM   #6
Major Player

Join Date: Oct 2008
Location: Northern Ireland
Posts: 904
Sorry to hear about your tripod.
My tripod fell a few years back and a friend of mine welded it. He was able to weld Cast Metals. It worked for me, just a thought.
Anthony McErlean is offline   Reply With Quote
Old May 5th, 2009, 08:36 AM   #7
Trustee

Join Date: Nov 2007
Location: Bristol UK
Posts: 1,271
Can't you just buy the outer casing and fit it yourself ?
The same piece but on the other side for my manfrotto 503hdv cost's about 25.
I'd just buy a new part and fit it, job done.

Paul.
__________________
Round 2
Panasonic HC-X1, Vinten PB, Sennheiser G3 bits. Vegas pro 14 on i7,AMD Radeon RX480 8GB.
Paul Kellett is offline   Reply With Quote
Old May 5th, 2009, 08:41 AM   #8
Inner Circle

Join Date: Dec 2003
Location: PERTH. W.A. AUSTRALIA.
Posts: 4,356
Provided the material is cast or forged aluminium and not some other lower melting point alloy, you may be able to get it welded if it is not too thin. I welded up a broken lawnmower platform myself and a welder I definiately aint, so somebody who knows the trade like a marine or aviation welder shoud be able to do it if it can be done.

You may find you have to have a machined fitting or sliding surface if the weld runs across it, remachined.

That part of the Vinten head I have always thought was a moral to get broken and you have proven it. If it is possible to put a solid stud right across from both tripod handle holes with a tight fitting hollow pillar around it between the two wings which hang down, that would go a long way to strengthening the wholle affair. However it may foul other parts of the tripod. I have not studied it that closely.

If that tripod model is still supported, you may find it cheaper to buy in the replacement part rather than spend money getting it welded up, re-machined and repainted.

Last edited by Bob Hart; May 5th, 2009 at 08:47 AM. Reason: error
