Manfrotto allen key

Hi all,

I've got a few different Manfrotto tripods as well as the 561 monopod. Over the years some of the tension nuts have come loose to the point where the legs will not lock firmly into place. I've lost the Manfrotto-supplied allen keys long ago and was wondering if anybody has figured out the standard size of the allen key required to tighten the locking knobs on Manfrotto tripods?
John Wiley is offline   Reply With Quote
Old August 24th, 2014, 05:04 PM   #2
Major Player

Join Date: Jun 2010
Location: Seattle WA
Posts: 958
Re: Manfrotto allen key

John - the small Allen Key/Hex wrench for the 561 Monopod is 2.0 mm and the larger one that comes attached to the 547B tripod is 2.5 mm. The 701HDV head also needs the 2.0 mm wrench.

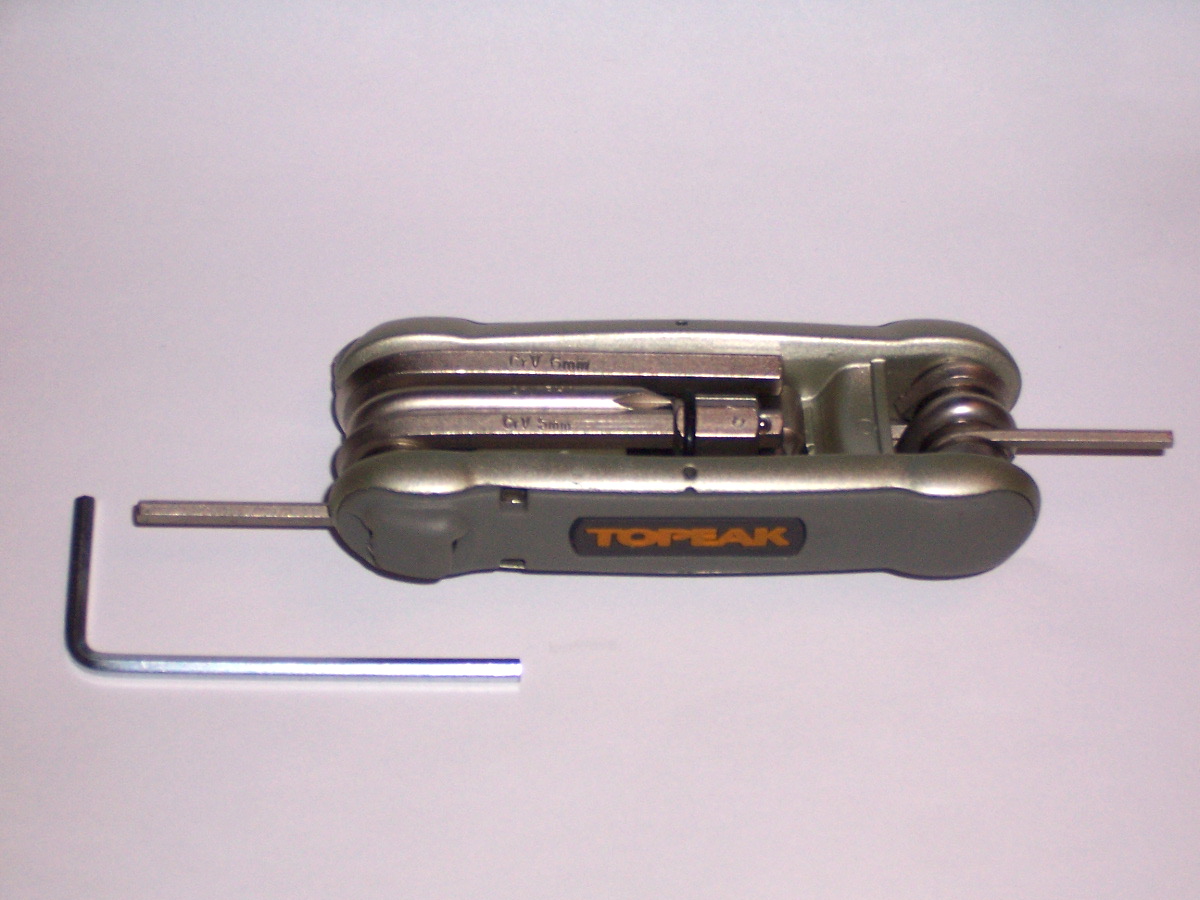

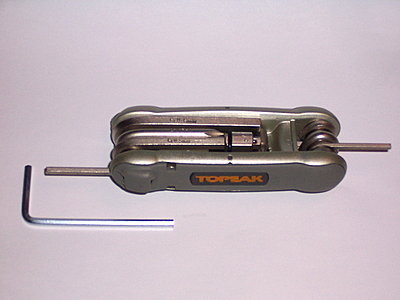

One good source for both wrenches is a bicycle multi-tool. I've got a Topeak Hexus II that has both the 2.0 and the 2.5 Allen Keys. Being bigger it might be easier to keep track of, but also more expensive to replace if it gets lost. The Manfrotto tripod Allen key is shown beside the multi-tool for comparison.

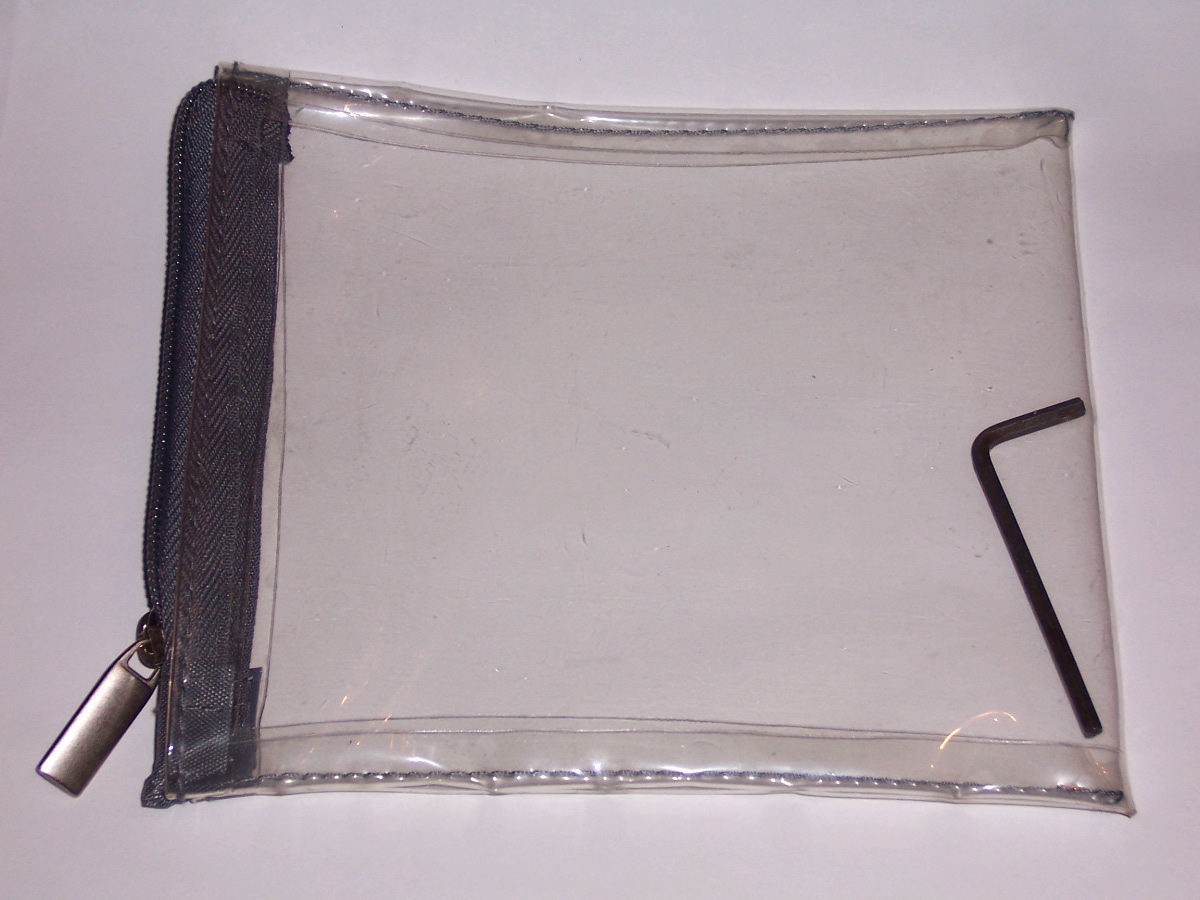

To keep track of my JuicedLink Allen Key it is kept in a zippered plastic bag. After using it though, (and this is the weak link), I have to remember to put it back in the bag.
Attached Thumbnails
Manfrotto allen key-100_0230.jpg   Manfrotto allen key-100_0231.jpg

John Nantz is offline   Reply With Quote
Old January 7th, 2015, 11:28 PM   #3
Trustee

Join Date: Oct 2012
Location: Sydney, Australia
Posts: 1,148
Re: Manfrotto allen key

Gah... Stupid comment deleted.

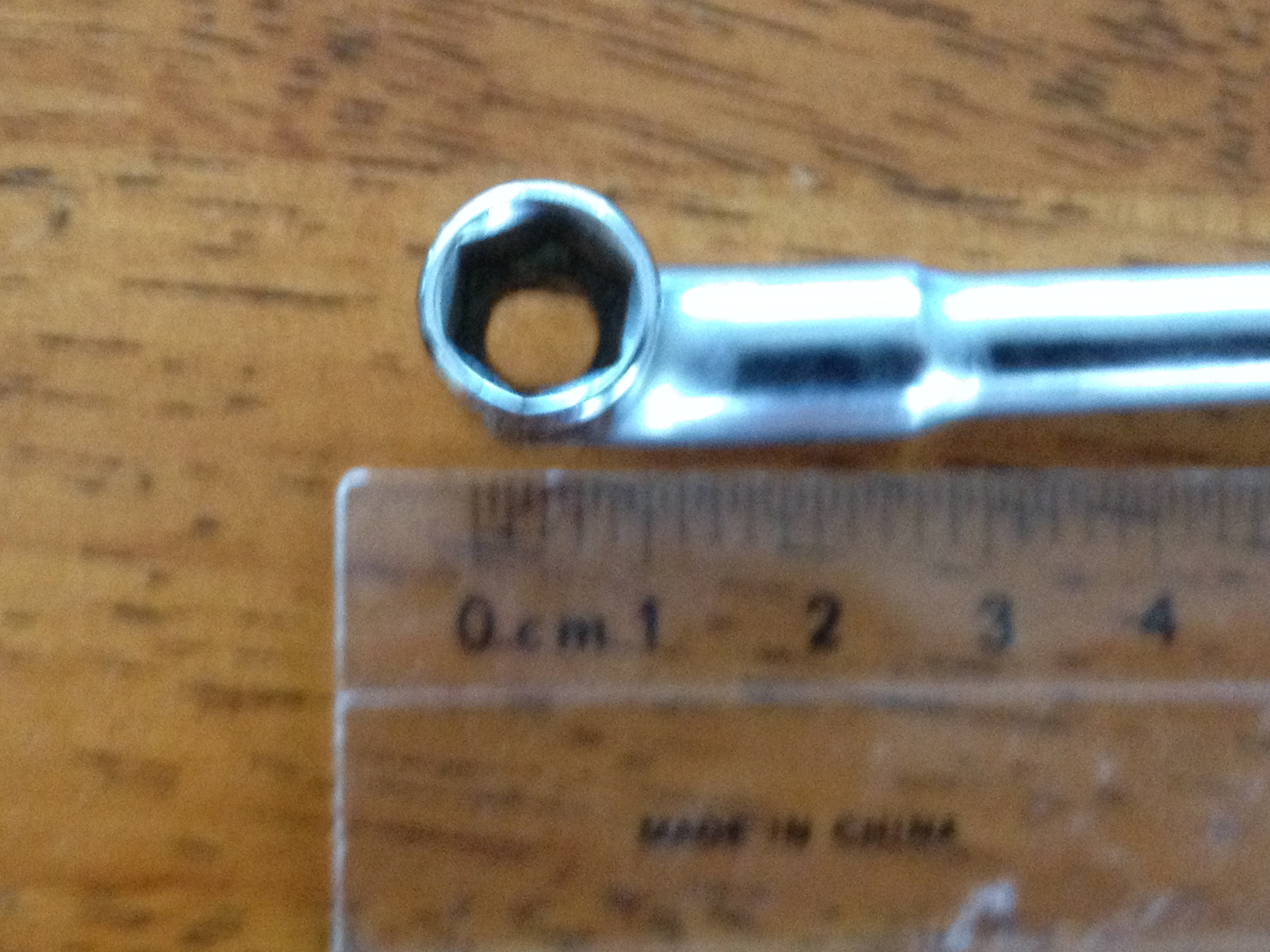

Just wanted to add: 8mm for the socket wrench, and you probably need a socket wrench to tighten the monopod legs.
Attached Thumbnails
Manfrotto allen key-photo.jpg

Last edited by Adrian Tan; January 7th, 2015 at 11:33 PM. Reason: idiocy
Adrian Tan is offline   Reply With Quote
Old April 10th, 2015, 03:20 PM   #4
Trustee

Join Date: May 2010
Location: England liverpool
Posts: 1,312
Re: Manfrotto allen key

thanks guys but there is only a pin going through the lever lock! dam more money...
