Old December 17th, 2008, 09:23 PM   #136
Regular Crew

Join Date: Nov 2008
Location: Brisbane, Queensland, Australia
Posts: 28
that would be a sensible next step.

I'm only guessing now (as I don't own that camera) but it would be worth looking through the camera menu and see if that port is configurable. For instance on my canon I can send it SD or HD. On some camcorders you can set it to be AV or Headphone out.

Like I said, just guessing, but worth a look.

MP
Matthew Petersen is offline   Reply With Quote
Old December 17th, 2008, 10:14 PM   #137
Major Player

Join Date: Dec 2006
Location: Los Angeles, CA
Posts: 959
I'm not familiar with the FX1, but is it possible there's either a menu setting or a switch on the body for allowing composite signal out?

*edit* dang! I didn't see the last post prior to mine until I hit enter to post. Weird :-\
Bill Busby is offline   Reply With Quote
Old December 20th, 2008, 07:56 PM   #138
Major Player

Join Date: Jun 2007
Location: The Colony TX
Posts: 327
Just thought I'd throw this out: Fry's Electronics has the Sony DVP820 on sale for $149.00 USD. I bought one about two hours ago and have been playing with it on my XL2. Looks good. Not a perfect match to the viewfinder's colors, but I can tweak it close. My plan for the moment is to use it for critical focus in production shots, and as a directors' monitor. That should cut down on the usual question, "well, did it look good?" It's also slated to become a jib monitor.

Next up is a tripod mount for it.

Regards;
Martin
__________________
Canon XF300, Canon 5DMkII, Canon XL2, Rolls MX422 mixer, Zoom H4N, AT899 lavs, AT2020's, Azden SGM 1X shotgun, Manfrotto 501 head on 351 tripod
Martin Catt is offline   Reply With Quote
Old December 21st, 2008, 04:52 PM   #139
Regular Crew

Join Date: Nov 2008
Location: Brisbane, Queensland, Australia
Posts: 28
I was out shopping yesterday and happened to see a "caddy" for portable DVD players that's designed to clamp onto the headrest bars of a car's front seat (facing back).

It got me thinking that those bars wouldn't be disimilar to the top part of my Miller tripods...

I've been racking my brain trying to come up with a good mount for this unit (still havn't ruled out using the battery bracket that comes with the camera, sadly it makes the unit just slightly too long for the case I have).

If anyone has any truly elegant and simple mounting ideas, do share!

MP
Matthew Petersen is offline   Reply With Quote
Old December 21st, 2008, 09:00 PM   #140
Major Player

Join Date: Jan 2008
Location: Norwegian lost in California
Posts: 881
Anyone knows if this might just be a piece of poop: 7" LCD Monitor Canon XL1 XL1s XL-1s XL-1 XL2 XL-2 XLH1 - eBay (item 120314860228 end time Jan-05-09 03:08:17 PST)

I'm looking for a larger monitor for my XL2 to do focusing only, (i.e., not for color corrections). Any help & pointers appreciated.

-- peer
__________________
www.NoPEER.com
Peer Landa is offline   Reply With Quote
Old December 21st, 2008, 09:23 PM   #141
Regular Crew

Join Date: Nov 2008
Location: Brisbane, Queensland, Australia
Posts: 28
Peer, I noticed this in the specs:

Resolution: 1400x234 pixels / 480x240 lines

Not sure what to make of that! I can only guess that it's a sub-SD panel.

Also curious to see where the battery is mounted, and how. Looks like you need to buy your own cells.

I do like their mounting solution though....

MP
Matthew Petersen is offline   Reply With Quote
Old December 21st, 2008, 09:37 PM   #142
Inner Circle

Join Date: Nov 2005
Location: Elk Grove CA
Posts: 6,838
LCD4Video and the FX1 output

The LCD$Video set up has a line of kits at their webpage. I mentioned it in post 88, and have since bought it. It is SD, so you will always have a level of uncertainty to your critical focus if you rely on it.

Also, regarding the FX1, it has an SD AV out mini plug, for SD out, as well a composite out BNC port.
__________________
Chris J. Barcellos
Chris Barcellos is offline   Reply With Quote
Old December 22nd, 2008, 03:43 AM   #143
Major Player

Join Date: Jan 2008
Location: Norwegian lost in California
Posts: 881
Quote:
Originally Posted by Matthew Petersen View Post
Peer, I noticed this in the specs:
Resolution: 1400x234 pixels / 480x240 lines
Not sure what to make of that! I can only guess that it's a sub-SD panel.
Yea, also I thought that seemed a bit odd. So again, anyone out there who can advice me on this unit? 7" LCD Monitor Canon XL1 XL1s XL-1s XL-1 XL2 XL-2 XLH1 - eBay (item 120314860228 end time Jan-05-09 03:08:17 PST)

-- peer
__________________
www.NoPEER.com
Peer Landa is offline   Reply With Quote
Old December 23rd, 2008, 11:16 PM   #144
Major Player

Join Date: Jan 2008
Location: Norwegian lost in California
Posts: 881
Earlier in this thread someone mentioned the monitors by Manhattan LCD

Since those Manhattan guys appear a bit incommunicado along with their incomplete technical spec (doesn't say if it can be rigged to run off bricks, etc.), I wonder if anyone knows about this monitor first hand and if it's perhaps possible to use as an on-board monitor for my XL2.

-- peer
__________________
www.NoPEER.com
Peer Landa is offline   Reply With Quote
Old December 24th, 2008, 02:32 AM   #145
Trustee

Join Date: May 2004
Location: Knoxville, Tennessee
Posts: 1,666
1400x234 means a 466x234 pixel display. For some random reason with these small monitors specs sometimes tally up each of the R,G, and B subpixels (or whatever they are called) that make up the "normal" pixels we are used to.

So yes, it's sub-SD resolution.
Graham Hickling is offline   Reply With Quote
Old December 24th, 2008, 04:56 AM   #146
Inner Circle

Join Date: Feb 2004
Location: switzerland
Posts: 2,131
I go the 10.9 HD Professional Monitor from Manhattan, and the picture is pretty good.
I use it on my FX1E with the component cable.
My only problem is that my FX1E seems to output bad signal, so the picture is visible a quarter of second on the screen and next goes blank.
I tested the screen with many other component HD sources, including PAL and NTSC, and the problem is definitely in my FX1. So i use a cheap component to HDMI converter and use the hdmi input on the screen , That works perfect.
the screen is very light (all made from plastic) , so even it is big, you can mount it everywhere. the power supply is 12V, so you can manage to use some kind of battery easily found on the web.
I would not glue the battery on the screen since it would make it very heavy.
for the price i think you cannot find better.
Giroud Francois is offline   Reply With Quote
Old December 31st, 2008, 08:41 AM   #147
New Boot

Join Date: May 2008
Location: Swindon UK
Posts: 11
Hi everyone!

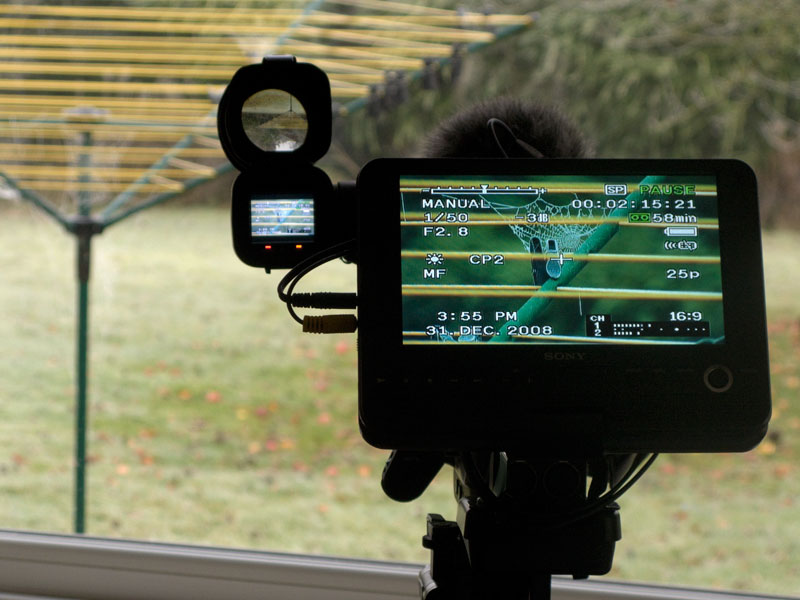

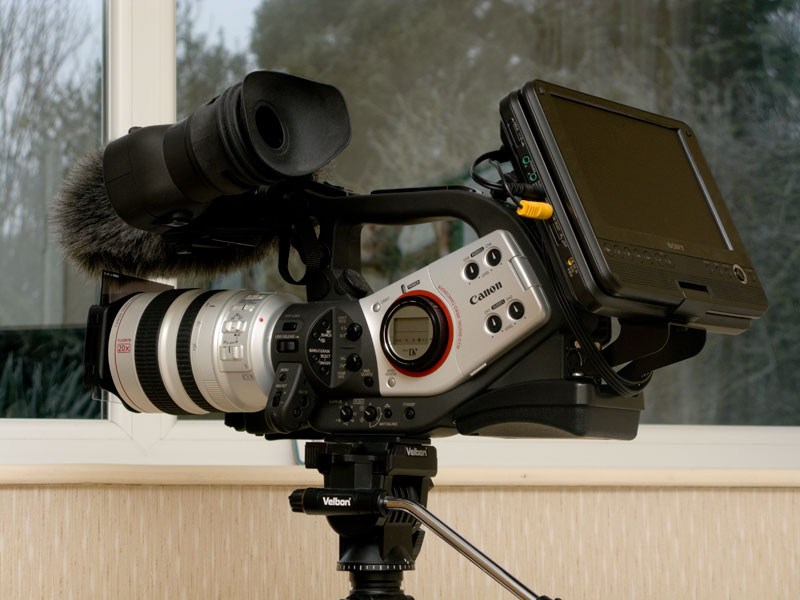

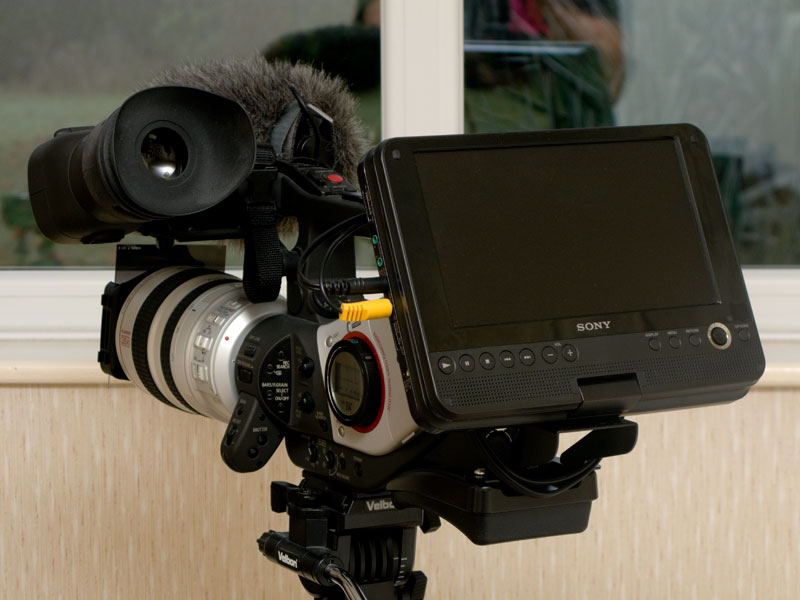

This is my solution for attaching Sony's DVDPlayer to XL2.
Focusing is easier, zebra doesn't work, to check it you have to use viewfinder.
This set-up makes camcorder really back heavy compared to naked cam witch is much better than supporting front heavy brick lifting massive lens with the hand all the time.
Attached Thumbnails
Finally! External LCD Monitor Solution < 0-xl2_dvdplayer_01.jpg   Finally! External LCD Monitor Solution < 0-xl2_dvdplayer_02.jpg

Finally! External LCD Monitor Solution < 0-xl2_dvdplayer_03.jpg
Krystian Dobak is offline   Reply With Quote
Old January 1st, 2009, 03:56 PM   #148
Inner Circle

Join Date: Jun 2003
Location: San Jose, CA
Posts: 2,222
Elegant! That eliminates most of the instabilities from a mounting bracket. If you have any closeup pix of your mounting, I'm sure we'd really like to see them.
Gints Klimanis is offline   Reply With Quote
Old January 6th, 2009, 04:17 PM   #149
Trustee

Join Date: Dec 2007
Location: Glasgow, Scotland
Posts: 1,521
HD it isn't, but I just bought a Nikkai A06HU 7 inch digital TV from Maplin to use as a monitor for framing. Oddly enough it doesn't appear on the Maplin website but you can see it here Portable TVs - The Circuits Shop - Electronics in Meccano (The link to the main Maplin site doesn't work).

This unit works well as an analogue and digital tv (which is how I am justifying buying it!) and is OK for a framing monitor, being light at 0.81 Kg with internal rechargeable battery pack and a reasonable resolution for such a cheapo at 720 x 576. It takes PAL and NTSC on the AV input and comes with 12V car and 230V mains power/charger adaptors and internal rechargeable battery pack which runs for 2 -3 hours as far as I can tell.

As I say hardly the best monitor out there, but a sub-90 solution for a 7 inch extra monitor with different power options.
I'm still working on how to mount it for various applications.
Colin McDonald is offline   Reply With Quote
Old January 19th, 2009, 04:24 PM   #150
Tourist

Join Date: Oct 2008
Location: Denver, CO
Posts: 2
What are you using to mount the player?
Mark Labriola is offline   Reply
