Attaching Monitor to tripod

I just bought a Marshall 7" monitor and I'm looking for ways to attach it to the camera's tripod. I will be using it with an EX1R. When shooting weddings for example there are times when I need to take the camera off the tripod so I can shoot hand held. I don't want to have the monitor attached to the camera when I do this. I'm looking for ideas.
Jim Snow is offline   Reply With Quote
Old March 10th, 2011, 02:42 PM   #2
Inner Circle

Join Date: Jan 2003
Location: Chicago, IL
Posts: 6,609
Re: Attaching Monitor to tripod

You need a Magic Arm also called an Isreali Arm and a bracket.
Manfrotto has whats called a Super Bracket and arm that would do the trick for you.
__________________
What do I know? I'm just a video-O-grafer.
Don
Don Bloom is offline   Reply With Quote
Old March 11th, 2011, 05:09 AM   #3
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Re: Attaching Monitor to tripod

Quote:
Originally Posted by Don Bloom View Post
You need a Magic Arm also called an Isreali Arm and a bracket.
Manfrotto has whats called a Super Bracket and arm that would do the trick for you.
Don, you mean the Super Clamp, right?
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old March 11th, 2011, 06:06 AM   #4
Inner Circle

Join Date: Jan 2003
Location: Chicago, IL
Posts: 6,609
Re: Attaching Monitor to tripod

Piotr,
Why yes thats exactly what I meant. Sorry I had a brain freeze and then a mind melt.
Thanks

O|O
\--/
__________________
What do I know? I'm just a video-O-grafer.
Don
Don Bloom is offline   Reply With Quote
Old March 11th, 2011, 06:16 AM   #5
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Re: Attaching Monitor to tripod

Thanks for the clarification, Don - we all have those brain freezes/melts from time to time :)

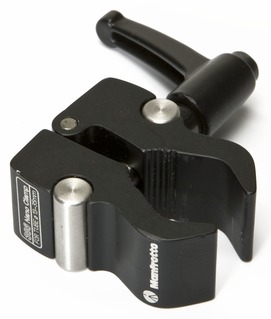

So, do you think a monitor like the 7" Marshall could be fixed to the pan handle, using just an arm like the MN 823 I have, and the nanoClamp?

I'm a bit worried the inertia/gravity torque of such an assy (the Marshall is over 2 Lbs with a battery), could make the clamp slide-rotate around the handle's tube...

Thanks for your opinion,

Piotr
Attached Thumbnails

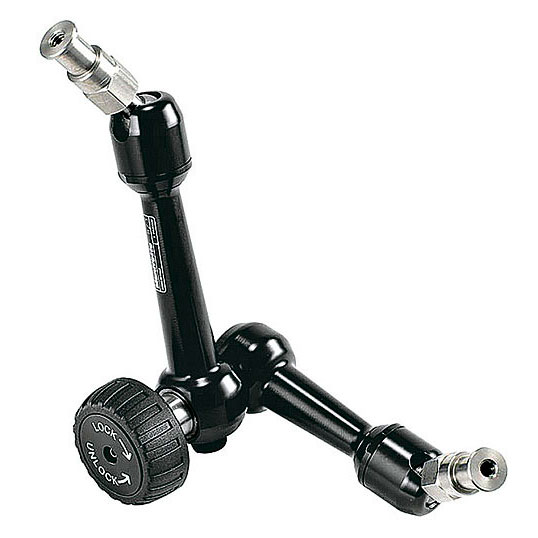

Attaching Monitor to tripod-mn-823.jpg
Attached Images

__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old March 11th, 2011, 07:11 AM   #6
Inner Circle

Join Date: Jan 2003
Location: Chicago, IL
Posts: 6,609
Re: Attaching Monitor to tripod

yep, I'm sure that arm and clamp would do the job but I don't know about attaching to the pan handle. It would seem that it would put a lot of weight on the handle and throw off the balance of the tripod head.
I've either attached to the tripod itself, either the center column or one of the tripod legs depending on the type of tripod I'm using for that job. Sometimes though I attach to the camera and use the monitor like a studio set up. As long as I don't have to do big pans it works fine but I actually prefer to keep it off the camera so I don't have to keep turning my head and neck.
Try it on the pan handle and see how it goes but again you might be better off with it attached somewhere on the tripod itself.
__________________
What do I know? I'm just a video-O-grafer.
Don
Don Bloom is offline   Reply With Quote
Old March 11th, 2011, 07:46 AM   #7
Major Player

Join Date: Nov 2010
Location: Regina, Saskatchewan Canada
Posts: 255
Re: Attaching Monitor to tripod

I use a monfrotto superclamp and a 7in. articulating arm as well, and attach it to the leg to the left of me when behind the camera. That seems to be the spot where I get the greatest range of viewing angles, but YMMV. Those clamps will never move once they're tight; I'd expect the arm to fail before the clamp ever would, and I don't live in fear of the arm failing...
Wayne Reimer is offline   Reply With Quote
Old March 11th, 2011, 09:25 AM   #8
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Re: Attaching Monitor to tripod

I don't think mounting the arm to the tripod leg is the best solution; the monitor should always tilt and pan following the camera (i.e., the head) movement.

What I'm probably going to use is this solution from Olof Ekbergh:

CineArm Bracket for holding monitor on tripod head using existing tapped hole for arm.
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old March 15th, 2011, 08:10 AM   #9
Trustee

Join Date: Apr 2008
Location: Cornsay Durham UK
Posts: 1,941
Re: Attaching Monitor to tripod

Don't know if it's of any help but Libec make a monitor bracket for tripods: http://www.tnpbroadcast.co.uk/images/e_AS-5_manual.pdf
__________________
Over 15 minutes in Broadcast Film and TV production: http://www.imdb.com/name/nm1044352/
Gary Nattrass is offline   Reply With Quote
Old March 15th, 2011, 08:33 AM   #10
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Re: Attaching Monitor to tripod

Nice find, Gary - thanks!

Does anyone know whether this device will fir the Manfrotto 526 head (particularly, the rosette)?

Piotr
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old April 3rd, 2011, 04:53 AM   #11
Major Player

Join Date: Dec 2007
Location: Pembrokeshire, Wales
Posts: 734
Re: Libec AS-5

Don't know if it will fit the Manfrotto head - I wouldn't hold out too much hope.

However, what I have found when using it on a Libec L38 kit, is that it sits on the left hand side of the Libec head, and nearly every time I want to unlock the head, I find I'm loosening the arm instead as it is the first knob that my head encounters. So while it is very useful - and I find better in that position than on the top of the camera (because of where I can focus with my vari-focal glasses) - it isn't quite perfect. But then, what is?
__________________
Canon XH A1; Canon XF100; Nikon D800
Annie Haycock is offline   Reply
