HDMI TX RX camera to monitor.

I'm probably dreaming but thought I'd throw this one out there anyway!

Just bought 3 new HD, HDMI capable monitors, 2 X 7" and 1 X 5". One for the steadicam, one for the jib and the smaller one to mount on camera when needed. I had intended to use HDMI cable to connect them to the HDMI out on my Sony PMW-350 but I suddenly thought, is there a wireless sender/receiver option around? So my question is this, does anyone know of a smallish TX/RX set up for HDMI, preferably in dongle/stick form? I realize both ends would likely need powering so ideally I would like them to be able to take a Dtap from a Vlock battery to their power inputs. Not asking for much am I?

Could anyone point me in the right direction, or is this compact HDMI TX/RX set-up yet to be invented?
Chris Tangey is offline   Reply With Quote
Old March 15th, 2013, 05:07 AM   #2
Regular Crew

Join Date: Mar 2007
Location: Alice Springs AU
Posts: 173
Re: HDMI TX RX camera to monitor.

Forgot to mention the main reason I want wireless images, one would also be used as a Director's monitor, last thing I want is a Director attached to my camera, especially on a documentary! The current all-in-one systems, though, are ridiculously expensive.
Chris Tangey is offline   Reply With Quote
Old March 15th, 2013, 05:35 AM   #3
Inner Circle

Join Date: Aug 2006
Location: Efland NC, USA
Posts: 2,315
Re: HDMI TX RX camera to monitor.

Quote:
Originally Posted by Chris Tangey View Post
I'm probably dreaming but thought I'd throw this one out there anyway!

Just bought 3 new HD, HDMI capable monitors, 2 X 7" and 1 X 5". One for the steadicam, one for the jib and the smaller one to mount on camera when needed. I had intended to use HDMI cable to connect them to the HDMI out on my Sony PMW-350 but I suddenly thought, is there a wireless sender/receiver option around? So my question is this, does anyone know of a smallish TX/RX set up for HDMI, preferably in dongle/stick form? I realize both ends would likely need powering so ideally I would like them to be able to take a Dtap from a Vlock battery to their power inputs. Not asking for much am I?

Could anyone point me in the right direction, or is this compact HDMI TX/RX set-up yet to be invented?
This should do it.

IDX CW-1 Wireless HDMI Video Transmission System CW-1 B&H Photo
__________________
http://www.LandYachtMedia.com
Chris Medico is offline   Reply With Quote
Old March 15th, 2013, 07:56 AM   #4
Regular Crew

Join Date: Mar 2007
Location: Alice Springs AU
Posts: 173
Re: HDMI TX RX camera to monitor.

Looked at that one before Chris, not entirely convinced.

Also being a short production run product the price is still way over similar AC "plug-in" domestic versions. On top of that Australian retailers are asking over 50% more for it, despite the Australian dollar being worth more than the US! Can it hook up to a v-lock? That would be a good start. Actually just bought several D-tap to Blackmagic camera cables for my monitors, all work perfectly for a different purpose, if these would do the same I'd be very happy!
Chris Tangey is offline   Reply With Quote
Old March 15th, 2013, 09:37 AM   #5
Inner Circle

Join Date: Aug 2006
Location: Efland NC, USA
Posts: 2,315
Re: HDMI TX RX camera to monitor.

I built a cable to go from d-tap to the 5v input of the transmitter for mine. Easy to do and cost less than $40 in parts.

You can go with the consumer level stuff. For the most part they use the same chipset.
__________________
http://www.LandYachtMedia.com
Chris Medico is offline   Reply With Quote
Old March 15th, 2013, 12:10 PM   #6
Inner Circle

Join Date: Feb 2004
Location: switzerland
Posts: 2,131
Re: HDMI TX RX camera to monitor.

this device is sold by several companies (IDX,Paralinx,Nyrius and possibly others).
Paralinx and IDX sell it for $1000+ but Nyrius is selling it for $220. They all look exactly the same.
I purchased 2 sets (Nyrius) from AMAZON and it works well (even the 3D from my sony TD10 is transmitted correctly to my Samsung TV). They are compatibles between brand so you can use one emitter of one brand with receiver of the other brand.
Giroud Francois is offline   Reply With Quote
Old March 15th, 2013, 12:13 PM   #7
Inner Circle

Join Date: May 2005
Location: Burnaby, BC, Canada
Posts: 2,963
Re: HDMI TX RX camera to monitor.

That looks familiar... Did Paralinx license the technology to IDX? Cause that is exactly what the Paralinx Arrow looks like...

__________________
I wait for the day cost-efficient global shutter 60fps capable CMOS sensors emerge for use on major manufacturers' cameras. (Sony, Canon, etc.) Rolling Shutters are a plague.
Jack Zhang is offline   Reply With Quote
Old March 15th, 2013, 12:21 PM   #8
Inner Circle

Join Date: Aug 2006
Location: Efland NC, USA
Posts: 2,315
Re: HDMI TX RX camera to monitor.

Lets just say there is a reason they all look alike and leave it at that.
__________________
http://www.LandYachtMedia.com
Chris Medico is offline   Reply With Quote
Old March 15th, 2013, 09:31 PM   #9
Regular Crew

Join Date: Mar 2007
Location: Alice Springs AU
Posts: 173
Re: HDMI TX RX camera to monitor.

Quote:
Originally Posted by Chris Medico View Post
I built a cable to go from d-tap to the 5v input of the transmitter for mine. Easy to do and cost less than $40 in parts.

You can go with the consumer level stuff. For the most part they use the same chipset.
I take it Chris, that it is Dtap to USB?
Chris Tangey is offline   Reply With Quote
Old March 15th, 2013, 10:10 PM   #10
Regular Crew

Join Date: Mar 2007
Location: Alice Springs AU
Posts: 173
Re: HDMI TX RX camera to monitor.

Quote:
Originally Posted by Chris Medico View Post
I built a cable to go from d-tap to the 5v input of the transmitter for mine. Easy to do and cost less than $40 in parts.

You can go with the consumer level stuff. For the most part they use the same chipset.
Just another one Chris, you mean you are taking the power from a v-lock battery? Isn't the voltage/amperage too much, or can these things handle a range of power inputs?

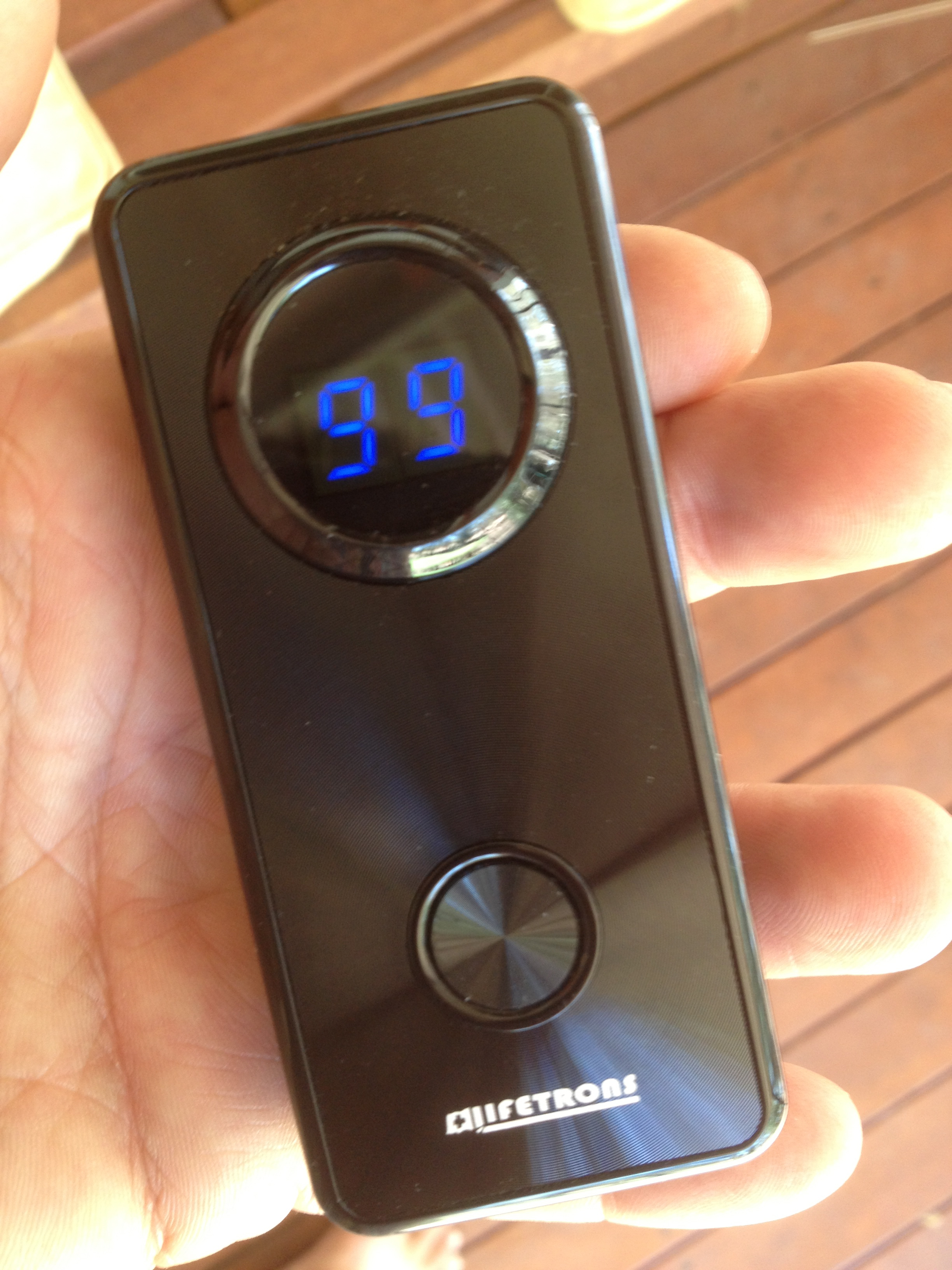

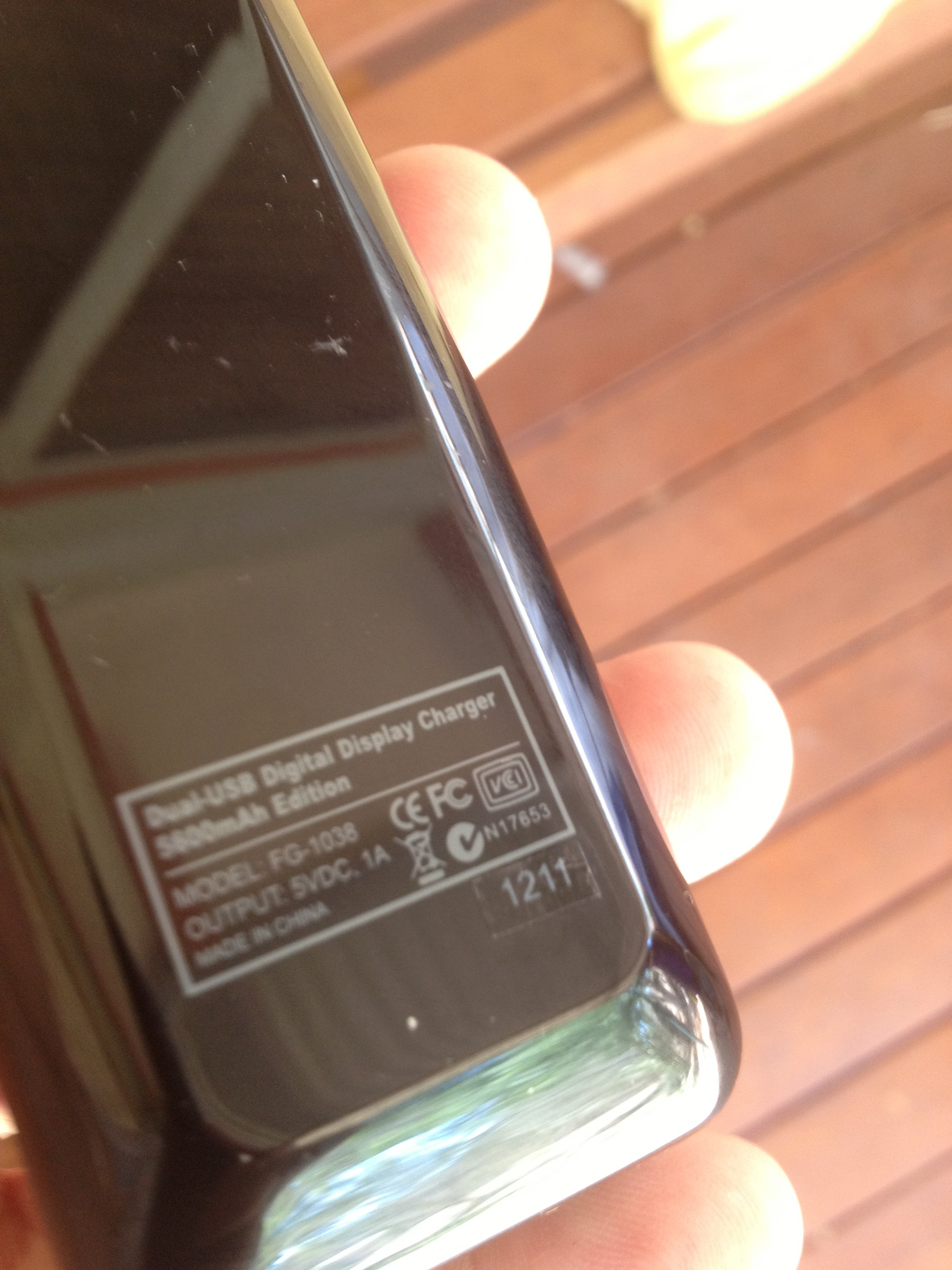

Another alternative might be this lifetrons power pack (see photos) which I actually bought to remotely charge my "i-things". The HDMI monitor is already independently powered so I suppose I could just use one of these at both the TX and RX ends for HDMI transfer, would that work? I guess I would then just use normal USB cables as the lifetrons has both USB and mini-USB in/outs on either end of the unit. Is 1amp enough to make each end of the HDMI system work?
Attached Thumbnails
HDMI TX RX camera to monitor.-img_2001.jpg   HDMI TX RX camera to monitor.-img_2003.jpg

Chris Tangey is offline   Reply With Quote
Old March 16th, 2013, 06:39 AM   #11
Inner Circle

Join Date: Aug 2006
Location: Efland NC, USA
Posts: 2,315
Re: HDMI TX RX camera to monitor.

Those batteries work great for the mini HDMI transmitters.

I built my own cable with a voltage regulator to knock the voltage down to 5v. Mine have a small DC plug as well as a USB connector for power.

Since I use the transmitter on a steadicam rig as well I wanted to minimize the number of pieces I had to manage. I wanted to run everything off the camera battery.

If you are looking for a dead simple regulator check these out. I started using these regulators to build cables for on car video transmitters a few years ago. They are dead simple to use and rock stable.

3 amp version - 3A Adjustable step down switching voltage regulator

1 amp version - Adjustable step down switching voltage regulator
__________________
http://www.LandYachtMedia.com
Chris Medico is offline   Reply With Quote
Old March 16th, 2013, 12:13 PM   #12
Inner Circle

Join Date: Feb 2004
Location: switzerland
Posts: 2,131
Re: HDMI TX RX camera to monitor.

the device require too many power , more than you can get from an usual USB port (usually max 1A)
Some USB can give more especially if they are not on a computer, so you need to give a try.
Most of device providing 5V on a USB socket are specifying hom much you can load it.
Giroud Francois is offline   Reply With Quote
Old March 17th, 2013, 01:01 AM   #13
Regular Crew

Join Date: Mar 2007
Location: Alice Springs AU
Posts: 173
Re: HDMI TX RX camera to monitor.

Giroud, It seems that one end of this HDMI system needs 1A and the other 2A, so judging by that, this might be the answer, especially for the price!

http://www.amazon.com/PowerGen-PGMPP12000-12000mAh-sensation-Thunderbolt/dp/B0085OB0IE/ref=cm_cr_pr_product_top
Chris Tangey is offline   Reply With Quote
Old March 20th, 2013, 07:38 AM   #14
Inner Circle

Join Date: Feb 2004
Location: switzerland
Posts: 2,131
Re: HDMI TX RX camera to monitor.

i got 3 power bank like this one and they are ok (but the USB output is limited to 2A, and there is only one, so it could be a limitation).
from my experience , the emitter ask for 1A and you really need to provide this current because i tested several cheap chinese adapter providing 5V 1A, and it was not working.
Giroud Francois is offline   Reply With Quote
Old March 20th, 2013, 08:54 PM   #15
Regular Crew

Join Date: Mar 2007
Location: Alice Springs AU
Posts: 173
Re: HDMI TX RX camera to monitor.

Thanks Giroud, I have now ordered 2 X 20000mah batteries out of Hong Kong, I expect these and the HDMI TX RX kit to arrive separately in the next few days. Once I get it working (somehow!) I will post photos. Total cost will be about US$400, a lot cheaper than dedicated systems and from what I have read, probably over a greater distance. It would have all cost US$300 except for the rip-off freight costs on some of these sites.
