Slider Head Recommendation

Hi All - not quite the correct forum but I know a lot of you use sliders so...

My Manfrotto 701HDV head doesn't really bear the weight of my Glidetrack HD slider/701HDV and Sony VG20. It won't lock off sufficiently and tilts when the camera gets to the end of the track unless I take up the weight with my spare hand. The tilt doesn't actually lock but you tighten the damping as far as it will go - still not enough!

Can someone suggest a beefier alternative that locks off nice and tight? Maybe the 501?

Pete
Peter Rush is offline   Reply With Quote
Old May 29th, 2013, 03:11 AM   #2
Trustee

Join Date: Oct 2006
Location: Antrim, Northern Ireland
Posts: 1,569
Re: Slider Head Recommendation

Pete, my Vinten Vision Blue won't even hold my Glidetrack SD, and it's 100 times the head that my 701HDV was. Mounting it to a fluid head is asking for trouble (or at least, asking for wobbles).

The solution was to remove the head from the tripod and the mount the Glidetrack directly to the tripod screw. Or, preferably, get a Manfrotto half bowl adapter and mount the slider directly to a 75mm bowl set of tripod legs. It loses flexibility, but it's the best way I've found. And because of that, I never use the slider! Plus the fact that my current camera is way too heavy for slider use.

This has been mentioned a fair bit on the tripod/support forums, a search there will reveal the parts required.
__________________
Irish Railway Videos on Youtube
Mike Beckett is offline   Reply With Quote
Old May 29th, 2013, 03:15 AM   #3
Inner Circle

Join Date: Nov 2008
Location: UK/Yorkshire
Posts: 2,066
Re: Slider Head Recommendation

Thought that might be the case Mike - Using a fluid head is great for unusual slides though, such as pointing the camera directly up and rotating - great for shots of church ceilings!
Peter Rush is offline   Reply With Quote
Old May 29th, 2013, 03:42 AM   #4
Regular Crew

Join Date: Sep 2011
Location: Toronto & Montreal
Posts: 188
Re: Slider Head Recommendation

Peter, you can apply those camera movements to the head that's mounted on the slider :)
Long Truong is offline   Reply With Quote
Old May 29th, 2013, 03:49 AM   #5
Trustee

Join Date: Oct 2006
Location: Antrim, Northern Ireland
Posts: 1,569
Re: Slider Head Recommendation

Pete, you're right. I had dreams of getting interesting angles like that - sliding up and towards something, or a slide that goes to the left and up, for example. I even had an idea that I could use it as a sort of crane, with the slider on the fluid head, and a smaller fluid head on the slider. Alas! It was not to be, physics was agains me.

Long's perfectly right, you can do tilts and pans on the fluid head on the slider, but it's not quite as "3d" as a vertical change as well.
__________________
Irish Railway Videos on Youtube
Mike Beckett is offline   Reply With Quote
Old May 29th, 2013, 05:06 AM   #6
Inner Circle

Join Date: Feb 2009
Location: Norwich, Norfolk, UK
Posts: 3,445
Re: Slider Head Recommendation

Use a ball head that is locked tight. There is also a nice Manfrotto ball head with a joystick trigger that a colleague uses that is really fast to adjust & operate Joystick - Heads - Photo | Manfrotto.
Nigel Barker is offline   Reply With Quote
Old May 29th, 2013, 07:03 PM   #7
Inner Circle

Join Date: May 2007
Location: Los Angeles, USA
Posts: 2,109
Re: Slider Head Recommendation

This is the one I am using. Love it.. can almost tile the camera point up to ceiling.. and price is good

Amazon.com: Pro Heavy Duty Ball Head Quick Release Photo Ball Head Tripod Grip Action Ball Head for Gitzo Manfroto by Fancier 6664H: Camera & Photo
__________________
LA Color Pros Blog
RODE Authorized Reseller . Comer LED Camera Lights . TakyBox HTML5 Menu Generator
Taky Cheung is offline   Reply With Quote
Old May 30th, 2013, 12:21 AM   #8
Regular Crew

Join Date: Jan 2013
Location: Clearwater, FL
Posts: 72
Re: Slider Head Recommendation

I mount my Kessler Stealth using either a Manfrotto 357 Pro Quick Release Adapter (
Manfrotto 357 Pro Quick Release Adapter with 357PL Plate 357 B&H
) or the 503 Head on Manfrotto 055XB Legs. I find the legs to be more stable when the additional 503 head is not on top, as in, when the camera gets to one end of the slider, it will tip the tripod sooner and easier with the 503 mounted. However, with the head mounted, I get more versatility. So it depends, but more often I find myself using just the 357 adapter. I haven't tried mounting the slider directly to the tripod; it seems like it would be more tedious spinning the entire slider around several times rather than spinning a head or adapter plate, but perhaps it is more stable without the adapter?

I'd like to possibly get the Manfrotto 755CX3 MagFiber Video Tripod Legs with Rapid Center Column which Joe Simon uses so then I can tilt the slider without the use of a head.

As for a head on the slider, I always have the 701 head on top. In fact, I've never mounted a camera directly to a slider before; I find without a head the basic left to right shots are too boring in most cases (unless you're doing a Wes Anderson wedding film).
Eric Coughlin is offline   Reply With Quote
Old May 30th, 2013, 01:33 AM   #9
Major Player

Join Date: Jul 2009
Location: California
Posts: 206
Re: Slider Head Recommendation

Perhaps I am doing it wrong, but I bought a cheap $150 slider that doesn't slide well with my camera rig on it.. does fine with just the dslr though. But anyway, I bought two 0xxb manfrotto sticks and 501 heads. I mounted two extra plates on the ends of the slider, and slide it in to the two tripods. I then mount a 701 head on the slider bracket so that my camera slides in to it, as well as the 0xxb's when not using the slider. It gives me the stability I need, but obviously at the expense of more room needed and more time to set it up, not to mention more expense money wise for the extra tripod and such.
Kevin Duffey is offline   Reply With Quote
Old May 30th, 2013, 12:47 PM   #10
Regular Crew

Join Date: Sep 2001
Location: San Diego CA. and New Orleans, Loiuisana
Posts: 355
Re: Slider Head Recommendation

I love my slider but I would never buy another 36" slider. I would opt for the shortest one possible

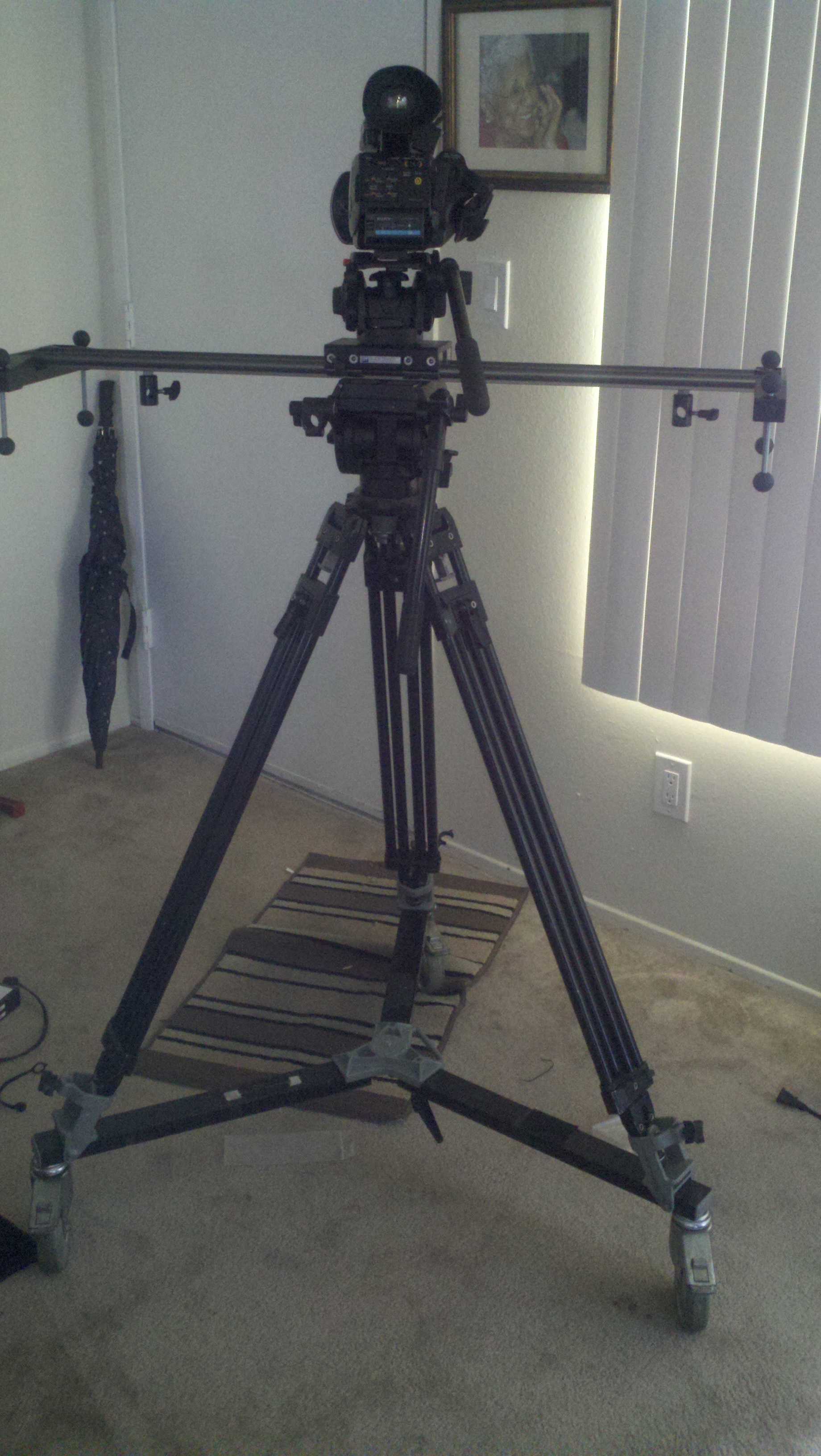

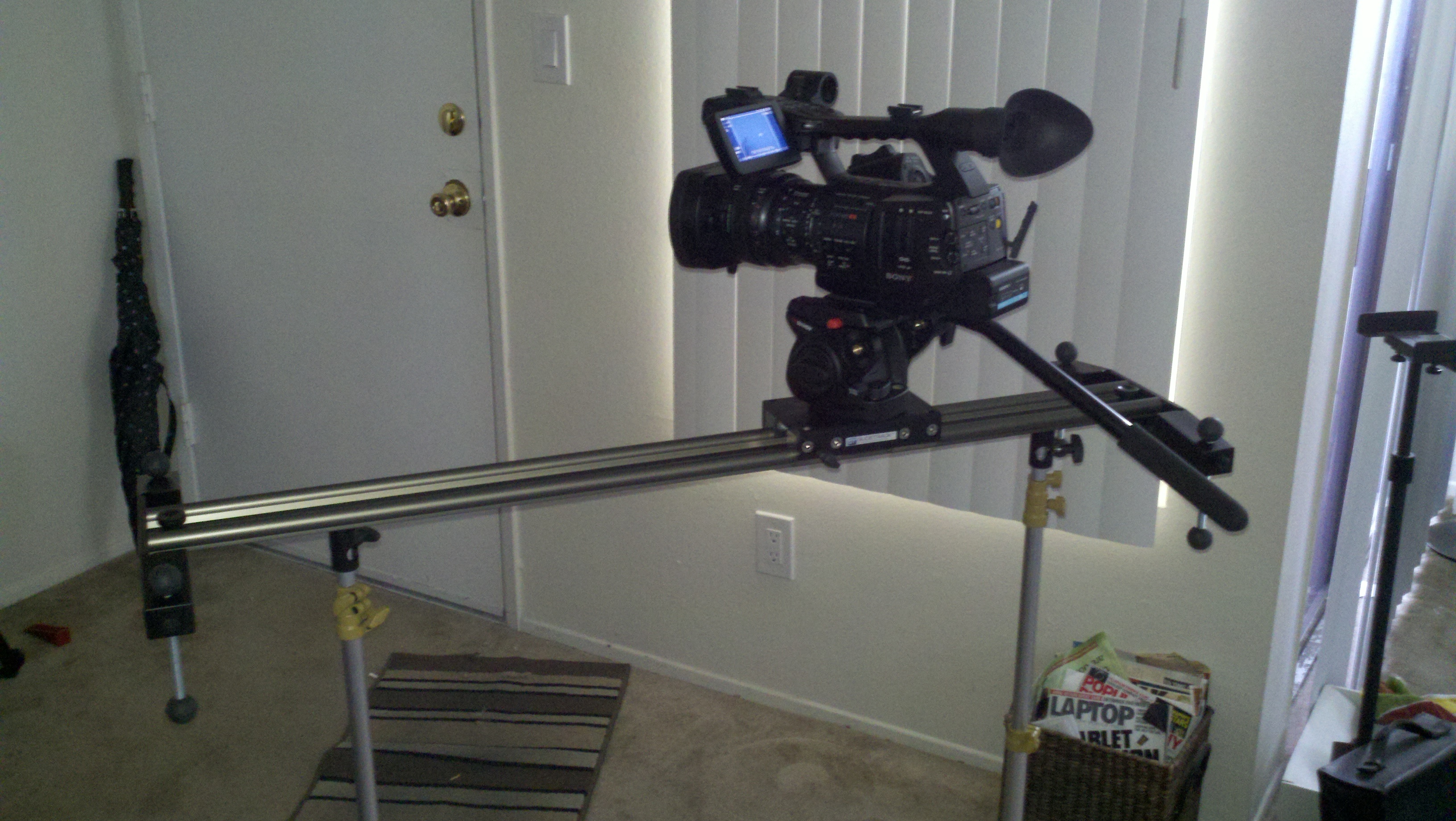

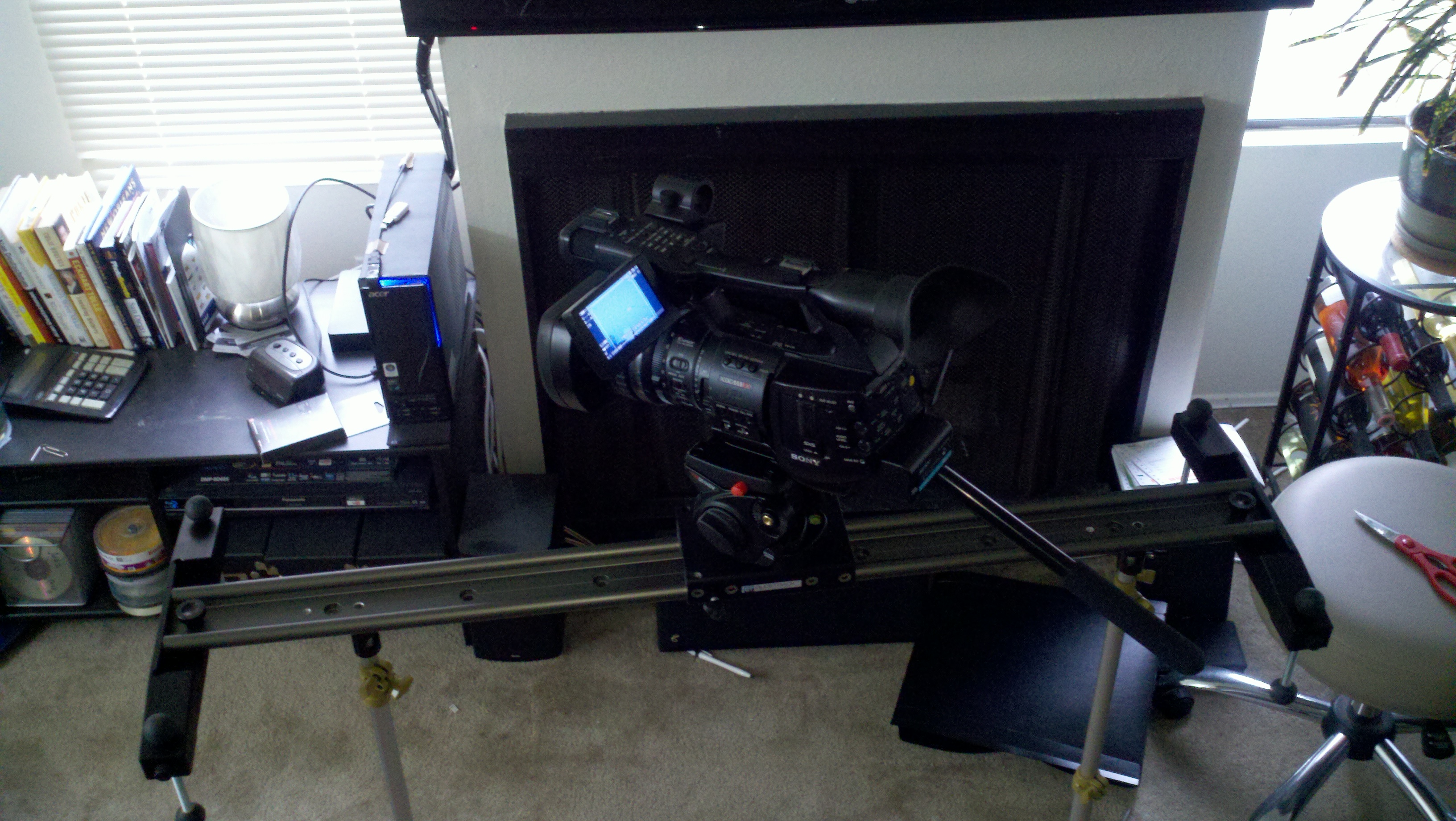

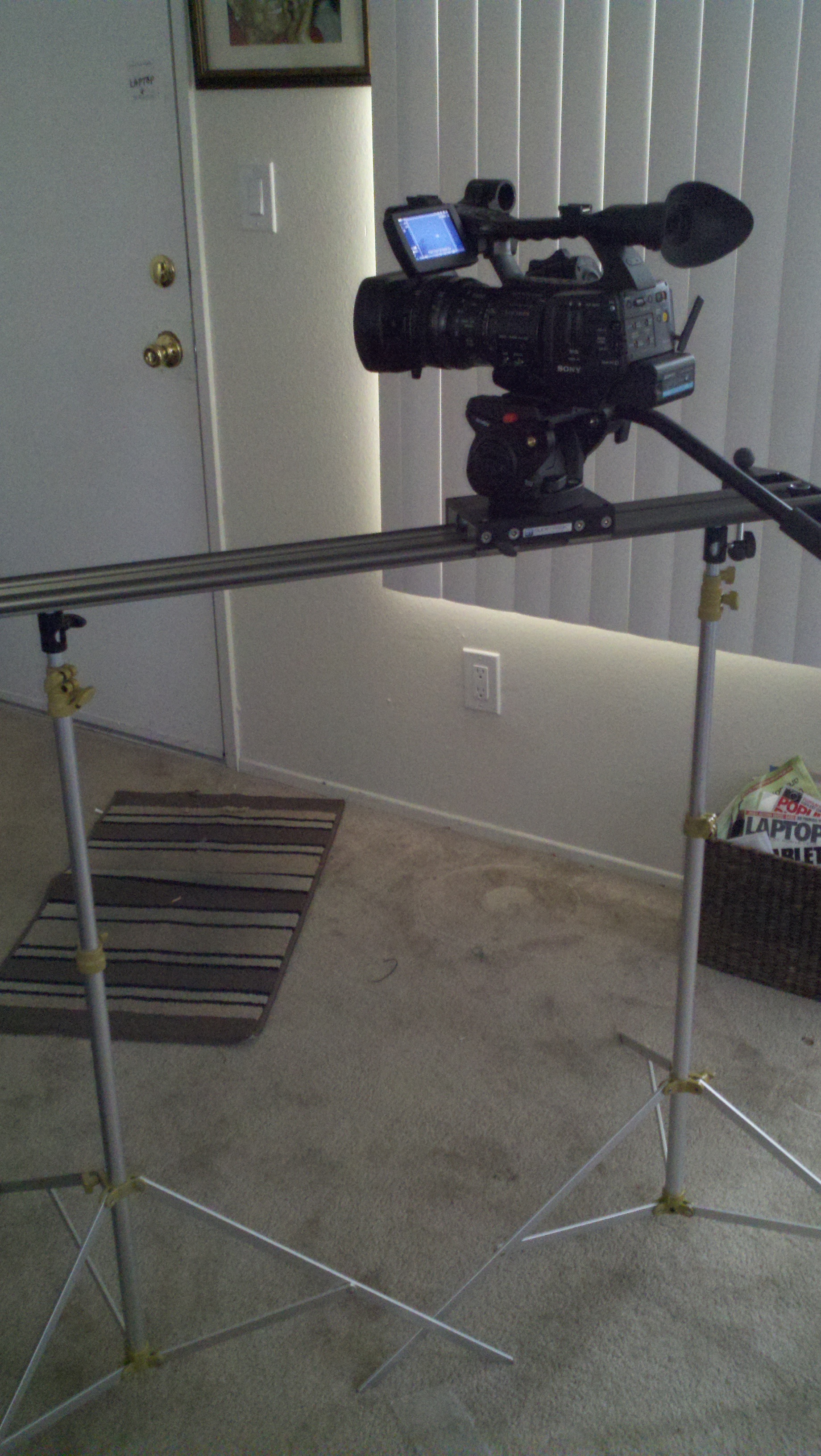

A couple of ways I mount it.

.
Attached Thumbnails
Slider Head Recommendation-2011-06-10_10-41-01_538.jpg   Slider Head Recommendation-2011-06-10_10-48-26_246.jpg

Slider Head Recommendation-2011-06-10_10-48-42_310.jpg   Slider Head Recommendation-2011-06-10_15-53-24_184.jpg

Al Gardner is offline   Reply With Quote
Old May 30th, 2013, 03:25 PM   #11
Major Player

Join Date: Jul 2009
Location: California
Posts: 206
Re: Slider Head Recommendation

Really? What is wrong with 36"? The shorter they are, the less movement you can get. I think different lengths would be idea if possible... especially if you can connect them as needed like larger dolly tracks are done. It would be great if there was a slider that had 1 foot lengths that you could connect together, not too much in price, stable enough for a decent amount of weight (no bowing as you slide the gear). Anyone know of anything like that?
Kevin Duffey is offline   Reply With Quote
Old May 30th, 2013, 04:07 PM   #12
Inner Circle

Join Date: Sep 2006
Location: Sydney.
Posts: 2,569
Re: Slider Head Recommendation

Quote:
Originally Posted by Al Gardner View Post
I love my slider but I would never buy another 36" slider. I would opt for the shortest one possible.
+1 .. and Phillip Bloom recommends no longer than 24" .. he says on the screen you really don't notice anything longer than that.

And it's easier to carry around, faster to set up, so you're likely to get more use out of it.

Cheers.
__________________
30+ years with our own audio and visual production company and studios.
Allan Black is offline   Reply With Quote
Old May 31st, 2013, 04:06 AM   #13
Inner Circle

Join Date: Feb 2009
Location: Norwich, Norfolk, UK
Posts: 3,445
Re: Slider Head Recommendation

A shorter slider is easier to lug around but a longer slider gets longer slides e.g. try sliding vertically from the floor to reveal the place settings & decorations on the table top with a 24" slider.
Nigel Barker is offline   Reply With Quote
Old June 1st, 2013, 08:57 AM   #14
Major Player

Join Date: Feb 2003
Location: Decatur, AL
Posts: 858
Re: Slider Head Recommendation

Quote:
Originally Posted by Taky Cheung View Post
This is the one I am using. Love it.. can almost tile the camera point up to ceiling.. and price is good

Amazon.com: Pro Heavy Duty Ball Head Quick Release Photo Ball Head Tripod Grip Action Ball Head for Gitzo Manfroto by Fancier 6664H: Camera & Photo
I can concur with the above recommendation. I just got that exact ball head 2 weeks ago for my new Konova slider.

I originally bought a 701 head, but it was too much effort to use on vertical slides. I looked at the Manfrotto series ball heads that had the same plate as the 501/701 series fluid heads, but they were about $150, and I wasn't willing to spend that on something I only use on rare occasions. I've now used the Fancier head 2x in 2 weeks and it works great.

I'm using it with my Nikon V1 for video mostly. It is sturdy enough to hold my NX5 too.
__________________
Kyle
KR Productions; www.kyleroot.com
Kyle Root is offline   Reply
