Old February 22nd, 2008, 03:26 AM   #1
Trustee

Join Date: Jul 2007
Location: Australia
Posts: 1,321
Help me CC this please

This is shot with a Sony PD170 and i forgot to white balance when i went inside this tent.
I have tried nurmous times to get the right feel for this but i going mad.
The inside of the tent is white, the plates are white.
There seems to be a cast over the picture but i cant work it out.
Can some one try and CC this and tell me how you did it?
I have used levels to bring the thing into range then i used the three wheel CC and sampled the walls, Curves to adjust the red cast.
Cheers
Simon
Attached Thumbnails

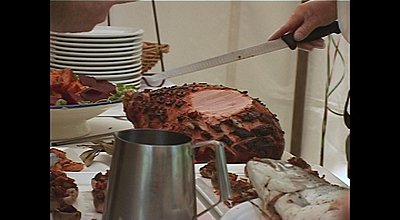

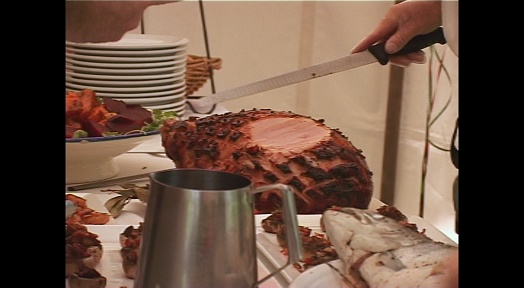

Help me CC this please-not-cc.jpg   Help me CC this please-cc.jpg

Simon Denny is offline   Reply With Quote
Old February 22nd, 2008, 08:15 AM   #2

Join Date: Nov 2001
Location: santa fe, nm
Posts: 3,264
Images: 10
Simon...

Good luck! Lately, it seems Vegas has become very unpredictable when it comes to CCing footage. The scopes are wrong and the preview window is wrong. What you get out of Vegas isn't what you see on your screen. I've been going round and round trying to figure this whole thing out, but, Vegas is just pretty badly written in the latest version.

You can try using the color corrector, as you've done, but you've no way of knowing if what you've corrected will come out until the final render. Even after it's rendered, you have to view it on the player to see the result. very hit and miss. Totally unacceptable AFAIK.
Bill Ravens is offline   Reply With Quote
Old February 22nd, 2008, 08:53 AM   #3
Regular Crew

Join Date: Oct 2003
Location: Hooper, UT
Posts: 177
Simon,

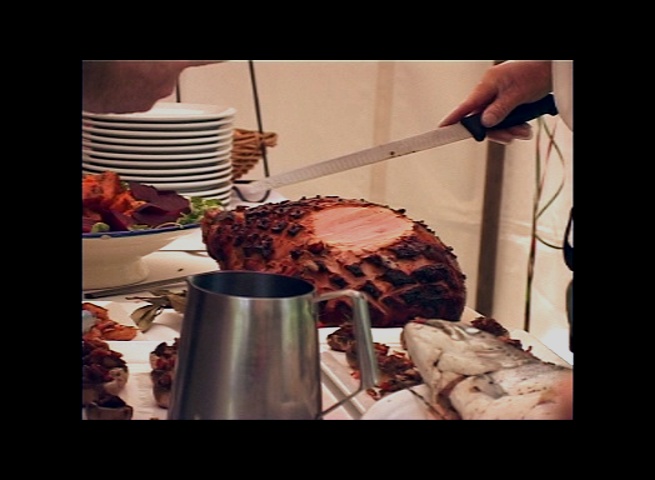

Here's my attempt. Used levels FX first, then Color Correction to white balance. Levels settings are: input start = .089; input end = .758; output start = 0; output end = .839; gamma = 1.00. On color corrector (3 wheels), they came out as follows: High = Angle 325.0, Magnitude 218.0; Low = Angle 312.5, Magnitude .344. Didn't mess with the mid's or any of the saturation, gain, gamma, etc., settings. Hope this helps a little.
Randy
Attached Thumbnails
Help me CC this please-randy-ccd.jpg
Randy Stewart is offline   Reply With Quote
Old February 22nd, 2008, 04:06 PM   #4
Trustee

Join Date: Jul 2007
Location: Australia
Posts: 1,321
Thanks Bill and Randy for your input.
I will keep going with it.

Cheers
Simon
Simon Denny is offline   Reply With Quote
Old February 23rd, 2008, 01:12 AM   #5
Regular Crew

Join Date: Sep 2007
Location: Fargo, ND
Posts: 149
How's this for ya, there's still a very slight difference that I can detect but they seem pretty close to me. (just matched on an LCD didn't fire up the Prod. monitor).

Dave

(just put that veg file in the same folder as your pics ( assuming you're using 8.0b) otherwise I can screenshot what I did with the curves filter and you can take a look at that.
Attached Files
File Type: veg CC Fix.veg (9.2 KB, 164 views)

Last edited by David Hadden; February 23rd, 2008 at 01:16 AM. Reason: add photos for viewing
David Hadden is offline   Reply With Quote
Old February 23rd, 2008, 01:53 AM   #6
Old Boot

Join Date: Aug 2002
Location: London UK
Posts: 3,528
Well . . Simon I got your JPG, viewed it and it looks fine? The tent is white. The meet looks sumptuous. What's the problem? I look at Randy's and it looks RED. The tent flaps look pinky - what IS going on?

When I looked at the VEG from David:

1] I don't get the media

2] I swap IN Simon's JPEG into David's Veg and it looks blue.


From what you say, Simon, it is as if Simon's (red) has been swapped to Randy's!

I have NO idea what is happening now!

And yes, I have again re-checked and rolled over both submissions and the reversal of "effects" is still evident.

Grazie
Graham Bernard is offline   Reply With Quote
Old February 23rd, 2008, 03:31 AM   #7
Trustee

Join Date: Jul 2007
Location: Australia
Posts: 1,321
Its funny after a few days of not looking at it but i think your right Graham it has a slight blue cast over it.
My color TV monitor has died so i cant see this correctly and i wont trust my Samsung LCD to CC.

Thanks Graham and David for you input.

Cheers
Simon
Simon Denny is offline   Reply With Quote
Old February 23rd, 2008, 07:31 AM   #8
Inner Circle

Join Date: Jan 2003
Location: Chicago, IL
Posts: 6,609
Simon,
The 2 jpegs in your first post-the onwe on the left looks a bit reddish but the one on the right looks pretty much spot on just viewing it on my computer monitor. To me whatever you did there would be right on about 99% of anything it got viewed on. If it were me, I would go with those settings.

Don
Don Bloom is offline   Reply With Quote
Old February 23rd, 2008, 08:12 AM   #9

Join Date: Nov 2001
Location: santa fe, nm
Posts: 3,264
Images: 10

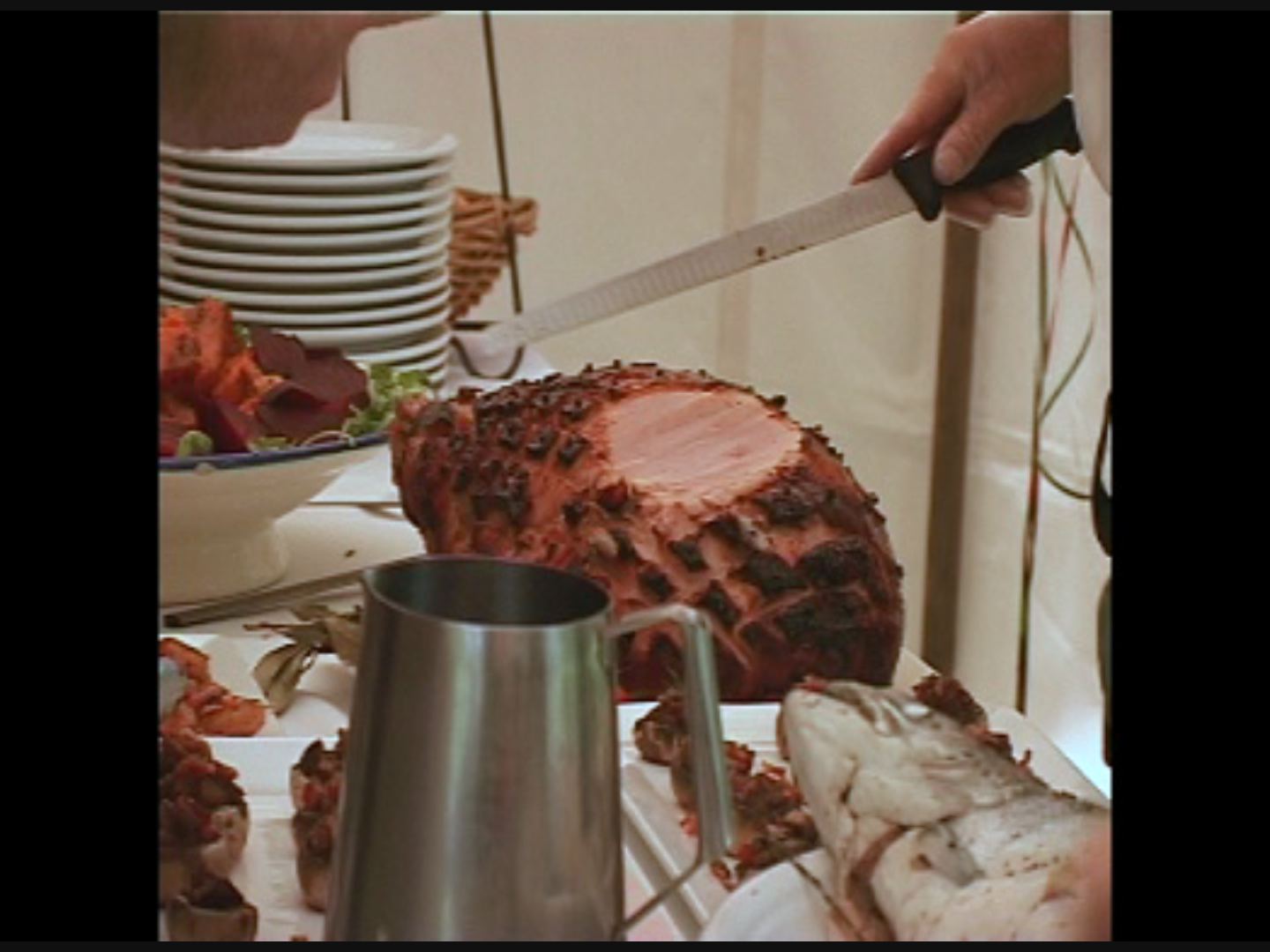

Just for the fun of it...
here's what I got when I white balanced in Edius...
Attached Thumbnails
Help me CC this please-ccedius.jpg
Bill Ravens is offline   Reply With Quote
Old February 23rd, 2008, 09:37 PM   #10
Regular Crew

Join Date: Sep 2007
Location: Fargo, ND
Posts: 149
Quote:
Originally Posted by Graham Bernard View Post
2] I swap IN Simon's JPEG into David's Veg and it looks blue.
I changed the file names so it may be that you pointed to the wrong files ( my bad, sorry ).

try flopping them around and they should match up like within a very small range.

Dave
David Hadden is offline   Reply With Quote
Old February 24th, 2008, 12:54 AM   #11
Regular Crew

Join Date: Sep 2007
Location: Fargo, ND
Posts: 149
Ok, I zipped the files that it should be looking for in the zip here, so I think that should clear things up. If you want me to match the warmer one rather than the cooler one, that should be little or no problem.

Dave
Attached Files
File Type: zip CC Fix.zip (95.1 KB, 41 views)
David Hadden is offline   Reply With Quote
Old February 25th, 2008, 01:59 PM   #12
Regular Crew

Join Date: Sep 2007
Location: Fargo, ND
Posts: 149
just a bump because I want a pat on the back :P (really I'm just wanting to check on whether this worked for you or not).

Dave
David Hadden is offline   Reply With Quote
Old February 25th, 2008, 04:02 PM   #13
Trustee

Join Date: Jul 2007
Location: Australia
Posts: 1,321
Thanks David,
I cant open the veg file, or sorry an error comes up: The file is an unsupported format.

Regards
Simon
Simon Denny is offline   Reply With Quote
Old February 25th, 2008, 07:53 PM   #14
Regular Crew

Join Date: Sep 2007
Location: Fargo, ND
Posts: 149
you must be using an older version of Vegas Pro than I am ( are you 7 or 8 (a or b) or an earlier version? )

I'll put up a screen shot of the curves and you can see how I did it. (not on that computer right now).

Dave
David Hadden is offline   Reply With Quote
Old February 25th, 2008, 10:49 PM   #15
Trustee

Join Date: Jul 2007
Location: Australia
Posts: 1,321
Hi David,
I'm using Vegas 7d so it should load.
Please post your results, i will look forward to them.

Cheers
Simon
Simon Denny is offline   Reply
