DVD Arch Error Message with multiple angles

DVD Arch Pro, ver. 5.0 (Build 173)
I've tried to render a project to DVD 4 times now, and i keep getting the following message:

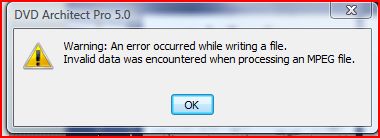

Warning: An error occurred while writing a file.
Invalid data was encountered when processing an MPEG file
.
It's a project with 3 individual video elements, each accessible from the main menu, and each with end action leading to the next element, and then at the end of the third element, end action back to the menu.
Each elelment has 1 main audio and video track, and 3 alternate "angles" and 3 alternate audio tracks.
It appears to go through the rendering process successfully, but seems to hang up in the DVD file creation process.
On the 4th try, the alternate video traks were imported avi's as the help files recommended.
The alternate audio traks are ac3's.
The menu backdrop was an mpeg2 without audio. (originally it was an mv2, and i didn't know if that was creating the error).
I allowed all default recompressions, etc. to occur in the optimization phase of seting up the creation.
Does anyone recognize what may be tripping up the program?
Thanks very much.

Last edited by Sam Houchins II; April 13th, 2010 at 08:03 AM.
Sam Houchins II is offline   Reply With Quote
Old April 13th, 2010, 08:01 AM   #2
Major Player

Join Date: Jun 2003
Location: Fredericksburg, VA
Posts: 244
update

sigh
I just failed my 7th attempt.
I've installed DVDA 5b
I've replaced all audio with ac3 files.
I've replaced all video files with avi files.
I still get the same error message when i try to compile everything and make the DVD files.
I found this entry at the sony forums, but it didn't seem to lead to an answer:
Sony Creative Software - Forums - DVD Architect Software Messages

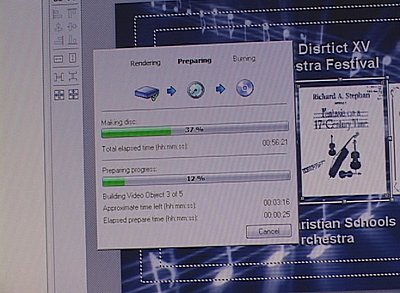

It failed at the point of preparation of the 3rd of 5 video objects, for whatever it's worth.
Thanks for your consideration.
Attached Thumbnails

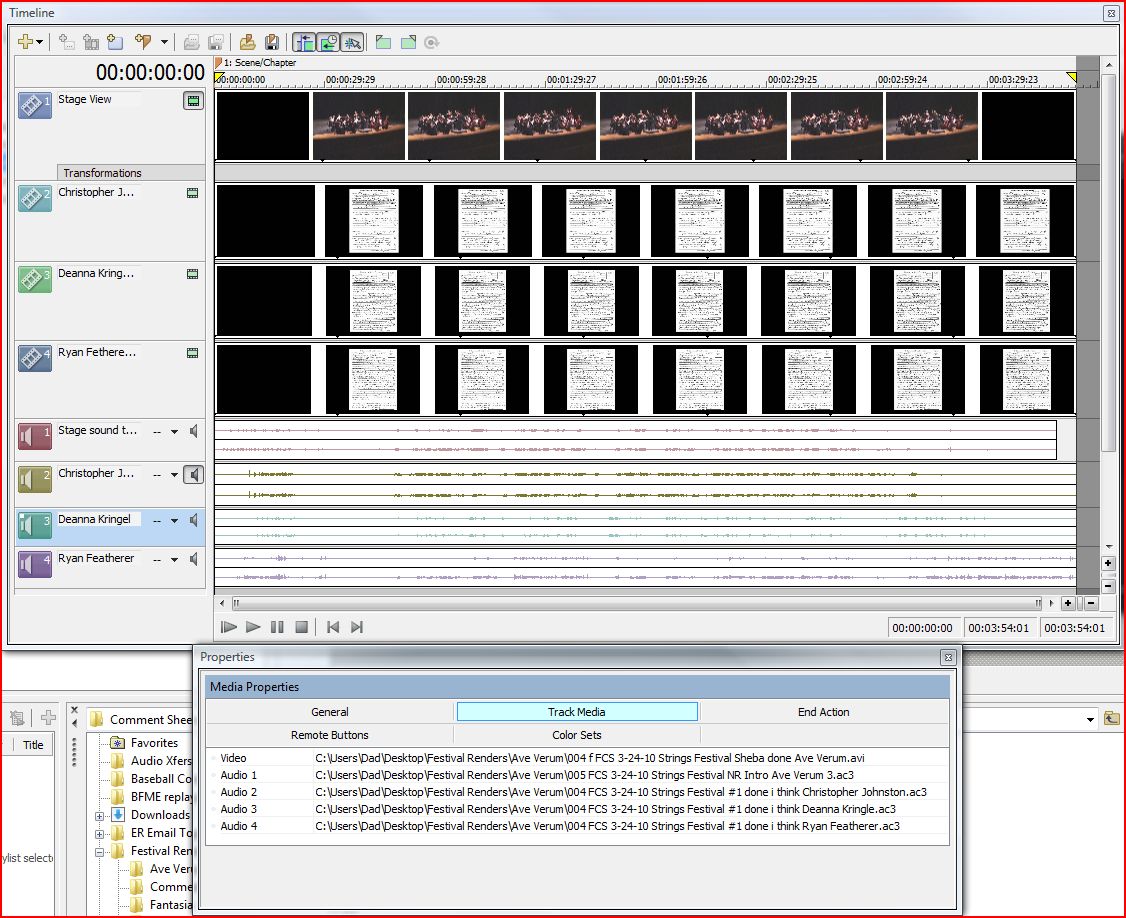

DVD Arch Error Message-screen-shot.jpg   DVD Arch Error Message-point-failure.jpg

Attached Images


Last edited by Sam Houchins II; April 13th, 2010 at 09:23 AM.
Sam Houchins II is offline   Reply With Quote
Old April 13th, 2010, 09:12 AM   #3
Inner Circle

Join Date: May 2005
Location: Windsor, ON Canada
Posts: 2,765
Sam. I seem to recall reading some time ago that menus should be in progressive format, not interlaced.
I have no idea if that's still the case but it's something else to try.
Mike Kujbida is offline   Reply With Quote
Old April 13th, 2010, 10:16 AM   #4
Major Player

Join Date: Jun 2003
Location: Fredericksburg, VA
Posts: 244
Thanks Mike. I'll check into it, but I've never had to give consideration to that issue before. It'd surprise me if it's all of a sudden an issue leading to this flop, but thanks for your thought.
I guess that would be a step from Vegas then... to render the background media as a progressive element?
Thanks again!
Sam Houchins II is offline   Reply With Quote
Old April 13th, 2010, 10:32 AM   #5
Inner Circle

Join Date: May 2005
Location: Windsor, ON Canada
Posts: 2,765
Sam, I'd be surprised too if that turned out to be the problem but stranger things have happened to me with DVDA as it seems to have a mind of it's own some days :-(
If my suggestion doesn't work, hopefully one of the DVDA gurus here (I know Edward is at NAB right now) can offer a suggestion.
Mike Kujbida is offline   Reply With Quote
Old April 13th, 2010, 10:51 AM   #6
Regular Crew

Join Date: Oct 2009
Location: Ravenna, OH
Posts: 198
Have you tried just writing the file out and not setting it to burn?

If that works you can always use a different program to burn the DVD's
Thomas Moore is offline   Reply With Quote
Old April 13th, 2010, 11:18 AM   #7
Major Player

Join Date: Jun 2003
Location: Fredericksburg, VA
Posts: 244
Quote:
Originally Posted by Thomas Moore View Post
Have you tried just writing the file out and not setting it to burn?

If that works you can always use a different program to burn the DVD's
No I hadn't tried that yet, since it's been failing during the file creation stage... never gets to the DVD write stage, though it seems to have completed the re-rendering stages. When i go back to try to write the files that were created, i get a new error message, something about an invalid DVD folder.
Thanks for your idea though!
Sam Houchins II is offline   Reply With Quote
Old April 13th, 2010, 01:04 PM   #8
Major Player

Join Date: Jun 2003
Location: Fredericksburg, VA
Posts: 244
another observation

well... in case this means something to someone...
I went into the files created by the failed process...
i dropped the vob files onto the vegas timeline to see what there was...

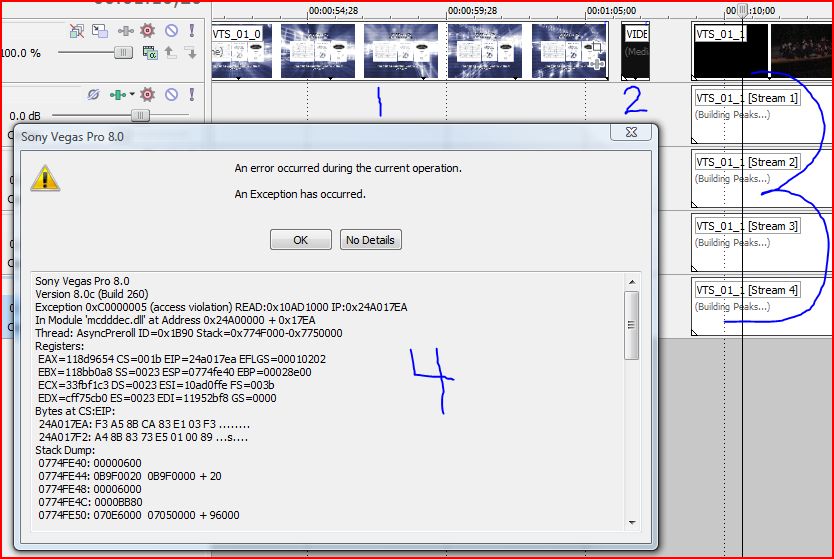

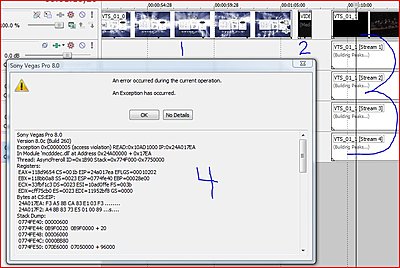

looking at the attched screen shot...
#1 is VTS_01_0.VOB = 26,618KB = my menu, seems ok
#2 is VIDEO_TS.VOB = 232KB = 00:37;26 long "empty, black" video on the vegas timeline
#3 is my first video element, which showed up on the timeline when dropped as the primary video from the 1st video element (no signs of the 3 alternate angles) and 4 attached audio tracks.
Right after dropping this element onto the timeline, it triggered an exception error from Vegas, which leads to the program shutting down when you click "ok".
So...
the menu seems to be ok as is, without regard to it's imported backdrop file having been rendered from Vegas as interlaced.
and
as indicated by the last notice before the error message from DVDA while compiling, the error seems to be in the multi angled file, apparently the 3rd of 5 objects (4th and 5th objects probably would have been my 2nd and 3rd video elements with their alt audio and video traks).
Thanks for your continued consideration.
Attached Thumbnails
DVD Arch Error Message-vegas-exception-2.jpg
Sam Houchins II is offline   Reply With Quote
Old April 16th, 2010, 07:38 AM   #9
Major Player

Join Date: Jun 2003
Location: Fredericksburg, VA
Posts: 244
Post-NAB

Quote:
Originally Posted by Mike Kujbida View Post
Sam, I'd be surprised too if that turned out to be the problem but stranger things have happened to me with DVDA as it seems to have a mind of it's own some days :-(
If my suggestion doesn't work, hopefully one of the DVDA gurus here (I know Edward is at NAB right now) can offer a suggestion.
***post-NAB bump***
Sam Houchins II is offline   Reply With Quote
Old April 16th, 2010, 09:29 AM   #10
Sponsor: JET DV

Join Date: Dec 2001
Location: Southern Illinois
Posts: 7,873
I would consider running the MPEG files through MPEG2Repair and see if there really *IS* a problem with one of the MPEG2 files.
__________________
Edward Troxel [SCVU]
JETDV Scripts/Excalibur/Newsletters
Edward Troxel is offline   Reply With Quote
Old April 16th, 2010, 09:30 AM   #11
Sponsor: JET DV

Join Date: Dec 2001
Location: Southern Illinois
Posts: 7,873
Just got home from NAB last night. Was great to see all the folks there.
__________________
Edward Troxel [SCVU]
JETDV Scripts/Excalibur/Newsletters
Edward Troxel is offline   Reply With Quote
Old April 16th, 2010, 11:18 AM   #12
Inner Circle

Join Date: May 2005
Location: Windsor, ON Canada
Posts: 2,765
Quote:
Originally Posted by Edward Troxel View Post
Just got home from NAB last night. Was great to see all the folks there.
Edward, how was the Vegas party??
Mike Kujbida is offline   Reply With Quote
Old April 16th, 2010, 11:49 AM   #13
Major Player

Join Date: Jun 2003
Location: Fredericksburg, VA
Posts: 244
Welcome back

Quote:
Originally Posted by Edward Troxel View Post
I would consider running the MPEG files through MPEG2Repair and see if there really *IS* a problem with one of the MPEG2 files.
Grateful for your return as well as your suggestion, thanks. I'll do a search for MPEG2Repair to see what you're suggesting.

My follow up thought off the bat would be that I observed that DVDA never even got to the last 2 elements because of the error message referenced above. So that alone makes my potential DVD incomplete. I also discovered at the link referenced above from the Sony forum, that someone else has had a similar problem with the multiple angle creation. That thread did not lead to a solution. I've tacked my issues onto that thread, but no answers. I'vre also submitted an email question to Sony's tech support, but no answer yet

Thank you for your time to offer up an idea!
Sam Houchins II is offline   Reply With Quote
Old April 17th, 2010, 08:53 AM   #14
Sponsor: JET DV

Join Date: Dec 2001
Location: Southern Illinois
Posts: 7,873
I couldn't stay for the whole thing (had another appointment - seems nearly everyone schedules things on the same night at the same time). It appeared to be well attended. Lots of great people seeing a feature packed program.
__________________
Edward Troxel [SCVU]
JETDV Scripts/Excalibur/Newsletters
Edward Troxel is offline   Reply With Quote
Old April 25th, 2010, 09:26 PM   #15
Major Player

Join Date: Jun 2003
Location: Fredericksburg, VA
Posts: 244
Quote:
Originally Posted by Edward Troxel View Post
I would consider running the MPEG files through MPEG2Repair and see if there really *IS* a problem with one of the MPEG2 files.
MPEG2Repair seems to look at ts, tp, or trp files. I only have avi files in play.
Thanks for your consideration though.
Any other ideas?
Even Sony is still silent on this topic.
No response from their forum either.
Has anyone successfully pulled off a multi-angle render with DVDArchitect 5?
Thanks!

Last edited by Sam Houchins II; April 25th, 2010 at 10:24 PM.
Sam Houchins II is offline   Reply
