Old September 20th, 2010, 07:08 AM   #1
Regular Crew

Join Date: Feb 2010
Location: West Orange, NJ, U.S.
Posts: 163
Changing Bitrate Settings for Render

Hi all,

I'm rendering out to DVD NTSC DVDA. I have a film that is 2 hours, 5 minutes, 4 seconds long. I did some research about making sure the file will fit onto a standard DVD and used Mark's Bitrate Calculator to get my settings.

I've gone into Vegas' custom area for this render and tried messing with the Max., Avg., and Min. bitrates. I think I'm doing it correctly but it seems like Vegas won't allow for different values in those boxed. The calculator indicates to use min 2752, avg 4592 and max 8040, and when I choose VBR and put my first value into the minimum bitrate box (2,752,000), and then try to enter the avg rate of 4,592,000, the avg rate for right to 2,752,000.

Can someone tell me what I may be doing wrong?
Mike Hammond is offline   Reply With Quote
Old September 20th, 2010, 07:10 AM   #2
Regular Crew

Join Date: Feb 2010
Location: West Orange, NJ, U.S.
Posts: 163

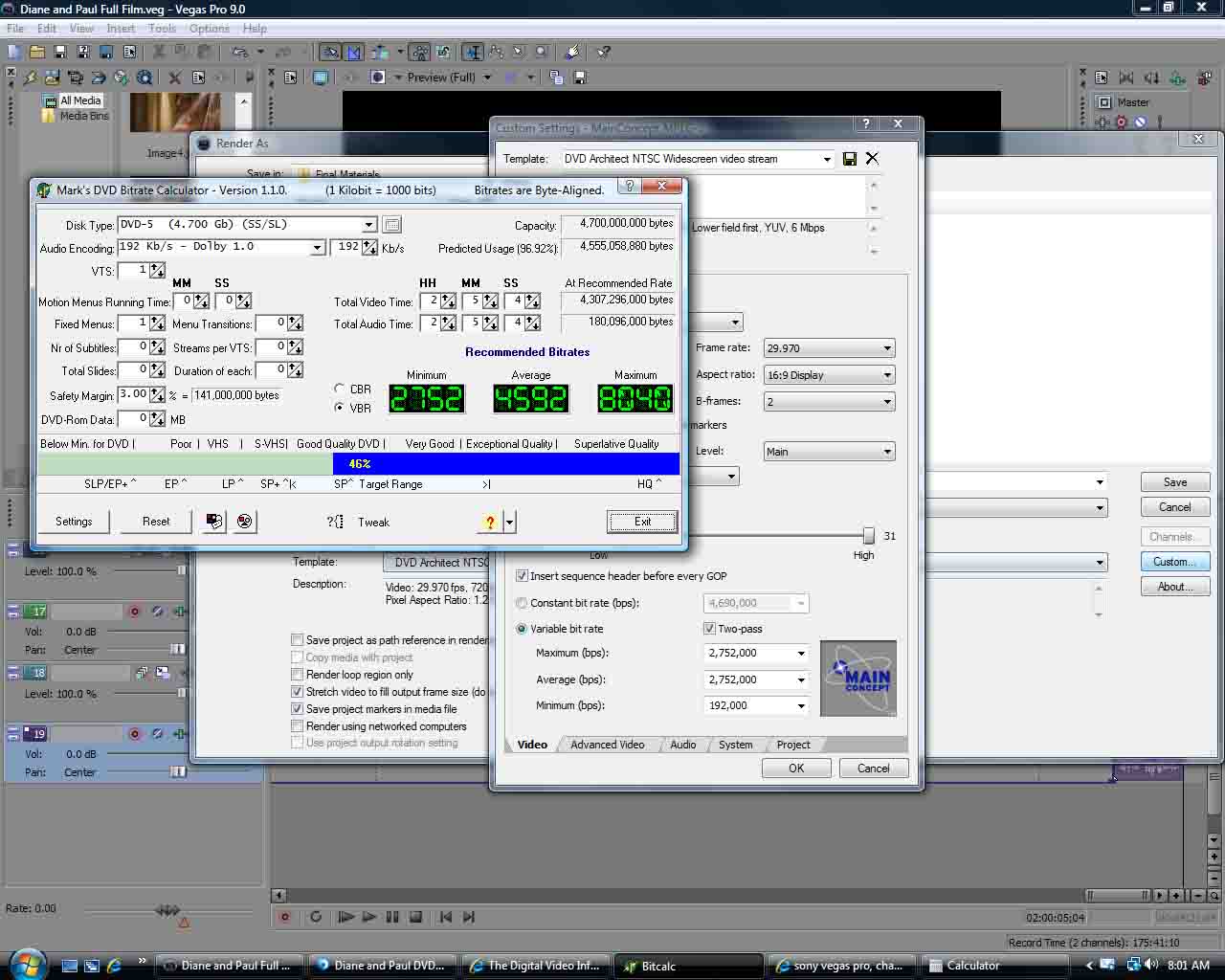

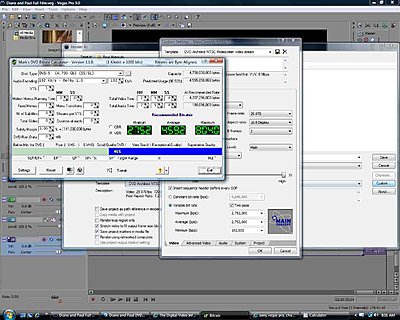

Here's a screenshot of my settings and the calculator.
Attached Thumbnails
Changing Bitrate Settings for Render-bitrate-settings.jpg
Mike Hammond is offline   Reply With Quote
Old September 20th, 2010, 08:12 AM   #3
Inner Circle

Join Date: May 2005
Location: Windsor, ON Canada
Posts: 2,765
Mike, I just tried it and it worked for me so I don't know why you're having problems.
All I can suggest is try entering the numbers from the top (Max first) down and see if that helps.
Also, can we see the entire Custom screen instead of it being partially obscured by the bitrate calculator?
Mike Kujbida is offline   Reply With Quote
Old September 20th, 2010, 08:55 AM   #4
Regular Crew

Join Date: Feb 2010
Location: West Orange, NJ, U.S.
Posts: 163
Hi Mike,

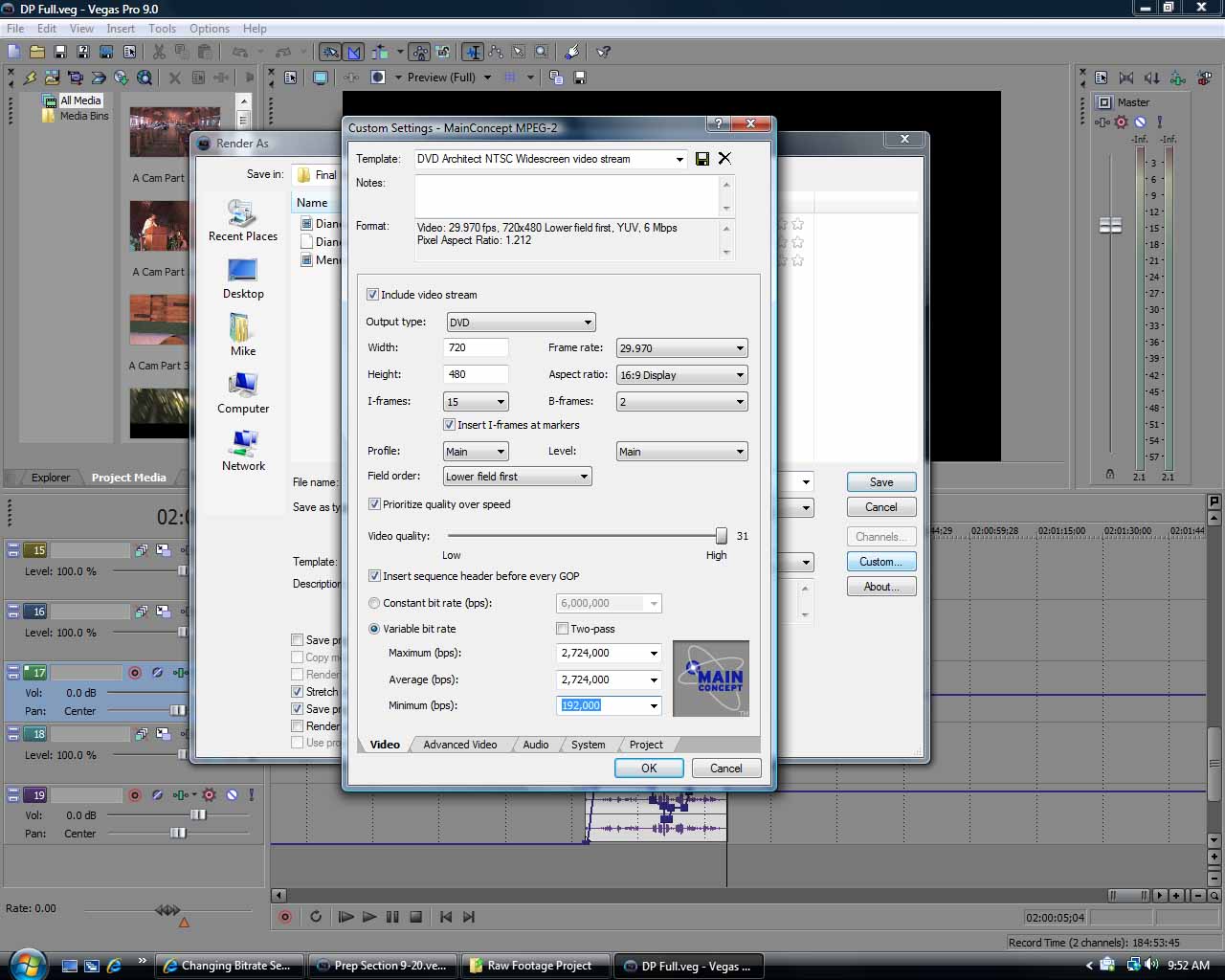

Thanks and here you go.

I did try to input the values from the top down (and bottom up) with the same result. You can see from the screen shot that Vegas has automatically inupt the avg number to match the max number I put in. That's after I manually tried to enter the avg value myself.
Attached Thumbnails
Changing Bitrate Settings for Render-bitrate-settings-2.jpg
Mike Hammond is offline   Reply With Quote
Old September 20th, 2010, 08:57 AM   #5
Sponsor: JET DV

Join Date: Dec 2001
Location: Southern Illinois
Posts: 7,873
You entered the "minimum" value in the "Maximum" box. Therefore, average can't exceed that "maximum" that you entered. Put the minimum value in the BOTTOM box.
__________________
Edward Troxel [SCVU]
JETDV Scripts/Excalibur/Newsletters
Edward Troxel is offline   Reply With Quote
Old September 20th, 2010, 09:33 AM   #6
Regular Crew

Join Date: Feb 2010
Location: West Orange, NJ, U.S.
Posts: 163
Oh for crying out....

Thanks Ed. You know, I got to tell you - it's a little embarrassing. Anyway, all the calculations look right for 2hrs, 5mins, 4secs, yes? I don't want to render out and then find out I didn't put the right values in there. It's kind of surprising that Vegas doesn't show you what you'll end up with, in terms of file size, when you customize your bit rates.
Mike Hammond is offline   Reply With Quote
Old September 20th, 2010, 09:35 AM   #7
Regular Crew

Join Date: Sep 2008
Location: Beersheba, Israel
Posts: 111
Theoretically speaking, the VBR encoding method, which you chose, allows you to specify only a bitrate range - a minimum and maximum allowed bitrate determining the range in which the bitrate may vary.

The disadvantage of such settings is that the average bitrate (the file size) will not be known ahead of time. Therefore, some encoders (including MainConcept MPEG-2) allow the user to set additionally an average bitrate (ABR) (just to ensure the output stream achieves a predictable long-term average bitrate, i.e. the file size).

The settled ABR can be achieved in a single pass, but a multi-pass ABR encoding is highly recommended because the multi-pass ABR is more similar to fixed quantizer VBR: a higher average will really increase the final quality.
Arkady Bolotin is offline   Reply With Quote
Old September 20th, 2010, 09:47 AM   #8
Sponsor: JET DV

Join Date: Dec 2001
Location: Southern Illinois
Posts: 7,873
Mike, yes those numbers sound about right for 2 hours 5 minutes. If I was doing it, I would use about 4,620,000. From my chart, the number you listed is between 125 and 130 minutes so you're definitely in the right ballpark. If you're using a menu, the smaller number will give you a little more wiggle room.
__________________
Edward Troxel [SCVU]
JETDV Scripts/Excalibur/Newsletters
Edward Troxel is offline   Reply With Quote
Old September 20th, 2010, 10:00 AM   #9
Major Player

Join Date: Dec 2009
Location: Rochester,NY USA
Posts: 282
I try to download Mark's DVD biterate calculator but got nowhere, to many redirect links for BS stuffs. Finally I found it seem to be the place to download it, when I clicked download there is nothing, keep bouncing back and forth to the same site. It is not my computer blocking it.

Can someone nice enough to .zip your Marks dvd calculator here. I appreciate if anyone can help.
Bruce Phung is offline   Reply With Quote
Old September 20th, 2010, 10:14 AM   #10
Inner Circle

Join Date: May 2005
Location: Windsor, ON Canada
Posts: 2,765
Here you go Bruce.

http://www.johncline.com/bitcalc110.zip
Mike Kujbida is offline   Reply With Quote
Old September 20th, 2010, 10:25 AM   #11
Major Player

Join Date: Dec 2009
Location: Rochester,NY USA
Posts: 282
Mike,
It all good. Thank you very much.
Bruce Phung is offline   Reply With Quote
Old September 20th, 2010, 11:49 AM   #12
Regular Crew

Join Date: Feb 2010
Location: West Orange, NJ, U.S.
Posts: 163
Thanks very much everyone. I'm rendering now with those values (in the right order) with a 2-pass, and I'm looking forward to finishing it up.

I really appreciate the assitance.
Mike Hammond is offline   Reply
