Green Fringing

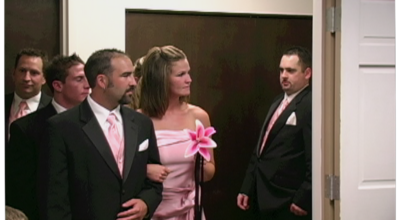

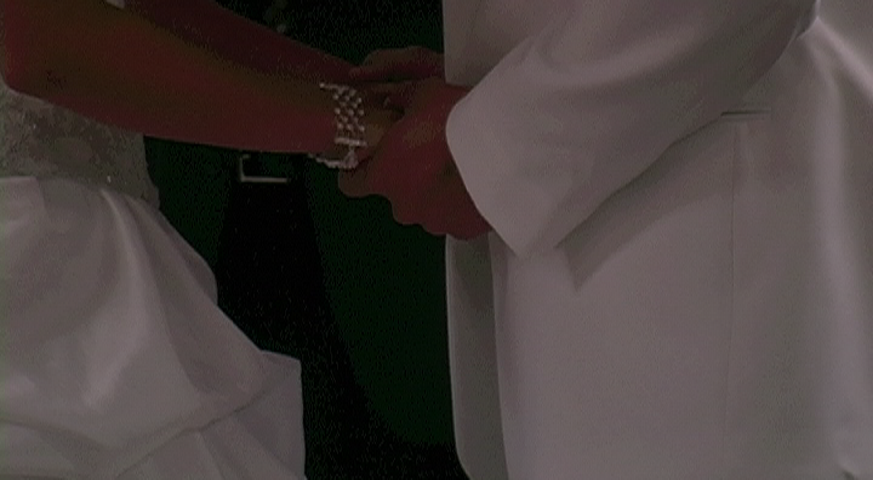

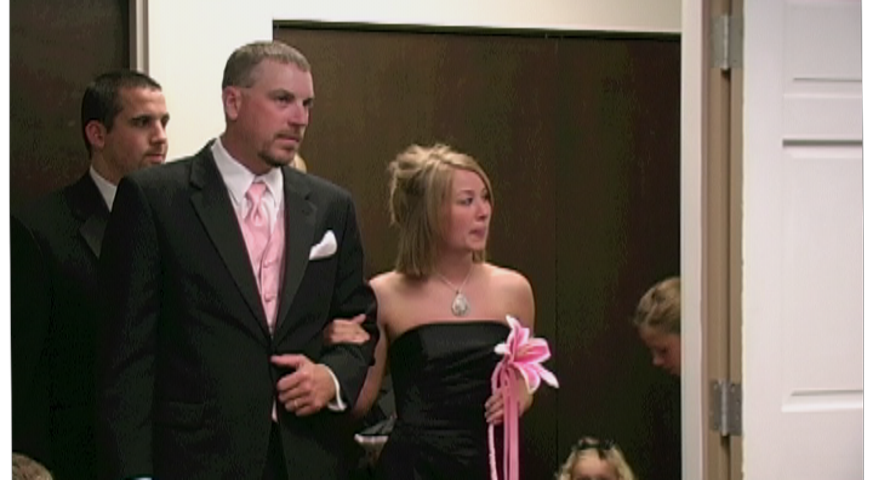

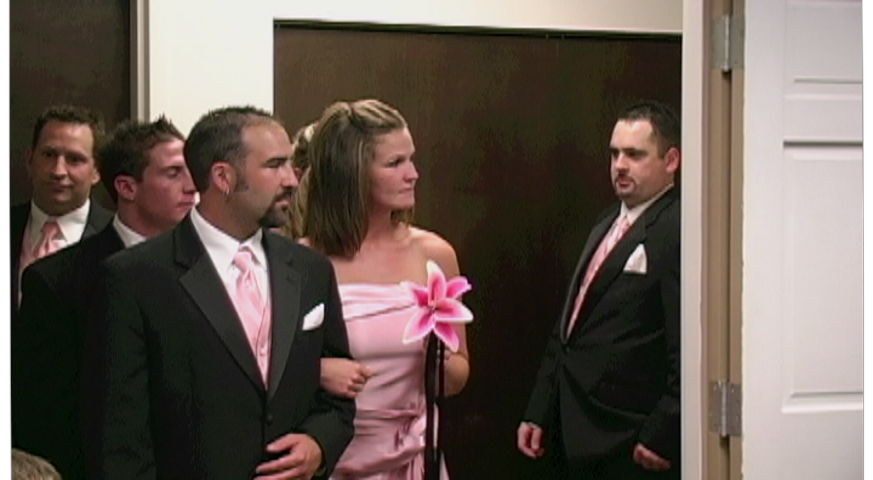

Working on a wedding edit for someone and found that one of his cameras had a bad green fringing issue (see attacfhments)

Any suggestions on how to repair this?

Thanks in advance.
Attached Thumbnails
Green Fringing-green1.png   Green Fringing-green2.png

Green Fringing-green3.png
Thomas Moore is offline   Reply With Quote
Old January 25th, 2011, 09:45 AM   #2
Inner Circle

Join Date: Jun 2005
Location: Cincinnati, OH
Posts: 8,421
Ignore post.
__________________
http://JeffHarperVideo.com
The horror of what I saw on the timeline cannot be described.
Jeff Harper is offline   Reply With Quote
Old January 25th, 2011, 09:58 AM   #3
Regular Crew

Join Date: Oct 2009
Location: Ravenna, OH
Posts: 198
The green furry looking stuff on the edges, kinda like grain...
Thomas Moore is offline   Reply With Quote
Old January 26th, 2011, 10:34 AM   #4
Regular Crew

Join Date: Oct 2009
Location: Ravenna, OH
Posts: 198
Nobody has ever seen/fixed this? :(
Thomas Moore is offline   Reply With Quote
Old January 26th, 2011, 11:43 AM   #5
Inner Circle

Join Date: May 2005
Location: Windsor, ON Canada
Posts: 2,765
My guess is noise due to low light situations.
However, it appears that the shots you posted weren't done at maximum resolution so this could account for it too.
If it's noise, give Neat Video (paid) or the Mike Crash Dynamic Noise Reduction filter (free) a try.
Mike Kujbida is offline   Reply With Quote
Old January 26th, 2011, 12:11 PM   #6
Regular Crew

Join Date: Oct 2009
Location: Ravenna, OH
Posts: 198
Thanks Mike, actually yes they were taken at full resoulution, they look that bad :(

I have Neat Video and have tried it, which smooths it out a little bit but not that much and the green doesn't go away. In the zoomed shots it just makes it worse.

Haven't tried Crash's stuff yet although I do have it.
Thomas Moore is offline   Reply With Quote
Old January 26th, 2011, 01:40 PM   #7
Inner Circle

Join Date: May 2005
Location: Windsor, ON Canada
Posts: 2,765
Thomas, all I can is good luck :(
With the source video looking that bad, I don't know if anything can fix it.
You've already tried what most Vegas users consider to be the best (affordable) paid solution there is.

Check out the Filtering Color Noise from VHS Source on the Sony Vegas Pro forum for a wealth of noise reduction information.

I don't know if you use AviSynth or not.
I don't so please don't ask me anything about it :)
If you do, here's a script courtesy of John Meyer who's a regular on the Sony Vegas forum.



#Denoiser script for interlaced video using MDegrain2
#This is the recommended script for VHS as of January 25, 2011

Loadplugin("C:\Program Files\AviSynth 2.5\plugins\MVTools\mvtools2.dll")
LoadPlugin("c:\Program Files\AviSynth 2.5\plugins\CNR\Cnr2.dll")

SetMTMode(5) #Only use this line if you have the multi-threaded version of AVISynth

#Modify this line to point to your video file
#Change AssumeBFF() to AssumeTFF() for HD video
source=AVISource("E:\frameserver.avi").killaudio().AssumeBFF()

SetMTMode(2,0) #Only use this line if you have the multi-threaded version of AVISynth

#Only use chroma restoration for analog source material
#chroma=source.Cnr2("oxx",8,16,191,100,255,32,255,false) #VHS
chroma=source #Use this line for digital video

#Set overlap (second parameter in MDegrain function) to 0, 2, 4, 8. Higher number=better, but slower
#For VHS, 4,0 seems to work better than 8,2. Most of difference is in shadows.
#However, 8,0 is good enough and MUCH faster. 8,2 doesn't seem to make much difference on VHS.
#Set the last number to 1 if the video contains flicker -- this makes script run at about 10% of the normal speed.

output=MDegrain2i2(chroma,8,0,0)

#stackhorizontal(source,output) #Use this line to do before/after comparison
return output

#-------------------------------

function MDegrain2i2(clip source, int "blksize", int "overlap", int "dct")
{

Vshift=2 # 2 lines per bobbed-field per tape generation (PAL); original=2; copy=4 etc
Hshift=0 # determine experimentally -- I've used values up to 12 (can be + or -)
overlap=default(overlap,0) # overlap value (0 to 4 for blksize=8)
dct=default(dct,0) # use dct=1 for clip with light flicker

fields=source.SeparateFields() # separate by fields because this function is for interlaced video

#This line gets rid of vertical chroma halo -- eliminate if this isn't a problem (i.e., for digital video)
fixed_fields=MergeChroma(fields,crop(fields,Hshift,Vshift,0,0).addborders(0,0,Hshift,Vshift))
#fixed_fields=fields #Use this line instead of the one above when doing digital video

super = fixed_fields.MSuper(pel=2, sharp=1)
backward_vec2 = super.MAnalyse(isb = true, delta = 2, blksize=blksize, overlap=overlap, dct=dct)
forward_vec2 = super.MAnalyse(isb = false, delta = 2, blksize=blksize, overlap=overlap, dct=dct)
backward_vec4 = super.MAnalyse(isb = true, delta = 4, blksize=blksize, overlap=overlap, dct=dct)
forward_vec4 = super.MAnalyse(isb = false, delta = 4, blksize=blksize, overlap=overlap, dct=dct)

#Change thSAD to increase/decrease de-noising
MDegrain2(fixed_fields,super, backward_vec2,forward_vec2,backward_vec4,forward_vec4,thSAD=400) #400=original setting
unsharpmask(60,3,0) #This provides "clever" sharpening that brings out detail without adding obnoxious sharpening artifacts
Weave() #Convert fields back into interlaced video

}
Mike Kujbida is offline   Reply With Quote
Old January 26th, 2011, 09:01 PM   #8
Inner Circle

Join Date: Jun 2005
Location: Cincinnati, OH
Posts: 8,421
Not that it helps, but a high gain might be responsible for this issue.

In addition, when zoomed in as was done on the ring exchange, you lose several f-stops.

That shot of the hands is nice when you can get it, but when it is that dark, in the future you might consider a medium shot, waist up, instead.
__________________
http://JeffHarperVideo.com
The horror of what I saw on the timeline cannot be described.
Jeff Harper is offline   Reply With Quote
Old January 27th, 2011, 05:30 AM   #9
Regular Crew

Join Date: Oct 2009
Location: Ravenna, OH
Posts: 198
Thanks Jeff, yea there is a lot of this from this cam...

And thanks for the advice but not my footage :) Like said at start I'm working on someone else's foofage...
Thomas Moore is offline   Reply With Quote
Old January 27th, 2011, 08:20 AM   #10
Inner Circle

Join Date: Jun 2005
Location: Cincinnati, OH
Posts: 8,421
Reminds me of why I dislike working on other people's footage! Good luck.
