Old July 20th, 2011, 02:44 PM   #1
Regular Crew

Join Date: May 2008
Location: Gilbert, AZ
Posts: 92
Event/Pan Crop worksapce won't zoom out enough

I can't zoom out of workspace by more than 12.5 in order to grab crop handle to zoom in on media object more.
Attached Thumbnails

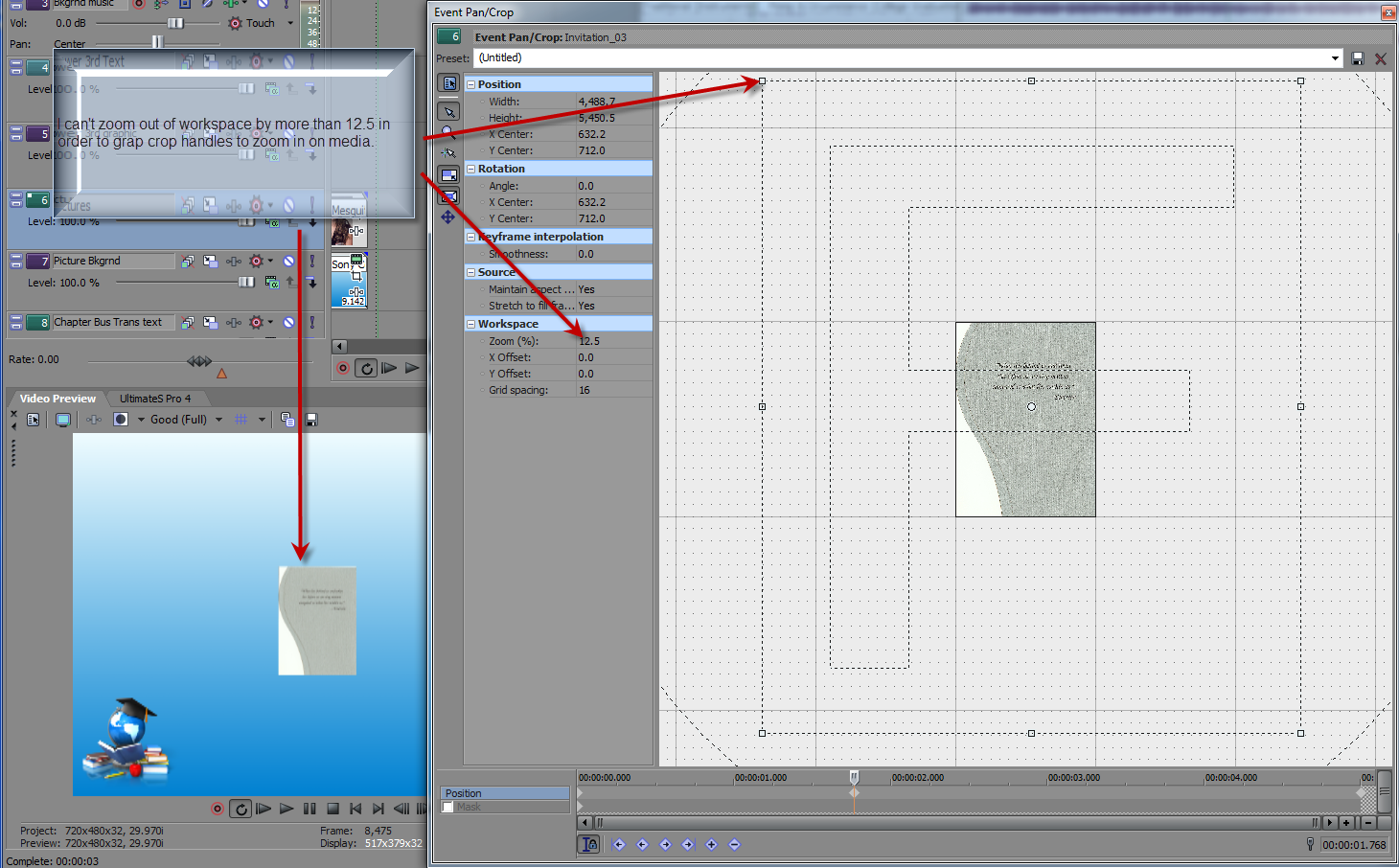

Event/Pan Crop worksapce won't zoom out enough-workspaceeventpancrop.png
Ken Olson is offline   Reply With Quote
Old July 20th, 2011, 02:48 PM   #2
Sponsor: JET DV

Join Date: Dec 2001
Location: Southern Illinois
Posts: 7,873
Re: Event/Pan Crop worksapce won't zoom out enough

Use Track Motion to zoom out farther. Realistically, I prefer using Track Motion to zoom OUT and Pan/Crop to zoom IN as Pan/Crop uses the full resolution of the image.
__________________
Edward Troxel [SCVU]
JETDV Scripts/Excalibur/Newsletters
Edward Troxel is offline   Reply With Quote
Old July 20th, 2011, 03:47 PM   #3
Regular Crew

Join Date: May 2008
Location: Gilbert, AZ
Posts: 92
Re: Event/Pan Crop worksapce won't zoom out enough

Well hello again Ed!

Wow what a design flaw, why would they intentionally put this limit on Event Pan/Crop even though you can do it within Track Motion?

You have to continuously remember to keep track if your "Lock Envelopes to events" as well as Auto Ripple. Plus it's so easy to copy event attributes from one to another. That's a big inconvenience.

I just recently learned that by holding the Ctrl key while dragging a handle allows you to stretch the object space somehow. It's time consuming because of the drag to position ratio is in very small increments. Any reason why I should avoid this approach?
Ken Olson is offline   Reply With Quote
Old July 20th, 2011, 09:05 PM   #4
Jubal 28

Join Date: Mar 2005
Location: Wilmington, NC
Posts: 872
Re: Event/Pan Crop worksapce won't zoom out enough

Are you talking about wanting to zoom out in the workspace within the pan/crop tool in order to be able to move the crop frame further out?

Use the mouse scroll wheel. You should be able to go quite a bit further out than what you have there.
David Jimerson is offline   Reply With Quote
Old July 21st, 2011, 07:52 AM   #5
Sponsor: JET DV

Join Date: Dec 2001
Location: Southern Illinois
Posts: 7,873
Re: Event/Pan Crop worksapce won't zoom out enough

Well... it's not really a design flaw. Pan/Crop is designed for Panning and Cropping in which case you zoom IN on an image (Crop) in order to move across the image (Pan).

Track Motion is designed to zoom OUT and add motion.

Just a matter of using each tool for it's designed purpose.
__________________
Edward Troxel [SCVU]
JETDV Scripts/Excalibur/Newsletters
Edward Troxel is offline   Reply With Quote
Old July 21st, 2011, 06:56 PM   #6
Regular Crew

Join Date: May 2008
Location: Gilbert, AZ
Posts: 92
Re: Event/Pan Crop worksapce won't zoom out enough

David,

"Use the mouse scroll wheel. You should be able to go quite a bit further out than what you have there. "
Yes - I know about the mouse wheel.

"Are you talking about wanting to zoom out in the workspace within the pan/crop tool in order to be able to move the crop frame further out?"
Yes - I need to zoom out of workspace further then what is show in the screen shot. In fact, you can see the zoom % is only 12.5, so I need to go much lower in order to zoom out of workspace thereby allowing me to grab the size handle with enough room to stretch (zoom out of the photo).

Please see attached short screencast.
Attached Files
File Type: wmv EventPanCrop.wmv (5.95 MB, 59 views)
Ken Olson is offline   Reply With Quote
Old July 21st, 2011, 07:07 PM   #7
Inner Circle

Join Date: Jan 2003
Location: Chicago, IL
Posts: 6,609
Re: Event/Pan Crop worksapce won't zoom out enough

why not simply type in the number in the height, press TAB and the width will follow if you have lock aspect ratio set.Adjust the numbers until you find the one you want.
__________________
What do I know? I'm just a video-O-grafer.
Don
Don Bloom is offline   Reply With Quote
Old July 21st, 2011, 11:53 PM   #8
Regular Crew

Join Date: May 2008
Location: Gilbert, AZ
Posts: 92
Re: Event/Pan Crop worksapce won't zoom out enough

I'll try that option, thank you.
Ken Olson is offline   Reply
