Vegas Markers into DVD Architect?

I normally use Encore so forgive my ignorance.
Since there doesn't seem to be a way in the universe to get my Vegas Chapter Markers into Encore Im trying DVD Architect for a few jobs.
How do I get Markers to export from Vegas into Architect.
Side note, why on earth can't we open up a Vegas project in Architect? Sony really needs to catch up with Dynamic linking.
__________________
http://vimeo.com/livewebvideo
Gerald Webb is offline   Reply With Quote
Old January 13th, 2013, 05:11 AM   #2
Major Player

Join Date: Feb 2011
Location: Reading Berkshire UK
Posts: 827
Re: Vegas Markers into DVD Architect?

Its an option to tick in the Render dialogue box.

If you have already done a monster render and don't fancy repeating it you can insert Markers direct in DVDA. Just go to the appropriate places in the DVDA timeline - you'll want to zoom in for that obviously - and use the keyboard M to place markers.

Pete
Peter Riding is offline   Reply With Quote
Old January 13th, 2013, 08:48 AM   #3
Inner Circle

Join Date: Jun 2005
Location: Cincinnati, OH
Posts: 8,421
Re: Vegas Markers into DVD Architect?

Yes, as Peter alludes to, including markers with a render does not happen by default with a Vegas render. It is maddening to me because after I do a clean install of my OS and Vegas and I almost always forget to check the box in the render dialogue, and then have to re render. After I check that box it will do that without the need to re-check the box.

After you render with markers, and after you bring the movie into DVDA, double click on the movie icon in DVDA on the menu, and it will show you the markers on the timeline in DVDA.

If you had previously set up the DVDA menu, but then re-render the video file to include markers, if you use the same DVDA project, you will need to click above the timeline on the "load markers" icon in order for DVDA to find the markers.
Jeff Harper is offline   Reply With Quote
Old January 13th, 2013, 10:05 AM   #4
Inner Circle

Join Date: May 2005
Location: Windsor, ON Canada
Posts: 2,765
Re: Vegas Markers into DVD Architect?

If you forgot to include the markers during your render, here's a script I grabbed a long time ago that may help.

http://dl.dropbox.com/u/20488019/dvd...vegasmarker.js

Here is the explanation from the script.

Script to generate *.sfl file from Vegas timeline markers, which can then be imported into
DVDA as chapter points. (File format same as that saved by Vegas.)

Note:
=====
1) The sfl file **MUST** use the MPEG file as basename, eg. "myfile.mpg.sfl".
2) If string length (including null byte) is not word aligned, ie. odd bytes, then pad
with another null byte to make it even bytes.
3) Chapter point need to fall on an I-frame, so actual frame used will depend on
how DVDA search for I-frame. If there is ever an option, choose search backwards.



And here's an important note from the developer (name unknown):


So, you run this, and it will create an SFL file. Make sure this has the same name as your MPEG video file. So, if you have a "My_film.mpg" video file, you will create a "My_film.mpg.sfl" file. Then, in DVDA, open the project, or if the project hasn't been started, drop the video into the project. If, for some reason, the markers don't appear, click on the "Load Markers" icon above the timeline, after first double-clicking on the video file in the project area.

Note: I have found that, for some reason, markers sometimes don't appear at the correct location on the timeline. I have not been able to determine why this happens, but I have a way to workaround the problem. Open the script in Notepad. Find this line, near the top of the script:

Code Block:
var NTSCFrameTime : double = 1471.47; // 30000.0/1001.0 = 29.97....



Change the 1471.47 number to one of these numbers:

1472.9415
1271.47
1601.61836
Mike Kujbida is offline   Reply With Quote
Old January 13th, 2013, 02:27 PM   #5
Major Player

Join Date: Feb 2011
Location: Reading Berkshire UK
Posts: 827
Re: Vegas Markers into DVD Architect?

Jeff if you modify a template to include Markers and then rename it, then you will not have to remember to click to include them each time. If you also click your modified template to include it as a favourite it will of course be easy to find - as you no doubt know.

Another workaround might be just to rerender the audio tracks complete with markers and bring that into DVDA, deleting your previously rendered audio track. That would be far quicker than rerendering the whole thing.

Pete
Peter Riding is offline   Reply With Quote
Old January 13th, 2013, 04:29 PM   #6
Regular Crew

Join Date: Aug 2010
Location: Rogers, AR
Posts: 84
Re: Vegas Markers into DVD Architect?

Another option is to use the Vaast Ultimate S program. There is an option in there to just render out the marker info. In DVD Architect, when you in the timeline of a particular video, there is an icon for import markers.

Easiest is to always have that marker checked off (render marker) when rendering your mpeg file.

It does work. Just need to learn the process. Good luck. James
James Redmond is offline   Reply With Quote
Old January 13th, 2013, 06:01 PM   #7
Trustee

Join Date: Oct 2009
Location: Central Coast Australia
Posts: 1,008
Re: Vegas Markers into DVD Architect?

Thanks for the replies :)
However I am having no joy what so ever.

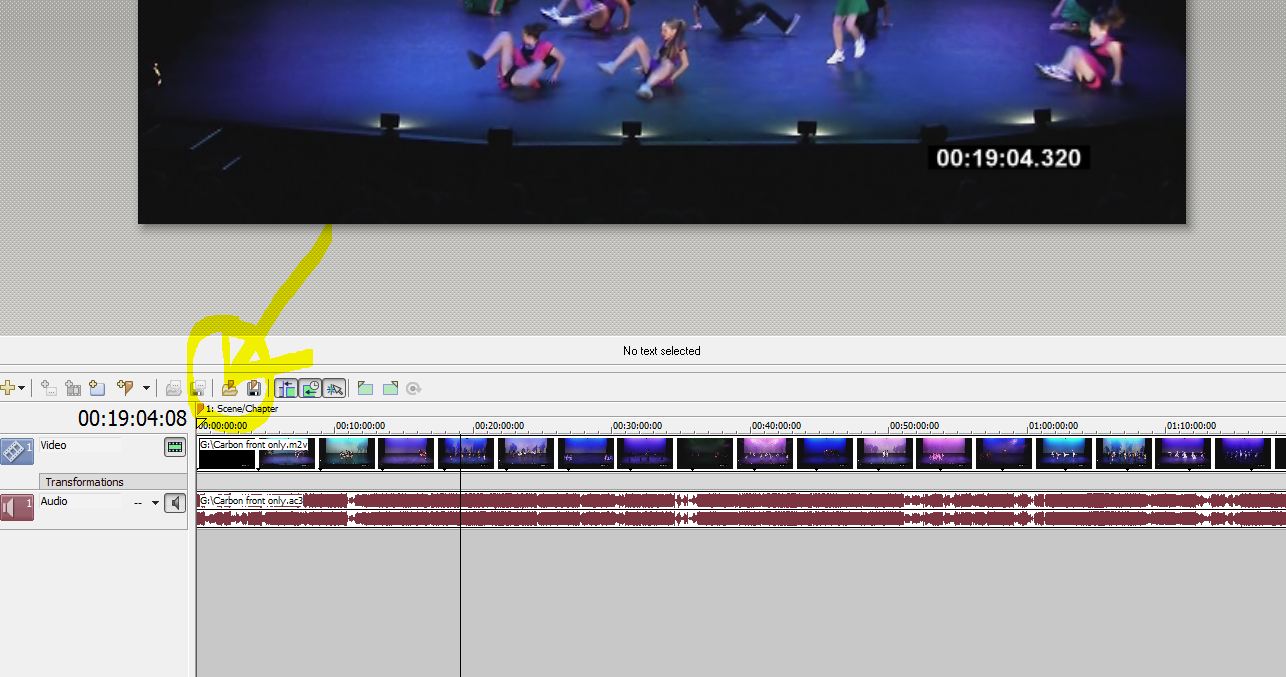

Tried the script, thanks Mike, it makes a file, but when in DVD Arch it wont import, I'm clicking this button, see pic, yeah?
I named it exactly the same as the vid file in same folder.
Quote:
Originally Posted by Peter Riding View Post
Another workaround might be just to rerender the audio tracks complete with markers and bring that into DVDA, deleting your previously rendered audio track. That would be far quicker than rerendering the whole thing.

Pete
Tried this too with Regions first, no go, so tried again with Markers, still no go.
Quote:
Originally Posted by Jeff Harper View Post

After you render with markers, and after you bring the movie into DVDA, double click on the movie icon in DVDA on the menu, and it will show you the markers on the timeline in DVDA.
Where are you referring to here Jeff?

Gee, should it be this hard.
I would have had the chapters done manually 5 times over by now,
Now it is just a case of Me v DVD Architect. I don't like to lose LOL.
Attached Thumbnails
Vegas Markers into DVD Architect?-arch.jpg
__________________
http://vimeo.com/livewebvideo
Gerald Webb is offline   Reply With Quote
Old January 14th, 2013, 10:22 AM   #8
Sponsor: JET DV

Join Date: Dec 2001
Location: Southern Illinois
Posts: 7,873
Re: Vegas Markers into DVD Architect?

Gerald, it's not hard at all. Just a couple of steps:

1. Render to the MPEG2 file and make sure you have the "Include Markers" option checked before starting the render.

2. DO NOT move the files after they are created.

3. Open DVD Architect, add the MPEG2 file, and the markers will be automatically picked up.

It really is that simple. But step #2 is vitally important.
__________________
Edward Troxel [SCVU]
JETDV Scripts/Excalibur/Newsletters
Edward Troxel is offline   Reply With Quote
Old January 14th, 2013, 10:55 AM   #9
Inner Circle

Join Date: Jun 2005
Location: Cincinnati, OH
Posts: 8,421
Re: Vegas Markers into DVD Architect?

Peter, I've tried just re-rendering audio to get my markers, didn't work for me, but it might have been something I did wrong.

Gerald, yes that is the load markers button, can't be sure what is happening, or not happening.
Jeff Harper is offline   Reply With Quote
Old January 14th, 2013, 01:09 PM   #10
Inner Circle

Join Date: May 2005
Location: Windsor, ON Canada
Posts: 2,765
Re: Vegas Markers into DVD Architect?

Gerald, my guess is that the script needs to be updated as it was written for a much older version of Vegas.
I just tried it in 64 bit Pro 10, 11 and 12 and, while it shows up in the script menu, it doesn't do what it's supposed to do :(
VASST had a similar free script several years ago but it's no longer on their site and I don't have it on my work computer. I will check at home tonight and see if I still have it. If I do, I'll post it here for others to try.
Mike Kujbida is offline   Reply With Quote
Old January 14th, 2013, 04:33 PM   #11
Inner Circle

Join Date: May 2005
Location: Windsor, ON Canada
Posts: 2,765
Re: Vegas Markers into DVD Architect?

Drat!! I just searched my hard drive and the script is no where to be found :(
