What on earth bit me?????

I recorded a local orchestra Saturday doing the Tchaikovsky 5th Symphony.

I've recorded/videotaped the same orchestra in the same venue with the same gear half a dozen times. but this time something leaped out of the woodwork and really bit me in the ...

Here's a clip (Be careful - the interference is LOUD)

https://www.dropbox.com/s/0avh3eh6q3ypvfg/Noise%201.wav

I've never had anything like this happen before.

Setup was a pair of Schoeps mics running into a Sound Devices 702 via Canare StarQuad cable. Cable was well taped to the floor and cable covers were in place where the cable crossed a walkway.

One thing different was that this time the 702 was in the balcony instead of up front next to the mic stand. Altogether there was a bit over 175 feet of cable between mic and recorder. The 702 was plugged into an electric socket instead of being on battery power as I usually do.

I have another recording from a children's concert a couple of hours earlier in the same space as well as a backup recording on a Sony PCM D50 so between these and Izotope I think I can recover, but it is pretty bad. There are also 4 or 5 other similar hits but each is under a tenth of a second so more easily repaired I think.

The real question is what was the source of the noiseand what I need to do to avoid it in future.

Thanks
Jim Andrada is offline   Reply With Quote
Old June 24th, 2014, 04:37 PM   #2
Trustee

Join Date: Nov 2008
Location: Miami, FL USA
Posts: 1,483
Re: What on earth bit me?????

Wild stab at this, so others more expert may have a better idea. Sounds like white noise, like from an open input, such as you might get if the signal dropped off from a bad connection in a connector leaving a sensitive input running open...but.... Arguing against that is that it's very loud, and that hints that it is sourced somewhere. Failing preamp, perhaps?

It doesn't sound like the 60-cycle hum you get when you have bad shielding so I'm thinking the ac power is not a factor...
Battle Vaughan is offline   Reply With Quote
Old June 24th, 2014, 04:45 PM   #3
Inner Circle

Join Date: Feb 2007
Location: Tucson AZ
Posts: 2,207
Re: What on earth bit me?????

Thanks Battle. This really has me stumped - if it were later in the Summer we'd be having a lot of lightning, but skies were clear - no lightning to be seen. And the noise burst was pretty long.

And as you said the fact that it was so loud and sustained seems to argue against a loose connector - it had to be coming from somewhere. Nobody was welding in the next room or anything like that.
Jim Andrada is offline   Reply With Quote
Old June 24th, 2014, 05:04 PM   #4
Trustee

Join Date: Dec 2007
Location: Glasgow, Scotland
Posts: 1,521
Re: What on earth bit me?????

One of these by the sound of it. :-)

Wow, that is some hit! Something out there really hates bassoons.

Thanks for the warning - even so, I looked before I listened:

EDIT: the fact that it hit both channels tells us something (just not quite sure what).
Attached Thumbnails

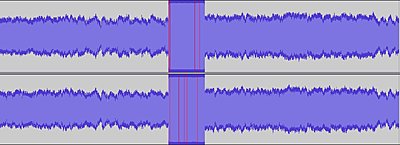

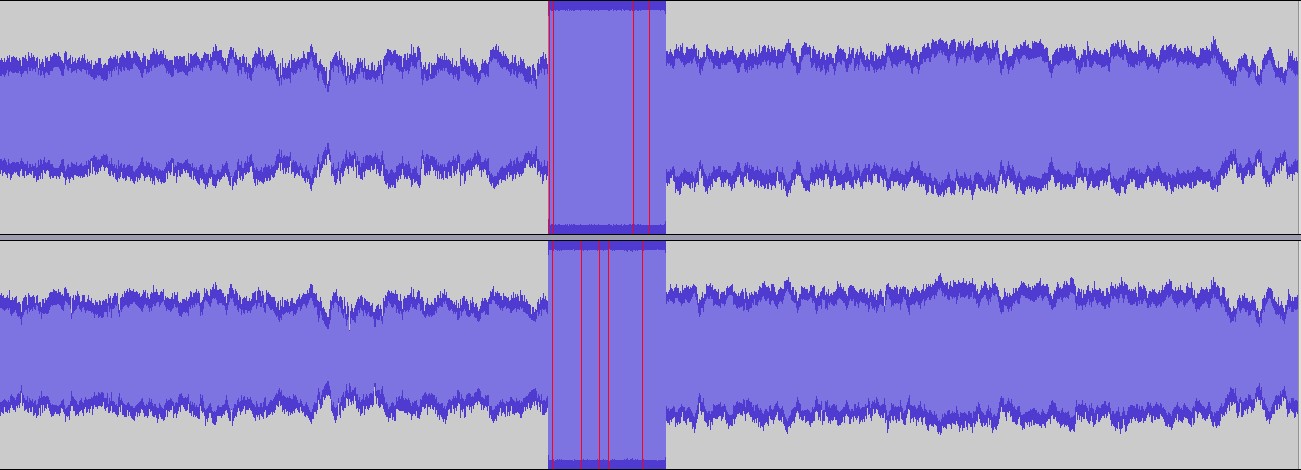

What on earth bit me?????-zap.jpg

Last edited by Colin McDonald; June 24th, 2014 at 05:12 PM. Reason: Added something vaguely useful
Colin McDonald is offline   Reply With Quote
Old June 24th, 2014, 05:36 PM   #5
Inner Circle

Join Date: Feb 2007
Location: Apple Valley CA
Posts: 4,866
Re: What on earth bit me?????

I've worked with audio for a LONG time, and that is a strange one! I might agree with Colin that you've got a Dalek infestation, but...

Since it's a hard wired run, that likely rules out signal interference, unless you were perhaps crossing over some other wiring that had issues, but then the way it's only short spikes sort of rules that out. Doesn't sound like any A/C spike or interference I've ever heard... yet the A/C being one variable does lend to that possibility. Doesn't sound like a motor or tool feeding back, not sure WHAT would create the sudden noise!

Whatever it was, it certainly was strong, indicating something probably quite close that caused electrical interference that was not audible except to your gear. It sounds generally like pretty random high freq hiss, for want of a better description...

I've heard Cell Phones cause something vaguely similar when in close proximity to other equipment, and those are of course common anymore, but I would think nearly direct contact with your signal chain would have been required, and it shouldn't be so abrupt.
Dave Blackhurst is offline   Reply With Quote
Old June 24th, 2014, 06:45 PM   #6
Trustee

Join Date: Aug 2007
Location: Portland, Oregon
Posts: 1,177
Re: What on earth bit me?????

I would bet substantial money on your storage media. That does NOT sound like acoustic or electronic noise to me. That sounds like the random "bits" you get from a bad segment on your CF card. If that is a new card, I would send it back. If that is an older card, then it has developed a bad segment and I would NOT trust it for any further use in recording live performances. The card is "supposed to" identify bad memory blocks and bypass them "transparently" to the user. But when there are too many (because the card is dying), or something happens to the internal card management, you get a segment full of random bits. That is exactly what I think I am hearing here. This is why we have backup recorders for critical situations (where the budget permits).

That is NOT any kind of cell phone interference I have ever heard. The reason it is so loud is that random ones and zeroes tend to produce Full-Scale "noise" samples. If you look closely at the "waveform" in a DAW, you will probably see a nicely-defined block of full-scale random samples, after which you are returned to your regular programming without further ado.
Richard Crowley is offline   Reply With Quote
Old June 24th, 2014, 07:38 PM   #7
Inner Circle

Join Date: Feb 2007
Location: Tucson AZ
Posts: 2,207
Re: What on earth bit me?????

Thanks guys!

Yes, this is one of the strangest F--- ups I can recall!

I did have a back up, although not the same quality. I think the phrase that got clobbered repeats often enough that I can find another copy - in fact the Izoztope "Pattern" repair tool seems to find a phrase that fits well enough that only the soloist might notice.

I was actually feeding sound out to three cameras for sync and to an Atomos recorder as well via HDMI so I'm going through them now - if it was a media hit I would expect that the other-in camera copies would be pretty clean. In fact if so it would align with Richard's cogent analysis. It was definitely a big square block of noise.
Jim Andrada is offline   Reply With Quote
Old June 24th, 2014, 08:44 PM   #8
Trustee

Join Date: Jan 2011
Location: Pennsylvania
Posts: 1,359
Re: What on earth bit me?????

I admit that Mr. Crowley's explanation sounds very plausible.

Yet when I zoom in on the waveform of the noise, I see distinct repeating patterns. Some sections look like a sawtooth waveform. Other sections have a rounded nature, sort of like the top of a sine wave (only, of course, they are not nearly as pure in form as an actual sine wave). These two characteristics, sawtooth and rounded, seem to repeat throughout the entire noise burst. I don't think a section of purely random numbers would produce these visually identifiable patterns.

Also, if I look at a spectral analysis of the noise burst, it is very flat, with just a slight rise from 20 up to around 3,000 Hz. Then there is an obvious rolloff, about 6dB, as you go from 3kHz to 24kHz. This is not what I would expect from random white noise.

So I still suspect some sort of equipment malfunction. Is you equipment "RF hardened" and to what extent? How much field strength can it tolerate? Suppose someone keyed a 10 watt FM transmitter (e.g. campus police) very close to your equipment ... would it tolerate that? Or suppose there is some sort of carrier-current telemetry in use in the building for security, lighting control, temperature control, etc... would your equipment tolerate a lot of RF leakage coming in over the power line?

Back in the days when line-powered reel-to-reel was the only option, I did a lot of musical recordings on the Penn State campus. I often heard sequences of audio tones of various pitches in my headphones while recording (and, alas, on the tapes). Eventually someone revealed that the university was generating and transmitting these audio tones -- in the range of a few hundred Hz -- over the entire campus power grid, for the purpose of turning on and off various outdoor and building lights at night. I had to insert a special 60-Hz lowpass filter in the AC mains feeding all my equipment, in order to get clean recordings. It seems quite conceivable to me that people are doing similar things today, but with RF rather than audio tones.

Admittedly I am just speculating, but based on the observed waveforms and the spectral analysis, I question whether this is a case of random data from a bad card.
Attached Thumbnails

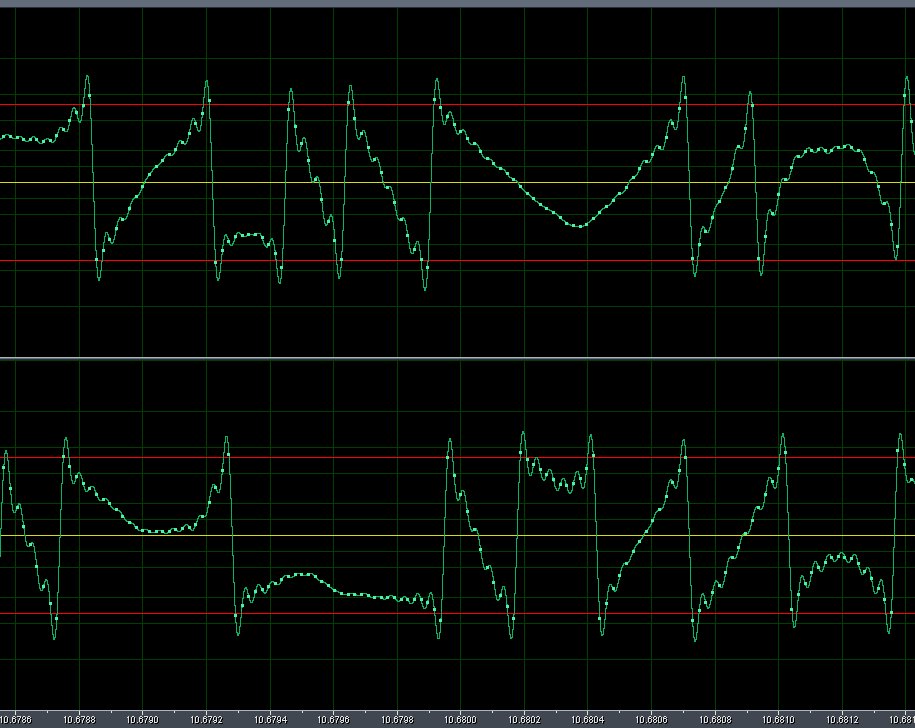

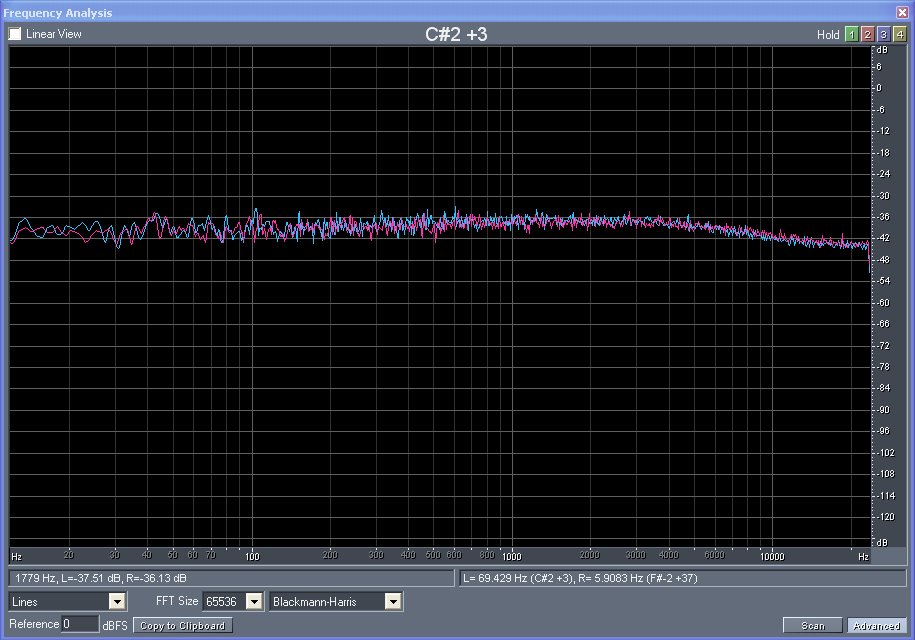

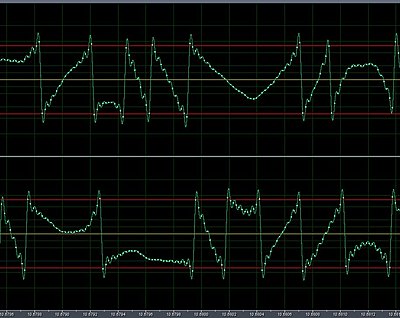

What on earth bit me?????-waveform-01.jpg   What on earth bit me?????-spectral-01.jpg
