Old June 1st, 2013, 04:20 AM   #1
Regular Crew

Join Date: Nov 2010
Location: Chicago
Posts: 74
Quick question about C100 microphone mount

Hello all,

I am sure this is a stupid question, but is there any tricks to getting your mic to stay in place in the supplied microphone mount on the carry handle? I have a Senheiser MKH416 microphone, and it is too thin, and I cannot tighten the grip of the mount. Am I just out of luck, or is there an off chance that I am missing something?

Many thanks,
~Omar
Omar Nabulsi is offline   Reply With Quote
Old June 1st, 2013, 05:17 AM   #2
Major Player

Join Date: Oct 2007
Location: London, UK
Posts: 792
Re: Quick question about C100 microphone mount

Same here with my Sanken CS3e.
The mic off my Sony A1E is fatter and fits OK.
The only solution is padding.
I think you can probably buy rubber sleeves for this purpose but I don't know where from.
Or cut up an innnertube.
It's annoying. It would have been a nice thought if Canon had supplied a sleeve with the camera. It would cost peanuts. All owners must have the same problem.
__________________
http://www.gooderick.com
Richard Gooderick is offline   Reply With Quote
Old June 1st, 2013, 05:55 AM   #3
Inner Circle

Join Date: Sep 2007
Location: Cambridge UK
Posts: 2,835
Re: Quick question about C100 microphone mount

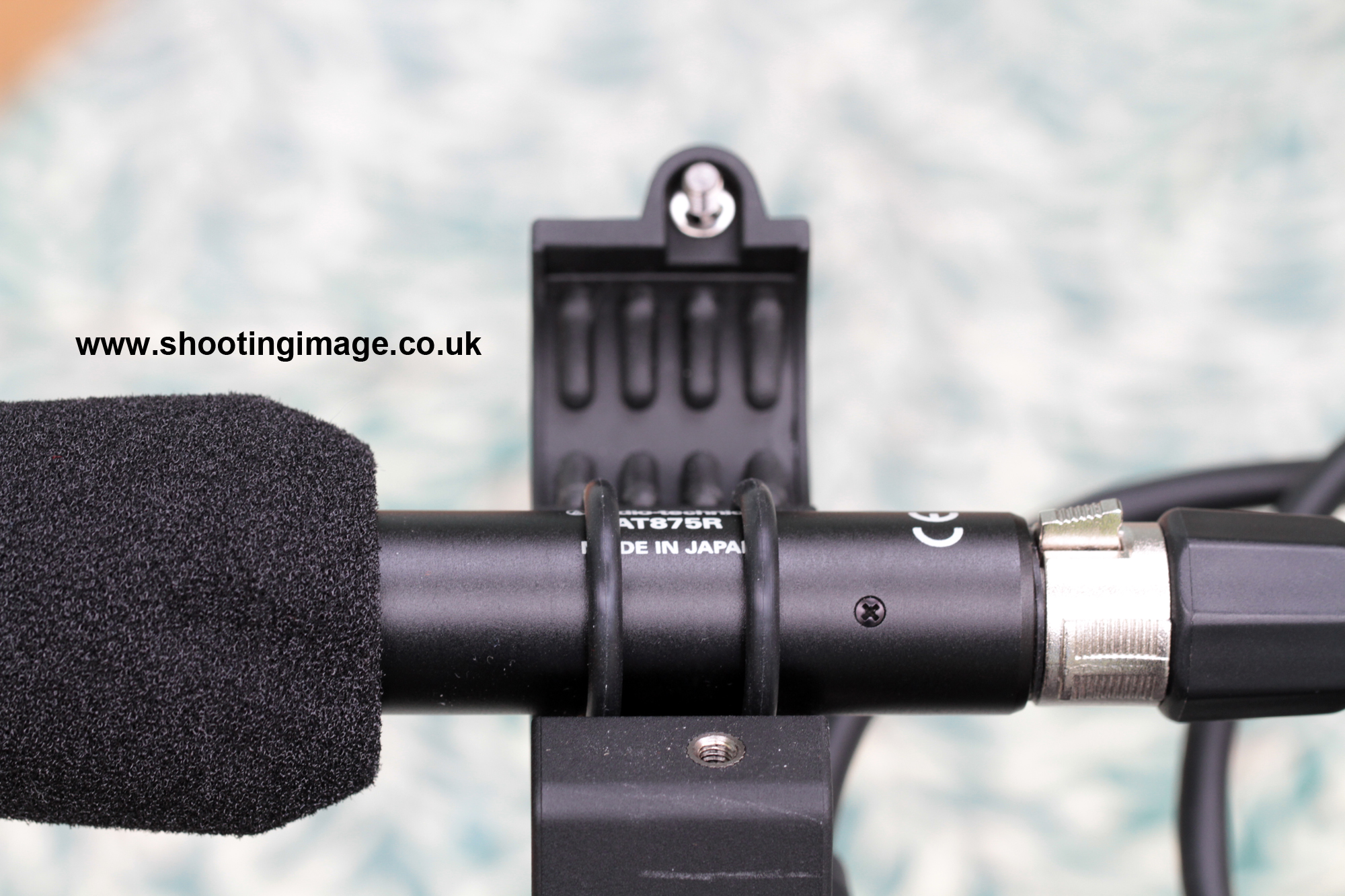

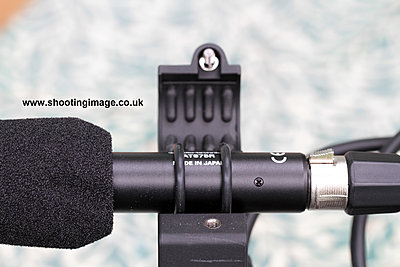

I just use neoprene 'O' rings - you can get something suitable from DIY stores. Very cheap! They are about 2-3mm thick and about 18-20mm diameter. Just pick a size that needs to slightly stretch to roll onto the mics body. Once you've slipped a couple of them over the mic tube and got them positioned where you want them just clamp up the mic mount and away you go!

Actually, come to think of it, my AT875R short shotgun mic even came with some suitable 'O' rings.

EDIT: Adding a quick pic to show you what I mean.
Attached Thumbnails
Quick question about C100 microphone mount-c100-clamp-at875r-o-rings.jpg
__________________
Andy K Wilkinson - http://www.shootingimage.co.uk
Cambridge (UK) Corporate Video Production

Last edited by Andy Wilkinson; June 1st, 2013 at 06:31 AM.
Andy Wilkinson is offline   Reply With Quote
Old June 1st, 2013, 05:01 PM   #4
New Boot

Join Date: Dec 2012
Location: Austria
Posts: 8
Re: Quick question about C100 microphone mount

Great idea Andi, thank you
Franz Brandstetter is offline   Reply With Quote
Old June 1st, 2013, 08:58 PM   #5
Regular Crew

Join Date: Nov 2010
Location: Chicago
Posts: 74
Re: Quick question about C100 microphone mount

Thank you so much for the help guys! I'm glad to know I'm not just stupid :)
Omar Nabulsi is offline   Reply With Quote
Old June 2nd, 2013, 01:04 AM   #6
Regular Crew

Join Date: May 2011
Location: Calgary
Posts: 27
Re: Quick question about C100 microphone mount

Duct tape wrapped around my NTG-2 worked in a pinch.
Chris Hsiung is offline   Reply With Quote
Old June 2nd, 2013, 03:50 AM   #7
Trustee

Join Date: Aug 2005
Location: Berkshire, UK
Posts: 1,562
Re: Quick question about C100 microphone mount

Quote:
Originally Posted by Omar Nabulsi View Post
is there an off chance that I am missing something?
Notwithstanding comments made 'over there' regarding the Lyre mount from Rycote, the 'thing' I have not only serves the function of getting a slimmer mic (like the CS1 or 416) into the mic holder of the camera, but also pulls the mic back a bit so you can wave a camera-mounted 416 in a dead cat whilst using wide angle lenses.

Back in the day, camera viewfinders on things like PD150 and Z1 didn't have 100% viewfinders, and when you'd thought you'd frame a shot with the dead cat just out of shot, it would be dipping into the full frame like The Mark of Cain. Not so much of an issue now, but if you really need to use a 416 on a stubby camera like the C100, especially with the dead cat, you may appreciate it being mounted 2"-4" further back.
__________________
Director/Editor - MDMA Ltd: Write, Shoot, Edit, Publish - mattdavis.pro
EX1 x2, C100 --> FCPX & PPro6
Matt Davis is offline   Reply
