Serreted edge 24 fps

Yikes, I figured the 24 fps what all were clamoring for would be better than the 30 but if anyone moves there's a serreted edge around the moving edge. I use Ciniform to convert the MOVs to AVIs then use NewBlue Color fixer etc in post. Is there a way to loose these edge serrations????

Should I always just shoot 30 fps from now on if moving folks?

TIA
Harry
__________________
Nashville TN using Canon 5D MK3, Canon 550D, RODE SVM mic, 70-200 f2.8L II IS, 24-105 f4L IS, 50 and 85 f/1.8, Vegas Pro 11, Zoom H4n, Blackbird, Lilliput Monitor, Lightroom
Harry Simpson is offline   Reply With Quote
Old April 22nd, 2010, 07:40 PM   #2
Major Player

Join Date: Feb 2006
Location: Philadelphia
Posts: 795
Haven't seen this at all in 4 hours of footage I've shot at 24, including a good deal of movement. I'd guess something's getting messed up in the conversion process, serrated edge sounds like interlacing.
__________________
My latest short documentary: "Four Pauls: Bring the Hat Back!"
Evan Donn is offline   Reply With Quote
Old April 22nd, 2010, 10:26 PM   #3
Major Player

Join Date: Aug 2009
Location: Nashville, TN.
Posts: 581
Do you use Cineform? Should I check the "Deinterlace" or the "Convert to 24p(NTSC only)" - right now I just have "Maintain source frame format" checked
__________________
Nashville TN using Canon 5D MK3, Canon 550D, RODE SVM mic, 70-200 f2.8L II IS, 24-105 f4L IS, 50 and 85 f/1.8, Vegas Pro 11, Zoom H4n, Blackbird, Lilliput Monitor, Lightroom
Harry Simpson is offline   Reply With Quote
Old April 22nd, 2010, 10:39 PM   #4
Inner Circle

Join Date: Nov 2005
Location: Elk Grove CA
Posts: 6,838
Sounds like somewhere in your process you have interlaced ticked. What program are you editing with, and how do you have it set up and ultimately to what for render?
__________________
Chris J. Barcellos
Chris Barcellos is offline   Reply With Quote
Old April 23rd, 2010, 04:48 PM   #5
Major Player

Join Date: Aug 2009
Location: Nashville, TN.
Posts: 581
Thanks Chris

Using Sony Vegas Studio 9 PE for rendering to Mp4 and using the NewBlue VE Color Fixer Plus to correct white balance etc.

I convert the MOVs to AVIs via Cineform HDLink application
In this the settings are

Automatically convert to Cineform Intermediate (*.avi) (checked)
Split file on scene changes (checked)

CineForm Encoder Options
Quality: High
Output source frame format (checked)
__________________
Nashville TN using Canon 5D MK3, Canon 550D, RODE SVM mic, 70-200 f2.8L II IS, 24-105 f4L IS, 50 and 85 f/1.8, Vegas Pro 11, Zoom H4n, Blackbird, Lilliput Monitor, Lightroom
Harry Simpson is offline   Reply With Quote
Old April 23rd, 2010, 04:50 PM   #6
Major Player

Join Date: Aug 2009
Location: Nashville, TN.
Posts: 581
Deinterlace and Convert toi 24p (NTSC only) is not checked (these are actually7 option buttons so whenever I check Maintain source frame format it unchecks these two anyway.
__________________
Nashville TN using Canon 5D MK3, Canon 550D, RODE SVM mic, 70-200 f2.8L II IS, 24-105 f4L IS, 50 and 85 f/1.8, Vegas Pro 11, Zoom H4n, Blackbird, Lilliput Monitor, Lightroom
Harry Simpson is offline   Reply With Quote
Old April 24th, 2010, 12:18 AM   #7
Inner Circle

Join Date: Nov 2005
Location: Elk Grove CA
Posts: 6,838
Harry, what version of Cineform are you using ?

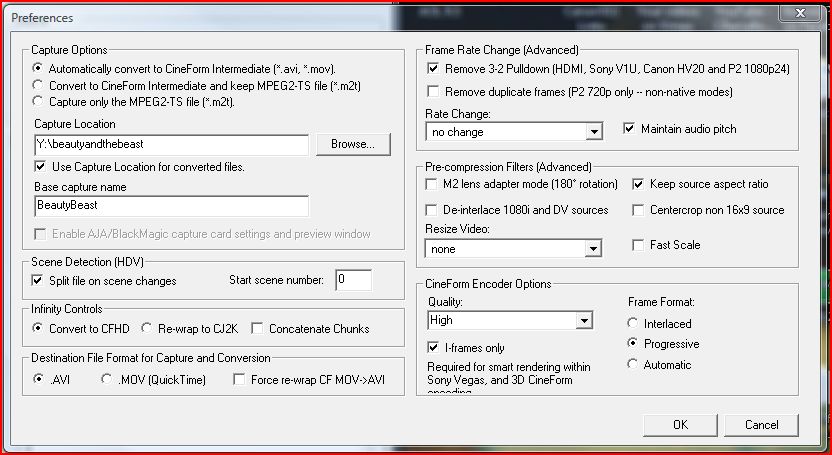

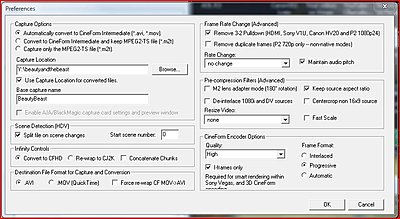

My version of NeoHD does not have the exact choices you reference. See image below for my Cineform selection for Canon 24p from 5D Mark II.

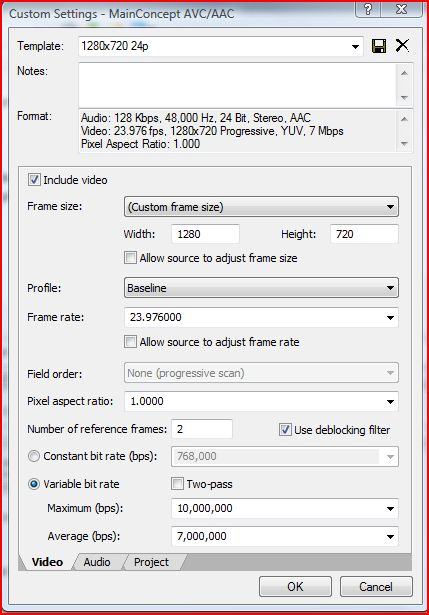

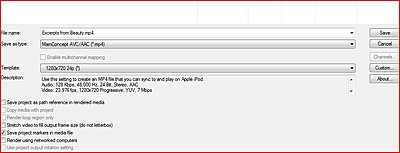

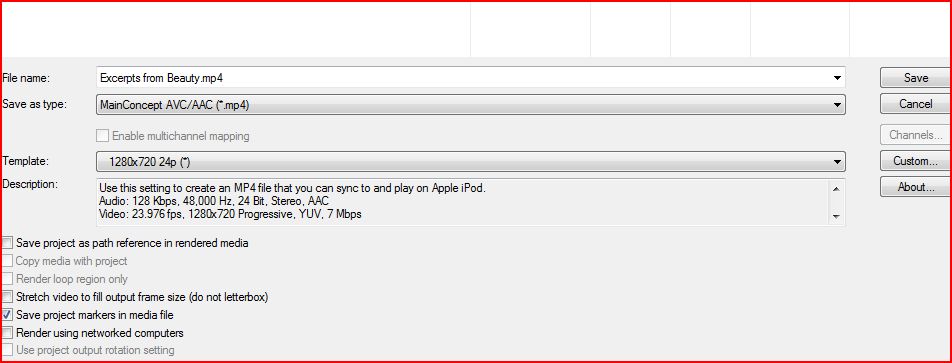

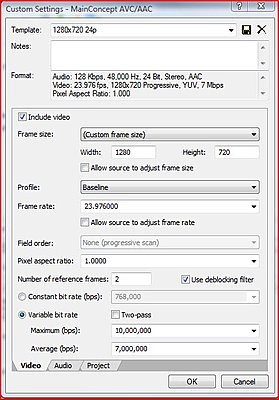

However, I wonder if you inadvertantly have the Mp4 output set at interlaced ? It should also be rendered progressive. I ve also attached screen grabs of how I set up the MP4 render.
Attached Thumbnails
Serreted edge 24 fps-neohdforcanon5d24p.jpg   Serreted edge 24 fps-frontsettingsmp4.jpg

Serreted edge 24 fps-settingsmp4.jpg
__________________
Chris J. Barcellos
Chris Barcellos is offline   Reply With Quote
Old April 24th, 2010, 07:52 PM   #8
Major Player

Join Date: Aug 2009
Location: Nashville, TN.
Posts: 581
Thanks Chris!!
Reading this on an iPhone while traveling but will definitely compare and report back. Really appreciate this
Harry
__________________
Nashville TN using Canon 5D MK3, Canon 550D, RODE SVM mic, 70-200 f2.8L II IS, 24-105 f4L IS, 50 and 85 f/1.8, Vegas Pro 11, Zoom H4n, Blackbird, Lilliput Monitor, Lightroom
Harry Simpson is offline   Reply With Quote
Old April 26th, 2010, 01:05 PM   #9
Major Player

Join Date: Aug 2009
Location: Nashville, TN.
Posts: 581
Chris

I set up a new custom tmplate with your settins and the sucker rendered for about 4 hours to complete producing a mp4
I then tried to play it in VLC player and it would not play at all ...... More later

I think for now I better shoot 30 gps til I work this out

Harry
