Old November 9th, 2007, 12:05 PM   #1
New Boot

Join Date: Jun 2007
Location: San Francisco, California
Posts: 19
XLR mic

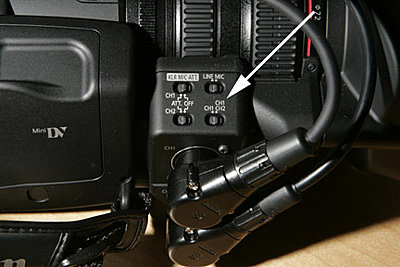

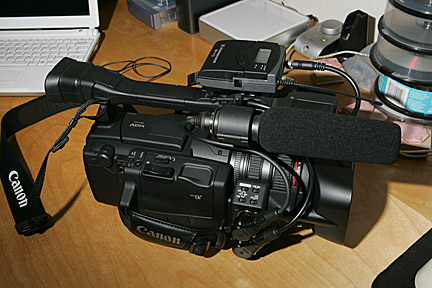

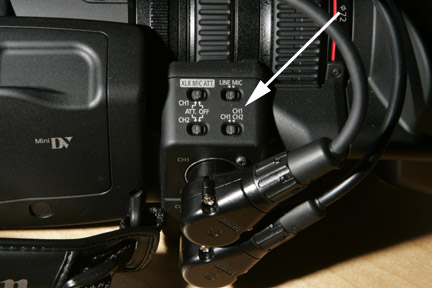

Folks I have a 2 microphone setup, a short shotgun mic and a Sennheiser wireless receiver which I leave both mounted on my camera all the time. In the Ch1 I have plugged in my shotgun mic and in Ch2 I have plugged in the wireless.

My question is this,.. when I want to use only my shotgun mic I slide the XLR switch to Ch1Ch2,.. and when I want to use the wireless and the shotgun mic together, I need to slide the switch to Ch1 "only". I know theirs probably a good reason behind this but does the labeling sound reversed?

Thanks for bearing with me as I learn to go from stills to video.
Attached Thumbnails
XLR mic-xlr1.jpg   XLR mic-xlr2.jpg


Last edited by Kuentos San Miguel; November 9th, 2007 at 02:35 PM.
Kuentos San Miguel is offline   Reply With Quote
Old November 9th, 2007, 03:18 PM   #2
Major Player

Join Date: Mar 2007
Location: North Hollywood, CA, United States
Posts: 790

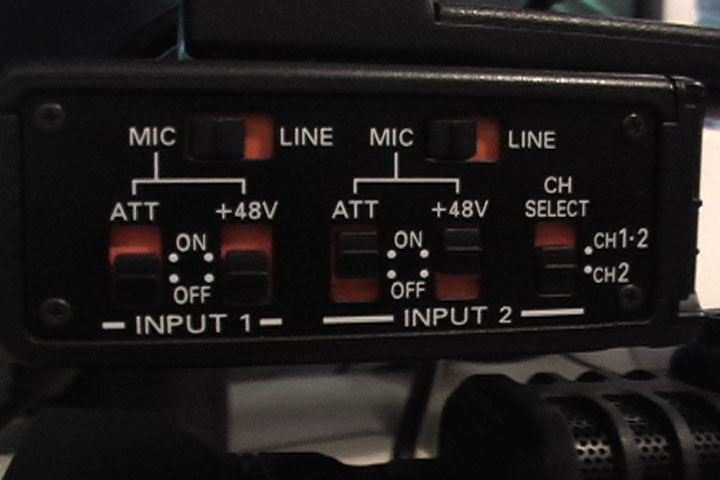

It is the same way on my DVC30. It means that the CH1 XLR input is being split to both channels (Ch1 and Ch2.) I think the Pana markings are a little more obvious. In the Input 2 switch section, it says Ch Select. That indicates where the Input 2 audio is going, to Ch1 and 2 or just Ch 2.
Attached Thumbnails
XLR mic-dvc30_audio.jpg
Edward Carlson is offline   Reply With Quote
Old November 9th, 2007, 11:11 PM   #3
Major Player

Join Date: Nov 2006
Location: Ocean Springs, MS
Posts: 211
XLR Cables

Kuentos,

Where did you get those XLR connectors. I am looking for some for the same setup?

Jonathan Schwartz
Jonathan Schwartz is offline   Reply With Quote
Old November 10th, 2007, 01:01 AM   #4
New Boot

Join Date: Jun 2007
Location: San Francisco, California
Posts: 19
XLR connector

Jonathan I purchased these Neutrik right angle xlr connector online. With a little patience and solder I replace the straight XLR connectors with the right angle connectors. And as you can see the end result is more trim camera profile. Some online audio stores will actually build you custom XLR cable to order.


http://www.performanceaudio.com/cgi/...oducts_id=2632
Kuentos San Miguel is offline   Reply With Quote
Old November 10th, 2007, 05:25 AM   #5
Major Player

Join Date: Sep 2007
Location: Western Minnesota
Posts: 227
I see that B&H photo has something similar.

http://www.bhphotovideo.com/c/produc...le_to_XLR.html
Roger Lee is offline   Reply With Quote
Old November 10th, 2007, 10:37 AM   #6
New Boot

Join Date: Oct 2007
Location: Huelva, Spain
Posts: 21
Roger: for connecting to the XLR input of the A1, it's the male end that needs to be angled.

I just bought a Rode NTG1 shotgun mic kit that included the same kind of cable you linked to. Backwards... :-(

cheers, Daniel
Daniel Park is offline   Reply With Quote
Old November 10th, 2007, 02:09 PM   #7
Regular Crew

Join Date: Aug 2007
Location: Little Rock, Ar
Posts: 49
Does anyone know of one with right angles on both ends?

Clay
Clay K. Carson is offline   Reply With Quote
Old November 11th, 2007, 08:30 AM   #8
Major Player

Join Date: Aug 2007
Location: El Cerrito, CA
Posts: 266
Clay:

I had Ed Boardman at Kind Kables
(http://www.kindkables.com)
make them for me

Vasco
Vasco Dones is offline   Reply With Quote
Old November 11th, 2007, 09:41 AM   #9
New Boot

Join Date: Jun 2007
Location: San Francisco, California
Posts: 19
Clay here's another custom cable builder option.
http://www.locationsound.com/proaudi...ml?id=6RhbiICI
Kuentos San Miguel is offline   Reply With Quote
Old November 12th, 2007, 11:49 AM   #10
Major Player

Join Date: Sep 2007
Location: Western Minnesota
Posts: 227
Quote:
Originally Posted by Daniel Park View Post
Roger: for connecting to the XLR input of the A1, it's the male end that needs to be angled.

I just bought a Rode NTG1 shotgun mic kit that included the same kind of cable you linked to. Backwards... :-(

cheers, Daniel
Been away from the forum for a while.

Ah yes....you're quite right.

:)
Roger Lee is offline   Reply With Quote
Old November 13th, 2007, 01:07 PM   #11
Regular Crew

Join Date: Aug 2006
Location: Los Angeles, California
Posts: 28
Quote:
Originally Posted by Kuentos San Miguel View Post
Folks I have a 2 microphone setup, a short shotgun mic and a Sennheiser wireless receiver which I leave both mounted on my camera all the time. In the Ch1 I have plugged in my shotgun mic and in Ch2 I have plugged in the wireless.
Hello Kuentos,

Would you tell me which Sennheiser wireless receiver you are using?
How do you like the operation of it so far?

Thanks,
Eric
Eric Sorensen is offline   Reply With Quote
Old November 14th, 2007, 10:45 PM   #12
New Boot

Join Date: Jun 2007
Location: San Francisco, California
Posts: 19
Eric I'm using the Sennheiser Evolution G100 ENG model. So far I've been real happy with it. The receiver is small enough that I leave it on the camera full time, so that if I need the lavalier mic or the ENG it's as easy as pulling it out of my bag and turning it on. Though I should say that I have limited experience with other wireless units.
Kuentos San Miguel is offline   Reply
