Old July 4th, 2006, 08:06 AM   #16
Inner Circle

Join Date: Oct 2004
Location: Port St. Lucie, Florida
Posts: 2,614
Quote:
Originally Posted by Bill Hamell
When I drilled the holes for the M4 screws I centered them around one of the cheese plate holes, so I could do this very thing.
Great minds you know!

Bill
Bill,

That's good, as the actual contact area or engagement area of these screws is very small indeed, maybe .005 to .008. Not really meant to hold much of a load.

Mike
__________________
Chapter one, line one. The BH.
Mike Teutsch is offline   Reply With Quote
Old July 4th, 2006, 09:49 AM   #17
Major Player

Join Date: Aug 2004
Location: Mystic Ct.
Posts: 477
Hey, I can post images and I do belong to AARP! (Yet!) :-)

So here's one more.

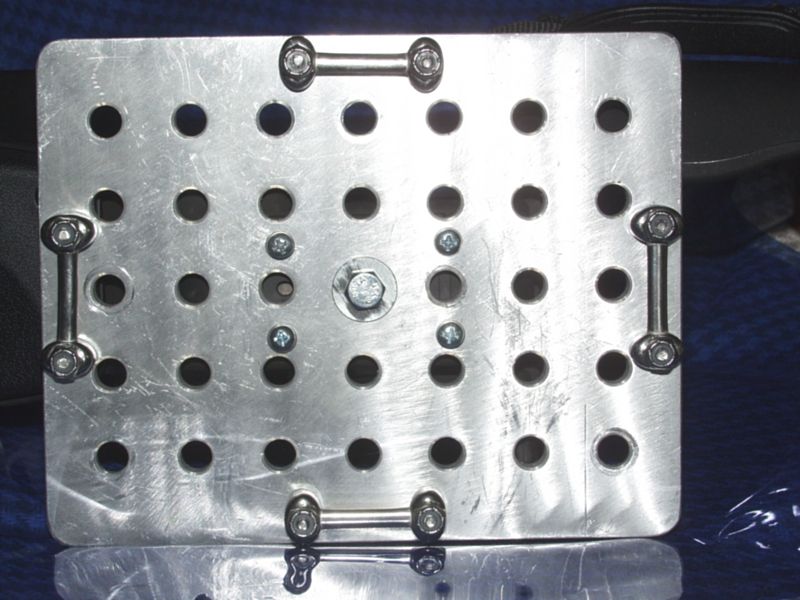

It is finilly mounted directly to the cheese plate...
Also you will see the Footman Loops for the saftey straps.

Think it will go anywhere? :-)

Bill
Attached Thumbnails
200HP Dolly ;-)-bolt-patern.jpg
__________________
Cinematographers Bring Shadow To Light
Bill Hamell is offline   Reply With Quote
Old July 9th, 2006, 04:41 PM   #18
Inner Circle

Join Date: Oct 2004
Location: Port St. Lucie, Florida
Posts: 2,614
Bill,

One last note I have been forgetting to add, but please put a filter on the lens! Got to keep those nasty bugs off.

Mike
__________________
Chapter one, line one. The BH.
Mike Teutsch is offline   Reply With Quote
Old July 9th, 2006, 04:52 PM   #19
Major Player

Join Date: Aug 2004
Location: Mystic Ct.
Posts: 477
Quote:
Originally Posted by Mike Teutsch
Bill,

One last note I have been forgetting to add, but please put a filter on the lens! Got to keep those nasty bugs off.

Mike
There is ALWAYS a filter on all my lenses.
The only exception (I do not think this will apply to the XL2) is when doing macro work sometimes the focus distance is closer than the filter will allow.

Good thinking though. :-)
Bill
__________________
Cinematographers Bring Shadow To Light
Bill Hamell is offline   Reply With Quote
Old July 9th, 2006, 11:41 PM   #20
Regular Crew

Join Date: Nov 2005
Location: Auckland, New Zealand
Posts: 117
Wow, that rig is intense! I got away with using just one vacuum cup for my FX1. I had a the cup on the bonnet (hood (dang Americans:) and a small tripod directly over it, with tort bungie cords wrapped all around the tripod and the suction/vacuum cup. Thinking back, that was kind of crazy with no safety leaches or anything but that's what I do! Good work.
__________________
Ainslie Davies - www.dualityproductions.com
Ainslie Davies is offline   Reply With Quote
Old April 17th, 2007, 03:50 AM   #21
Regular Crew

Join Date: Jun 2004
Location: toronto
Posts: 99
Quote:
Originally Posted by Bill Hamell View Post
They are M4 .70 screws for anyone else that will try this with the XL2.
I used ones that were 16mm in lenth with a 3/8" thick cheese plate.

Bill
That's exactly the info I wanted. I too tried the 6/32 bolt but it looked suspect because there was lots of play until it hit bottom. I also thought metric was what I needed. Thanks for popping back in here to fill in the details.

Now I'm off to look for thumbscrews of that size.
Roger Moore is offline   Reply With Quote
Old April 21st, 2007, 03:21 AM   #22
Regular Crew

Join Date: Jun 2004
Location: toronto
Posts: 99
My M4 x .7 thumbscrews arrived today, ordered from here:

http://www.jwwinco.com/products/sect...464/index.html
Roger Moore is offline   Reply
