The new KA-MR100 media recorder (XDCAM EX) at DVinfo.net

Simon Glidewell · March 15th, 2009, 09:41 AM

Hello all,

Does anyone know if the new KA-MR100 XDCAM EX media recorder will work with the GY-HD111E and the GY-HD110E cameras? If so how does it plug into the camera if you use a V-lock battery system? Also does the DR-HD100 hard disc drive work with the above cameras? Likewise, how does this attach to the camera with a V-lock battery system? Can these two media recorders, plus batteries be attached to the above cameras at the same time, like the GY-HD200 series? Sorry about all my questions recently but we are working to a tight budget and need to find the best GY-HD price/accessory combination. Any help would be great!

Many thanks
Simon

Robert Rogoz · March 15th, 2009, 11:36 AM

Simon, I have GY-HD100 and it also works with DR-HD100. So I would assume your GY110/111/200 will work just fine with Firestore. Not sure on MR100. When using DR-HD100 use m2t mode and re-wrap it to Quicktime to avoid audio buzz. Unfortunately FE never fixed this audio problem and made it for us a complete pain the ass.
I use AB battery and I drilled into the plate in the back, attached a right angle piece of metal and connected everything with the bolts. It works and was cheap, considering AB extra plates were about 75 bucks. I also run power tap cable from my AB to the firestore, as these batteries don't last worth a crap.
BTW I am thinking about selling the entire set-up pretty soon.

Simon Glidewell · March 15th, 2009, 03:02 PM

Many thanks for your very helpful info Rob! Your set up sounds interesting. Do you have a photo or two that you could post showing how you did this?

All the best
Simon

Robert Rogoz · March 15th, 2009, 06:07 PM

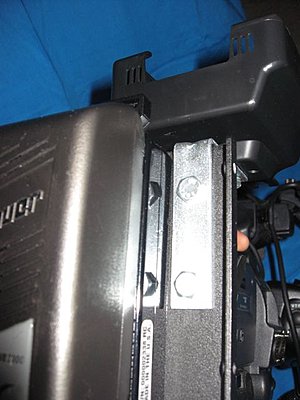

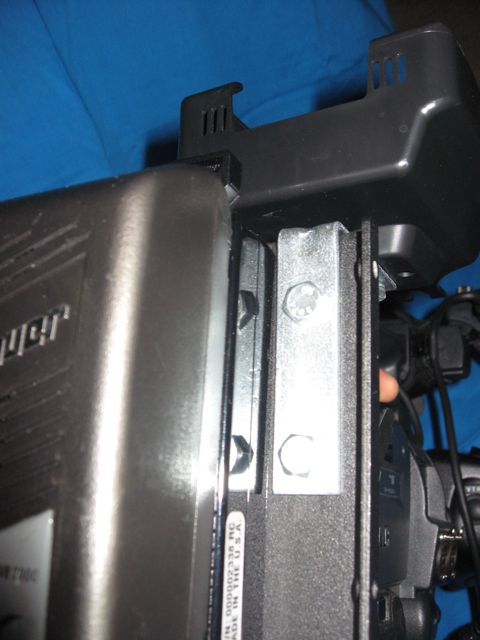

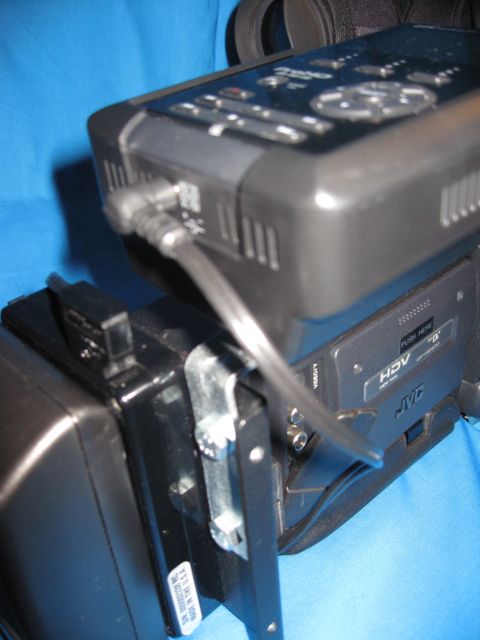

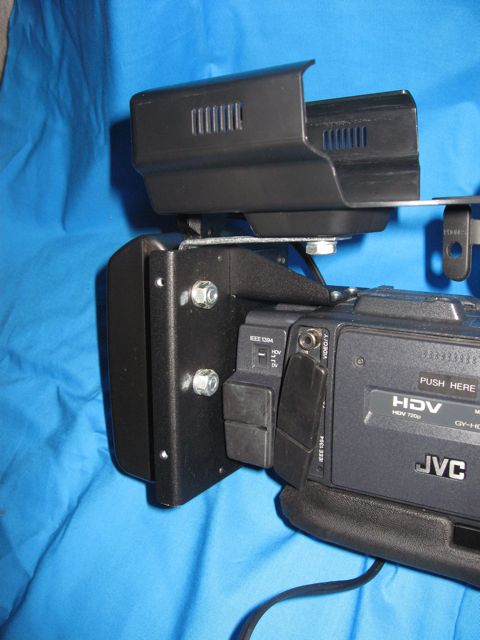

This is the set-up. Unfortunately I bought the cable, but you can rig one up for much less.

Simon Glidewell · March 16th, 2009, 04:59 AM

Hello Rob,

Many thanks for posting the photos of your HDD arrangement. It certainly looks interesting and innovative.

All the best
Simon

Tim Dashwood · March 16th, 2009, 12:34 PM

Quote:

Originally Posted by Simon Glidewell

Does anyone know if the new KA-MR100 XDCAM EX media recorder will work with the GY-HD111E and the GY-HD110E cameras?

The answer is no. The KA-MR100 works only with the HM700 camera.
The KA-MR100 will also work with the HD200B or HD250 when used with the KA-UM100G adapter.

Alex Humphrey · March 17th, 2009, 04:25 PM

Robert, hey neat setup! I wimped out (no tools here) and got a prefabed plate for my IDX system. Made the rig even longer, therefore I can charge more. :)

I must say I like your angle plate. I'll try to forget what I paid for my prefabbed IDX wirless mount.

Chris Beeger · March 18th, 2009, 07:05 PM

The KA-MR100 / KA-UM100G combo will only work with HD200B? Will this combo also work with HD200U and if so at what bandwith and which codec.

March 15th, 2009, 09:41 AM	#1
Simon Glidewell Regular Crew Join Date: Mar 2009 Location: Manosque (France) Posts: 94	The new KA-MR100 media recorder (XDCAM EX) Hello all, Does anyone know if the new KA-MR100 XDCAM EX media recorder will work with the GY-HD111E and the GY-HD110E cameras? If so how does it plug into the camera if you use a V-lock battery system? Also does the DR-HD100 hard disc drive work with the above cameras? Likewise, how does this attach to the camera with a V-lock battery system? Can these two media recorders, plus batteries be attached to the above cameras at the same time, like the GY-HD200 series? Sorry about all my questions recently but we are working to a tight budget and need to find the best GY-HD price/accessory combination. Any help would be great! Many thanks Simon

March 15th, 2009, 06:07 PM	#4
Robert Rogoz Major Player Join Date: Sep 2007 Location: Bellingham, WA Posts: 457	This is the set-up. Unfortunately I bought the cable, but you can rig one up for much less. Attached Thumbnails

March 17th, 2009, 04:25 PM	#7
Alex Humphrey Major Player Join Date: Mar 2007 Location: california North and South Posts: 642	Robert: Neat setup! Robert, hey neat setup! I wimped out (no tools here) and got a prefabed plate for my IDX system. Made the rig even longer, therefore I can charge more. :) I must say I like your angle plate. I'll try to forget what I paid for my prefabbed IDX wirless mount.

March 18th, 2009, 07:05 PM	#8
Chris Beeger New Boot Join Date: Aug 2008 Location: Calgary, Canada Posts: 11	Hi Tim, The KA-MR100 / KA-UM100G combo will only work with HD200B? Will this combo also work with HD200U and if so at what bandwith and which codec.

Thread Tools	Search this Thread
Show Printable Version Email this Page	Search this Thread: Advanced Search

March 15th, 2009, 11:36 AM	#2
Robert Rogoz Major Player Join Date: Sep 2007 Location: Bellingham, WA Posts: 457	Simon, I have GY-HD100 and it also works with DR-HD100. So I would assume your GY110/111/200 will work just fine with Firestore. Not sure on MR100. When using DR-HD100 use m2t mode and re-wrap it to Quicktime to avoid audio buzz. Unfortunately FE never fixed this audio problem and made it for us a complete pain the ass. I use AB battery and I drilled into the plate in the back, attached a right angle piece of metal and connected everything with the bolts. It works and was cheap, considering AB extra plates were about 75 bucks. I also run power tap cable from my AB to the firestore, as these batteries don't last worth a crap. BTW I am thinking about selling the entire set-up pretty soon.

March 15th, 2009, 03:02 PM	#3
Simon Glidewell Regular Crew Join Date: Mar 2009 Location: Manosque (France) Posts: 94	Many thanks for your very helpful info Rob! Your set up sounds interesting. Do you have a photo or two that you could post showing how you did this? All the best Simon

March 16th, 2009, 04:59 AM	#5
Simon Glidewell Regular Crew Join Date: Mar 2009 Location: Manosque (France) Posts: 94	Hello Rob, Many thanks for posting the photos of your HDD arrangement. It certainly looks interesting and innovative. All the best Simon
