Old November 18th, 2011, 12:38 AM   #1
Inner Circle

Join Date: Nov 2005
Location: Elk Grove CA
Posts: 6,838
What's Coming out VG20 HDMI Port

I check all of the outputs of the VG20 to see what might be usable for external recorders. I said check because I just hooked it up to my common 720p TV.

The output of the component looks good and clean, and there is no display overlay.

The output of composite is also clean and without display overly.

The output of the HDMI looks like full HD. And you can turn off everything on the screen except small lettering at the top that says stand by or rec, depending on status. If you are looking for an 2.35 aperature, that may work.

I wonder though on the HDMI output if you will actually be getting you image without processing. Does anybody have an idea on how I can test that ?
__________________
Chris J. Barcellos
Chris Barcellos is offline   Reply With Quote
Old November 18th, 2011, 04:53 AM   #2
New Boot

Join Date: Jan 2009
Location: Rennes France
Posts: 16
Re: What's Coming out VG20 HDMI Port

I did some initials tests with my NanoFlash. (Yes, here in France we had a first shipment of VG20)
Signal is clean, and, in my opinion, without processing.

4.2.2 MXF at 80Mbits/s obviously gives more detail and precision compared to the internal AVCHD.

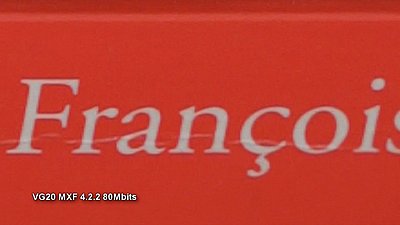

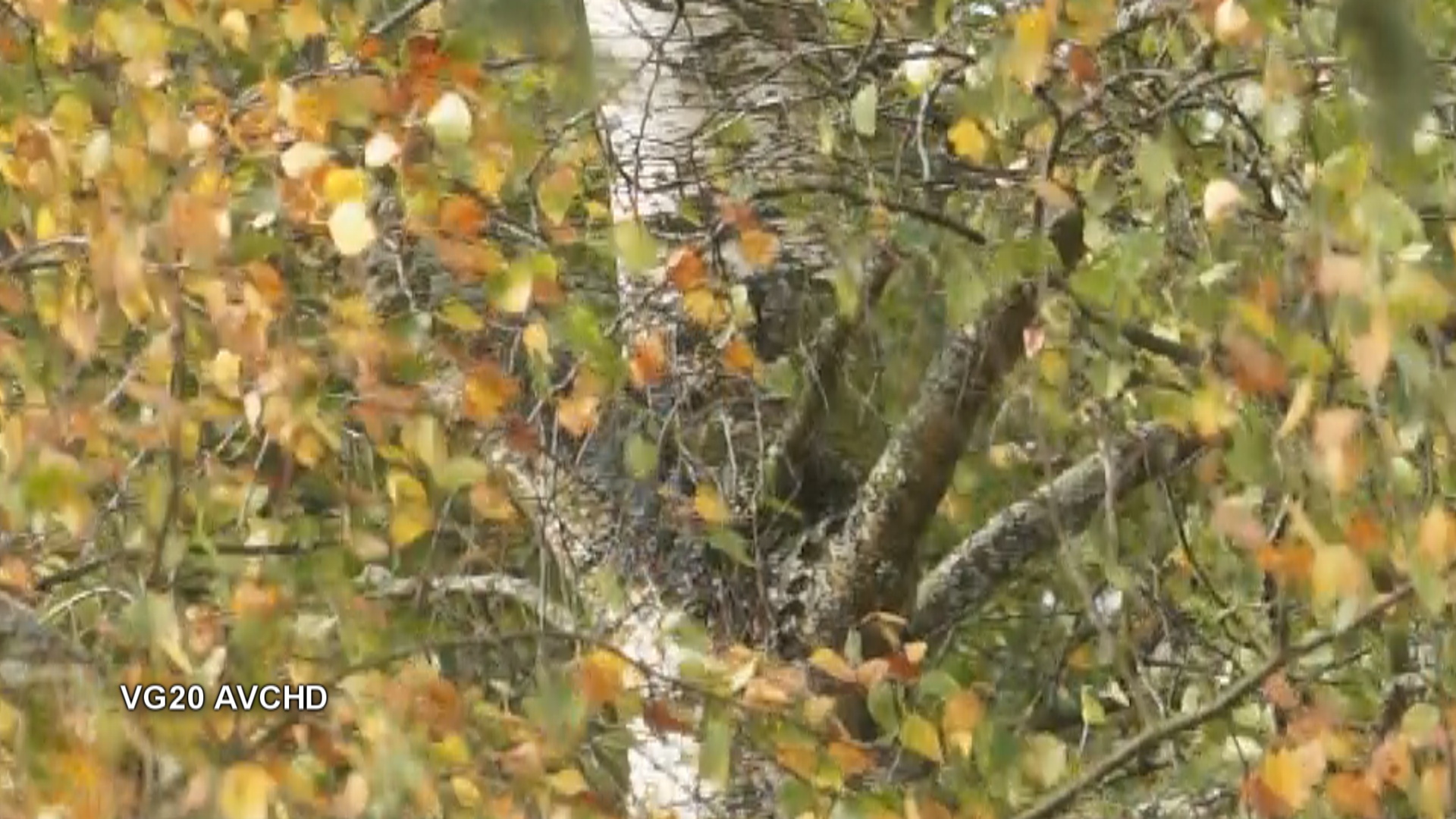

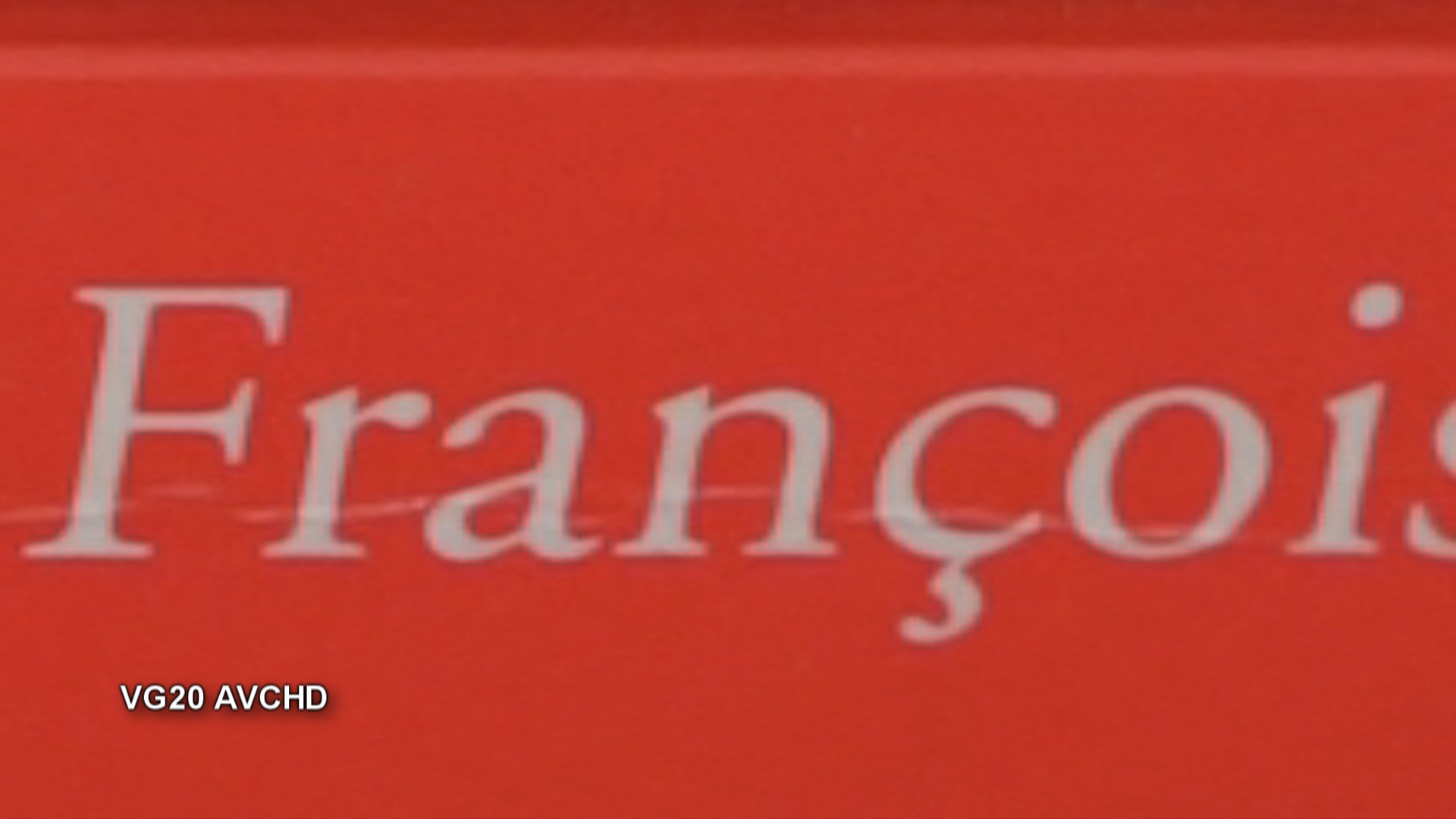

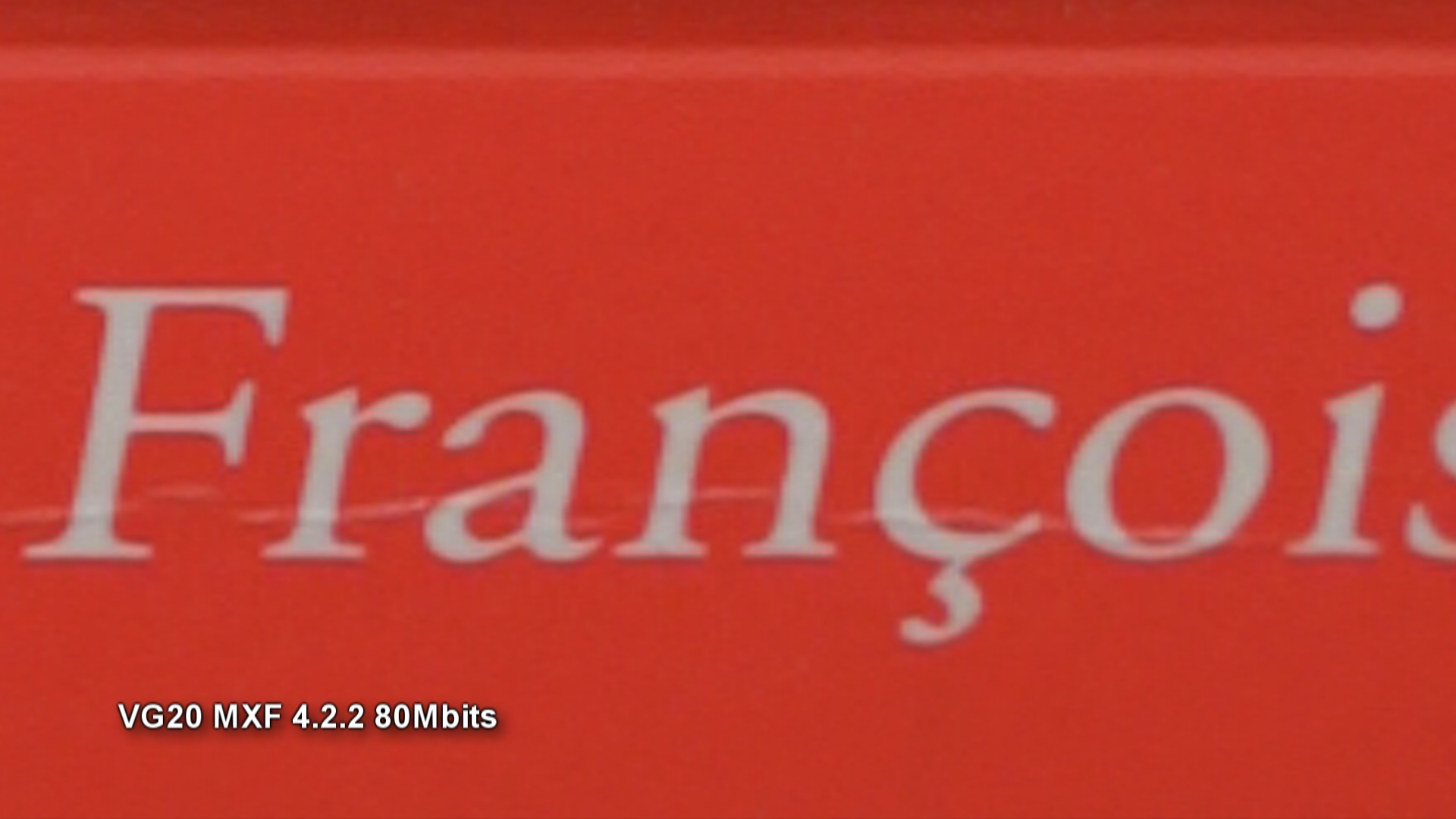

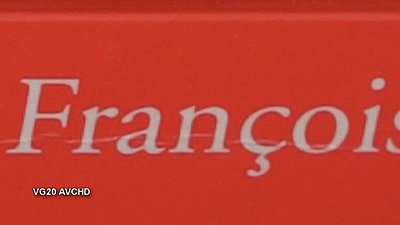

Here are some zoomed extract images from simultaneous AVCHD and MXF shootings
You can also notice suspicious outlines around letters on AVCHD picture.

Since these tests, I also used my Canon 35 L 1.4 + Kipon mount adapter: Here too, picture is better ... This is not a surprise.

Moire and aliasing are sometimes troublesome
(I compared with my 5DII: I would say a little less on the VG20, but still too much for use as "A" cam without any risk)

I hope my "google english" is quite understandable
Attached Thumbnails
What's Coming out VG20 HDMI Port-avc01.jpg   What's Coming out VG20 HDMI Port-mxf01.jpg

What's Coming out VG20 HDMI Port-avc02.jpg   What's Coming out VG20 HDMI Port-mxf02.jpg

Didier Perrichon is offline   Reply With Quote
Old November 18th, 2011, 08:57 AM   #3
Trustee

Join Date: Sep 2005
Posts: 1,063
Re: What's Coming out VG20 HDMI Port

If it's outputting true 4:2:2 via the HDMI port, that would certainly be bonus, particularly for sfx shooters.

It's difficult to tell much difference in quality just from those screen grabs though (which, by the way, thanks for posting). The only real way to tell might be to aim it at a chart....
John Vincent is offline   Reply With Quote
Old November 18th, 2011, 10:58 AM   #4
Inner Circle

Join Date: Nov 2005
Location: Elk Grove CA
Posts: 6,838
Re: What's Coming out VG20 HDMI Port

Quote:
Originally Posted by Didier Perrichon View Post
I did some initials tests with my NanoFlash. (Yes, here in France we had a first shipment of VG20)
Signal is clean, and, in my opinion, without processing.

4.2.2 MXF at 80Mbits/s obviously gives more detail and precision compared to the internal AVCHD.
Here are some zoomed extract images from simultaneous AVCHD and MXF shootings
You can also notice suspicious outlines around letters on AVCHD picture.

Since these tests, I also used my Canon 35 L 1.4 + Kipon mount adapter: Here too, picture is better ... This is not a surprise.

Moire and aliasing are sometimes troublesome
(I compared with my 5DII: I would say a little less on the VG20, but still too much for use as "A" cam without any risk)

I hope my "google english" is quite understandable
Didier:

Thanks for the quick response. I agree that moire and aliasing are still troublesome, but are reduced from the 5D.

On my rig, when I was going out to HDMI, I was showing a standby or record at up upper edge of screen, were you able to clear that ?

Here are two charts I did of the 5D and VG20

http://vimeo.com/groups/115787/videos/32231854


http://vimeo.com/groups/115787/videos/32232711
__________________
Chris J. Barcellos
Chris Barcellos is offline   Reply With Quote
Old November 18th, 2011, 04:20 PM   #5
New Boot

Join Date: Jan 2009
Location: Rennes France
Posts: 16
Re: What's Coming out VG20 HDMI Port

Chris

" I was showing a standby or record at up upper edge of screen"

Strange!

I have no marks on my recordings via HDMI.
(Even no "standby" before recording: I checked on the SDI output in real time through the Nano)

My firmware version is "1.00" so I guess we have the same.

Have you noticed this info on a Sony Bravia TV? (There may be specific display between Bravia and VG20)
Didier Perrichon is offline   Reply With Quote
Old November 18th, 2011, 04:24 PM   #6
Inner Circle

Join Date: Nov 2005
Location: Elk Grove CA
Posts: 6,838
Re: What's Coming out VG20 HDMI Port

No. I know I looked when I first got the camera, and didn't see that, so I am guessing I have something switched on somewhere. Damn,,,, I'll have to read the instruction book. Thanks for checking. First time I notice was when I hooked up to my cheap Philips TV.
__________________
Chris J. Barcellos
Chris Barcellos is offline   Reply With Quote
Old November 30th, 2011, 11:25 AM   #7
Inner Circle

Join Date: Nov 2005
Location: Elk Grove CA
Posts: 6,838
Re: What's Coming out VG20 HDMI Port

I can confirm clean output on HDMI, without any display overlay.
__________________
Chris J. Barcellos
Chris Barcellos is offline   Reply
