Old May 20th, 2008, 11:42 AM   #16
Inner Circle

Join Date: Jun 2003
Location: San Jose, CA
Posts: 2,222
Quote:
Originally Posted by Paul Kellett View Post
Not from the tests,that was ages ago when i first got the cam.
I've got some screengrabs with detail on if you want them posted.
Paul
We'd really like to see them, Paul.
Gints Klimanis is offline   Reply With Quote
Old May 20th, 2008, 05:57 PM   #17
Trustee

Join Date: Nov 2007
Location: Bristol UK
Posts: 1,271
Screengrabs with detail on

Armlock is 720/50p
Guy on stage is 1080 50i SP.
Attached Thumbnails
When using the detail-feature?-act-2-scene-2.jpg   When using the detail-feature?-image6.jpg

__________________
Round 2
Panasonic HC-X1, Vinten PB, Sennheiser G3 bits. Vegas pro 14 on i7,AMD Radeon RX480 8GB.
Paul Kellett is offline   Reply With Quote
Old May 21st, 2008, 05:15 AM   #18
Major Player

Join Date: Mar 2005
Location: canterbury
Posts: 411
I can quite clearly see the false edges due to sharpening, look at any area of high contrast - in the V of the leg top left of frame there's an obvious sharpened edge with the telltale black line. Or the black ringing around the addidas logo.

With this particular image though the areas of contrast are quite low, if you had specular highlights (a watch or something) the ringing off that, for me, would be unacceptable. If you're keying or needing to do something to the image then this enhancement is detrimental as well.

I would personally still choose to shoot with no detail 'enhancement' and have that choice later on should i desire it. I would imagine that post based sharpening is more controllable and better anyway (but of course much more time consuming)

but horses for courses, whatever works best for your own workflow, that's the beauty of all these settings!

cheers
paul
Paul Curtis is offline   Reply With Quote
Old May 21st, 2008, 05:19 AM   #19
Trustee

Join Date: Nov 2007
Location: Bristol UK
Posts: 1,271
Ah yes i can see it a bit now.

Thanks.

Paul.
__________________
Round 2
Panasonic HC-X1, Vinten PB, Sennheiser G3 bits. Vegas pro 14 on i7,AMD Radeon RX480 8GB.
Paul Kellett is offline   Reply With Quote
Old May 21st, 2008, 05:28 AM   #20
Regular Crew

Join Date: Dec 2007
Location: Viersen, Germany
Posts: 120

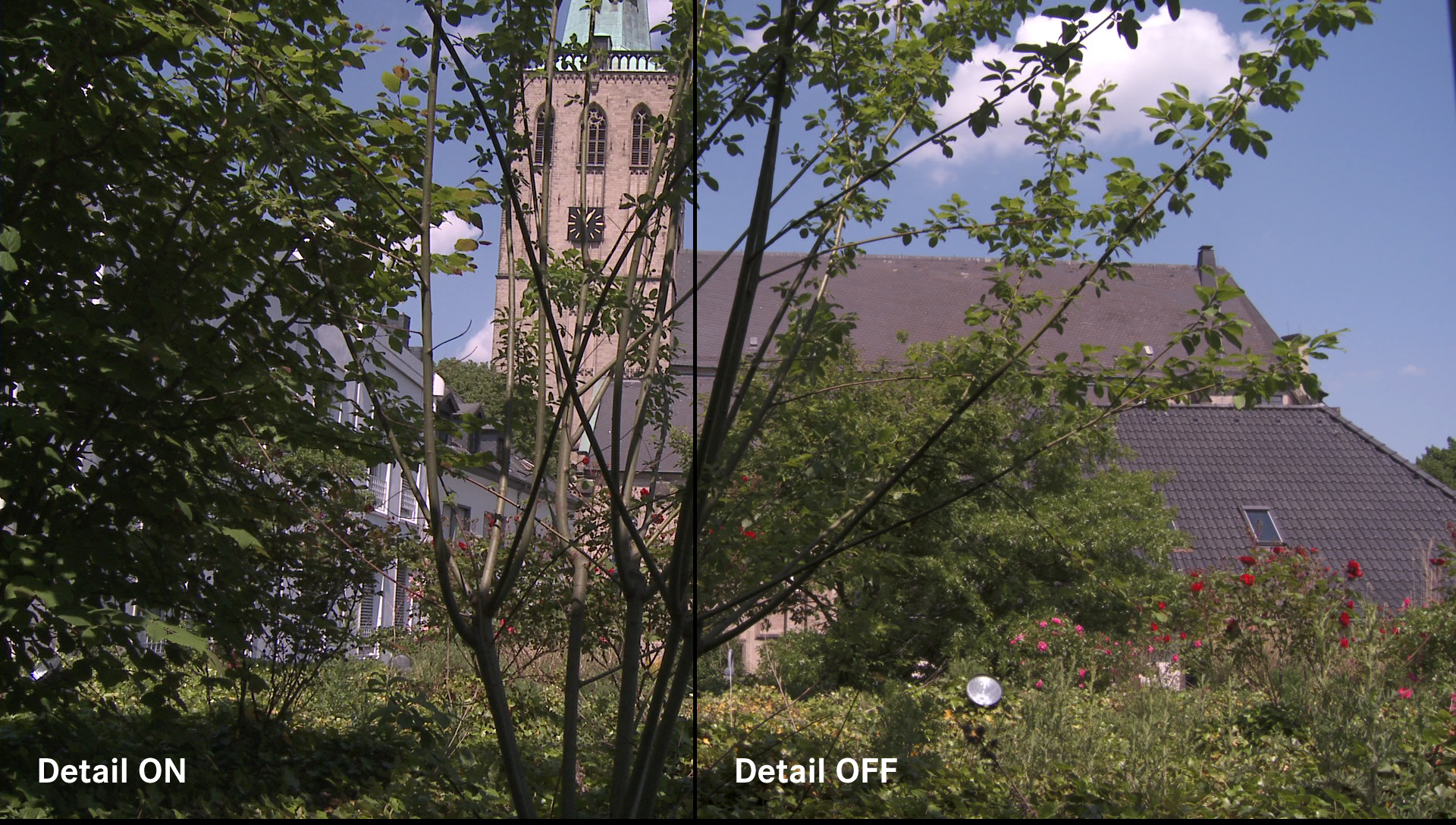

Here is a comparison between detail on/off.

regards Dennis
Attached Thumbnails
When using the detail-feature?-detail.jpg
Dennis Schmitz is offline   Reply With Quote
Old May 21st, 2008, 05:29 AM   #21
Major Player

Join Date: Mar 2005
Location: canterbury
Posts: 411
the trouble with this stuff is once you've seen it, then you're always looking for it and you start noticing it automatically!

But i really feel this is one area which screams video to me. I'll have to see if i can dig out some frames of mine with no detail. I find them so much more natural and you can take them into photoshop and unsharp mask them and see the ringing come back in. Try some tests, you may initially think the shots are soft but they're real.

Conversely the vewing public is quite used to heavily sharpened images, from digital stills cameras, compression. Its just a very easy way to create perceived resolution and it's not necessarily wrong either. It's just a personal choice! I always have a battle with the photo processing places to try and get them to not sharpen my photos (usually fail dismally too).

cheers
paul

Dennis : a great example, i much prefer the off setting but i can see people thinking there's more resolution in the left. You can also see the effects of sharpening lens aberations too!
Paul Curtis is offline   Reply With Quote
Old May 21st, 2008, 06:18 AM   #22
Trustee

Join Date: Apr 2005
Posts: 1,268
The whole reason I wanted to move on to 1080p was that I was tired of sharpening my 720p footage from my JVC HD100. 1080p is twice as sharp and naturally so. Now that I have 1080p I no longer see any reason to use sharpening. Specially for video release (HD or SD) it is plenty sharp. I find myself adding filter for close ups. What is the point of moving up, spending the extra cash to shoot high-def if you still treat it as DV? DV needs sharpening, full HD does not.
Michael Maier is offline   Reply With Quote
Old May 21st, 2008, 06:29 AM   #23
Major Player

Join Date: May 2008
Location: Nuremberg, Germany
Posts: 285
Here are some examples:
http://www.dominik.ws/ex1-detail/1.png
http://www.dominik.ws/ex1-detail/2.png
http://www.dominik.ws/ex1-detail/3.png
http://www.dominik.ws/ex1-detail/4.png
http://www.dominik.ws/ex1-detail/5.png
http://www.dominik.ws/ex1-detail/6.png
http://www.dominik.ws/ex1-detail/7.png
http://www.dominik.ws/ex1-detail/8.png

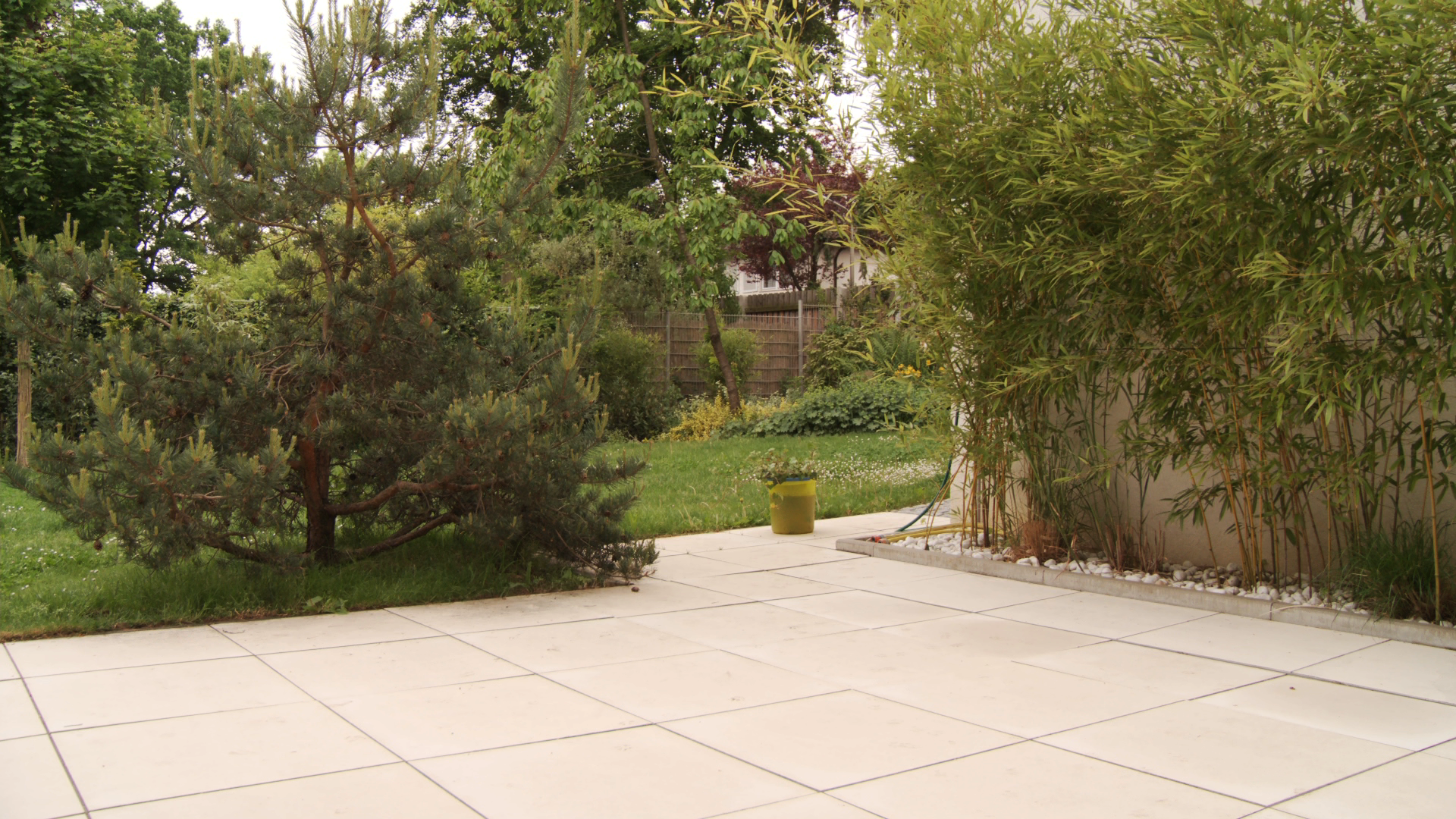

1: detail off
2: level 0, freq 0, crisp 0
3: level -50, freq 0, crisp 0
4: level +50, freq 0, crisp 0
5: level +50, freq -50, crip 0
6: level +50, freq +50, crisp 0

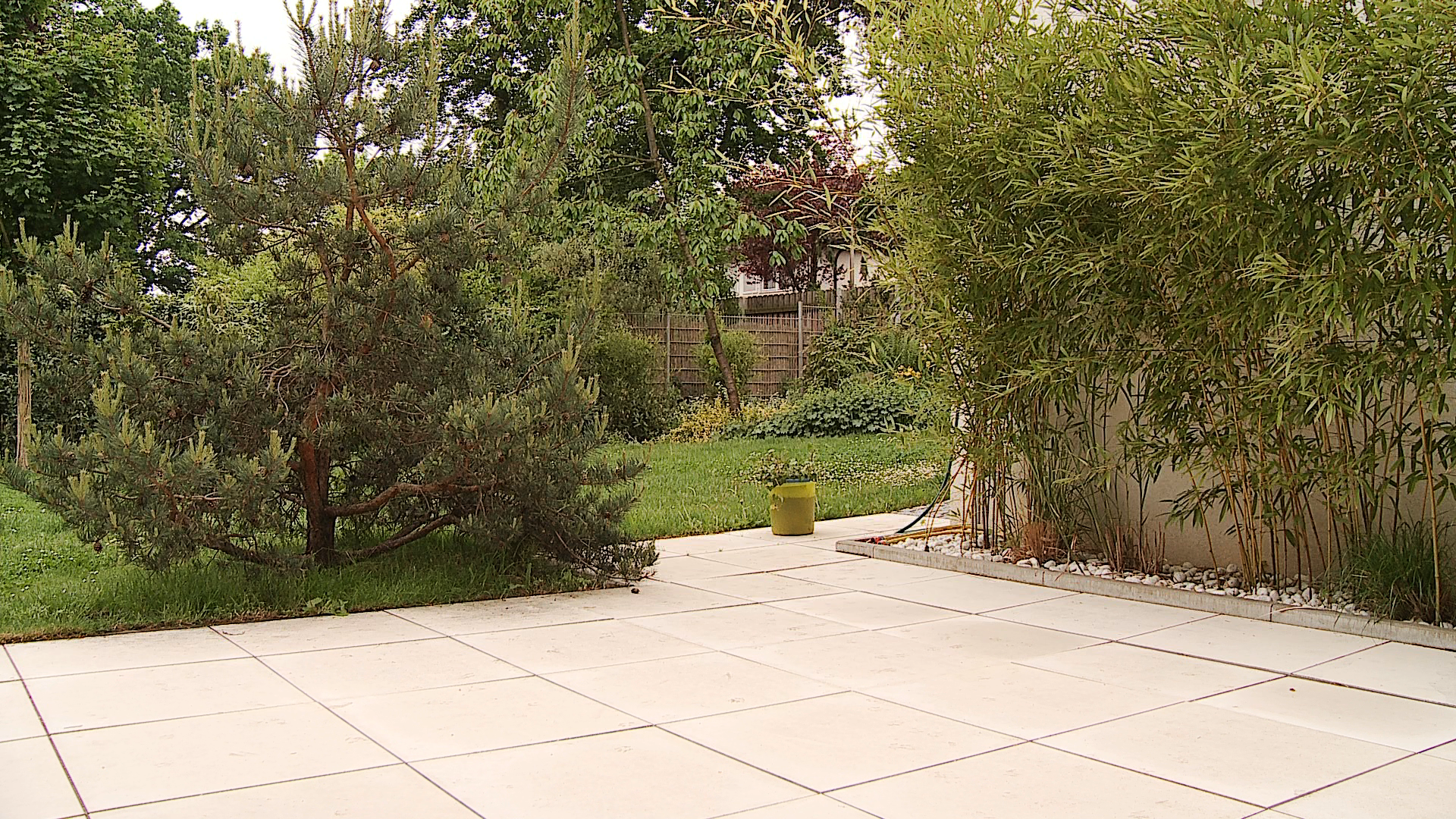

7: level +50, freq 0, crisp -100
8: level +50, freq 0, crisp +100

all with cine3, gamma-level/black/black-gamma 0, matrix off. Used FCPs ProcAmp-VideoLevel at -0.32 for turning super-white to white.
Dominik Seibold is offline   Reply With Quote
Old May 21st, 2008, 07:13 AM   #24
Regular Crew

Join Date: Dec 2007
Location: Viersen, Germany
Posts: 120
Quote:
Originally Posted by Dominik Seibold View Post
Here are some examples:
http://www.dominik.ws/ex1-detail/1.png
http://www.dominik.ws/ex1-detail/2.png
http://www.dominik.ws/ex1-detail/3.png
http://www.dominik.ws/ex1-detail/4.png
http://www.dominik.ws/ex1-detail/5.png
http://www.dominik.ws/ex1-detail/6.png
http://www.dominik.ws/ex1-detail/7.png
http://www.dominik.ws/ex1-detail/8.png

1: detail off
2: level 0, freq 0, crisp 0
3: level -50, freq 0, crisp 0
4: level +50, freq 0, crisp 0
5: level +50, freq -50, crip 0
6: level +50, freq +50, crisp 0
7: level +50, freq 0, crisp -100
8: level +50, freq 0, crisp +100

all with cine3, gamma-level/black/black-gamma 0, matrix off. Used FCPs ProcAmp-VideoLevel at -0.32 for turning super-white to white.
The first one looks best.
The second one already looks like a painting
The third one looks like it has gone through a blur filter.
...


regards Dennis
Dennis Schmitz is offline   Reply With Quote
Old May 21st, 2008, 09:41 AM   #25
Major Player

Join Date: Mar 2005
Location: canterbury
Posts: 411
Quote:
Originally Posted by Dennis Schmitz View Post
The first one looks best.
The second one already looks like a painting
The third one looks like it has gone through a blur filter.
...


regards Dennis
Agree completely.

Dominik thank you for posting this comparison, a fantastic way to illustrate the pitfalls of detail on this camera.

Interesting that with everything zero'd it's still quite bad, yet set to -50 it's blurry. Where's the 'off' setting then (if there is one)

cheers
paul
Paul Curtis is offline   Reply With Quote
Old May 21st, 2008, 09:51 AM   #26
Regular Crew

Join Date: Dec 2007
Location: Viersen, Germany
Posts: 120
Quote:
Originally Posted by Paul Curtis View Post
Agree completely.

Dominik thank you for posting this comparison, a fantastic way to illustrate the pitfalls of detail on this camera.

Interesting that with everything zero'd it's still quite bad, yet set to -50 it's blurry. Where's the 'off' setting then (if there is one)

cheers
paul
Level = -30 should be "zero".


Dennis
