Mic Support help

Hey all,

when i sold my z1 8 months I kept the SM5 mount.

However as you all know its too small for the holder (ex1)

is there anything i can add to it to make it fit or stable?

don't really want to sell it or make it unused?

Thanks
Ollie Walton is offline   Reply With Quote
Old May 8th, 2011, 09:58 PM   #2
Regular Crew

Join Date: Apr 2008
Location: Bronx, NY
Posts: 99
Re: Mic Support help

I use SM-5 with Rode NTG-1 mic on EX-1 without any additions. I use the bigger diameter part of SM-5 to go into the EX-1 mic holder and I insert it into the mic holder from its back, so the mic sits on the camera more to the back.

Make sure to tape EX-1 mic holder to the XLR box with gaffers tape before it is broken - mine finally broke down, and I had to do it afterwards...
__________________
Thank you.
Ilya Spektor is offline   Reply With Quote
Old May 8th, 2011, 10:04 PM   #3
Inner Circle

Join Date: Jan 2004
Location: Boca Raton, FL
Posts: 2,979
Re: Mic Support help

Go to the plumbing section of a local hardware store where they have "O" rings. You may find an O ring that fills the gap nicely. That's what I use on my NTG-1 in the EX1R.
Les Wilson is offline   Reply With Quote
Old May 9th, 2011, 05:24 AM   #4
Regular Crew

Join Date: Feb 2010
Location: United Kingdom
Posts: 156
Re: Mic Support help

does anybody have pictures of there setup or examples?

thanks :)
Ollie Walton is offline   Reply With Quote
Old May 10th, 2011, 05:46 AM   #5
Inner Circle

Join Date: Oct 2001
Location: Honolulu, HI
Posts: 2,053
Re: Mic Support help

I reinforced my mic holder. However, I don't even use it anymore, and mount my mic with the hot shoe mount. I made my own, which also supports the on-camera light.

I'll post photos if anyone's interested. Be warned: it's not pretty!
__________________
Dean Sensui
Exec Producer, Hawaii Goes Fishing
Dean Sensui is offline   Reply With Quote
Old May 10th, 2011, 11:36 AM   #6
Major Player

Join Date: Jun 2007
Location: Kråkstad Norway.
Posts: 229
Re: Mic Support help

Post them... it doesnt matter as long as it does the job :-)
__________________
http://www.mlotv.com
Gary Brun is offline   Reply With Quote
Old May 11th, 2011, 06:34 PM   #7
Regular Crew

Join Date: Feb 2010
Location: United Kingdom
Posts: 156
Re: Mic Support help

yes that would be good. thinking of getting some o rings now.

Not going to spend a lot of money getting a new rig for it.
Ollie Walton is offline   Reply With Quote
Old May 11th, 2011, 09:01 PM   #8
Inner Circle

Join Date: Oct 2001
Location: Honolulu, HI
Posts: 2,053
Re: Mic Support help

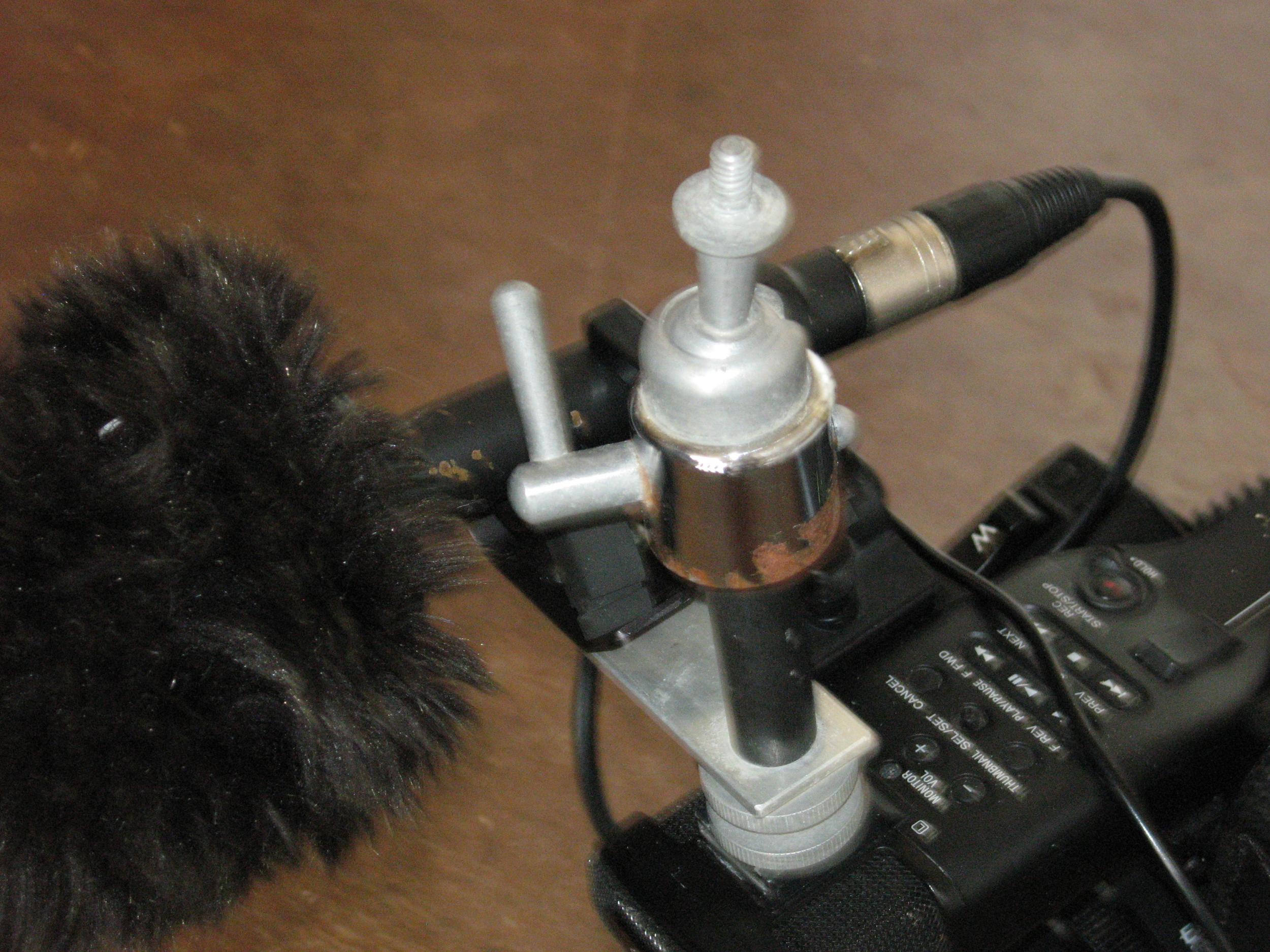

Here's the mic mount. It's Lightwave shock mount that's been screwed to a flat aluminum bar. That bar is attached to a hot shoe mount. Also attached to that is a rod and ball mount which is used to hold an on-camera light.

This holds the mic further away from the lens and helps keep it out of the way of the camera light.

The original Sony mic mount isn't used at all.

Elsewhere on this forum is how I reinforced the Sony mic mount to keep it from breaking.
Attached Thumbnails
Mic Support help-img_5798.jpg
