Old April 14th, 2008, 02:07 PM   #1
Regular Crew

Join Date: Apr 2008
Location: Lauwe Belgium
Posts: 39
Tripod for EX1 + Letus Extreme/Ultimate

Hi there,
I have put this question also in the other (tripod related) forum area, but hope to get some response from actual Letus users together with EX1 - What tripod are you using for the system ?

Here is my question:

I am planning to buy the EX1 but want to use it in the future also with the Letus 35mm DOF adapters on the Zacuto rail system..
That means the total system will become much heavier than only the camera itself.
From stability and weight point of view, would it be enough to use a Sachtler System FSB6 or other 75mm fluid head. Would it otherwise be necessary to upgrade to a 100mm fluid head ? That would be an expensive upgrade...

The whole system should be perfectly balanced - but not heavily oversized. I like to keep as mobile as possible...;-)

Perhaps someone of the Letus users can answer, based on experience.

Thanks - although I am a newby on this forum, I enjoy the quality of discussions...

regards,

Ulli

P.S.: follow the incredible busy XDcam EX thread for some time now... great infos...
Ulli Grunow is offline   Reply With Quote
Old April 14th, 2008, 02:22 PM   #2
Major Player

Join Date: Nov 2005
Location: Columbus, Ohio
Posts: 276
Images: 2
I'm having fine results with my 503 head on my manfrotto spreaders. I also have one of the quick adjust levelers in there which is a huge help quick. But I can pan and tilt - and pick up and carry easily the whole rig and feel confident its solid and steady. Hope that is of some help!

BTW, I'm running almost the exact setup you are listing there. EX1, Zacuto rails, RR FF and mounting plate plus LEX

Last edited by Jeremy Hughes; April 14th, 2008 at 02:24 PM. Reason: Forgot to state gear
Jeremy Hughes is offline   Reply With Quote
Old April 15th, 2008, 11:59 AM   #3
New Boot

Join Date: Aug 2007
Location: Zurich / Zug - Switzerland
Posts: 17
the old 503 manfrotto head would do the job, but the new and "improved" is much weaker...i was looking for a second tripod for the ex1 also and the counterbalance cant hold its weight already without the adapter and rods...so i bought the miller ds20 and it does the job well...
Dominik Gehring is offline   Reply With Quote
Old April 15th, 2008, 12:22 PM   #4
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086

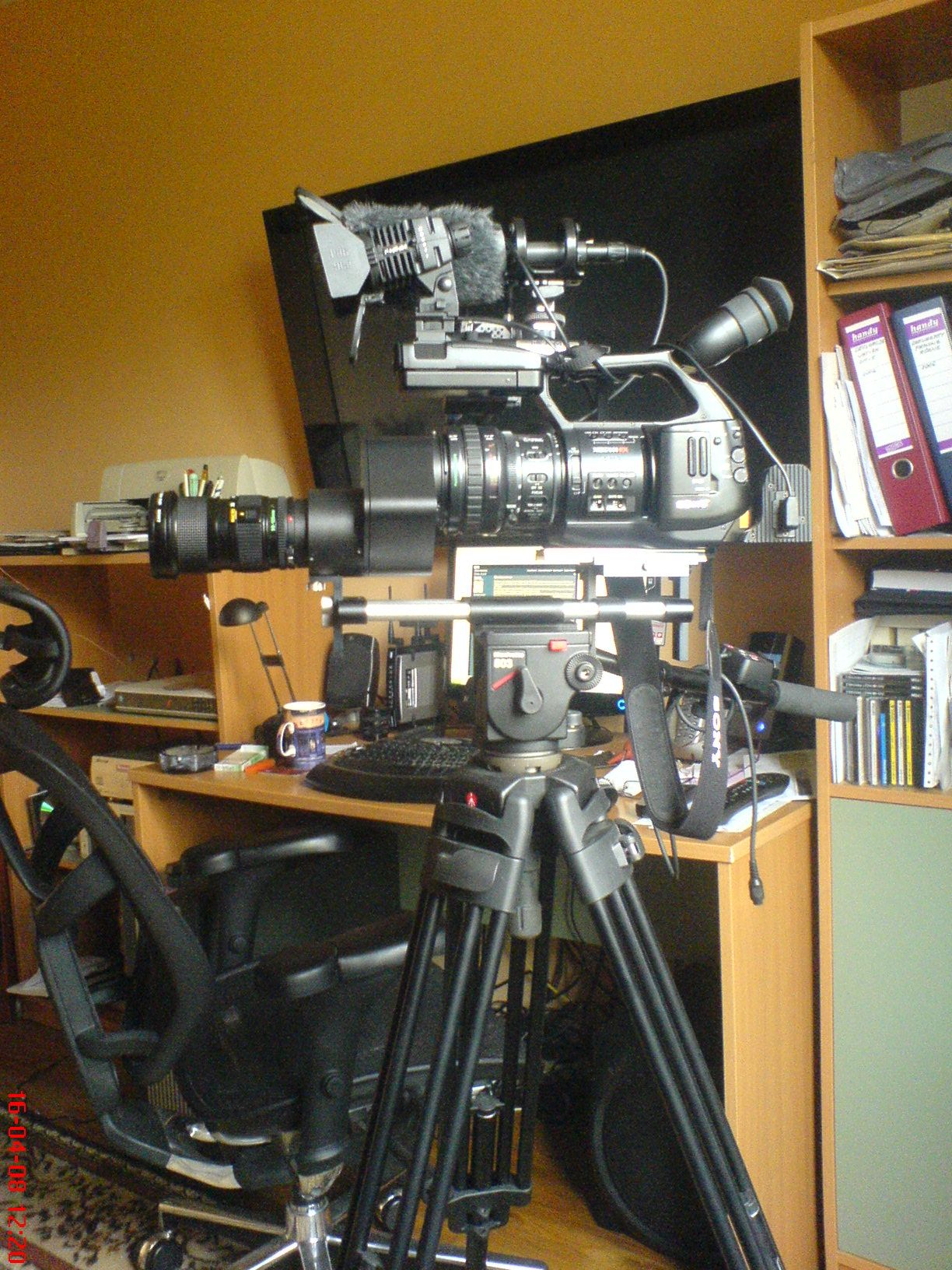

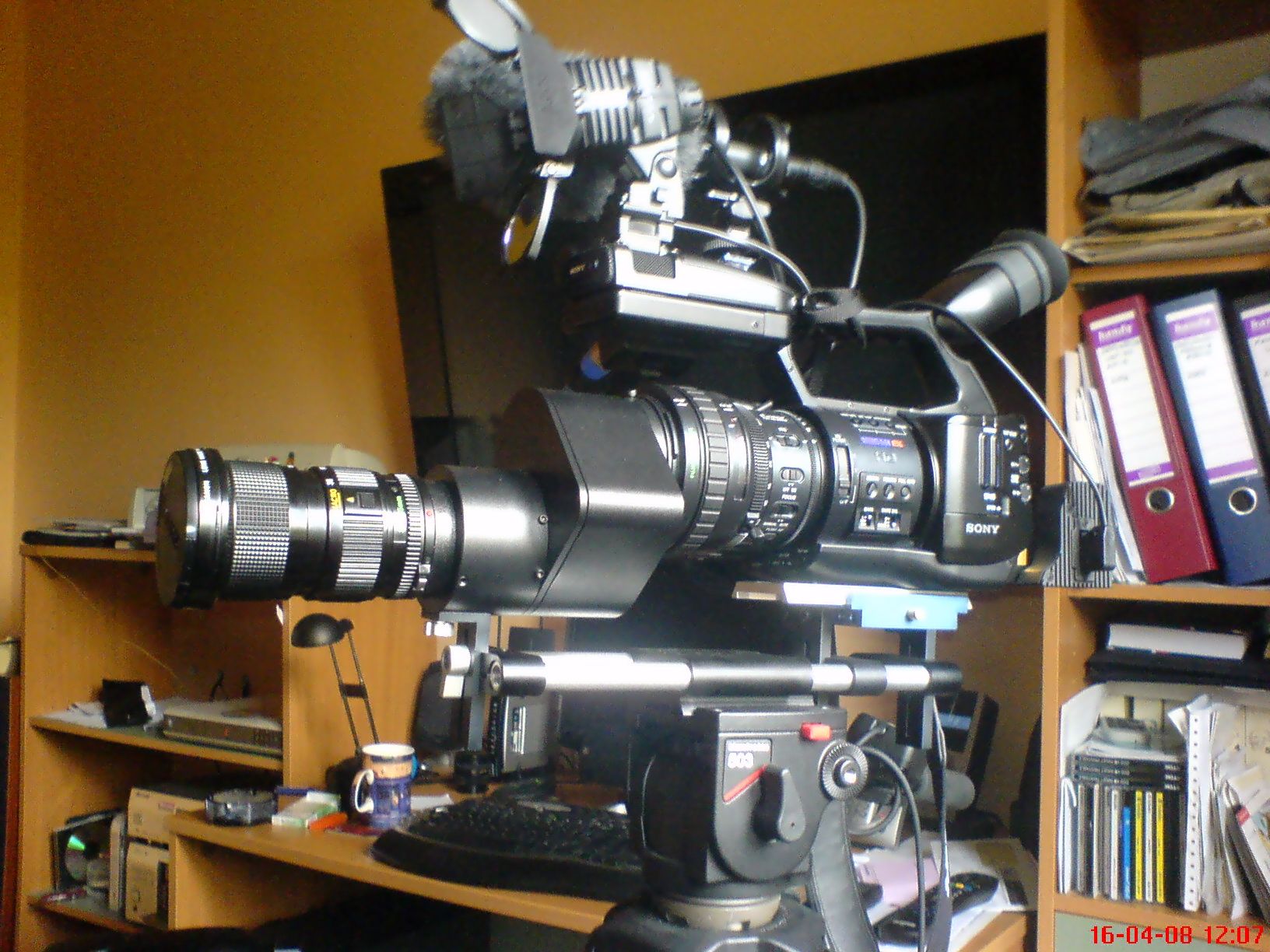

While of course not being the greatest head in the world, I can confirm that the older Manfrotto 503 is doing fine with all this additional weight on it - it actually feels smoother than with the camera alone! Currently, mine carries the camera with Letus Extreme and Letus rails system, the long Canon 35-105mm zoom, the Bebob Coco-EX adapter for BP-60, feeding a PAG light (in addition to the camera of course), plus additional mic shock mount (from Rode) and the Senny wireless receiver, both mounted on the J-Rod. When I get a mattebox, I'm going to fix the additional 15 cm Letus rail extenders in the front, and the whole rig will be moved back on the Letus QR mount, to find tthe new balance position (currently is balanced perfectly).

PS: Can anyone advise on a mattebox that would fit BOTH a rig on rails, like the one depicted here (I'm using mostly Canon lenses with 52mm or 72mm thread sizes), AND the camera on its own?
Attached Thumbnails
Tripod for EX1 + Letus Extreme/Ultimate-my-rig-2.jpg   Tripod for EX1 + Letus Extreme/Ultimate-my-rig-3.jpg

__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive

Last edited by Piotr Wozniacki; April 16th, 2008 at 06:35 AM.
Piotr Wozniacki is offline   Reply With Quote
Old April 16th, 2008, 06:44 AM   #5
Major Player

Join Date: Jan 2008
Location: Utrecht, NL | Europe 3rd Rock from the Sun
Posts: 612
I have about the same rig planned and was looking at either the Vinten Vision System 3 or a Sachtler System 6 SB, like the 0643. They hold 9-10kg which leaves me a little room as I project the rig to be about ~7.5kg with batteries and wireless.

I'm in no hurry, so I'm planning on "feeling up" both candidates at some point first.

George/
George Kroonder is offline   Reply With Quote
Old April 16th, 2008, 06:47 AM   #6
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Quote:
Originally Posted by George Kroonder View Post
I have about the same rig planned and was looking at either the Vinten Vision System 3 or a Sachtler System 6 SB, like the 0643. They hold 9-10kg which leaves me a little room as I project the rig to be about ~7.5kg with batteries and wireless.

I'm in no hurry, so I'm planning on "feeling up" both candidates at some point first.

George/
If I were buying a new tripod system now, I'd probably be considering the exactly same options, George. The above information was only to inform those who (like myslef) already have the so popular Manfrotto 525/503 tripod, that under heavier loads the head is working nicer.
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old April 16th, 2008, 08:56 AM   #7
Regular Crew

Join Date: Nov 2003
Location: Helsinki-Finland
Posts: 65
Quote:
Originally Posted by Piotr Wozniacki View Post
plus additional mic shock mount (from Rode)
PIOTR, Would you be able to post images showing your gear from the other side? (with the mic section)

Atti
__________________
Atti
Attila Cser is offline   Reply With Quote
Old April 16th, 2008, 09:42 AM   #8
Major Player

Join Date: Jan 2007
Location: Boston, Massachusetts
Posts: 380
Images: 1
I have had 2 Bogens in past years that I wish I never bought. Don't know if they are better now. I use a Sachtler DV8 now and its great. Since a tripod can really last for a long time I think its good to invest in a nice one.
Benjamin Eckstein is offline   Reply With Quote
Old April 16th, 2008, 10:32 AM   #9
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Quote:
Originally Posted by Benjamin Eckstein View Post
I have had 2 Bogens in past years that I wish I never bought. Don't know if they are better now. I use a Sachtler DV8 now and its great. Since a tripod can really last for a long time I think its good to invest in a nice one.
Absolutely right - a good tripod is high on my list, the Manfrotto being a left-over from the times I was using the tiny Sony HC1E :)

Quote:
Originally Posted by Attila Cser View Post
PIOTR, Would you be able to post images showing your gear from the other side? (with the mic section)

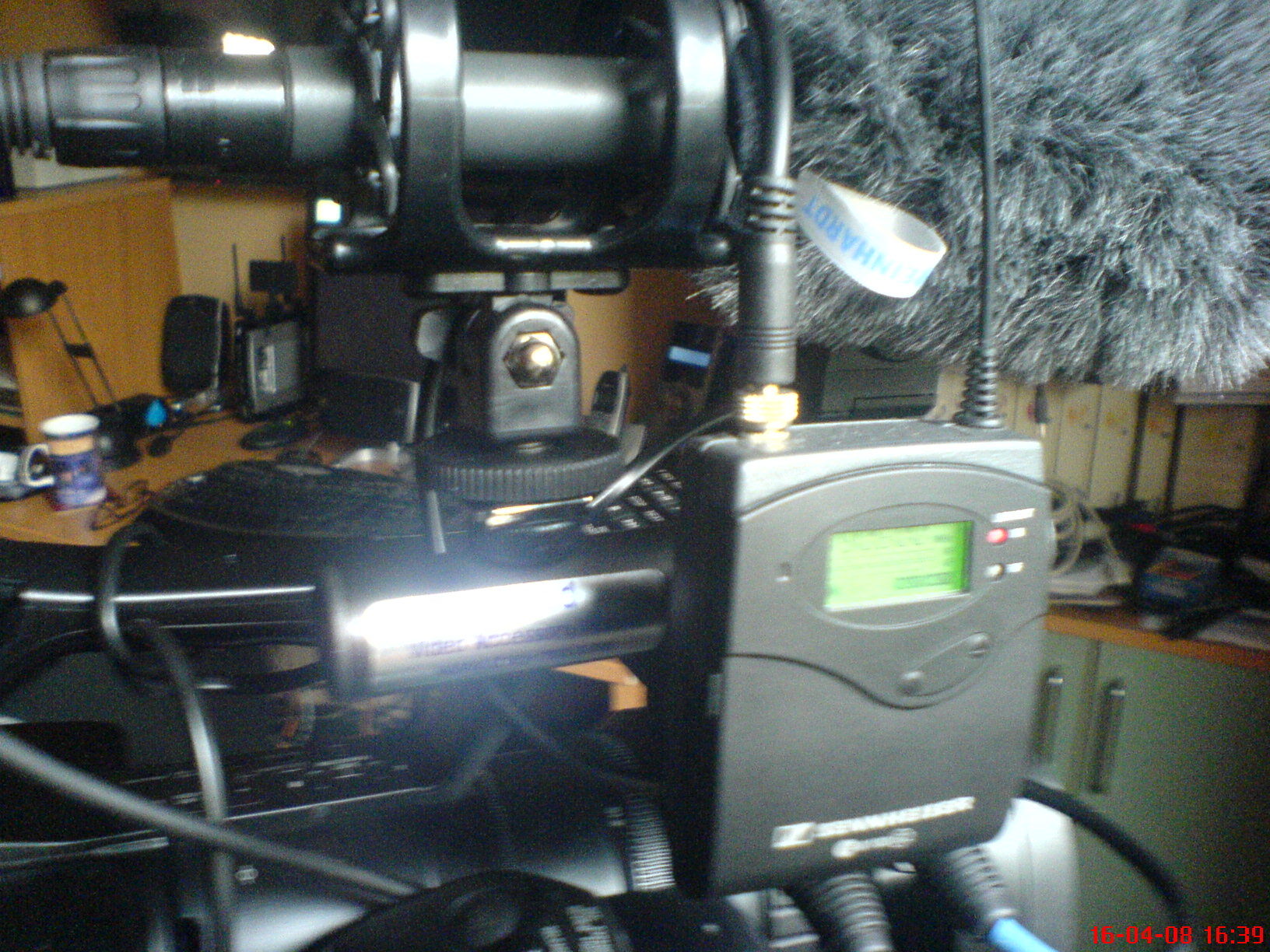

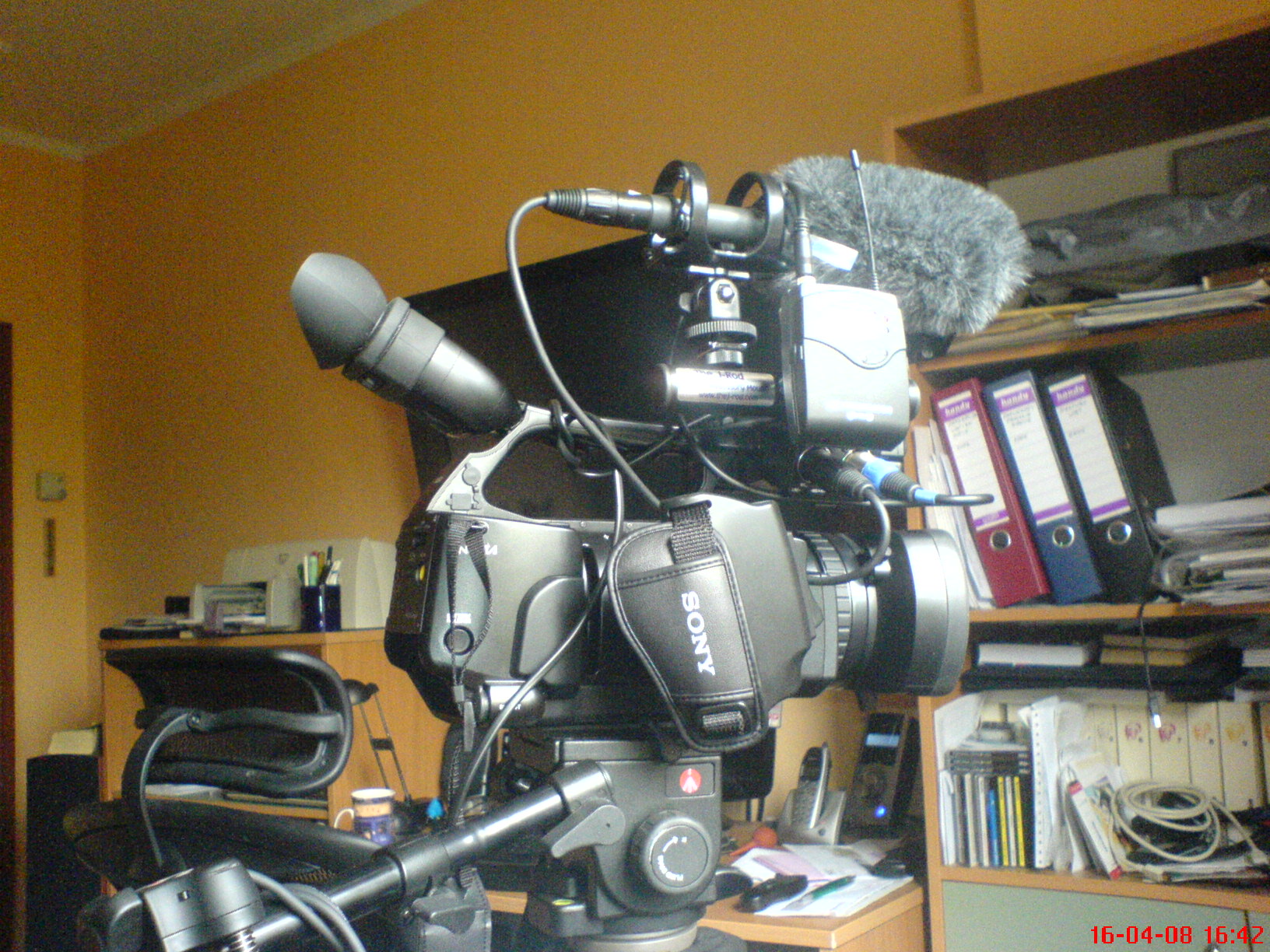

Sure thing Attila - I hope you will forgive the low quality (I've made them with my mobile; without the Letus this time).

It may be worth noting that even though I'd bought the J-Rode accessory almost a year ago, I never used it so far because the supplied Azden shockmount has too long spread for my short mics. Recently I have replaced it with the Rode SM3, and all works very nice (with Letus vibrating, putting the mic higher and in the additional rubber suspension helps a bit; still the recorded audio can be used fro reference only - but with the Sennheiser wireless, it's OK)>
Attached Thumbnails
Tripod for EX1 + Letus Extreme/Ultimate-dsc00011.jpg   Tripod for EX1 + Letus Extreme/Ultimate-dsc00014.jpg

__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old April 16th, 2008, 11:10 AM   #10
Regular Crew

Join Date: Nov 2003
Location: Helsinki-Finland
Posts: 65
Thanks a lot Piotr for your fast action,

I'm using a long mic from Azden too and I think its suspension is good enough for my purposes. ( TV NEWS and short features)
What Sennheiser wireless system is hanging there on the gear?
(I'm sorry but I can't read it out from the image :-)

Atti
__________________
Atti
Attila Cser is offline   Reply With Quote
Old April 16th, 2008, 11:18 AM   #11
Regular Crew

Join Date: Mar 2007
Location: Boston, MA
Posts: 39
I posted this elsewhere, and haven't had any traction...so while we're on the discussion of Ex1 support:

I've been looking at the Cartoni F103 tripod system for about a month now, and in my research have not found any reviews pro or con for this set up. I was nearly swayed at NAB on Monday when I saw Sachtler's new SOOM set up, but at 3k was out of my price range.

The Vision 3, and the Sachtler dv6, and the Cartoni f103 are all right around what I'd like to spend...

thoughts?
__________________
Nathaniel Hansen
www.salmonrunmedia.com | www.nathanielhansen.com
Nathaniel Hansen is offline   Reply With Quote
Old April 16th, 2008, 11:19 AM   #12
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Yep - for long shotguns, the Azden mount supplied with J-Rod will be perfect. However, a word of caution: the assembly (J-rod plus a long mic plus a wireless) can be too heavy for the EX1's mic holder! You might consider modifying it, as Bob Grant has and shown in one of the threads here (do a search and you will find the picture).

As to my wireless, it's the Sennheiser EW 100 G2 system.

And yes, he quality of the pictures makes it impossible to read the name on it - but I hope you got the idea :)
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old April 16th, 2008, 01:55 PM   #13
Regular Crew

Join Date: Jan 2008
Location: New York, NY
Posts: 188
Quote:
Originally Posted by Nathaniel Hansen View Post
I posted this elsewhere, and haven't had any traction...so while we're on the discussion of Ex1 support:

I've been looking at the Cartoni F103 tripod system for about a month now, and in my research have not found any reviews pro or con for this set up. I was nearly swayed at NAB on Monday when I saw Sachtler's new SOOM set up, but at 3k was out of my price range.

The Vision 3, and the Sachtler dv6, and the Cartoni f103 are all right around what I'd like to spend...

thoughts?
I'm actually using the cartoni F102 and I like it a lot. The tilt lock isn't as strong as I would like, but then again neither is the sachtler DV18, and anways I don't think it would slip even with a 35 adapter and an on-board monitor on an EX1. Cartoni makes some great stuff that's consistently priced below everyone else. I'm not sure how they do it, they do make very nice gear, the lambda head being almost a standard item on any large-scale production.
Sean Donnelly is offline   Reply With Quote
Old April 16th, 2008, 02:06 PM   #14
Regular Crew

Join Date: Mar 2007
Location: Boston, MA
Posts: 39
Good to know, thanks Sean....I'm hoping to order today before B&H closes for the rest of April.
__________________
Nathaniel Hansen
www.salmonrunmedia.com | www.nathanielhansen.com
Nathaniel Hansen is offline   Reply With Quote
Old April 16th, 2008, 03:53 PM   #15
Major Player

Join Date: Jan 2008
Location: Utrecht, NL | Europe 3rd Rock from the Sun
Posts: 612
I've looked at Cartoni, but it's like they fell off the internet years ago. I can find current products at B&H as well as Abel Cinetech but since I'm in Europe and they're Italian, there must be a more local supplier to be found as well as a catalog of some sorts. No such luck.

Google leads me to believe www.cartoni.com should be the homepage, but it's not accessible!

Anyone know what happened? Did they go to NAB and switched of the webserver?

George/

Last edited by George Kroonder; April 17th, 2008 at 01:45 PM.
George Kroonder is offline   Reply
