Old December 29th, 2009, 02:38 AM   #1
Regular Crew

Join Date: Jun 2008
Location: USA
Posts: 67
MOUNTED: Auvio 7" 800x480 TV from Radio Shack ($170 on sale)

This is the TV:

AUVIO™ 7" High-Resolution Portable Digital TV - RadioShack.com

The mount centers on this inexpensive Targus suction cup camera mount:

Amazon.com: Targus Digital TGT-SP Suction Cup Tripod: Camera & Photo

The suction cup uses a mechanism to attach firmly to surfaces.

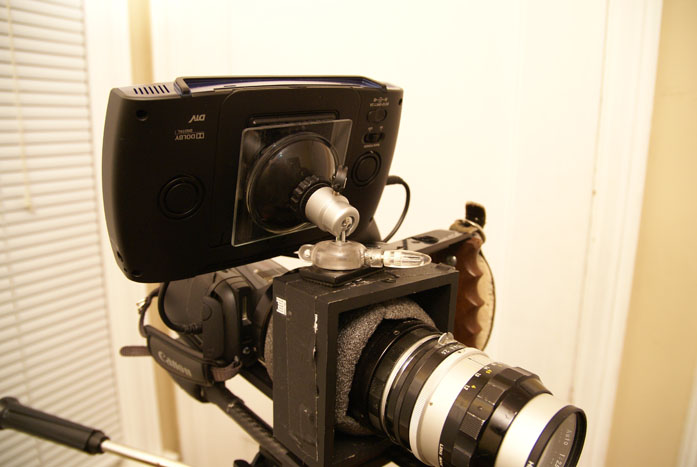

The basic idea is to mount to the battery/battery door on the back of the Auvio, which is the only smooth flat surface. The door measures about 3" x 2.25" and the suction cup is 2.75" in diameter, so another surface must be bonded to the battery that will cover the entire suction cup area.

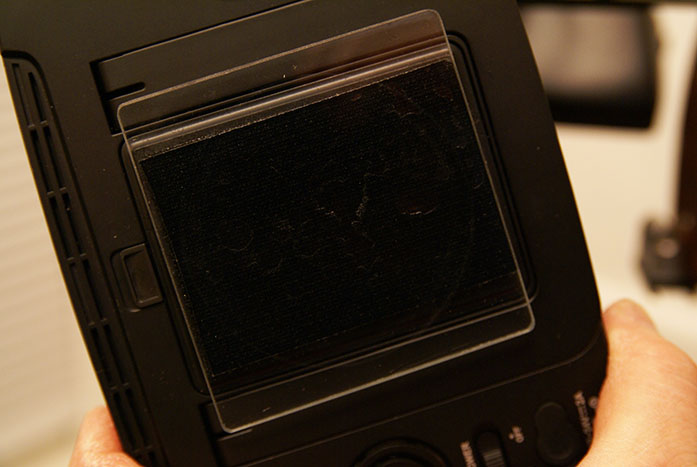

I decided to use a sheet of 3/32" thick glass (cut 3"x3") attached with velcro to the battery. Glass is not porous or grained and makes the best material for an airtight seal for the suction cup. I used industrial strength velcro, 2" wide, from Home Depot.

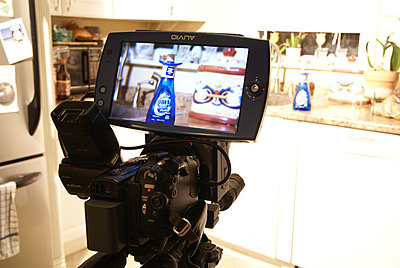

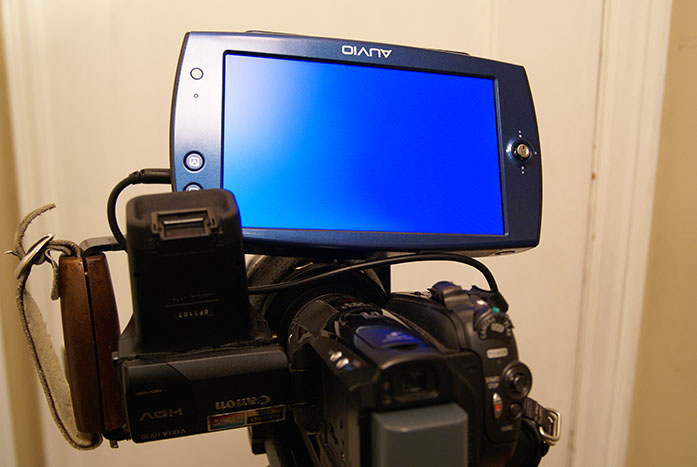

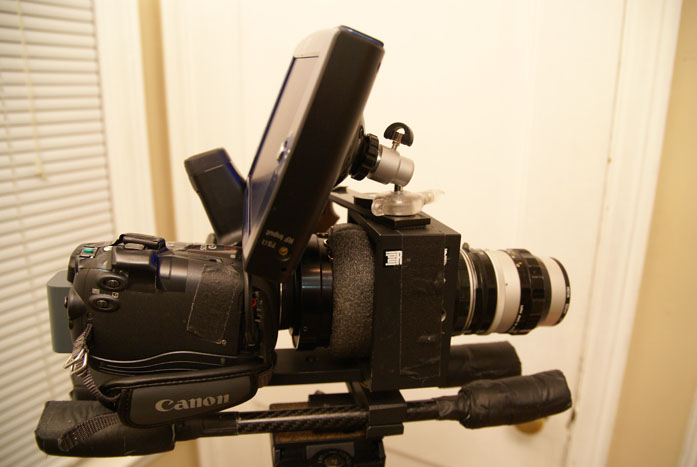

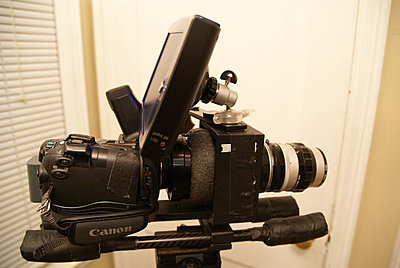

I mount to a flash bracket attached to a modified Shrigg Rig from indifocus (HV30, RNG35, Nikon 105mm, Mamiya Prism Finder).

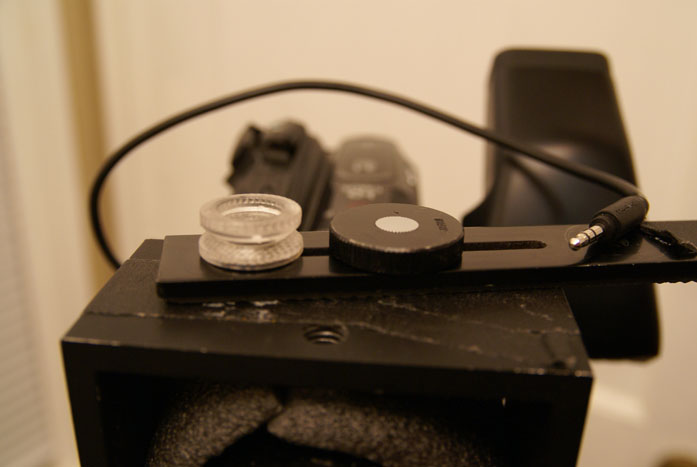

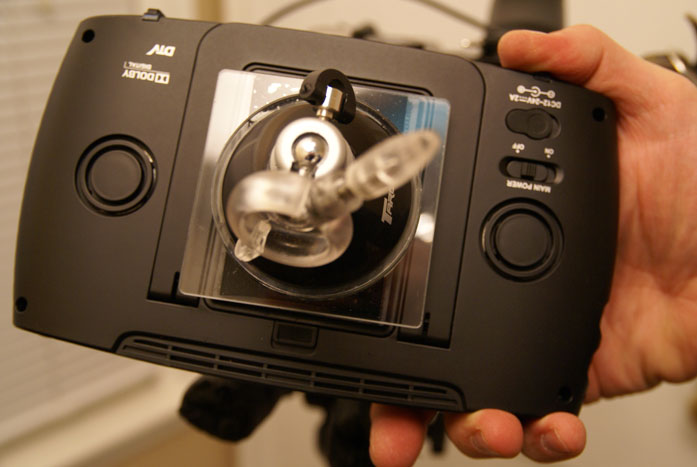

For storage, I remove the suction cup from the glass. The Targus device has a quick release mounting disk which I leave on the flash bracket. I leave the glass velcroed to the battery. Everything stores safely in a netbook case.

In order to apply appropriate pressure to the battery when attaching the suction cup to the glass, I first remove the battery from the TV. I slightly moisten the suction cup before attaching. I did have the suction cup mount come off once when I failed to apply appropriate pressure when mounting it, so I recommend being attentive. When applied properly the suction cup holds very well to the glass. I plan to do an overnight test and report the results here.

The suction cup isn't a permanent mount so it should probably be removed for storage after a shoot, or at least checked regularly.

I think it's a clean, elegant, easy-to-adjust solution. It is certainly easy to rotate/flip the unit for use with a DOF adapter. The Auvio is lightweight and compact. I find the resolution to be sufficient for focusing. (I do wear a pair of magnifying diopters regardless the focusing monitor I am using.)

This Auvio is not to be confused with another 7" Auvio TV sold at Radio Shack that is only 480x234.

A word of caution on glass cutting. Be sure to polish the edges and corners with a wetstone remove sharp edges and strengthen the glass.
Attached Thumbnails

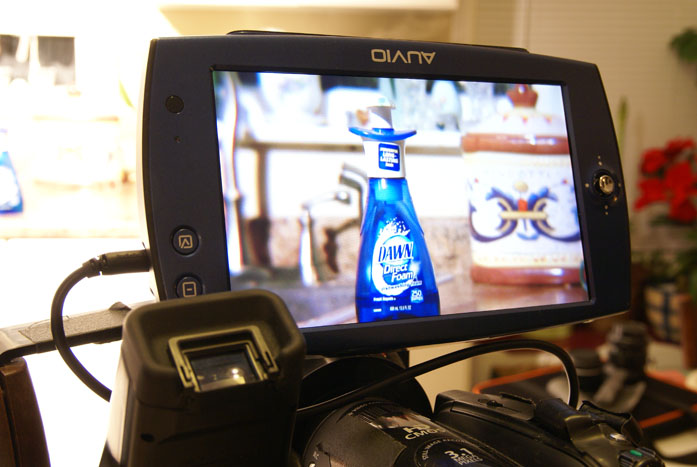

MOUNTED: Auvio 7" 800x480 TV from Radio Shack (0 on sale)-0leftsm.jpg   MOUNTED: Auvio 7" 800x480 TV from Radio Shack (0 on sale)-0rightsm.jpg

MOUNTED: Auvio 7" 800x480 TV from Radio Shack (0 on sale)-0bluesm.jpg   MOUNTED: Auvio 7" 800x480 TV from Radio Shack (0 on sale)-0rightsidesm.jpg

MOUNTED: Auvio 7" 800x480 TV from Radio Shack (0 on sale)-0leftrearwidesm.jpg   MOUNTED: Auvio 7" 800x480 TV from Radio Shack (0 on sale)-0releasedsm.jpg

MOUNTED: Auvio 7" 800x480 TV from Radio Shack (0 on sale)-0releaseonlysm.jpg   MOUNTED: Auvio 7" 800x480 TV from Radio Shack (0 on sale)-0glasssm.jpg

Dave Therault is offline   Reply With Quote
Old December 29th, 2009, 04:44 PM   #2
Regular Crew

Join Date: Jun 2008
Location: USA
Posts: 67
Some more suction cup mounts:

Suction Cup Camera Mount

Delkin Devices | DDMOUNT MINI Fat Gecko Mini | DDMOUNT-MINI

Suction Cups & Accessories

The only drawback to this set I see is that in a handheld situation I may want to adjust the position of the monitor without setting it down to use the clamp. Perhaps something like this could be used to extend the Targus mount which would allow for one-handed adjustment of the monitor position:

Barber Tech | 3KFA.1/4 3-Knuckle Flexi Arm 1/4-20 | 3KFA.1/4
Dave Therault is offline   Reply With Quote
Old December 29th, 2009, 09:43 PM   #3
Regular Crew

Join Date: Jun 2008
Location: USA
Posts: 67
Quote:
Originally Posted by Dave Therault View Post

In order to apply appropriate pressure to the battery when attaching the suction cup to the glass, I first remove the battery from the TV. I slightly moisten the suction cup before attaching. I did have the suction cup mount come off once when I failed to apply appropriate pressure when mounting it, so I recommend being attentive. When applied properly the suction cup holds very well to the glass. I plan to do an overnight test and report the results here.

The suction cup isn't a permanent mount so it should probably be removed for storage after a shoot, or at least checked regularly.
Okay, it passed the overnight test, which included about 90 minutes of handheld use today.
Dave Therault is offline   Reply With Quote
Old January 3rd, 2010, 02:26 AM   #4
Regular Crew

Join Date: Jun 2008
Location: USA
Posts: 67
Just to report that I got 3h50m from one battery charge.
Dave Therault is offline   Reply With Quote
Old January 4th, 2010, 11:52 PM   #5
Regular Crew

Join Date: Jun 2008
Location: USA
Posts: 67

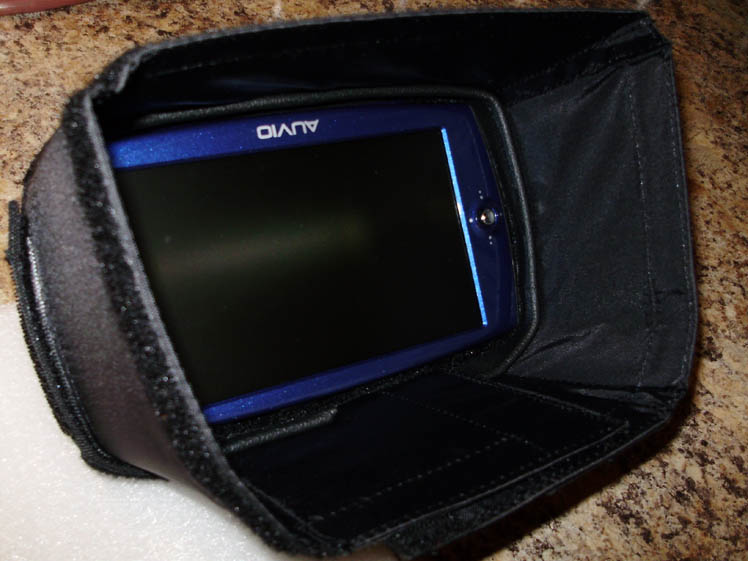

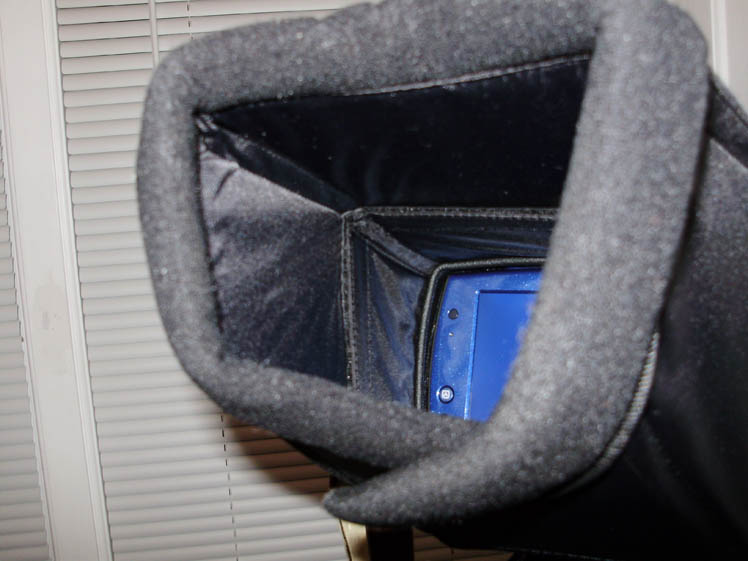

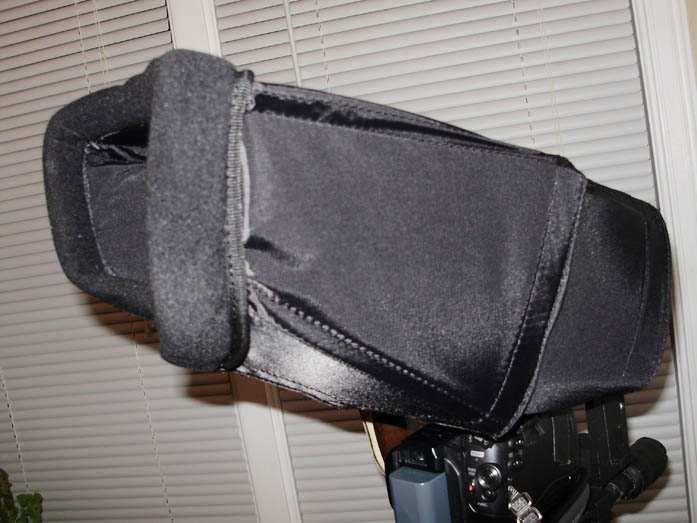

I added this Petrol hood for 7–8 inch monitors:

Petrol | PMH-6 Monitor Hood | PMH-6 | B&H Photo Video

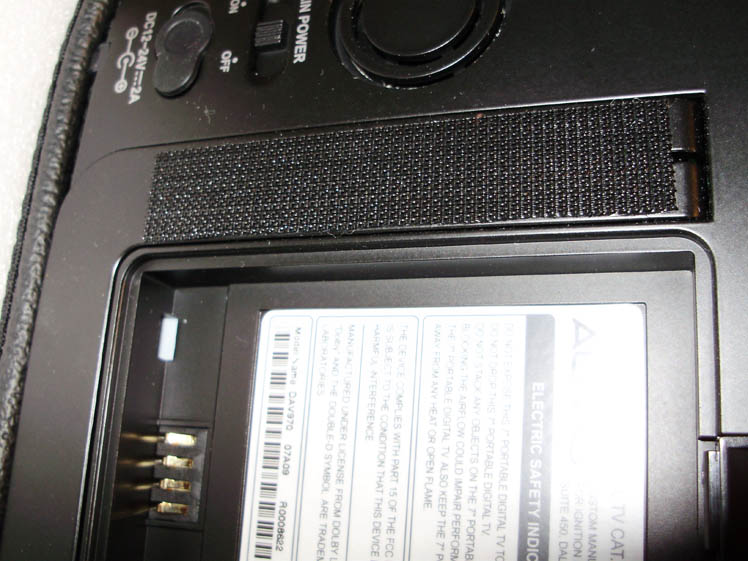

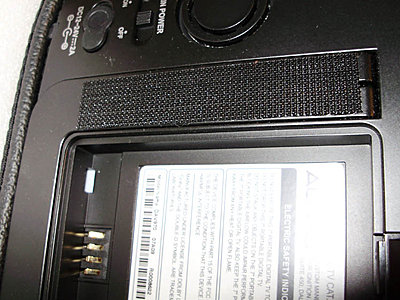

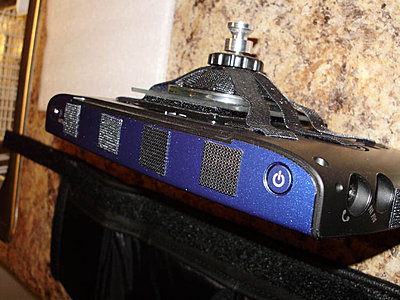

I had to mess with it and added velcro around the front rim of the hood and a few pieces of it on the sides of the TV. I use industrial grade velcro and I use a hair dryer to heat and soften the adhesive.

It probably would have been easier to get this one for 6.5–7 inch monitors but it was unavailable from B&H and I went with the bigger one:

Enhanced View Services, Inc.

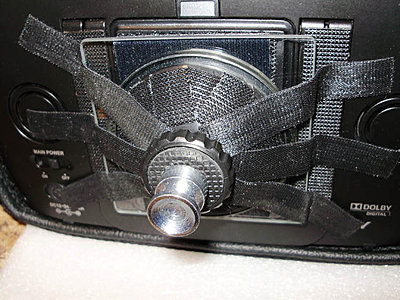

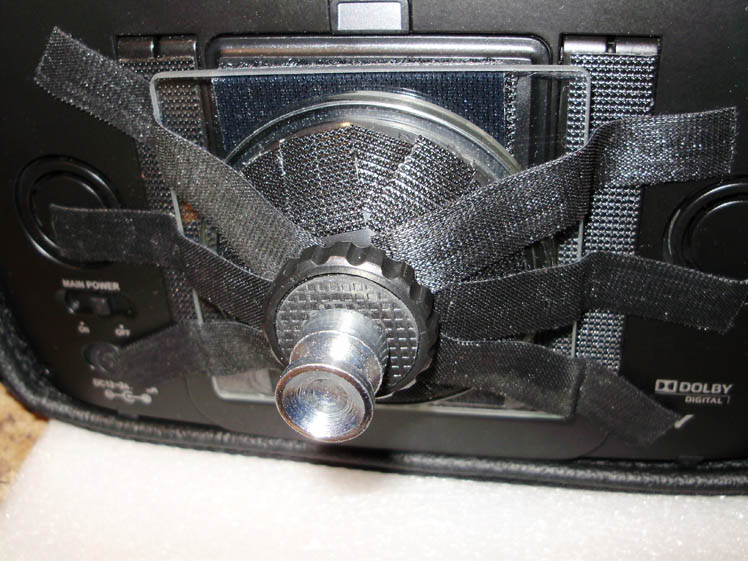

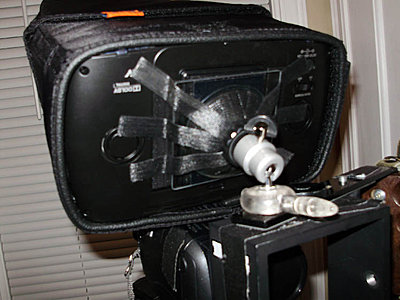

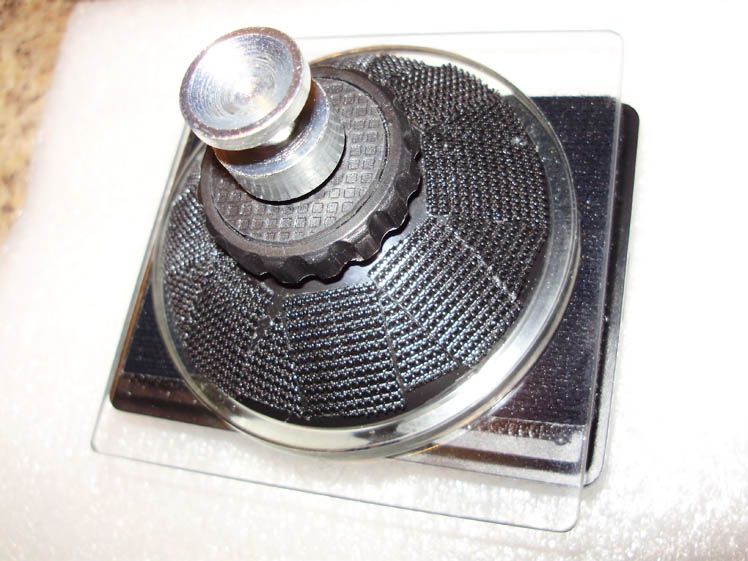

I also added a little security backup to the suction cup using velcro stuck on the back of the cup and on the back of the TV, and six small velcro straps. I am mostly concerned about potentially losing suction in extreme temperature changes. This system is really holding the TV and hood well for long periods under heavy use.

The knuckle I ordered was too lightweight:

Barber Tech | 3KFA.1/4 3-Knuckle Flexi Arm 1/4-20 | 3KFA.1/4
Attached Thumbnails
MOUNTED: Auvio 7" 800x480 TV from Radio Shack (0 on sale)-hoodsidesm.jpg   MOUNTED: Auvio 7" 800x480 TV from Radio Shack (0 on sale)-velcrocupsm.jpg

MOUNTED: Auvio 7" 800x480 TV from Radio Shack (0 on sale)-velcrobacksm.jpg   MOUNTED: Auvio 7" 800x480 TV from Radio Shack (0 on sale)-velcrobackmountedsm.jpg

MOUNTED: Auvio 7" 800x480 TV from Radio Shack (0 on sale)-hoodspreadsm.jpg   MOUNTED: Auvio 7" 800x480 TV from Radio Shack (0 on sale)-hoodonbacksm.jpg

MOUNTED: Auvio 7" 800x480 TV from Radio Shack (0 on sale)-hoodshortsm.jpg   MOUNTED: Auvio 7" 800x480 TV from Radio Shack (0 on sale)-snootsm.jpg

Dave Therault is offline   Reply With Quote
Old January 5th, 2010, 07:46 AM   #6
Major Player

Join Date: Feb 2007
Location: Belle Mead, NJ
Posts: 552
Dave - how would assess critical focus capability with this setup?
Art Varga is offline   Reply With Quote
Old January 6th, 2010, 07:13 PM   #7
Regular Crew

Join Date: Jun 2008
Location: USA
Posts: 67
Hello Art. My experience is consistent with what is reported by those using the Sony 800x480 DVD player. Resolution is the approximate equivalent of my camera LCD (HV30).

This is a good solution for me until small HD screens come down in price this or next year. The Auvio is smaller and lighter than the Sony DVD player, and I can usually hit the sweet spot in the short "throw" of the lens's focusing ring between which there is no change in the image at it's apparent sharpest.

Here's a short test I made using the Auvio last night:


I racked from target to target quickly, and now realize I should have lingered longer at each target to make it easier for you to see how well I was hitting the mark. My apologies for that, but I hope you can see some of the hits.

BTW, the Auvio is now $160 at Radio Shack.

(I still really like using the Mamiya prism finder velcroed to the HV30 LCD.)
Dave Therault is offline   Reply With Quote
Old January 13th, 2010, 06:42 PM   #8
Major Player

Join Date: Jun 2006
Location: San Diego, CA
Posts: 203
Quote:
Originally Posted by Dave Therault View Post
This is the TV:

I decided to use a sheet of 3/32" thick glass (cut 3"x3") attached with velcro to the battery. Glass is not porous or grained and makes the best material for an airtight seal for the suction cup. I used industrial strength velcro, 2" wide, from Home Depot.
This is probably too simple, but... Why not stick velcro to the inside of the suction cup and press that to the velcro on the back of the monitor? That 2" industrial stuff should hold up a 30" monitor.
George Strother is offline   Reply With Quote
Old January 13th, 2010, 08:13 PM   #9
Regular Crew

Join Date: Jun 2008
Location: USA
Posts: 67
Good thought, George, and you may be satisfied with that method.

I tried that first, but while the velcro has strong grip strength, sticking with the concave cup made the whole thing wobbly, whereas the flat surface of the glass velcroed to the battery over a 6 square inch area is very sturdy, and the suction cup on the glass is similarly sturdy. With this setup there is only a little movement between the glass and the battery, and none perceptible between the suction cup and the glass. I imagine that the torque force applied when a big hood is attached would challenge the method you are suggesting.

Also, it was difficult to flex the cup and stick it, and then to remove it repeatedly, so I decided to use each component as designed.
Dave Therault is offline   Reply With Quote
Old January 25th, 2010, 06:42 PM   #10
Major Player

Join Date: Sep 2007
Location: Bellingham, WA
Posts: 457
Right now this TV is 129.99 at RS: AUVIO™ 7" High-Resolution Portable Digital TV - RadioShack.com
Robert Rogoz is offline   Reply With Quote
Old January 26th, 2010, 09:04 AM   #11
Regular Crew

Join Date: Jun 2008
Location: USA
Posts: 67
Good eye Robert, and thanks for posting this. I'm just within my 30-day price guarantee with RS. Nice! This puts a great solution within price point of the Sony DVD player.
Dave Therault is offline   Reply With Quote
Old January 26th, 2010, 11:11 AM   #12
Regular Crew

Join Date: Jun 2008
Location: USA
Posts: 67
Quote:
Originally Posted by Dave Therault View Post
Just to report that I got 3h50m from one battery charge.
Normal usage seems to be closer the advertised 2 hours per charge.
Dave Therault is offline   Reply With Quote
Old January 26th, 2010, 11:55 PM   #13
Major Player

Join Date: Sep 2007
Location: Bellingham, WA
Posts: 457
I just bought one today, as I decided not to wait for new Vizio. At some point I would like to switch to 5.6" Ikan, but I don't have the budget for it now. Anyway- I'll have to see how to rig it to my HM100 camera. Does anyone know if I can find a spare battery for it? Also if any 12V will power this puppy?
Robert Rogoz is offline   Reply With Quote
Old January 27th, 2010, 02:21 PM   #14
Regular Crew

Join Date: Jun 2008
Location: USA
Posts: 67
To get a spare battery you have to go to a Radio Shack store and have them order for you. You prepay and they ship to your address. (You can't get it from radioshack.com and you can't get it from auvioperformance.com )

The part is RSU # 12475919

Ready for the price?

$65
Dave Therault is offline   Reply With Quote
Old January 28th, 2010, 03:27 PM   #15
Major Player

Join Date: Sep 2007
Location: Bellingham, WA
Posts: 457
Dave, thanks for the info. I guess I'll be better off by buying a regular 12V battery with cigarette plug attachment. You can buy one from B&H for almost the same price, but it will last several hours.
