AT899 unterminated pigtail wiring

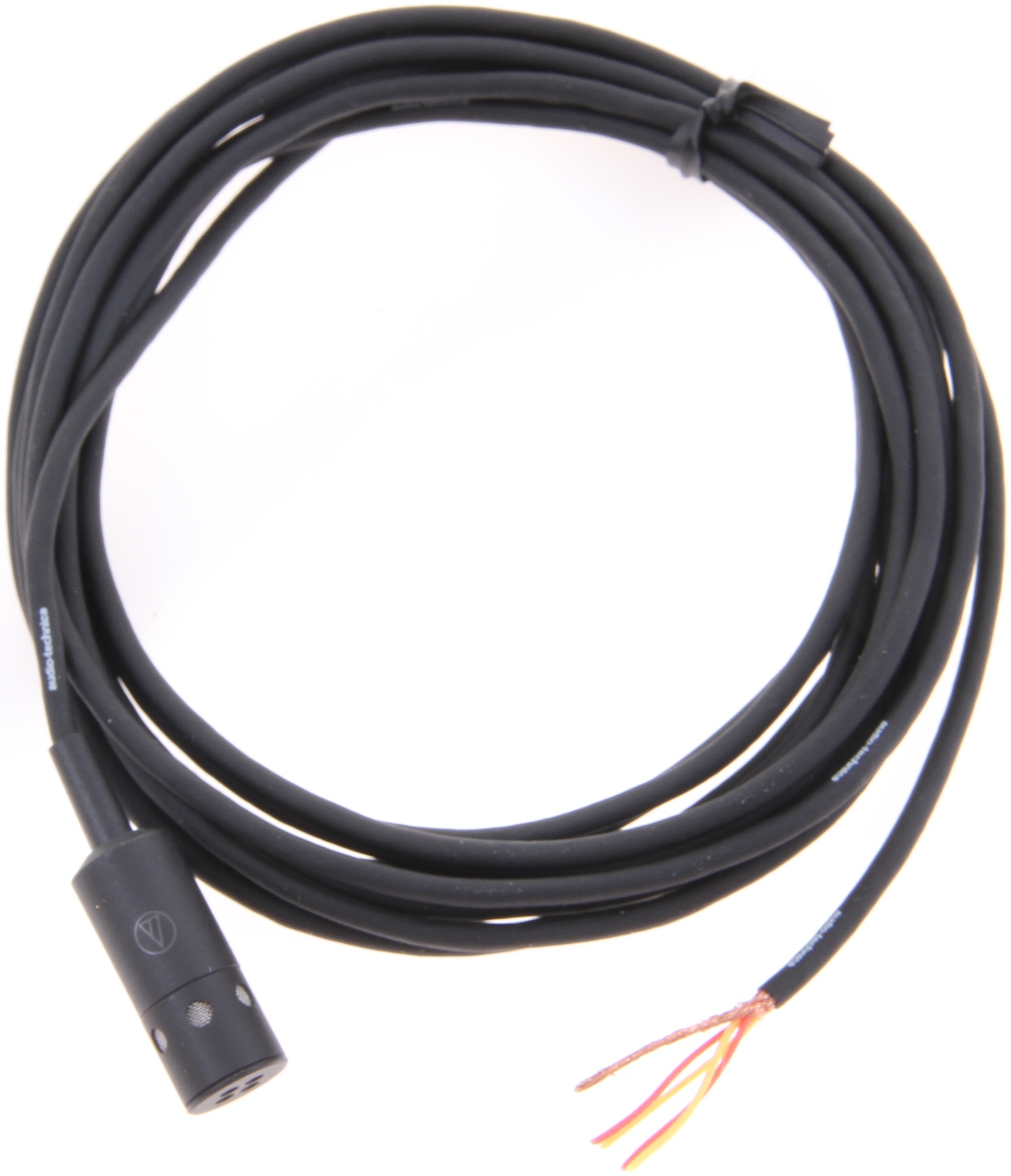

Anyone wire an AT899 lavalier? Ordering a couple to use with bodypack recorders, but as Audio Technica doesn't supply them with 3.5mm plugs, I'll be adding my own. Audio Technica lavs seem to be of the 3-wire variety, although looking at a photo of an AT831, they use 5 conductors: two red, two yellow, and uninsulated shield/ground.

How would I wire the AT899 to a 3.5mm stereo-mini plug? (using Sony voice recorders that have plug-in-power and stereo mic inputs)
Attached Thumbnails
AT899 unterminated pigtail wiring-at831c-xlarge.jpg
Ansel Brandt is offline   Reply With Quote
Old January 4th, 2013, 09:16 AM   #2
Inner Circle

Join Date: Mar 2005
Location: Hamilton, Ontario, Canada
Posts: 5,742
Re: AT899 unterminated pigtail wiring

I'd give Audio-Technica's service department a call - they should have that info.
__________________
Good news, Cousins! This week's chocolate ration is 15 grams!
Steve House is offline   Reply With Quote
Old January 4th, 2013, 12:25 PM   #3
Inner Circle

Join Date: Sep 2003
Location: Portland, Oregon
Posts: 3,420
Re: AT899 unterminated pigtail wiring

I'd guess that Trew Audio, which has a Vancouver location, would wire it up for you and stand behind the product - if that's important.

Otherwise, get the mic pinout from AT, and the jack pinout from Sony and match them up.

There are several versions of the 899 - the picture you posted shows the Cardoid version. Usually, that's not what you want for video work; most people prefer omnis, so that a subject that turns her head doesn't go off-mike, and hidden placements are generally easier to pull off.
__________________
30 years of pro media production. Vegas user since 1.0. Webcaster since 1997. Freelancer since 2000. College instructor since 2001.
Seth Bloombaum is offline   Reply With Quote
Old January 4th, 2013, 01:42 PM   #4
New Boot

Join Date: Jun 2010
Location: Vancouver, Canada
Posts: 24
Re: AT899 unterminated pigtail wiring

after a little digging, found the following info in a FAQ on the Audio Technica website about how their lavs are wired for their TA3F connector, which is only for plugging into their XLR/battery power module:

Pin 1 - Ground - Shield
Pin 2 - Audio - 2 twisted yellow wires
Pin 3 - Bias voltage - 2 twisted red wires

I guess I'll give them a call to see if they recommend any resistors.

The mic pictured is a cardioid, but I am asking about the AT899, which is an omni. it was just the only picture of an unterminated AT lav I could find.
Ansel Brandt is offline   Reply With Quote
Old January 4th, 2013, 05:23 PM   #5
Inner Circle

Join Date: Mar 2005
Location: Hamilton, Ontario, Canada
Posts: 5,742
Re: AT899 unterminated pigtail wiring

Plug-in power "piggy-backs" the bias voltage onto same conductors as the audio. You need to be careful here. Unless you're sure what you're doing you could easily fry a $200 mic capsule. Why are you committed to this particular lav as a DIY project?
__________________
Good news, Cousins! This week's chocolate ration is 15 grams!
Steve House is offline   Reply With Quote
Old January 4th, 2013, 07:22 PM   #6
New Boot

Join Date: Jun 2010
Location: Vancouver, Canada
Posts: 24
Re: AT899 unterminated pigtail wiring

I don't do audio full time, the AT899 seems to be the cheapest decent lav on the market, especially unterminated, they don't sell a 3.5mm version, I've got plenty of plugs and jacks and parts lying around, and my soldering iron is always on. Thanks for the note of caution though.
Ansel Brandt is offline   Reply With Quote
Old January 4th, 2013, 10:20 PM   #7
Trustee

Join Date: Jan 2011
Location: Pennsylvania
Posts: 1,786
Re: AT899 unterminated pigtail wiring

There is some generic information at the tapers forum http://taperssection.com/index.php?topic=72994.0 about "3-wire powering" vs. the more common consumer "plug in power" scheme. It's long been known that mics will produce lower distortion, especially at high SPL levels, when "3-wire powering" is used.

In general the info at that link would seem to apply to the AT899, but the big question in my mind is: what's the correct (safe) voltage range to use? I would definitely contact AT and try to get the correct info from them. You certainly don't want to fry the mic!

Also, note the added blocking capacitor in the audio lead, so you don't feed "plug in power" from the cam back to the mic by mistake.

By all means good luck with the project, but be careful... it might be a bit less trivial than you had hoped.
Greg Miller is offline   Reply With Quote
Old January 5th, 2013, 10:51 AM   #8
Inner Circle

Join Date: Aug 2008
Location: New York
Posts: 2,038
Re: AT899 unterminated pigtail wiring

"the AT899 seems to be the cheapest decent lav on the market"
- There are cheaper good sounding mics available. For less than $100.USD, with a properly wired connector of your choice, Oscar SoundTech mics, which are highly regarded amongst mega-budget feature film sound recordists, sound as good or better (subjectivly) than the AT899. FWIW, they're made in the USA and customer service is top-shelf.
Rick Reineke is offline   Reply With Quote
Old January 8th, 2013, 03:06 AM   #9
New Boot

Join Date: Jun 2010
Location: Vancouver, Canada
Posts: 24
Re: AT899 unterminated pigtail wiring

emailed audio technica USA and got a reply, but they seem to be reticent about specifics:


"The AT899 is a three wire condenser microphone. The wires are shield / ground, yellow or white / audio, and red is bias. Typically a three wire condenser requires a power module like the AT8537 that does three things: It converts external phantom power to the required bias voltage, amplifies the FET element output to a specified microphones output, and converts the FET element assembly output to a specified impedance.

You will need to ask the manufacturer for specific integration wiring for a three wire condenser."


i thought they were they manufacturer.
Ansel Brandt is offline   Reply With Quote
Old January 8th, 2013, 08:58 AM   #10
Trustee

Join Date: Jan 2011
Location: Pennsylvania
Posts: 1,786
Re: AT899 unterminated pigtail wiring

I'd immediately write to them again, quoting their reply in your EMail.

Point out that you wrote to them because THEY ARE the manufacturer, and you are asking only about the acceptable range of voltage that should be applied to the red (bias) lead, so that the microphone will operate correctly and will not be damaged.

In cases of desperation, I sometimes include language like this: "If, as you read this, you personally don't know the answer to this specific question, please forward this EMail up the ladder to someone who will have the necessary information." Hopefully that avoids the "Delete" button and elicits a meaningful reply...
Greg Miller is offline   Reply With Quote
Old January 8th, 2013, 10:56 AM   #11
Inner Circle

Join Date: Mar 2005
Location: Hamilton, Ontario, Canada
Posts: 5,742
Re: AT899 unterminated pigtail wiring

Quote:
Originally Posted by Ansel Brandt View Post
emailed audio technica USA and got a reply, but they seem to be reticent about specifics:


"The AT899 is a three wire condenser microphone. The wires are shield / ground, yellow or white / audio, and red is bias. Typically a three wire condenser requires a power module like the AT8537 that does three things: It converts external phantom power to the required bias voltage, amplifies the FET element output to a specified microphones output, and converts the FET element assembly output to a specified impedance.

You will need to ask the manufacturer for specific integration wiring for a three wire condenser."


i thought they were they manufacturer.
They mean ask the manufacturer of the device you're going to connect the mic to, ie ask Sony, how to properly connect a 3-wire condenser mic to their mic input, They've told you what goes on what wire in the mic - it's going to be up to you to figure out how to get the bias voltage from Sony's input onto the red wire and take the audio off the yellow wire and send it to the proper points in the Sony jack. You'll need some resisters and capacitors, knowledge of the connector assignments in the mic input jack, and excellent soldering skills.
__________________
Good news, Cousins! This week's chocolate ration is 15 grams!
Steve House is offline   Reply With Quote
Old January 9th, 2013, 01:51 AM   #12
Major Player

Join Date: Jan 2010
Location: Adelaide, South Australia
Posts: 466
Re: AT899 unterminated pigtail wiring

Is this of any use?
Wireless Transmitter Wiring - Countryman Associates, Inc.
Brian P. Reynolds is offline   Reply With Quote
Old January 9th, 2013, 03:38 PM   #13
Trustee

Join Date: Jan 2011
Location: Pennsylvania
Posts: 1,786
Re: AT899 unterminated pigtail wiring

Quote:
Originally Posted by Steve House View Post
They mean ask the manufacturer of the device you're going to connect the mic to, ie ask Sony, how to properly connect a 3-wire condenser mic to their mic input, They've told you what goes on what wire in the mic
I agree, Steve, I think that's what they meant in their reply, but IMHO that's rather meaningless.

It's already clear that we want to send some bias voltage up the red lead, and the audio will come back down the yellow lead. That seems very unambiguous, and would be true regardless of what recorder you are using.

What is not stated at all, and what is important IMHO, is: what is the safe range of voltages that will allow the mic to work as designed, without damaging it.? For example, the mic might need a minimum of 3Vdc in order to operate without distortion; and anything over 9Vdc might damage the mics. (But I'm only guessing at those specific voltages.) I think that's the only question that AT needs to answer; everything else is already pretty obvious., eh?
Greg Miller is offline   Reply With Quote
Old January 9th, 2013, 05:11 PM   #14
Inner Circle

Join Date: Aug 2006
Location: Efland NC, USA
Posts: 2,322
Re: AT899 unterminated pigtail wiring

From the Audio Technica website for the AT899c:

POWER REQUIREMENTS: Voltage Range: 1.1 - 12V
Current Consumption: 0.5 mA typical at 9V

Audio-Technica - Microphones, headphones, wireless microphone systems, noise-cancelling headphones & more : AT899c Subminiature Omnidirectional Condenser Lavalier Microphone
__________________
http://www.LandYachtMedia.com
Chris Medico is offline   Reply
