Canon Ee-s Dimensions at DVinfo.net

Chris Knight · June 15th, 2007, 01:41 PM

Can anyone give me the dimensions for the Canon Ee-s Focusing Screen? Thanks.

Igor Babic · June 16th, 2007, 01:04 AM

Measures are:
38,5mm x 26,3mm
This is measured including pins on all sides, but excluding largest pin on lower side. Pin is 2mm biger then 26,3, it is 4mm wide and for canon Ee-S 11mm from right side of gg(including pins) to his left side.

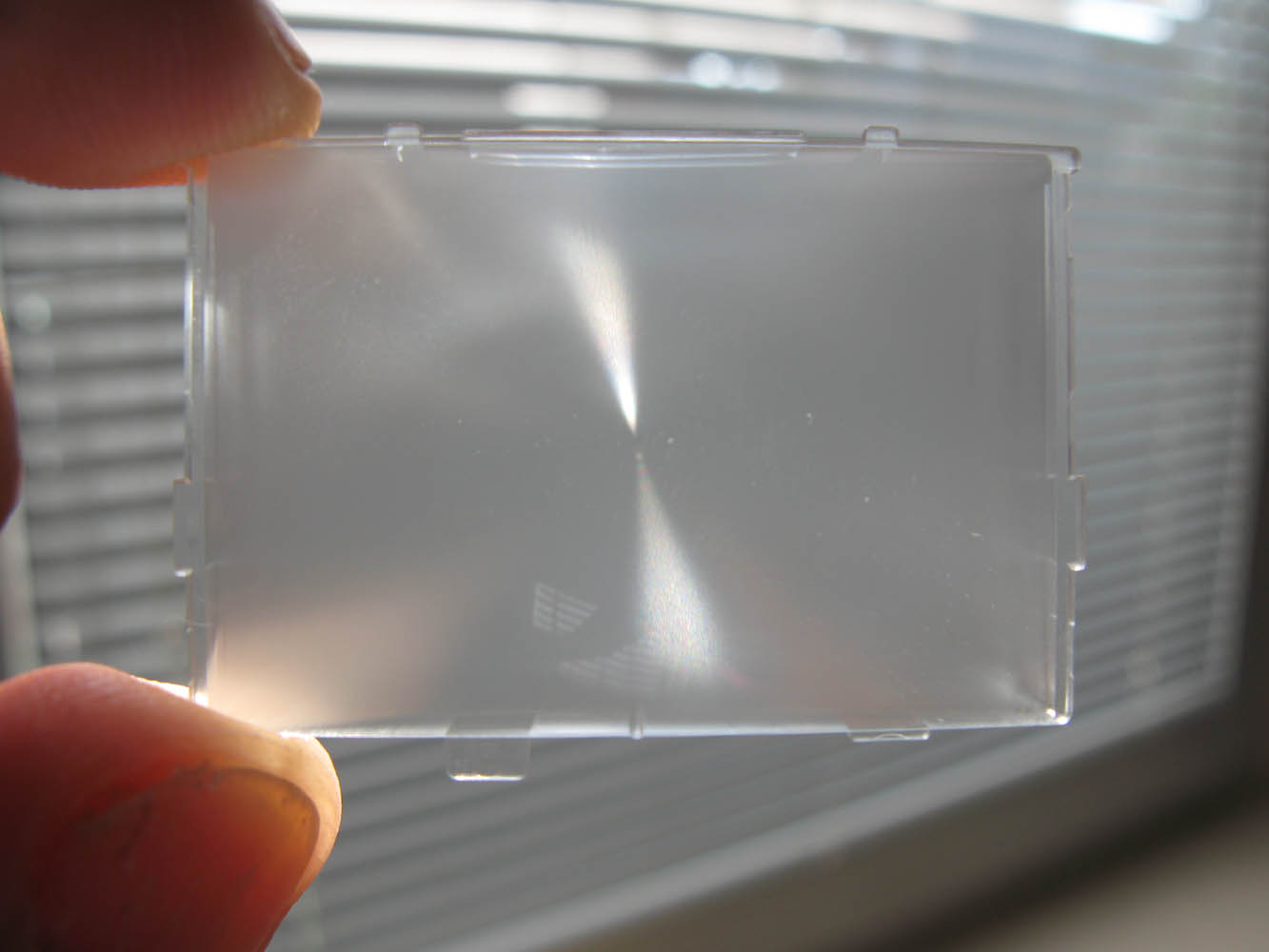

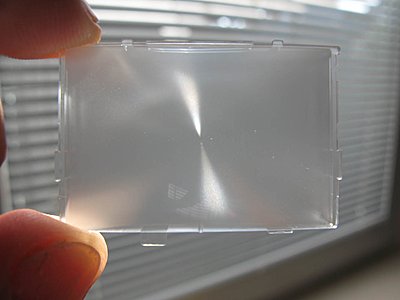

On the picture is Ee-A. Now you can see difference, pin is on left side 15 mm from left side to pins right side. (you can also see little pin on right where is actualy pin for Ee-S). Shiny side is faced towards you.

Chris Knight · June 16th, 2007, 07:13 AM

Thanks, this is exactly what I needed.

Anmol Mishra · October 1st, 2007, 06:50 AM

Hi! Igor. Do you mind posting the complete dimensions ? For example, what is the dimension of the rectangle without the extensions on the pins. And the distance for the smaller pins on top. Thanks!
Thanks!

Quote:

Originally Posted by Igor Babic

Measures are:
38,5mm x 26,3mm
This is measured including pins on all sides, but excluding largest pin on lower side. Pin is 2mm biger then 26,3, it is 4mm wide and for canon Ee-S 11mm from right side of gg(including pins) to his left side.
On the picture is Ee-A. Now you can see difference, pin is on left side 15 mm from left side to pins right side. (you can also see little pin on right where is actualy pin for Ee-S). Shiny side is faced towards you.

Igor Babic · October 8th, 2007, 10:55 AM

Matte rectangle dimensions are 35,5mm x 24 mm. This is aprox. measured. It is very hard to accurately measure without damaging screens surface. Please try to draw all measures from my last post and and this post so you will get all measures you need. I will try to scan both screens so you can have all measures like this. I hope this helps.

Anmol Mishra · October 9th, 2007, 12:40 AM

Thanks for that - Igor.

Louis Demontez · October 11th, 2007, 08:21 AM

Anyone have any example footage when using the Canon Ee-s Focusing Screen in their DIY adapter?

Igor Babic · November 3rd, 2007, 05:24 AM

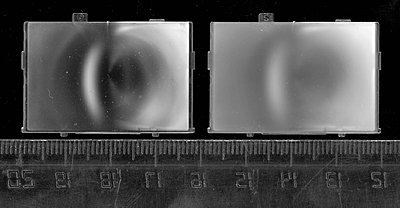

Here is Canon EE-a and EE-s screen facing matte side. If you print them at 600dpi you can have exact measures of them. Here is obvious how much more light pass thru EE-a screen. I have put ruler under them so you can check your measure. This is scanned with HP scanjet G4050 without cover.

Anmol Mishra · February 8th, 2008, 11:42 PM

Hi Igor! I thought the EE-a and EE-s were slightly different..From the picture it looks like they have the same design.. Is that correct ?
Thanks!

Quote:

Originally Posted by Igor Babic

Here is Canon EE-a and EE-s screen facing matte side. If you print them at 600dpi you can have exact measures of them. Here is obvious how much more light pass thru EE-a screen. I have put ruler under them so you can check your measure. This is scanned with HP scanjet G4050 without cover.

June 15th, 2007, 01:41 PM	#1
Chris Knight Regular Crew Join Date: Sep 2006 Location: Hyde Park, New York Posts: 53	Canon Ee-s Dimensions Can anyone give me the dimensions for the Canon Ee-s Focusing Screen? Thanks. __________________ Chris Knight Frame of Mind Productions http://www.fmpfilms.com

June 16th, 2007, 01:04 AM	#2
Igor Babic Regular Crew Join Date: Dec 2006 Location: Zagreb, Croatia Posts: 171	Measures For Canon Focusing screens Measures are: 38,5mm x 26,3mm This is measured including pins on all sides, but excluding largest pin on lower side. Pin is 2mm biger then 26,3, it is 4mm wide and for canon Ee-S 11mm from right side of gg(including pins) to his left side. On the picture is Ee-A. Now you can see difference, pin is on left side 15 mm from left side to pins right side. (you can also see little pin on right where is actualy pin for Ee-S). Shiny side is faced towards you. Attached Thumbnails

June 16th, 2007, 07:13 AM	#3
Chris Knight Regular Crew Join Date: Sep 2006 Location: Hyde Park, New York Posts: 53	Thanks, this is exactly what I needed. __________________ Chris Knight Frame of Mind Productions http://www.fmpfilms.com

October 8th, 2007, 10:55 AM	#5
Igor Babic Regular Crew Join Date: Dec 2006 Location: Zagreb, Croatia Posts: 171	EE screen dimensions part two Matte rectangle dimensions are 35,5mm x 24 mm. This is aprox. measured. It is very hard to accurately measure without damaging screens surface. Please try to draw all measures from my last post and and this post so you will get all measures you need. I will try to scan both screens so you can have all measures like this. I hope this helps.

October 9th, 2007, 12:40 AM	#6
Anmol Mishra Major Player Join Date: Jun 2007 Location: Sydney Australia Posts: 401	Thanks Thanks for that - Igor.

October 11th, 2007, 08:21 AM	#7
Louis Demontez Regular Crew Join Date: Mar 2004 Posts: 33	Anyone have any example footage when using the Canon Ee-s Focusing Screen in their DIY adapter?

November 3rd, 2007, 05:24 AM	#8
Igor Babic Regular Crew Join Date: Dec 2006 Location: Zagreb, Croatia Posts: 171	Canon screens scaned Here is Canon EE-a and EE-s screen facing matte side. If you print them at 600dpi you can have exact measures of them. Here is obvious how much more light pass thru EE-a screen. I have put ruler under them so you can check your measure. This is scanned with HP scanjet G4050 without cover. Attached Thumbnails
