Upgrade CPU or GPU?

Hello all! I'd like your input, if possible on whether I should upgrade the CPU in my computer system or the GPU? I can't do both at once, so right now, it's one or the other.
I run a Windows 10 system with an ASUS X99 Deluxe mobo, 64GB of RAM, and SSD for the system drive, a separate SSD for rendering and a RAID for the video.
The current CPU is an Intel i7-5930K (6-core, 3.5GHz)
The current GPU is a GeForce GTX 980Ti.

So, for faster playback or rendering should I replace the GPU with a GTX1080 or RTX2080 (Ti?) or should I upgrade the CPU to something like the i7-5960X (8-core) or i7-6950X (10-core)? From y'all's experience what's the best route to take and why do you say that? Thanks!
Bob Krieger is offline   Reply With Quote
Old March 15th, 2019, 03:00 PM   #2
Inner Circle

Join Date: Jan 2013
Location: Austin, Texas
Posts: 2,004
Re: Upgrade CPU or GPU?

It would be helpful to know what you edit in.
Gary Huff is offline   Reply With Quote
Old March 15th, 2019, 07:47 PM   #3
Trustee

Join Date: May 2004
Location: USA
Posts: 1,989
Re: Upgrade CPU or GPU?

It really depends on the software. It’s hard to believe but a lot of them dont take advantage of the gpu or the gpu will only be utilized for very specific processes. You would either have to test it yourself or find someone else who has.

Pete Cofrancesco is offline   Reply With Quote
Old March 18th, 2019, 10:28 AM   #4
Major Player

Join Date: Jan 2010
Location: Abita Springs, LA
Posts: 245
Re: Upgrade CPU or GPU?

I edit using Adobe Premiere CC
Bob Krieger is offline   Reply With Quote
Old March 18th, 2019, 11:01 PM   #5
New Boot

Join Date: Feb 2012
Location: Toronto, Canada
Posts: 22
Re: Upgrade CPU or GPU?

Cpu ! Cpu ! Cpu !
Paul Silva is offline   Reply With Quote
Old March 19th, 2019, 06:44 AM   #6
Major Player

Join Date: Jan 2010
Location: Abita Springs, LA
Posts: 245
Re: Upgrade CPU or GPU?

I'm definitely leaning toward the CPU upgrade, but probably have to go with a mobo upgrade as well. I dn't know that spending about $500.00 for two extra cores is worth it, though maybe getting an X299 mobo with a newer i7 might work as well. Gotta look at what's out there first. Research is the key and that's one reason I ask here!
Bob Krieger is offline   Reply With Quote
Old March 19th, 2019, 11:23 AM   #7
Trustee

Join Date: May 2004
Location: USA
Posts: 1,989
Re: Upgrade CPU or GPU?

AMD has leap frogged over Intel with their ThreadRipper 1950x has 16 cores

Last edited by Pete Cofrancesco; March 19th, 2019 at 12:34 PM.
Pete Cofrancesco is offline   Reply With Quote
Old March 19th, 2019, 01:29 PM   #8
Inner Circle

Join Date: Jan 2013
Location: Austin, Texas
Posts: 2,004
Re: Upgrade CPU or GPU?

Does that translate into actual performance gains for playback/render in Premiere, or is that just marketing hype?
Gary Huff is offline   Reply With Quote
Old March 19th, 2019, 02:11 PM   #9
Major Player

Join Date: Jan 2010
Location: Abita Springs, LA
Posts: 245
Re: Upgrade CPU or GPU?

Good Question! What are the specs/tests out there from AMD vs. Intel? If I need to seriously upgrade the CPU (and mobo), then Threadripper may be a direction to take.
Bob Krieger is offline   Reply With Quote
Old March 19th, 2019, 06:05 PM   #10
Trustee

Join Date: May 2004
Location: USA
Posts: 1,989
Re: Upgrade CPU or GPU?

I take back what I said about ThreadRipper. Just like the gpu Premiere doesn't seem to be designed to take advantage of the additional cores of AMD Ryzen. Instead it benefits from a higher clock speed of an Intel 8700k especially if it’s overclock to 5ghz. Adobe seems poorly designed not taking advantage of hardware advances.


Last edited by Pete Cofrancesco; March 20th, 2019 at 06:51 AM.
Pete Cofrancesco is offline   Reply With Quote
Old March 20th, 2019, 01:08 PM   #11
Major Player

Join Date: Jan 2010
Location: Abita Springs, LA
Posts: 245
Re: Upgrade CPU or GPU?

I've decided to begin by upgrading the CPU and motherboard. A simple CPU replacement wouldn't give me enough of an "umph" to make it worthwhile... so... motherboard gets replaced, too!
I've decided to go with the i9-9900K and a Gigabyte Z390 Designare mobo. I can use my existing RAM, GPU, SSD's etc in the new system. I'll let you now how it goes.
Bob Krieger is offline   Reply With Quote
Old March 28th, 2019, 11:39 PM   #12
Trustee

Join Date: Apr 2008
Location: Sydney Australia
Posts: 1,124
Re: Upgrade CPU or GPU?

I've recently wandered through this minefield on deciding which CPU to use. The i9 9900k was my targeted CPU build. After much research I dropped that idea for a number of reasons. One of the reasons was the 9900k even with it's soldered heat sink is running extremely hot.

Anything over 81 degrees starts to be an issue. Running at 5.1GHz there was a failure with the best air cooling, the Noctua NH-D15. Running at 5.1GHz with Corsair liquid cooling it also failed. At its base clock speed of 3.6GHz it was running as high as 77 degrees with 360mm Custom Liquid Cooling which is pretty bad. At 5.1GHz clock speed it is running at 98 degrees. At those temps you will get power throttling and CPU throttling and eventually shorten the life of your CPU. Not a good start for the i9 9900k CPU. More info here:

https://www.techspot.com/article/173...commentsOffset

In the end I completely switched my plans and built an i7 8700k system with an Asus GTX-1080Ti. With a delidded CPU, Liquid Metal and a Noctua NH-D15. I have this system running with bedrock like stability at 5.0GHz on ALL cores all day. When rendering with Handbrake or Vidcoder which will push all cores to 98-100% it doesn't overheat. The system will barely top 65-70 degrees which is a really good temp range to run a CPU when rendering AVX instruction set software such as Handbrake that is going to extract the max from your CPU. It also renders at quite an amazing rate. SD rendering at around 200 FPS plus, HD rendering at around 100 FPS plus and QHD at just a little faster than real time frame rates.

As far as editing goes I can run 4K DCI and UHD at full size full res with LUTs and grades at the full frame rates of 24 and 50p without any hesitation. Smooth as butter.

Some of the research that ended up guiding my decision was based on the following links. Basically the system I'm running is based of this der8auer video:

ASUS MAXIMUS X HERO - Overclocking Test and Guide 8700K (en)

with some tweaks from:

How to Overclock an 8700K & 8086K - ASUS Maximus X and Others

A couple of the other vids that swayed my decision to forgo the 9900k:

Bad sTIM? Why is the 9900K so hot?
https://www.youtube.com/watch?time_c...&v=r5Doo-zgyQs

9900k vs 8700k - When is the 9900k Relevent?

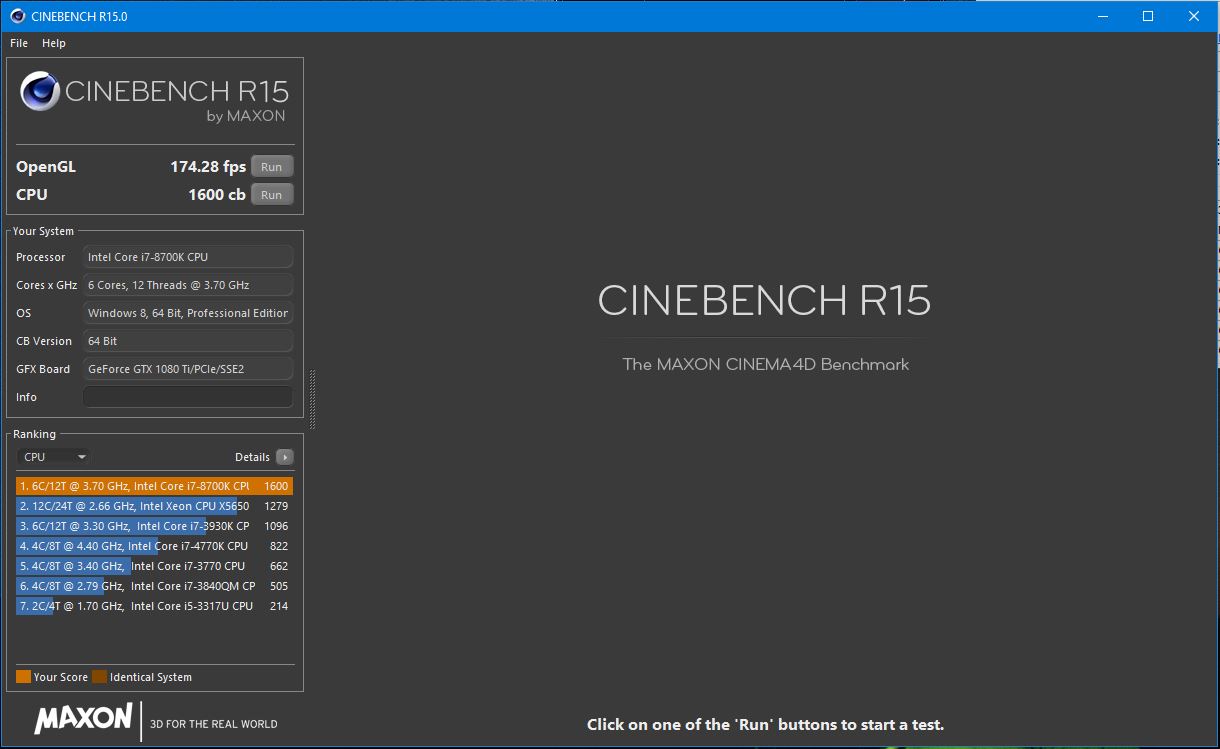

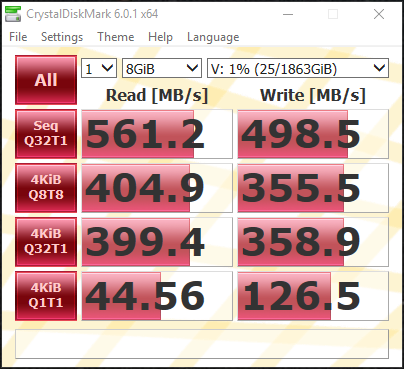

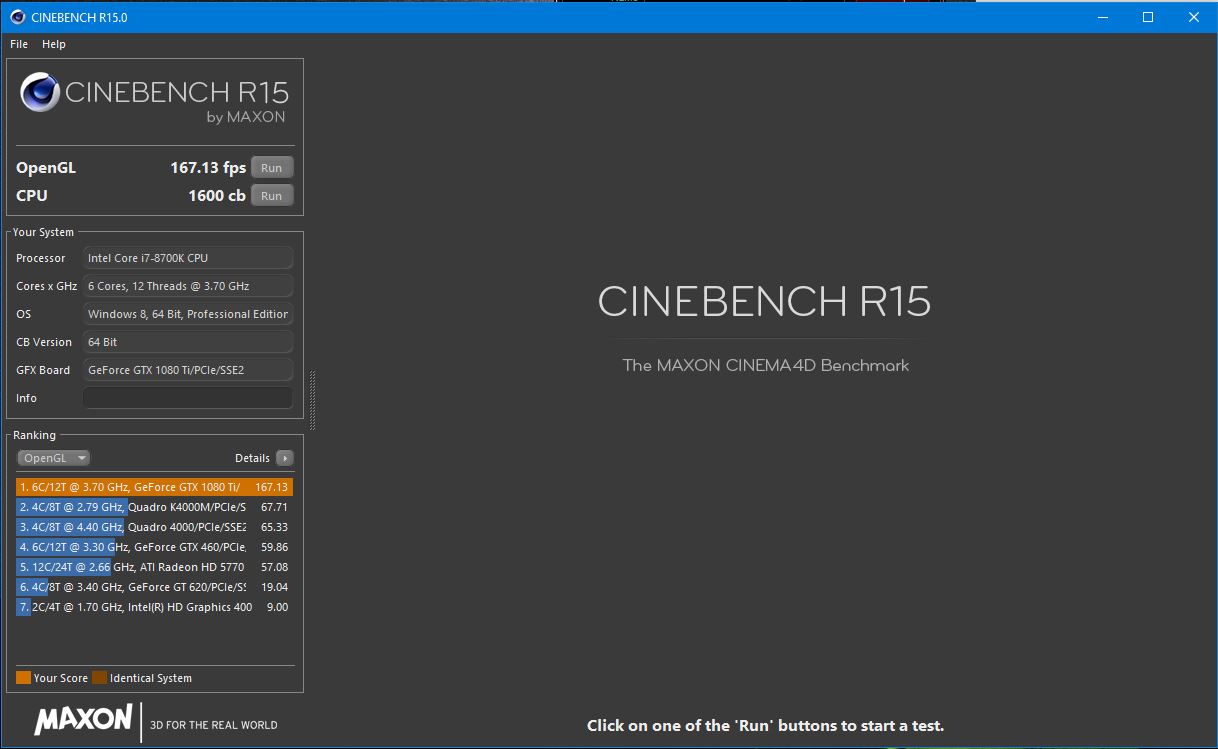

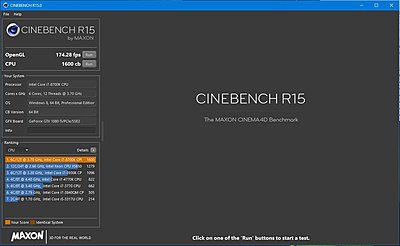

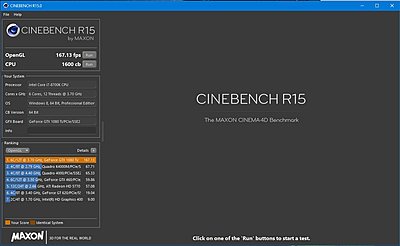

Attached are some screen grabs of the tests run on the 8700k box. Incidentally the 8700k also worked out a cheaper build than the 9900k option not that price was a driving consideration.

Your results on the 9900k will be of great interest to those who build our own systems so yes please post back your results. It's good to keep abreast of the latest builds.

Chris Young
Sydney
Attached Thumbnails
Upgrade CPU or GPU?-bm-speedtest.jpg   Upgrade CPU or GPU?-cinebench-r15-cpu-cyv-8700k.jpg

Upgrade CPU or GPU?-cinebench-r15-opengl-cyv-8700k.jpg   Upgrade CPU or GPU?-crystalmark-speed-test-30.06.18.png

Christopher Young is offline   Reply With Quote
Old March 29th, 2019, 01:34 AM   #13
Major Player

Join Date: Oct 2008
Location: Northern Ireland
Posts: 934
Re: Upgrade CPU or GPU?

Thanks Christopher, I wasn't sure what CPU to buy either but leaning towards the 8700K even more now.
Thanks for all the great info.
Anthony McErlean is offline   Reply With Quote
Old March 29th, 2019, 07:16 AM   #14
Trustee

Join Date: Apr 2008
Location: Sydney Australia
Posts: 1,124
Re: Upgrade CPU or GPU?

No problems Anthony.

If my wandering around in the minefield helps anyone else heading down the upgrade path that's all good in my book.

Chris Young
Sydney
Christopher Young is offline   Reply With Quote
Old March 29th, 2019, 07:56 AM   #15
Major Player

Join Date: Oct 2008
Location: Northern Ireland
Posts: 934
Re: Upgrade CPU or GPU?

Quote:
Originally Posted by Christopher Young View Post
No problems Anthony.

If my wandering around in the minefield helps anyone else heading down the upgrade path that's all good in my book.

Chris Young
Sydney
:) well it helps me for sure.
