HXR-NX80 white balance

So I am a little old school when it comes to focus iris and white balance. I have been learning the ins and outs of my HXR-NX80, is it true that in order to maunally white balance I need to go into the menu every time I need to white in a card?! tell me im doing something wrong
Randy Johnson is offline   Reply With Quote
Old August 24th, 2020, 06:04 AM   #2
Vortex Media

Join Date: Jan 2009
Location: Florida
Posts: 3,169
Re: HXR-NX80 white balance

If you want to use the A and B white balance memories with a white card you must first program one of the Assign Buttons for White Balance Set. With the default settings, the camera does not have a White Balance Set button.

BTW, using a white card to set white balance is not "old school". It is still the only way to set an accurate white balance, and always will be.
__________________
Vortex Media http://www.vortexmedia.com/
Sony FS7, F55, and XDCAM training videos, field guides, and other production tools
Doug Jensen is offline   Reply With Quote
Old August 24th, 2020, 06:47 PM   #3
Trustee

Join Date: Sep 2007
Location: Newark, Delaware
Posts: 1,067
Re: HXR-NX80 white balance

thats kinda a shame I cant assign that to a button, weird way to do things. I do a lot of on the fly white balances. thanks for the reply

Randy
Randy Johnson is offline   Reply With Quote
Old August 24th, 2020, 07:41 PM   #4
Vortex Media

Join Date: Jan 2009
Location: Florida
Posts: 3,169
Re: HXR-NX80 white balance

Sorry, I don't understand your reply. What exactly is it that you think the camera cannot do? I don't get what the issue is. What do you want to assign to a button that you think cannot be assigned? Once you assign of the buttons for WB Set, the camera works the same way as every other pro Sony camera.
__________________
Vortex Media http://www.vortexmedia.com/
Sony FS7, F55, and XDCAM training videos, field guides, and other production tools
Doug Jensen is offline   Reply With Quote
Old August 27th, 2020, 11:19 PM   #5
Trustee

Join Date: Apr 2008
Location: Sydney Australia
Posts: 1,358
Re: HXR-NX80 white balance

Second Doug's sentiments.

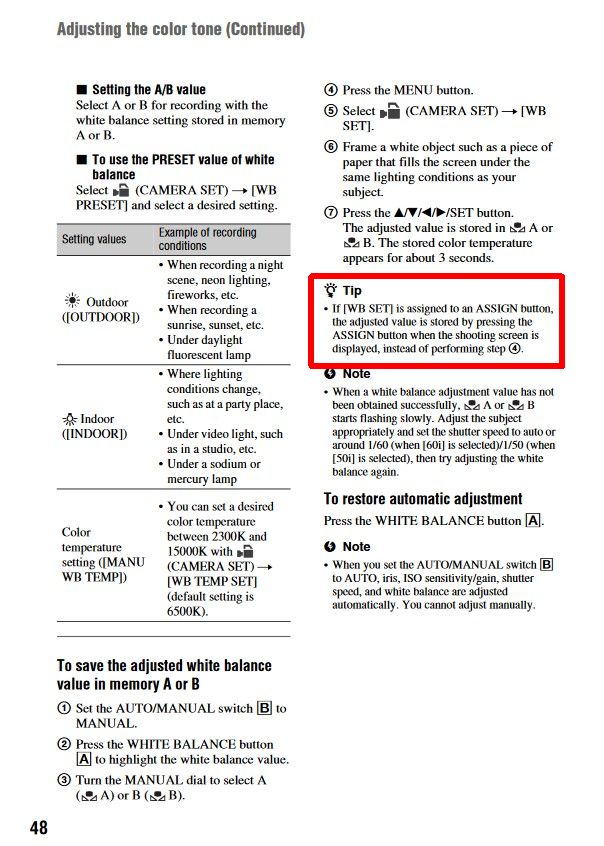

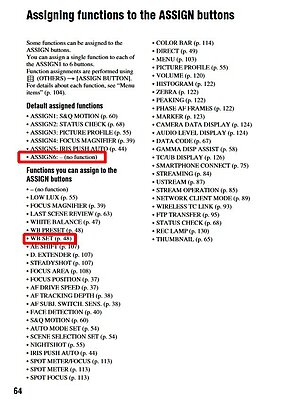

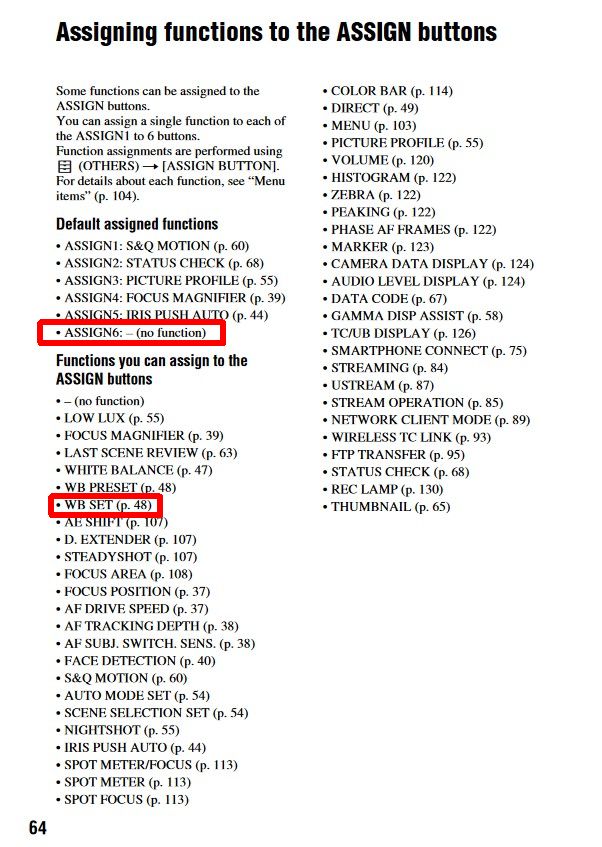

I programed the Assign Button #6 to WB SET on the Z90. Pretty sure it's the same on the 80. After that, it's just a matter of hitting the WB button on the body adjacent to the screen then selecting Memory A or B via the rotary selector on the front of the body then just hitting Assign Button #6 and you get a very fast white balance stored in whichever menu you selected, A or B. That will remain stored even after the camera has been turned off. Nice to have it retained when you turn the camera back on. It's all in the manual. Pages #47 and #63 for the HXR-NX80.

Chris Young
Attached Thumbnails
HXR-NX80 white balance-z90-assign-01.jpg   HXR-NX80 white balance-z90-assign-02.jpg

Christopher Young is offline   Reply With Quote
Old August 31st, 2020, 12:28 PM   #6
Trustee

Join Date: Sep 2007
Location: Newark, Delaware
Posts: 1,067
Re: HXR-NX80 white balance

I meant assign the manual white balance set to a button. ie im in white balance A and I find a white card. instead of having to go into the menu to hit set I could just do it from one of the programmable buttons
Randy Johnson is offline   Reply With Quote
Old August 31st, 2020, 02:21 PM   #7
Vortex Media

Join Date: Jan 2009
Location: Florida
Posts: 3,169
Re: HXR-NX80 white balance

Yes, you can do that. You can program the camera so that you never have to use the menus ever again to set the white balance. You aim the camera at a white card, press an assign button, start shooting. Simple.
That's exactly what I said in post #2.
__________________
Vortex Media http://www.vortexmedia.com/
Sony FS7, F55, and XDCAM training videos, field guides, and other production tools

Last edited by Doug Jensen; August 31st, 2020 at 03:17 PM.
Doug Jensen is offline   Reply With Quote
Old September 1st, 2020, 01:19 AM   #8
Major Player

Join Date: Jun 2010
Location: Aberdeen Scotland
Posts: 815
Re: HXR-NX80 white balance

Here's a video of howto using assign button.

__________________
A little knowledge goes a long way but not long enough.
Donald McPherson is offline   Reply With Quote
Old September 1st, 2020, 04:27 AM   #9
Trustee

Join Date: Apr 2008
Location: Sydney Australia
Posts: 1,358
Re: HXR-NX80 white balance

Quote:
Originally Posted by Randy Johnson View Post
I meant assign the manual white balance set to a button. ie im in white balance A and I find a white card. instead of having to go into the menu to hit set I could just do it from one of the programmable buttons
Color me puzzled by your response!

That is exactly what I and Doug have outlined. No need to go into a menu other than to program which button you want to use for the white balance. You set it up ONCE in the menu. From there on in all you need to do is point the camera at a white/grey card and push a button. Simple. It's all in the manual. I've even given you the page numbers so you can set the camera up that way. Doug said exactly the same thing in slightly different terms. If you don't bother to read the responses that people make to help 'you' solve your query then why bother to post.

Chris Young
Christopher Young is offline   Reply
