Old December 1st, 2021, 09:52 PM   #1
Major Player

Join Date: Oct 2005
Posts: 362
SLOG3 False Color LUT

I'd like to share a false color LUT I made for monitoring SLOG3 while shooting.

My goal with this LUT is to display a properly transformed REC709 image that is both good for judging exposure AND pulling focus.

My problems with most other false color LUTs are:
1. They're designed for a REC709 image, so if you're shooting SLOG3, they're off.
2. The false color is overwhelming. Assigning every value to a color makes the image a confusing rainbow.

With this LUT, I only color a few key ranges:
Middle grey = green
Caucasian skin = peach
Nearly crushed shadows = blue
Nearly blown highlights = red

Because the majority of the image is a B&W image with proper contrast, I can keep the LUT up even while puling focus.

Posting link to the LUT here in case someone else might find it useful: https://drive.google.com/open?id=19T...m&usp=drive_fs
Joseph H. Moore is offline   Reply With Quote
Old December 2nd, 2021, 09:11 AM   #2
Vortex Media

Join Date: Jan 2009
Location: Florida
Posts: 3,164
Re: SLOG3 False Color LUT

What are your actual IRE targets for each of those ranges?

For example, what do you consider "nearly blown highlights"? In other words, if I expose an image that has areas that are shown as red on the viewfinder and/or monitor, what will the actual level be of those areas on the scopes in Resolve when I look at my ungraded footage? And what is your actual target levels for middle gray and Caucasian skin? That is basic information that needs to be known.

Also, do you only shoot Caucasians? If not, how do you expose for non-whites?
__________________
Vortex Media http://www.vortexmedia.com/
Sony FS7, F55, and XDCAM training videos, field guides, and other production tools
Doug Jensen is offline   Reply With Quote
Old December 2nd, 2021, 09:37 AM   #3
Major Player

Join Date: Oct 2005
Posts: 362
Re: SLOG3 False Color LUT

Hey Doug,

The LUT starts with the proper technical transform for SLOG3 to REC709, so these values are POST color space transform:

Blue below 10
Green between 45 - 55
Peach between 55 - 75
Red above 90

The color coding is a smooth ramp, not a hard cut like most false color systems.

I expose for "non-whites" the same way I expose for everything...to taste. ;-) I wouldn't put always put AA skin in a certain range any more than I would always put caucasian skin in a certain place.

This is just a tool to help visualize the exposure range and ensure the scene is landing where you want, it's not proscriptive of where it should be.
Joseph H. Moore is offline   Reply With Quote
Old December 2nd, 2021, 09:39 AM   #4
Major Player

Join Date: Oct 2005
Posts: 362
Re: SLOG3 False Color LUT

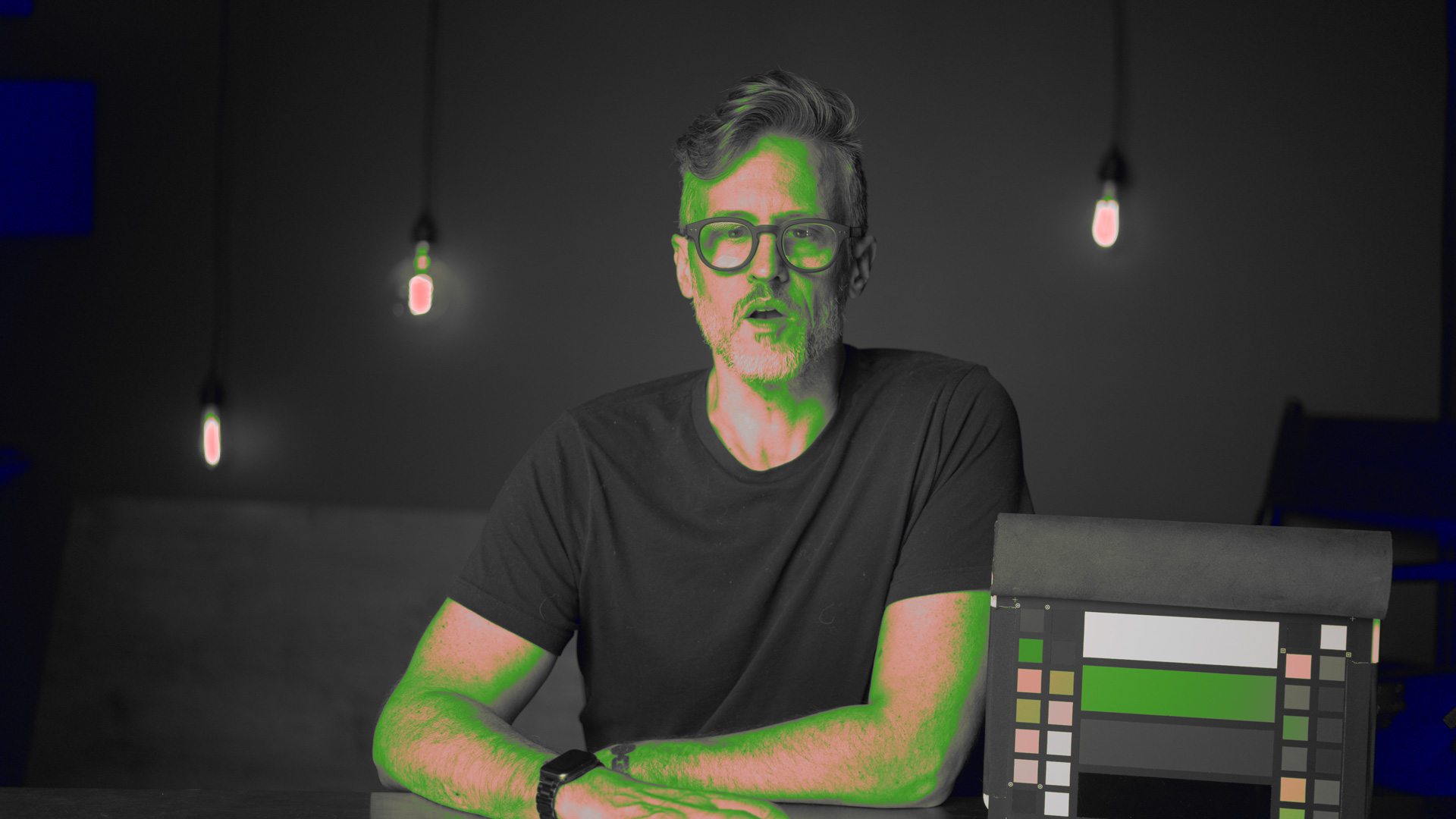

Here's a grab for reference.
Attached Thumbnails
SLOG3 False Color LUT-slog3-falsecolor.jpg
Joseph H. Moore is offline   Reply With Quote
Old December 3rd, 2021, 08:33 AM   #5
Vortex Media

Join Date: Jan 2009
Location: Florida
Posts: 3,164
Re: SLOG3 False Color LUT

Quote:
Originally Posted by Joseph H. Moore View Post
This is just a tool to help visualize the exposure range and ensure the scene is landing where you want, it's not proscriptive of where it should be.
Hi Joseph,

Thanks for the additional information about the LUT. I'm not a fan of false color myself, but I find it interesting to hear how other people use their cameras, judge exposure, etc. There are certainly many ways to skin the cat!
__________________
Vortex Media http://www.vortexmedia.com/
Sony FS7, F55, and XDCAM training videos, field guides, and other production tools
Doug Jensen is offline   Reply
