external rec for fs100

[Chris Medico]

The SmallHD DP6 has HDMI in only. The DP4 has HDMI loopthrough.

SmallHD sells a HDMI splitter to use if you need to drive multiple devices. I use it it to send one HDMI to my DP6 and the second output to a wireless HDMI transmitter for the directors monitor.

There is no signal degradation with the splitter.

[Bruce S. Yarock]

Chris,
Could the small hd splitter be used to for the camera out to both an atomos ninja and the Zacuto evf?
Small HD says that it can split the signal to 2 monitors, but my interest is to split it to both the ninja and the zacuto.
Thanks
Bruce Yarock
Mini Self-Powered 1 x 2 HDMI Splitter

[Chris Medico]

Sure. Its output can be used with any HDMI device. I don't have a Ninja to test it with but I have tried it with my PIX240 and it works.

[Bruce S. Yarock]

Thankds, Chris
Bruce Yarock

[Matthew Hurley]

Originally Posted by Bill Weaver

A recent update from my Sony reseller: The Atmos Ninja can now be triggered through the HDMI connection, which solves the LANC problem it had will the FS.

Bill could you elaborate on this info! Is this a Sony firmware update or a Atomos Ninja firmware update that allows for triggering the Ninja via the HDMI out from the FS100

[Bill Weaver]

Originally Posted by Matthew Hurley

Bill could you elaborate on this info! Is this a Sony firmware update or a Atomos Ninja firmware update that allows for triggering the Ninja via the HDMI out from the FS100

My understanding is that is tweak that Ninja did. Prob best to check with them for confirm.

[Matt Davis]

Just a random note about the FS100 and Ninja (admittedly from a PAL perspective): Use ProRes HQ mode for a visible quality difference. Anything less is only a workflow thing (ProRes LT is still good for bulk records).

[Paul Curtis]

Originally Posted by Matt Davis

Just a random note about the FS100 and Ninja (admittedly from a PAL perspective): Use ProRes HQ mode for a visible quality difference. Anything less is only a workflow thing (ProRes LT is still good for bulk records).

Hi Matt,

Have you got any side by side samples? Curious as ever...

Where do you see the differences?

cheers
Paul

[Matt Davis]

Not my tests (I'm doing some next Tuersday) but

FS100 + Ninja | Philip Bloom Forum

If you download his stills, check out the difference on the white shop in the bgd - the sharpness of the shop name, less aliasing in the sagging material in the window. Notice the extra crunch in the brick and stone work. Look at the blurred cars, note the extra detail in the blurs.

It's subtle, but if you're motion tracking on green screen, that's going to be a better key AND a better track. And it's enough to get me interested again.

[Erwin Vanderhoydonks]

Just take a look at this one...
ATOMOS Ninja – Sony FS100. codec comparison test ‹ PrePost

[Chuck Green]

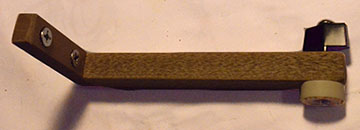

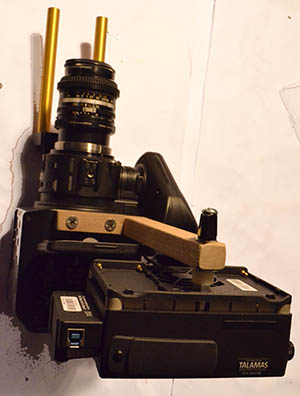

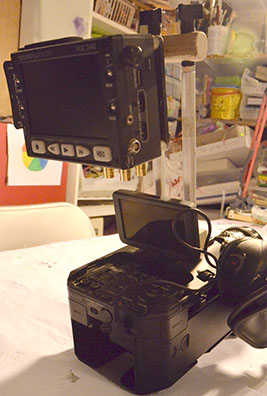

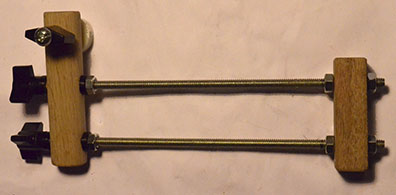

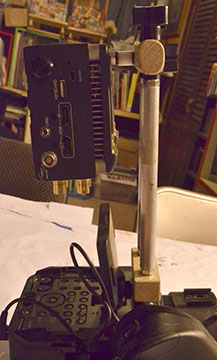

PIX 240 support rigs I built forthe FS100. #1 is a simple wood support. Both it and the mainly metal rig screw into the two 1/4-20 threaded holes on top of the camera. The second is a lightweight metal rig, shown before the main support legs were encased in aluminum tubes. Both rigs put the PIX unit high up, to clear the viewfinder screen. The wood support also moves it to the right side for clearance with less height.
The metal parts were later covered with gaffers tape, and the wood parts painted black. They hold the unit well, but with only one mounting hole, the PIX can wobble side to side a bit, harmlessly but a mild irritation.
Both are not too compicated to build. I can supply measurements if anyone wants.
The photos are apparently not going to show up in the order I uploaded them. The wood rig has a single vertical leg, and the metal one has 2 legs.

[Paul Curtis]

Originally Posted by Erwin Vanderhoydonks

Just take a look at this one...
ATOMOS Ninja – Sony FS100. codec comparison test ‹ PrePost

That test seems flawed. As was mentioned in a different thread, it looks like the AVC footage might not have been deinterlaced by the editing software, therefore the AVC footage is half the resolution it should be.

The differences are not that dramatic!

cheers
Paul

[Al Yeung]

Originally Posted by Bill Kerrigan

Chuck, please post photos of your 2 configuration.

Because many of my broadcast and corporate clients won't except AVCHD, I also bought a PIX240.
But I haven't found a satisfactory mounting solution.

I'm using the PIX as a monitor/viewfinder on a FS100, F3, EX3, Z5... and mounting it beside the lens so the camera can rest on my shoulder.
FS100 Users

Hi Bill, mind posting a photo of your rig? What are you using for the shoulder pad? I'm interested in having an external recorder double as a monitor for shoulder mounting also. Thank you.

[Chris Johnston]

Originally Posted by Glen Vandermolen

I can see a need for an external recorder if you want to use the FS100 for broadcast duties, such as Discovery HD and the BBC HD. From what I understand, the AVCHD codec isn't accepted by high end broadcast outlets. It's fine for local broadcasts, as I've shot several commercials for the local affiliates.

If anyone has used their FS100 with just the internal codec for a big broadcast outlet - ESPN, Discovery, National Geographic, BBC, etc. - please let us know.

I'm not critisizing the AVCHD codec, but we don't set the standards for broadcasting.

I wonder what would happen if you just shot AVCHD and converted to prores or ciniform and then handed over to them. Would they even know?
