Is there a way to charge EX1 batteries from DC power system? at DVinfo.net

Les Wilson · January 20th, 2011, 12:17 PM

I am headed into a situation where I have to manage my power footprint carefully. Gas for generators is expensive and hard to get. Solar panels with batteries is also available.

I can take my inverter if I have to but would rather not. Is there a way to charge SWIT 8U62 batteries from the solar power system without the energy loss of an inverter then AC to DC charger?

Shaun Roemich · January 20th, 2011, 02:51 PM

Only peripherally related to your question but in my experience working in the developing world, WE always had a car and driver at our disposal for getting around and made CONSTANT use of the 12v cigarette or power point outlets to charge using SMALL output DC-AC converters and then plugged in the normal charger.

Of course if you don't have a vehicle, you are back to your initial question.

Olof Ekbergh · January 20th, 2011, 04:00 PM

As far as I know no one makes a specific EXcam charger that can use 12v (11-17 is what you get from a car battery).

Maybe someone here knows of a third party 12v DC charger for Sony / Swit EX batts.

There are many inverters available. There is some loss but that is your only bet I think.

My new production vehicle a Chevy Traverse actually has 110AC outlets built in, I use them all the time for charging cam batts. Earlier in my Tahoe I used an AB brand inverter, it served me for 10 years w/o problems, it had a circuit that cut power if voltage dropped below 13v I think, so you always have enough power to start the Truck.

Alex Dolgin · January 20th, 2011, 06:38 PM

Our chargers will do that with the help of a DC adapter. It is covered here FAQ scroll down to the middle of the page
HTH

Les Wilson · January 20th, 2011, 08:01 PM

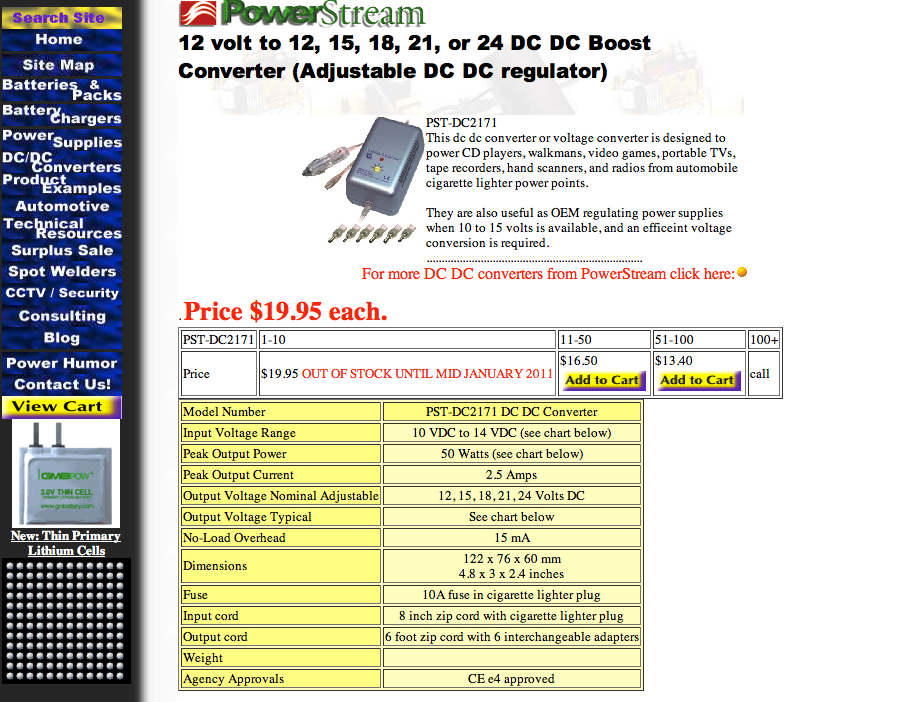

Alex. Thanks. That solves it. To leave bread crumbs for those who follow, the voltage regulator site doesn't have a URL to the part number but I have included a screen shot. It's listed under DC to DC Chargers section of PowerStream Power Supplies and Chargers for OEMs in a Hurry

TC200-EX Charger: Battery charger TC200-EX 2 position [TC200-EX] - $289.00 : Dolgin Engineering, Camera Power Solutions

Alex Dolgin · January 20th, 2011, 08:35 PM

You are welcome Les. I suggest you check with the Solar Panel manufacturer to see what max. voltage it might develop on a sunny day, to make sure the converter will not get damaged with too much...
