Old June 7th, 2023, 04:00 PM   #1
Regular Crew

Join Date: Apr 2003
Location: Kauai, Hawaii
Posts: 86
FS5M2 Out to Atomos ninja v+ problem

output HDMI form FS5M2 to Atomos ninja V+ and Atomos screen goes blank.
output HDMI from A7s2 to Atomos and start rec button synced and everything viewable and working great.
Hmmm.
I missing something here?
Aloha,
WZ
__________________
Wayne Zebzda
LookLookTV.com
Wayne Zebzda is offline   Reply With Quote
Old June 7th, 2023, 04:10 PM   #2
Regular Crew

Join Date: Apr 2003
Location: Kauai, Hawaii
Posts: 86
Re: FS5M2 Out to Atomos ninja v+ problem

Forgot to mention it only goes blank when you push the SF5M2 camera recording button.
So, no record trigger start here with visuals.
__________________
Wayne Zebzda
LookLookTV.com
Wayne Zebzda is offline   Reply With Quote
Old June 9th, 2023, 02:10 AM   #3
Trustee

Join Date: Apr 2008
Location: Sydney Australia
Posts: 1,536
Re: FS5M2 Out to Atomos ninja v+ problem

Quote:
Originally Posted by Wayne Zebzda View Post
output HDMI form FS5M2 to Atomos ninja V+ and Atomos screen goes blank.
output HDMI from A7s2 to Atomos and start rec button synced and everything viewable and working great.
Hmmm.
I missing something here?
Aloha,
WZ

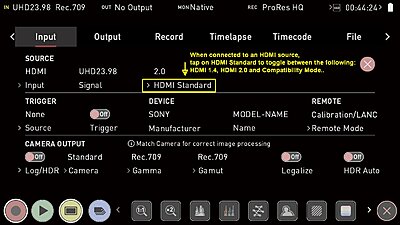

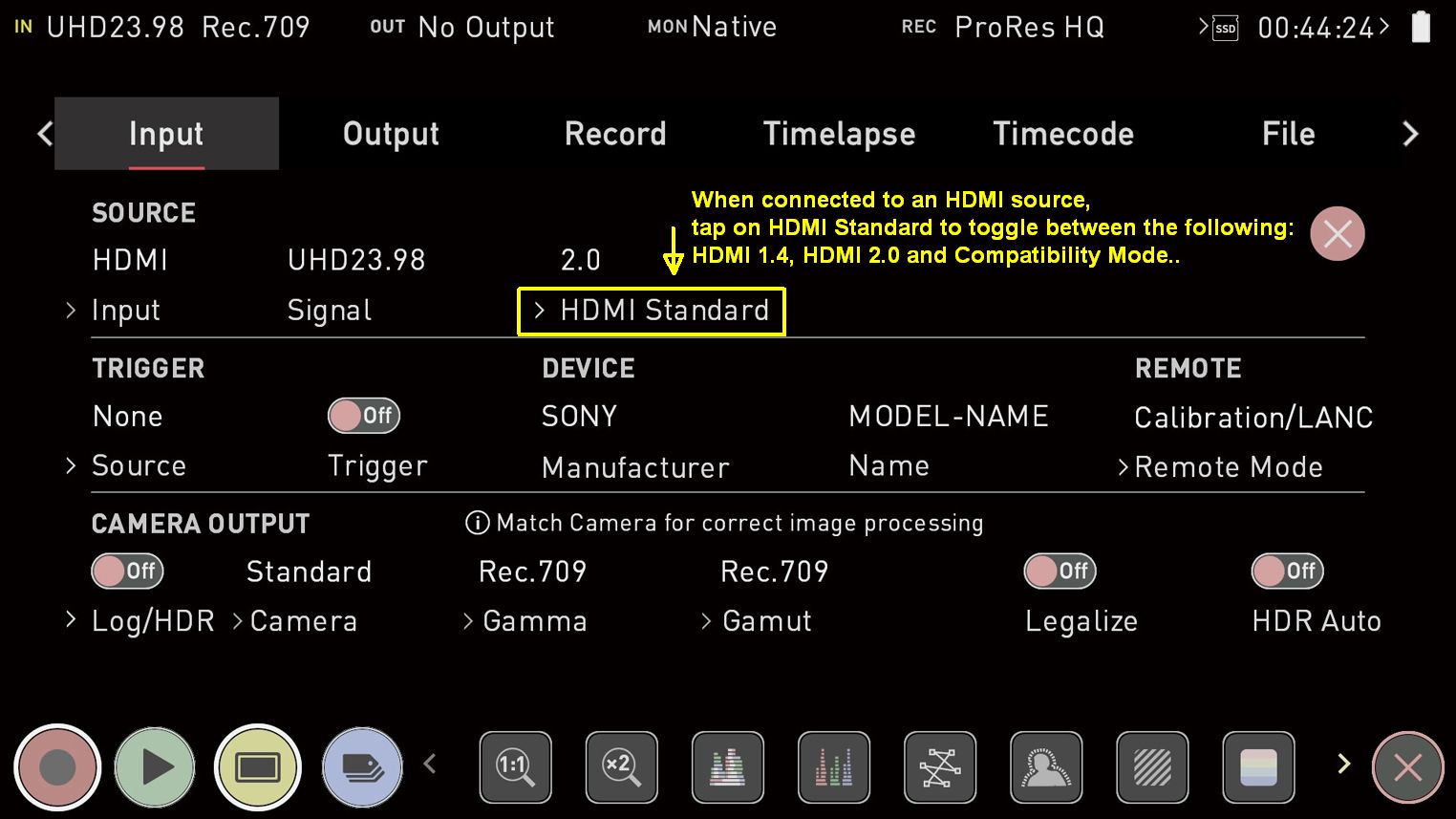

I've seen this before with the FS5 and A7s. Just try switching between the "HDMI Mode" settings. When you do this, you often have to disconnect and reconnect the HDMI to get it triggered to get the correct connection mode. There are three modes: HDMI 1.4, HDMI 2.0 and Compatibility Mode. See attached pix.

Chris Young
Attached Thumbnails
FS5M2 Out to Atomos ninja v+ problem-ninja-compatability-mode-txt.jpg
Christopher Young is offline   Reply With Quote
Old June 10th, 2023, 04:13 PM   #4
Regular Crew

Join Date: Apr 2003
Location: Kauai, Hawaii
Posts: 86
Re: FS5M2 Out to Atomos ninja v+ problem

Thanks for your input...went through every configuration several times with HDMI cable in cable out ....unfortunately the Ninja V+ recorder was still flying blind when record was pushed.
THEN, I messed with the camera menu and disconnected the SDI and HDMI out then reconnected it and it worked.
Small miracles.
__________________
Wayne Zebzda
LookLookTV.com
Wayne Zebzda is offline   Reply With Quote
Old June 11th, 2023, 09:43 AM   #5
Trustee

Join Date: Apr 2008
Location: Sydney Australia
Posts: 1,536
Re: FS5M2 Out to Atomos ninja v+ problem

Good to hear you got it sorted!

Chris Young
Christopher Young is offline   Reply
