Old April 21st, 2011, 02:31 PM   #1
Inner Circle

Join Date: Jun 2004
Location: Richmond, VA
Posts: 2,966
Need an audio clean done

Well, I am left to clean up a mess by a camera person who didn't have the volume up enough which gives me a loud buzz.

Is there anyone out there that clean this sample file, thus the whole file to a point that is worth saving?

Index of /temp/delete

Thanks in advance. If it ends up not being worth it, I'll probably just lay music over it.
__________________
What happens if I push the 'Red' button?
Steven Davis is offline   Reply With Quote
Old April 21st, 2011, 02:44 PM   #2
Major Player

Join Date: Nov 2010
Location: Regina, Saskatchewan Canada
Posts: 255
Re: Need an audio clean done

Steven

I know it's beyond my ability to do it justice, but if you're using Sound Forge, under the FX Favorites menu, Sony, try the multi-band dynamics menu.
What it basically allows you to do is isolate a specific frequency ( in this case a hum), and filter it out. then you'd need to do a bunch of work with the volume and clarity of the audio to get it to a useable point.

I've used it in past to take feedback hiss from a cellphone out of audio. It's quite effective, but it takes a bit of fiddling around to find the frequency range so you can cull it out.

I'm sure some of the Pro's will have some other ideas to add
Hope this helps!
Wayne
Wayne Reimer is offline   Reply With Quote
Old April 21st, 2011, 04:08 PM   #3
Trustee

Join Date: Nov 2008
Location: Miami, FL USA
Posts: 1,483
Re: Need an audio clean done

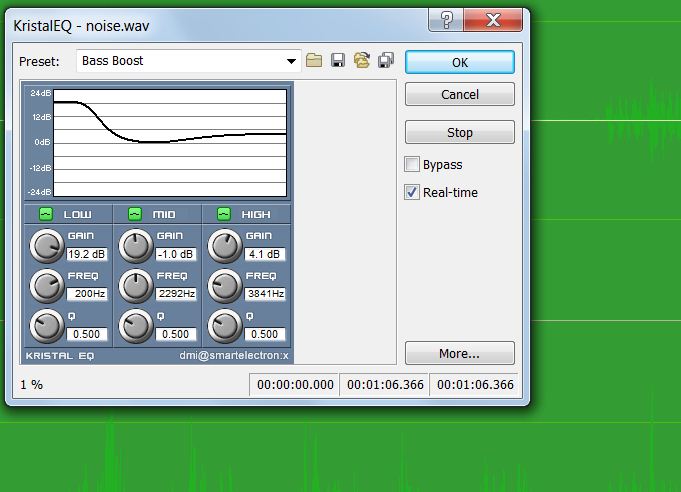

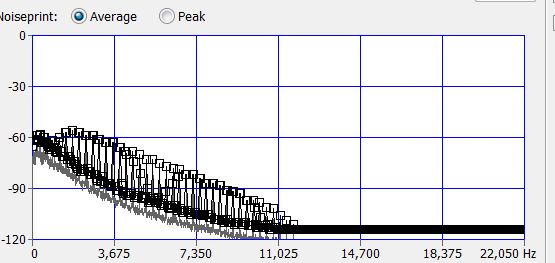

Here's a try. Problem is (see noise chart) that the noise occurs over the very frequencies that the voices occupy. The noise is fairly easy to remove (noise reduction tool in Sony Sound Forge) but it also removes a lot of the voice content. What I did, and this is quick-and-dirty, so I'm sure it could be tweaked better: add 10 db the original file to get the levels up to where you can work with them. Apply 25 dB noise reduction, sampling from an area that has the buzz only. Apply equalization to try to boost the voice frequencies to bring back some clarity. Best wishes!
Attached Thumbnails
Need an audio clean done-noiseprint.jpg   Need an audio clean done-eq.jpg

Attached Files
File Type: wav noise output-1.wav (5.58 MB, 43 views)
Battle Vaughan is offline   Reply With Quote
Old April 21st, 2011, 09:41 PM   #4
Trustee

Join Date: Jan 2011
Location: Pennsylvania
Posts: 1,359
Re: Need an audio clean done

The good news: it's easy to get rid of the harmonic buzz using one of three techniques.
1.) a comb filter, which introduces a bit of echo,
2.) a series of sharp notch filters tuned to each of the harmonics, or
3.) some sort of adaptive NR based on a noise profile.
Of those, #2 is best because there's no echo (from #1) and no artifacts and "burbles" (from #3).

The bad news is: there are several other problems.

First, the repetitive impulse noise. There is no way to get rid of that. It's broad spectrum so any adaptive filtering will produce obvious artifacts in the desired audio. Its rep rate is pretty fast so it's hard to clean it with a noise gate... you can lower it slightly (and without artifacts) but you also lower the quietest voices. You can remove more of it with a "noise sample" approach but you will introduce a lot of artifacts. You're pretty much stuck with some impulse noise.

Second, there is some sort of bad intermod*. Listen to any of the voices, and you will hear a constant-frequency low-pitched tone that is modulated by the voice. If you watch it on a spectrum display, you'll see a peak at 150 Hz. You can dip this out somewhat, but it's still there if you listen closely.

(* I'm not sure what causes this IM. If I had to make a wild guess, I would say that the track as posted is not the original form... that a lot of LF has been rolled off from the original. In that case, a lot of 50 Hz, 100 Hz, and 150 Hz in the original, mixed with the desired audio, would cause this bad IM. Even rolling off the original LF hum, after the fact, still would leave the IM which is obvious at 150 Hz.)

Finally, the mics are much too far from the talent, and the room is fairly live. So even after reducing the noise to the point where it is "background," the speech intelligibility is still quite poor. Not useful for anything that I can imagine.

Sorry, I don't know of a magic "repetitive impulse filter" let alone a "bad mic technique filter" so I can't make this much better than my posted sample.

There are some (rather expensive) software packages designed for forensic use that might be helpful, but the result will probably sound very unrealistic.
Attached Files
File Type: wav 2011-04-21-quickfix-01-trimmed.wav (7.99 MB, 36 views)
Greg Miller is offline   Reply With Quote
Old April 21st, 2011, 10:26 PM   #5
Trustee

Join Date: May 2004
Location: USA
Posts: 1,555
Re: Need an audio clean done

This comes up a lot and most of the time the answer is no you can't get rid of the noise without effecting the subject too.

your energy is better spent figuring out how to avoid the same problem from happening again. that means a mic near the subject and the camera operator wearing head phones.
Pete Cofrancesco is offline   Reply With Quote
Old April 21st, 2011, 10:34 PM   #6
Inner Circle

Join Date: Jun 2004
Location: Richmond, VA
Posts: 2,966
Re: Need an audio clean done

Thanks guys. I was hoping but oh well.
__________________
What happens if I push the 'Red' button?
Steven Davis is offline   Reply With Quote
Old April 22nd, 2011, 07:17 AM   #7
Major Player

Join Date: Apr 2008
Location: Sydney Australia
Posts: 901
Re: Need an audio clean done

As Greg says:

"The bad news is: there are several other problems."

A nasty little problem indeed, broad spectrum noise everywhere and very 'roomy' as Greg mentioned. Had a play with it in Vegas and came up with the following, see attachment.
Christopher Young is offline   Reply With Quote
Old April 22nd, 2011, 07:34 AM   #8
Major Player

Join Date: Apr 2008
Location: Sydney Australia
Posts: 901
Re: Need an audio clean done

Addition to my previous post. Don't think it liked a 12MB .wav attachment. Smaller mp3 now attached. Doesn't sound the best but who knows... with music ovrlay it could get you out of trouble.
Christopher Young is offline   Reply With Quote
Old April 22nd, 2011, 08:28 AM   #9
Trustee

Join Date: Jan 2011
Location: Pennsylvania
Posts: 1,359
Re: Need an audio clean done

Christopher, this website likes only very tiny audio attachments. The "Manage Attachments" page lists the legal types and size limits. It doesn't seem to allow MP3s at all (very strange, since this is an audio forum!). Your best bet for compressed audio files seems to be WMA (also very strange... does Micro$oft own this website?). The 2.96MB limit on .zip files seems especially onerous, especially since it's legal to attach a 64.87MB .pdf file! (The pdf format is especially useless for any sort of media information, and this is a "media oriented" website.)

Better luck next time.
Greg Miller is offline   Reply With Quote
Old April 23rd, 2011, 12:24 AM   #10
Inner Circle

Join Date: Feb 2009
Location: Brisbane, Australia
Posts: 2,261
Re: Need an audio clean done

Mp3 is for pirates, you know!

(ducking!)

Andrew :-)
Andrew Smith is offline   Reply With Quote
Old April 23rd, 2011, 03:06 PM   #11
Inner Circle

Join Date: Feb 2007
Location: Tucson AZ
Posts: 2,207
Re: Need an audio clean done

Well, beyond all the technicalities, I'd have a hard time thinking that this one could be saved even if we could remove all the extraneous noise - the voices are just too hard to hear and almost unintelligible with or without the noise. I definitely heard a question in Japanese and an answer in English, so we're dealing with different inherent sound patterns which I think would make it even harder to rescue it.

I think it's time for either the re-record filter or the drown-it-out-with-music filter.
Jim Andrada is offline   Reply With Quote
Old April 23rd, 2011, 03:36 PM   #12
Trustee

Join Date: Jan 2011
Location: Pennsylvania
Posts: 1,359
Re: Need an audio clean done

Print it B&W, superimpose lots of grain and film dirt, and use title cards.

You must pay the rent.

I can't pay the rent.

You must pay the rent.

I can't pay the rent...


Loop ad infinitum.

-----

Seriously, one has to wonder whether this was some sort of "stealth" recording, unknown to the principals involved. The mic was surely nowhere near where it should have been.
Greg Miller is offline   Reply With Quote
Old April 24th, 2011, 07:18 AM   #13
Major Player

Join Date: Apr 2008
Location: Sydney Australia
Posts: 901
Re: Need an audio clean done

[QUOTE=Greg Miller;1641846]Christopher, this website likes only very tiny audio attachments. The "Manage Attachments" page lists the legal types and size limits. It doesn't seem to allow MP3s at all (very strange, since this is an audio forum!). Your best bet for compressed audio files seems to be WMA (also very strange... does Micro$oft own this website?).

I tried a WMA file but it doesn't hold up as well as a WAV so am trying again with just the middle 36 secs where most of the dialogue was. Hope this attatchment gets thru!
Attached Files
File Type: wav CYV Waves Noise X redux 02_36s.wav (6.67 MB, 22 views)
Christopher Young is offline   Reply With Quote
Old April 24th, 2011, 12:09 PM   #14
Trustee

Join Date: Jan 2011
Location: Pennsylvania
Posts: 1,359
Re: Need an audio clean done

Less noise, but, of course, at the expense of terrible artifacts. I can understand very few words in the speech... it's extremely robotic. That's the trouble with using sample-based cleaning with a broadband noise.
Greg Miller is offline   Reply With Quote
Old April 24th, 2011, 02:47 PM   #15
Inner Circle

Join Date: Feb 2007
Location: Tucson AZ
Posts: 2,207
Re: Need an audio clean done

I'd have to say that the original clip has more harmonics with significant energy marching into the frequency stratosphere than I can remember seeing in a long time I'm really at a loss to figure out how this got to be so bad. Sort of a perfect storm of noise.

Are you sure someone wasn't trying to jam the signal? Was it recorded at the base of a broadcast tower or next to a radar installation - or were the mics hidden in a microwave oven:-)
Jim Andrada is offline   Reply
