Old September 11th, 2013, 11:34 PM   #1
Regular Crew

Join Date: Apr 2013
Location: Tulsa Oklahoma
Posts: 35
C100 Frame rate suggestion

Hey all, I have a wedding coming up and was wondering what FR you recommend. I'm using my C100, 5DM3 and I may rent a XF100. Although I seldom shoot @ 24p, I'm thinking about going with 24p. Keep in mind this will be an outdoor wedding in the evening. Any suggestions would be appreciated.

Dave
Dave Ande is offline   Reply With Quote
Old September 12th, 2013, 02:07 PM   #2
Trustee

Join Date: May 2007
Location: Minneapolis, MN
Posts: 1,242
Re: C100 Frame rate suggestion

I think 24p looks great and I use it for almost everything. If you like the look, go with it.

On the C100 use the "24P" setting, not the "PF24" as the later records the video over 60i and requires a deinterlacing process.
__________________
Nate Haustein PXW-FS5 / iMac i7 / FCPX
www.flightcreativemedia.com
Nate Haustein is offline   Reply With Quote
Old September 12th, 2013, 03:18 PM   #3
Regular Crew

Join Date: Apr 2013
Location: Tulsa Oklahoma
Posts: 35
Re: C100 Frame rate suggestion

Nate thanks for the reply. When shooting at 24p I guess I will need to make sure that I don't have a bunch of quick pans etc so that the footage won't look to jerky, correct me if I'm wrong...BTW if I do shoot 24p I'll set the shutter at 50 or use 180° angle. Any preference of the two? I know if I use shutter I can always go lower if I need additional light for any evening/night shots at the reception

....Dave
Dave Ande is offline   Reply With Quote
Old September 12th, 2013, 08:31 PM   #4
Trustee

Join Date: May 2007
Location: Minneapolis, MN
Posts: 1,242
Re: C100 Frame rate suggestion

You can change the shutter speed to a perfect 1/48 by changing the shutter speed mode to 1/4 stop increments within the menus. This 1/4 stop increments setting also allows you to quickly change to 1/60 if you encounter any 60hz sources like projectors or TVs, etc.

I've been shooting 24p for years and I've never once been unhappy with "juddery" motion. Not saying you should be sloppy with your shooting, but also don't worry about it too much. As long as you're not whipping around back and forth, i'm sure your pans will be just fine.
__________________
Nate Haustein PXW-FS5 / iMac i7 / FCPX
www.flightcreativemedia.com
Nate Haustein is offline   Reply With Quote
Old September 13th, 2013, 01:28 PM   #5
Regular Crew

Join Date: Jan 2009
Location: Romania
Posts: 175
Re: C100 Frame rate suggestion

Hallo

with c100 I shoot wedding in 50i only, standard Blu-Ray..

Marius
Docea Marius is offline   Reply With Quote
Old September 18th, 2013, 08:31 PM   #6
Trustee

Join Date: Jan 2013
Location: Austin, Texas
Posts: 1,706
Re: C100 Frame rate suggestion

Quote:
Originally Posted by Nate Haustein View Post
On the C100 use the "24P" setting, not the "PF24" as the later records the video over 60i and requires a deinterlacing process.
It does not require a deinterlacing process. If you shoot in PF24 and then deinterlace, you are literally throwing information away and making your end result look much poorer.

You remove 3:2 pulldown and this requires After Effects or Cinema Tools, which is why you NEVER deinterlace PF24 footage (you also don't deinterlace PF30 footage either, but it's only a straight 2:2 pulldown, so Premeire can do it, but FCP7/X might have issues, so I would use ClipWrap to process these files on a Mac. Great utility).
Gary Huff is offline   Reply With Quote
Old September 19th, 2013, 01:21 AM   #7
Trustee

Join Date: May 2007
Location: Minneapolis, MN
Posts: 1,242
Re: C100 Frame rate suggestion

Thanks Gary, you are correct, I meant to say pulldown NOT deinterlace.

My first experience with PF24 came a few years ago with a small Vixia I used as a b cam. I made a Compressor preset that removed the cadence (handy if you don't have Final Cut Studio with Cinema Tools, or are shooting HDMI out to a recorder that doesn't do the 3:2), but boy is it simpler just to shoot straight up 24p!

For AVCHD footy, +1 for ClipWrap
__________________
Nate Haustein PXW-FS5 / iMac i7 / FCPX
www.flightcreativemedia.com
Nate Haustein is offline   Reply With Quote
Old September 20th, 2013, 08:09 AM   #8
Trustee

Join Date: Jan 2013
Location: Austin, Texas
Posts: 1,706
Re: C100 Frame rate suggestion

I'm really baffled as to why Canon included 24PSF on the C100. It's functionality is to maintain compatibility with older NLEs, but we're talking REALLY old NLEs (or, I guess, for a 24p look in a broadcast ready container, but really?).
Gary Huff is offline   Reply With Quote
Old September 27th, 2013, 07:15 AM   #9
Major Player

Join Date: Feb 2008
Location: Lancashire UK
Posts: 496
Re: C100 Frame rate suggestion

Quote:
Originally Posted by Gary Huff View Post
It does not require a deinterlacing process. If you shoot in PF24 and then deinterlace, you are literally throwing information away and making your end result look much poorer.

You remove 3:2 pulldown and this requires After Effects or Cinema Tools, which is why you NEVER deinterlace PF24 footage (you also don't deinterlace PF30 footage either, but it's only a straight 2:2 pulldown, so Premeire can do it, but FCP7/X might have issues, so I would use ClipWrap to process these files on a Mac. Great utility).
I've been using Clipwrap for the past week for changing the files to ProRes422, FCPX friendly. Not sure about 'best practices here, but is that the best option for reasonably sized images/quality?

Thanks
Wayne
__________________
Avey
theactionhouse.com
Wayne Avanson is offline   Reply With Quote
Old September 30th, 2013, 01:14 AM   #10
Regular Crew

Join Date: Sep 2009
Location: Zürich Switzerland
Posts: 80
Re: C100 Frame rate suggestion

Quote:
Originally Posted by Gary Huff View Post
I'm really baffled as to why Canon included 24PSF on the C100. It's functionality is to maintain compatibility with older NLEs, but we're talking REALLY old NLEs (or, I guess, for a 24p look in a broadcast ready container, but really?).
The C100 records native 24p for those who prefer that option and makes PF24 available for any speciality needs (24p in interlaced delivery).

The main problem is that the AVCHD codec doesn't allow true 25p or 30p options, so Canon has no real choice here. The 2.0 version of AVCHD allows for 50p and 60p, but still not 25 or 30.

Needless to say, most C100 owners would say: scrap the AVCHD and give me any 4:2:2 codec, but let's not go there, beating that dead horse: the C300 awaits you.

Since the C100 is a AVCHD camera, Canon has given you all the options they could: normal interlaced 50i and 60i recording and progressive recording in the PF24, PF25 and PF30 formats. Additionally there is the 24p format that AVCHD actually supports.
Andree Markefors is offline   Reply With Quote
Old September 30th, 2013, 08:34 AM   #11
Trustee

Join Date: Jan 2013
Location: Austin, Texas
Posts: 1,706
Re: C100 Frame rate suggestion

Quote:
Originally Posted by Andree Markefors View Post
The 2.0 version of AVCHD allows for 50p and 60p, but still not 25 or 30.
That's simply crazy and I sympathize with my PAL brethren. I wonder what the issue is with that.

Quote:
Needless to say, most C100 owners would say: scrap the AVCHD and give me any 4:2:2 codec, but let's not go there, beating that dead horse: the C300 awaits you.
I tell them to get a Ninja. Sometimes, AVCHD is the perfect codec for the job, given it's quality implementation on the C100 and it's small file size. Sometimes, you want the full bitrate power of ProResHQ.

I like having options.
Gary Huff is offline   Reply With Quote
Old October 2nd, 2013, 01:05 PM   #12
Regular Crew

Join Date: Sep 2009
Location: Zürich Switzerland
Posts: 80
Re: C100 Frame rate suggestion

Quote:
Originally Posted by Gary Huff View Post
I tell them to get a Ninja. Sometimes, AVCHD is the perfect codec for the job, given it's quality implementation on the C100 and it's small file size. Sometimes, you want the full bitrate power of ProResHQ.
Agreed. Quirky container formats aside, I found the C100 AVCHD performance quite good. I rarely needed anything else.
Andree Markefors is offline   Reply With Quote
Old October 7th, 2013, 09:49 PM   #13
Trustee

Join Date: Aug 2005
Location: Berkshire, UK
Posts: 1,562
Re: C100 Frame rate suggestion

Quote:
Originally Posted by Gary Huff View Post
That's simply crazy and I sympathize with my PAL brethren. I wonder what the issue is with that.
Well, Canon has a bit of history in this.

The FS100 has absolutely no problem delivering 1080p25 - truly progressive material cropping up in most NLEs I've used. It could just be 25psf on a 2:2 pulldown, but it's completely invisible to the editor - it just works.

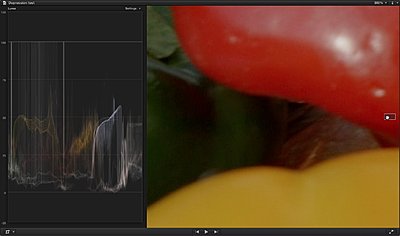

Canon have decided to continue their reputation for malignant PSF (excellent but long and techy article by Allan Tepper here - http://provideocoalition.com/atepper...malignant_psf/), and not only do NLEs misinterpret it, there are odd things happening to the chroma (the 'triangular jaggies' you may have seen in areas of high intensity colour, especially reds):
Attached Thumbnails
C100 Frame rate suggestion-rededges.jpg
__________________
Director/Editor - MDMA Ltd: Write, Shoot, Edit, Publish - mattdavis.pro
EX1 x2, C100 --> FCPX & PPro6
Matt Davis is offline   Reply
