Old September 28th, 2007, 03:22 PM   #361
Wrangler

Join Date: Oct 2003
Location: DFW area, TX
Posts: 6,108
Images: 1
Quote:
Originally Posted by Don Palomaki View Post
It is a 2.5 mm sub-mini mono phone plug. (aka 3/32" mono phone plug).

Some Radio Shack stores do carry them: part #274-290
Was hoping you'd see this and respond, Don. Knew I could count on you to shake the fuzz out of my memory banks.

-gb-
Greg Boston is offline   Reply With Quote
Old September 29th, 2007, 06:31 AM   #362
Wrangler

Join Date: Sep 2001
Location: Northern VA
Posts: 4,298
[Quote}The only way you could have been more helpful is to have knocked on my door, part in hand! [/Quote]

And a soldering iron in the other hand?

Good luck in the repair. Not sure about the mic wiring, but based on the XL1 body wiring, you may find that the power connector only uses the tip of the connector for the +5 volts, and the ground return is through the common ground lead of the 3.5mm stereo audio plug.
__________________
dpalomaki@dspalomaki.com
Don Palomaki is offline   Reply With Quote
Old December 18th, 2007, 04:24 PM   #363
Regular Crew

Join Date: Jan 2007
Location: Atlanta, Georgia
Posts: 54
Fixed

Realized I never ended my repair story. I know that some of you have been wondering day in and day out "Did Jim fix his rig?" LOL

The $3.99 fix that saved my shoot. I had been to Radio Shack before and they could not match the plug. But with Don's description I was able to look it up on their website, print the page and take it to them and say this is what I want.

"Oh, I guess we DO have that. . ."

Thanks Don!

Jim
Attached Thumbnails

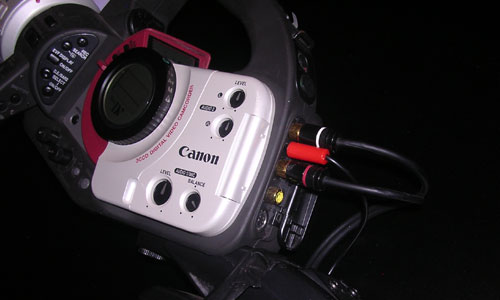

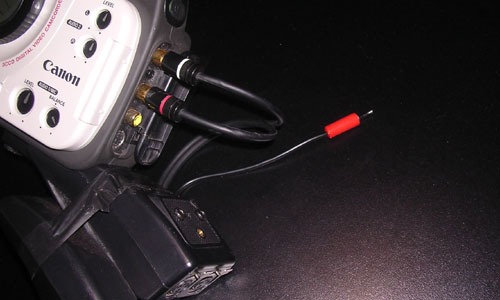

MA-100 XLR audio adapter questions-plug1.jpg   MA-100 XLR audio adapter questions-plug2.jpg

Jim Ross is offline   Reply With Quote
Old December 19th, 2007, 09:05 AM   #364
Wrangler

Join Date: Sep 2001
Location: Northern VA
Posts: 4,298
Thank heavens, now I can sleep again.
__________________
dpalomaki@dspalomaki.com
Don Palomaki is offline   Reply With Quote
Old December 19th, 2007, 11:30 AM   #365
Regular Crew

Join Date: Jan 2007
Location: Atlanta, Georgia
Posts: 54
You goof ball!

Ha ha ha!
Jim Ross is offline   Reply With Quote
Old December 21st, 2007, 03:38 PM   #366
Major Player

Join Date: Nov 2001
Location: New York, NY
Posts: 355
Do y'all realize this thread started 6 years ago!? I can be away for a year and pick up where I left off.

Ahh, DVInfo - there's nothing like it.
__________________
Ozzie Alfonso
www.ozziealfonso.com
Ozzie Alfonso is offline   Reply With Quote
Old December 21st, 2007, 03:45 PM   #367
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
There's a reason for that, Ozzie... I gathered up all of the MA-100 discussions I could find and combined them into one big thread. Just trying to keep things consolidated. Cheers,
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline   Reply With Quote
Old December 21st, 2007, 08:50 PM   #368
Major Player

Join Date: Nov 2001
Location: New York, NY
Posts: 355
Ah ha! Very smart of you, Chris. Now-a-days I have so much to talk about, mainly questions, that I'm overwhelmed and end up just reading instead.

Merry Christmas!
__________________
Ozzie Alfonso
www.ozziealfonso.com
Ozzie Alfonso is offline   Reply With Quote
Old July 12th, 2008, 09:44 PM   #369
New Boot

Join Date: Oct 2007
Location: Raleigh, NC
Posts: 12
Canon MA100 audio problem

Just recently I bought an MA100 to adapt an AT-897 mic to my Canon Xl-1 through the audio 1 input. For some reason, the MA100 is not outputting to the camera in stereo. During record and playback only one channel can be heard through the headphones. I've connected it with an XLR cable that I use in my home studio, so I wouldn't see why that would be the problem. When you use the stock microphone through the mic input the sound is in stereo. When you plug the XlR into the right input of the MA100, it's only heard out of the right earphone. If you plug it into the left input it's only heard out of the left earphone. The only thing I could think of to fix this is to use an adaptor to connect two XLR cables to one microphone. Or maybe the MA100 is intended to be used with two mics. Either way, that's pretty stupid so it can't be right. Does anyone know what's going on?

Thanks,
Nathan Reece
Nathan Reece is offline   Reply With Quote
Old July 12th, 2008, 10:19 PM   #370
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
Hi Nathan,

Based on your description, there's nothing wrong with your MA-100 and everything is working properly. Your Audio-Technica shotgun mic is monophonic, so one channel is all you should expect from it. In other words, there's nothing to fix. The stock mic is stereo, so it produces two channels. The 897 is mono, so it only produces one channel. Hope this helps,
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline   Reply With Quote
Old July 14th, 2008, 05:02 AM   #371
Wrangler

Join Date: Sep 2001
Location: Northern VA
Posts: 4,298
Quote:
Or maybe the MA100 is intended to be used with two mics. Either way, that's pretty stupid so it can't be right. Does anyone know what's going on?
Bingo. The MA100 provides input connections for two mics, and outputs for the same two mics. A typical configuration is one mic to the left and one to the right channel for stereo or for two channels, depending on your mode of operartion. If you need an external stereo mic, consider the AT-825.

If doing mono work you could pan the single mic to both channels in post (that is what most folks will do) , or you could add a bit of weight to you rig and use an "Y" adapter to feed the mic signal to both channels.
__________________
dpalomaki@dspalomaki.com
Don Palomaki is offline   Reply
