Fragile display screen

Dan,

The nanoFlash being a truly wonderful device, one thing I find surprisingly odd considering its otherwise great build quality: the LCD display screen is very soft, and easy to scratch even with your fingernails (not to mention with some metal parts, when handled in the heat of action in the field).

My question is: can the screen be easily replaced, or is it necessary to send the nanoFlash over to CD when it gets damaged? It's especially important to us EU users, as sending a device like this back and forth inflicts a lot of cost, and hassle with the customs...
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive

Last edited by Piotr Wozniacki; December 31st, 2009 at 02:23 AM.
Piotr Wozniacki is offline   Reply With Quote
Old December 31st, 2009, 07:07 AM   #2
Major Player

Join Date: Dec 2008
Location: British Isles
Posts: 415
I was thinking about one of those screen protectors that you can use on monitors and cut it to size. In my opinion they would do a sterling job and actually can protect it from impacts as great as 4kgs in some instances! Not too mention scratches, knocks and bangs!
Paul Inglis is offline   Reply With Quote
Old December 31st, 2009, 07:56 AM   #3
Inner Circle

Join Date: Dec 2002
Location: Augusta Georgia
Posts: 5,413
Dear Piotr,

The LCD, itself, is mounted under the Keypad with transparent LCD protector.

Yes, this protector can be scratched, so reasonable care is expected.

The protector, and keypad, can be replaced, but we do not consider this a user replacable item. But, if necessary and appropriate, we may be able to send out just the Keypad with the LCD protector with instructions on how to replace it.

Thus, one can not harm the LCD itself, under reasonable conditions, but one can harm the LCD protector.

If you wish, you could add another layer of protection.
__________________
Dan Keaton
Augusta Georgia
Dan Keaton is offline   Reply With Quote
Old December 31st, 2009, 08:06 AM   #4
Major Player

Join Date: Dec 2008
Location: British Isles
Posts: 415
Quote:
Originally Posted by Dan Keaton View Post
The protector, and keypad, can be replaced, but we do not consider this a user replacable item. But, if necessary and appropriate, we may be able to send out just the Keypad with the LCD protector with instructions on how to replace it.
That's good to know!

I'm looking for a hard case to place the nanoFLASH in during transit (such as a Peli) as 95% of my work takes place in the rugged outdoor environment!

I am having a raincover with vents made specially for the nanoFLASH in camo :)
Paul Inglis is offline   Reply With Quote
Old December 31st, 2009, 08:44 AM   #5
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Paul,

I'm trying to source the screen protector here in Poland, but haven't had much luck (this market is still not a very matured one). And, it's already one tiny scratch too late for me :)

Dan,

Thanks for the info; it's good to know that should anything more serious happen (although I'm extremely cautious now, after my "first scratch waring), there will be some possibility to make it look like a new one again :)
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old January 1st, 2010, 01:23 AM   #6
Inner Circle

Join Date: Jun 2003
Location: San Jose, CA
Posts: 2,222
Piotr, Are you talking about those adhesive screen protectors sold for Palm Pilot-type PDA products ? I cut them to size and used them for the LCDs on my Nikon D2H, although the protector did interfere with legibility.

I've been keeping the Nanoflash in a zippable pouch that mounts on my belt. The battery cable runs to the battery in my jacket, though the SDI connector keeps me tethered to the camera. It's easy enough to disconnect the SDI cable on the Nano side when needed.

Last edited by Gints Klimanis; January 1st, 2010 at 11:40 AM.
Gints Klimanis is offline   Reply With Quote
Old January 1st, 2010, 04:57 AM   #7
Inner Circle

Join Date: Dec 2002
Location: Augusta Georgia
Posts: 5,413
Dear Gints,

I recommend that you attach a short HD-SDI cable to the nanoFlash, then add a barrel connector. Then connect the cable from the camera to the barrel connector.

This will save wear and tear on the BNC connector on the nanoFlash.
__________________
Dan Keaton
Augusta Georgia
Dan Keaton is offline   Reply With Quote
Old January 1st, 2010, 05:39 AM   #8
Inner Circle

Join Date: Feb 2004
Location: switzerland
Posts: 2,131
you will easily find a screen protector in any shop selling iphones and accessories.
Giroud Francois is offline   Reply With Quote
Old January 1st, 2010, 07:19 PM   #9
Regular Crew

Join Date: Sep 2008
Location: Jacksonville, VT USA
Posts: 100
Dan said,

"I recommend that you attach a short HD-SDI cable to the nanoFlash, then add a barrel connector. Then connect the cable from the camera to the barrel connector.

This will save wear and tear on the BNC connector on the nanoFlash."


With due respect to the vast majority of good advice Dan has suggested, this is some of the worst advice I have ever heard (And a rehash of advice given about a year ago).

1. If there is any way to stress out a connector which is directly attached to a circuit board inside the NanoFlash, this is it. The added connector most certainly increases the force imparted on the connector during transport. During actual use it is not common to be constantly connecting and disconnecting the BNC connector so the short cable is normally unnecessary.
2. Barrel connectors are almost always the first point of failure with video connections. The fewer barrel connectors the better.
3. While the BNC connectors in the NanoFlash are rated for about 500 cycles, it is likely they will last much longer than that. It is not frequent that people are replacing chassis mount BNC connectors on professional video equipment equipment, even on some other equipment which is connected and disconnected daily. Outright abuse is a different issue.
4. The staff from CD in Colorado Springs also does not agree with this advice. (or at least they didn't months ago when you suggested this)

I appreciate most of the advice which Dan has been kind enough to share. I suggest you ignore this advice.

Jeff
Jeff Silverman is offline   Reply With Quote
Old January 1st, 2010, 09:34 PM   #10
Sponsor: Westside AV

Join Date: Dec 2008
Location: Mount Washington Valley, NH, USA
Posts: 1,365
The connector recommended for the NanoFlash is a 90ļ connector, and this makes a lot of sense. It does not really add any stress.

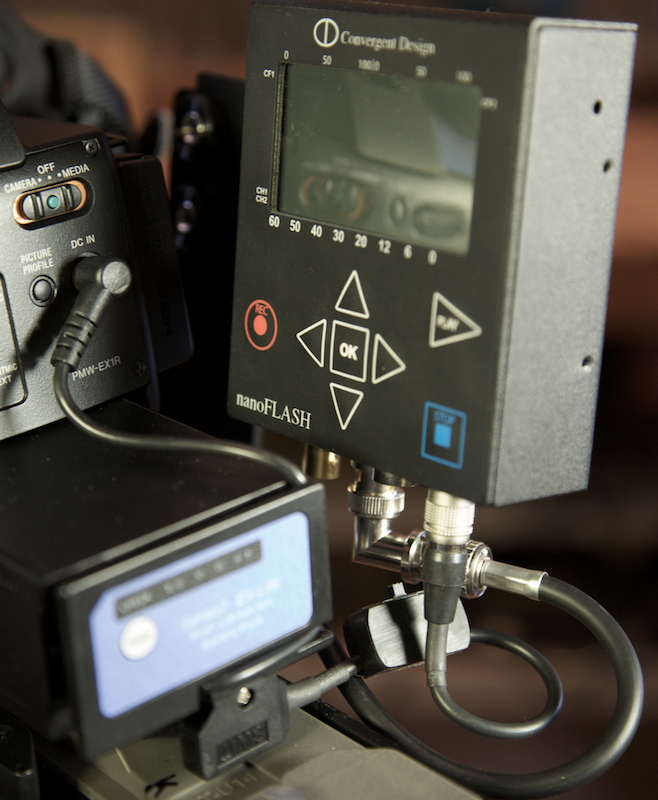

Below is a photo of the 90ļ connector attached to my NanoFlash arm on an EX1 with a Swit battery. You may also notice the small on/off switch on the NanoFlash power cable.

These parts are available at:EX1 Stronger Plates

Custom cables etc can be ordered by contacting me:
olof@westsideav.com
603.383.9283
Attached Thumbnails
Fragile display screen-90.jpg
Olof Ekbergh is offline   Reply With Quote
Old January 1st, 2010, 09:44 PM   #11
Inner Circle

Join Date: Dec 2002
Location: Augusta Georgia
Posts: 5,413
Dear Gints and Jeff,

Jeff and I disagree on this one, it is very easy for two reasonable people to have different opinions.

Gints, you mentioned that you had a zippered pouch for the nanoFlash.

Thus, it appears that you have to unzip the pouch everytime that you want to disconnect.

I was recommending that you add a short BNC cable to make this easier.

One could use a barrel connector, or a short Male BNC to Female BNC cable, which would eliminate the barrel connector.

Having the very flexible BNC cable outside of the zipperd pouch makes sense to me for ease of use.

Gints, We can make a custom Male BNC to Female BNC for you if you want to try it out.
__________________
Dan Keaton
Augusta Georgia
Dan Keaton is offline   Reply With Quote
Old January 1st, 2010, 10:08 PM   #12
Regular Crew

Join Date: Sep 2008
Location: Jacksonville, VT USA
Posts: 100
Olof,

What Dan is and has been suggesting is that you keep the connector attached during transport from job to job and that is where I have issues with his advice. Obviously during use you are going to have something connected.

I will mention though that 90 deg connectors are even more prone to failure than barrels. It's fine because it is convenient, but if you have problems it would be the first thing I remove.

Jeff
Jeff Silverman is offline   Reply With Quote
Old January 2nd, 2010, 06:12 AM   #13
Major Player

Join Date: Dec 2008
Location: British Isles
Posts: 415
Quote:
Originally Posted by Piotr Wozniacki View Post
Paul,

I'm trying to source the screen protector here in Poland, but haven't had much luck (this market is still not a very matured one). And, it's already one tiny scratch too late for me :)
Hi Piotr,

My Swit Monitor came with a couple of protectors. However, this company produces a wide range of sizes! No Scratches on any Screen Ever!.
Paul Inglis is offline   Reply With Quote
Old January 2nd, 2010, 06:21 AM   #14
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Paul,

Thanks for the link. BTW, have you applied the protection on you Swit monitor screen? If so, does at affect visibility in any adverse way?
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old January 2nd, 2010, 06:41 AM   #15
Major Player

Join Date: Dec 2008
Location: British Isles
Posts: 415
Quote:
Originally Posted by Piotr Wozniacki View Post
Paul,

Thanks for the link. BTW, have you applied the protection on you Swit monitor screen? If so, does at affect visibility in any adverse way?
Hi Piotr,

Yes I have put a protector on my Swit. It doesnít appear to have made any difference to the IQ, however without placing a second monitor (which I donít have) without a protector on for a side by side comparison it is difficult to ascertain. The protector came with the monitor when I purchased it.

I decided to put it on as Iím working on a project in a rather harsh outdoor environment. I am suffering gale force winds, rain and snow in salt air. The protector is quite easy to peel off and replace in due course.
Paul Inglis is offline   Reply
