4:3 title safe in 16:9 comp

Is there a way to show a 4:3 title safe in a 16:9 composition using FCP?

I'm doing a project that needs to be 16:9 with 4:3 title safe lower thirds.

Any ideas?

My sequence is HDV 1440x1080 (16:9) 30p.

Thanks.
Dan Quintero is offline   Reply With Quote
Old February 26th, 2009, 03:57 PM   #2
Major Player

Join Date: May 2006
Location: Toronto ON Canada
Posts: 731
Quote:
Originally Posted by Dan Quintero View Post
I'm doing a project that needs to be 16:9 with 4:3 title safe lower thirds.
What is it exactly you are trying to do, find the bottom edge or the side edge? Bottom should be the same, I believe. As far as the side edge goes, if you are delivering a 16:9 DVD (letterboxed for 4:3) then you don't need to worry about it being different.
__________________
Mike Barber
"I'm laughing to stop myself from screaming."
Mike Barber is offline   Reply With Quote
Old February 26th, 2009, 04:16 PM   #3
Major Player

Join Date: May 2003
Location: Phoenix, AZ
Posts: 327

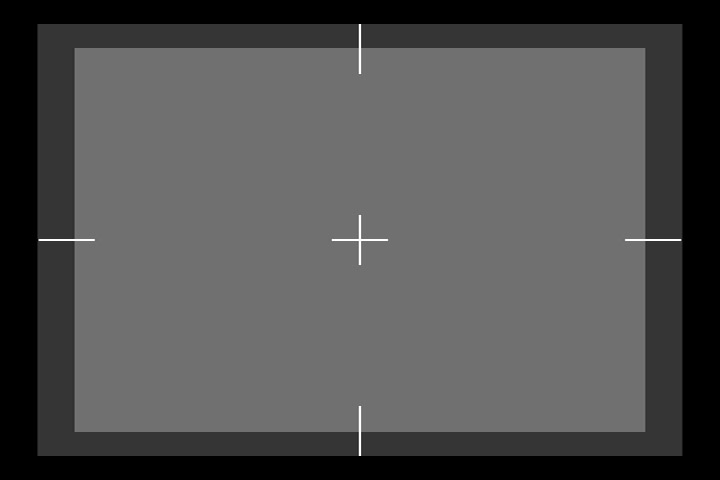

Here's a title/action safe still image I made awhile ago for SD (720x480). I would just place it on an upper video track (it should auto-scale to 225%), change the opacity to taste (maybe 30%), then turn the track on & off whenever you need a guide.

As Mike said, the top & bottom edges are the same, but this will give you a feel for the sides.

http://www.dvinfo.net/conf/attachmen...1&d=1235686038
Attached Thumbnails

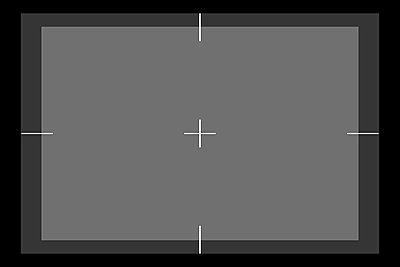

4:3 title safe in 16:9 comp-titleactiongriddv.jpg
Scott Anderson is offline   Reply With Quote
Old February 26th, 2009, 04:27 PM   #4
Regular Crew

Join Date: Feb 2009
Location: bend, oregon
Posts: 32
Quote:
Originally Posted by Mike Barber View Post
What is it exactly you are trying to do, find the bottom edge or the side edge? Bottom should be the same, I believe. As far as the side edge goes, if you are delivering a 16:9 DVD (letterboxed for 4:3) then you don't need to worry about it being different.
I shoot and edit in 16:9 but I want my titles to be 4:3 safe because...

..."Some Players Cheat!
Unfortunately, not all players handle 16:9 video correctly. The aspect ratio setting for
each track is stored in the track’s video title set file (vts_01_1.vob, for example). Most
DVD players read the setting and process it correctly, but some DVD players ignore this
setting and instead look at the aspect ratio setting of the video itself. For the most part,
this works out, but it can result in inconsistencies when playing the title on different
DVD players, particularly if you are not careful while encoding and authoring." - DVD Studio Pro Manual
Dan Quintero is offline   Reply With Quote
Old February 26th, 2009, 04:28 PM   #5
Regular Crew

Join Date: Feb 2009
Location: bend, oregon
Posts: 32
Quote:
Originally Posted by Scott Anderson View Post
Here's a title/action safe still image I made awhile ago for SD (720x480). I would just place it on an upper video track (it should auto-scale to 225%), change the opacity to taste (maybe 30%), then turn the track on & off whenever you need a guide.

As Mike said, the top & bottom edges are the same, but this will give you a feel for the sides.

http://www.dvinfo.net/conf/attachmen...1&d=1235686038
That works for me. Thanks.
