Old September 14th, 2010, 08:03 PM   #1
Major Player

Join Date: May 2008
Location: Easton, Maryland
Posts: 497
I need tips on how to properly light an interview with a black BG

Hello,

Recently I filmed an interview using a black background that I bought from backdrop alley.

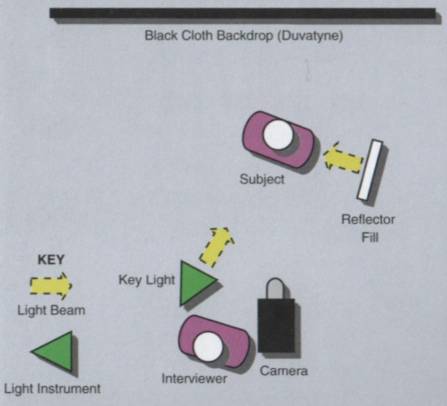

I used the light setup from a book I had recently read. See Lighting Setup image.

As you can see from the attached image labeled Noise.png, I had a lot of noise in the black backdrop. The camera I was using was the Panasonic HMC-150 at 1080-30p.

Fortunately, I have Magic Bullet and was able to improve the black backdrop as you can see from the Black_MagicBullet.png. However, I realize now the video seems too dark. But the client liked the look so that is good.

But in the future, I would like to shoot the interview without having to fix the background in post. Any suggestions on how to improve the black background effect without filming so much noise?

Any suggestions would be appreciated and if you know a better way to create this effect, I would love to hear what others are doing.

Thanks,

Simon
Attached Thumbnails
I need tips on how to properly light an interview with a black BG-noise.png   I need tips on how to properly light an interview with a black BG-black_magicbullet.png

I need tips on how to properly light an interview with a black BG-lighting-setup.jpg
Simon Zimmer is offline   Reply With Quote
Old September 14th, 2010, 08:18 PM   #2
Major Player

Join Date: Feb 2009
Location: Red Deer, Alberta
Posts: 215
The noise in the black back drop could just be your black level setting in your camera. I'm not familiar with your camera so I don't know if that is adjustable. One thing you could do is ad a back light to help separate your subject from the back ground. It will give separation and should help out when you use MB.
__________________
Calvin Bellows
www.exposureproductions.ca
Calvin Bellows is offline   Reply With Quote
Old September 14th, 2010, 08:23 PM   #3
Regular Crew

Join Date: Feb 2007
Location: Brooklyn NY
Posts: 128
You might try to control the light a little better, your "black" background showed up at about 20 IRE which puts it firmly in grey territory, your subjects shirt showed up at about 40 IRE. You need to get more separation between your actor and your background. You can try putting the lights up higher to control the background spill or use flags, even moving the subject further from the background and shooting long lens will help you. Once you get the background below 5 IRE you wont have as much trouble with noise.

Good Luck.
Charles Hurley is offline   Reply With Quote
Old September 14th, 2010, 08:25 PM   #4
Trustee

Join Date: Oct 2009
Location: Mesa, AZ
Posts: 1,384
The 150 is very susceptible to noise if the black level is not set. I'll try to find the page in the manual that describes how and how often to do it.

Noise used to drive me nuts til I figured this out.
__________________
A7RII, C100, 1Dx, 5Dmk3, 70D, Kessler goodies, Adobe, Pro Tools and more!
Robert Turchick is offline   Reply With Quote
Old September 14th, 2010, 08:30 PM   #5
Trustee

Join Date: Oct 2009
Location: Mesa, AZ
Posts: 1,384
Found this in another thread...

Denny Lajeunesse
Major Player
*
Join Date: Jan 2004
Location: Kelowna, BC [Canada, Eh!]
Posts: 229
To black balance the camera you hold the white balance button on the front of the camera down till you see ABB on the screen, which will go black as the camera closes the iris to balance black. Lasts about 2 seconds.

Panasonic recommends this after switching resolutions etc. It's in the manual somewhere. (Am I the only one that wishes panasonic had an index in their manuals?)
__________________
A7RII, C100, 1Dx, 5Dmk3, 70D, Kessler goodies, Adobe, Pro Tools and more!
Robert Turchick is offline   Reply With Quote
Old September 14th, 2010, 08:43 PM   #6
Major Player

Join Date: May 2008
Location: Easton, Maryland
Posts: 497
wow!

Geez, you guys are fasttttttttttt! :)

Lots of good advice. I did not adjust the black level. I had it on automatic settings.:(

I agree I should move the subject a bit further away. In hindsight, he was definitely too close which created a shadow behind him too.

I will have another shoot in October using the same setup. Thanks for the tips. I will definitely try them out at home and see if that improves the issues I had.

Thanks!

Simon
Simon Zimmer is offline   Reply With Quote
Old September 15th, 2010, 02:28 AM   #7
Inner Circle

Join Date: Feb 2006
Location: Belfast, UK
Posts: 4,121
You need to use manual exposure with a black background and set the exposure for the subject's face (or where ever you want the correct exposure to be).

Back lighting depend on your personal style, but it does give separation.

It helps to keep stray light off the black drap you're using as a background.
Brian Drysdale is offline   Reply With Quote
Old September 15th, 2010, 09:48 AM   #8
Major Player

Join Date: May 2008
Location: Easton, Maryland
Posts: 497
Yes, you are correct.

I should have known better. All makes sense. I look forward to trying out all these good tips.

thanks,

Simon
Simon Zimmer is offline   Reply With Quote
Old October 12th, 2010, 08:21 PM   #9
Major Player

Join Date: Mar 2006
Location: Mount Rainier, MD
Posts: 428
A backlight would be good to separate the subject from the background. I've been using a Comer 1800 LED for this lately as it allows dimming and is light so it's easy to boom.
Brett Sherman is offline   Reply
