Old December 15th, 2010, 05:37 PM   #1
Regular Crew

Join Date: May 2010
Location: Riga,Latvia
Posts: 129
Croping Full HD for Musiv Video look.

Hey.



Im interested in how to set up crop for a 1920x1080 fotage so that it has those music video Borders.


YouTube - Eminem - Not Afraid

Like we can see here.

I did load this video on full hd, then went full screen, took a screenshot. And then put it in vegas and adjusted the crop like so. But something seems a bit off.

As i compared, to get the look as in the Eminem's vid, i need to crop it with 705 height with "move in y only" and "size about center" on.

Could some one clarify this for me please?

Edited: I downloaded Eminem- Not Afraid(full hd) put it into time line and now im geting a 770 height. Interesting
Gustavs Repse is offline   Reply With Quote
Old December 15th, 2010, 08:14 PM   #2
Trustee

Join Date: Oct 2009
Location: Central Coast Australia
Posts: 1,008
There is a much easier way to get the 2.39:1 look,
I did this for ages before I got First Light which has a framing preset to do it for you.
You dont want to be mucking about with aspects and cropping,
just grab your screen shot you said you took, drop a black solid media generator on the track above,
lower the opacity of the black to 50%,
open its pan crop window and select mask,
draw a mask along the edges of the black framing to match the framing of the original clip, just 4 mask anchors in a square,
When its neat, lift the opacity back to full.
You are done, now solo your new black border track, take a snapshot and save to file as a PNG
Now you always have it ready to drop over any video to give it that 2.39:1 look.
:)
__________________
http://vimeo.com/livewebvideo
Gerald Webb is offline   Reply With Quote
Old December 16th, 2010, 03:10 AM   #3
Regular Crew

Join Date: May 2010
Location: Riga,Latvia
Posts: 129
Ye, sounds lot simpler than croping each individual shot.

But the problem with our method is that you cant rly changee the area ur croping. You can have ur actors head cut off totaly and cant do a lot about it as i undarstand. But iwht pan crop you can move the screen up and down expose the right bits.
Gustavs Repse is offline   Reply With Quote
Old December 16th, 2010, 03:30 AM   #4
Trustee

Join Date: Oct 2009
Location: Central Coast Australia
Posts: 1,008

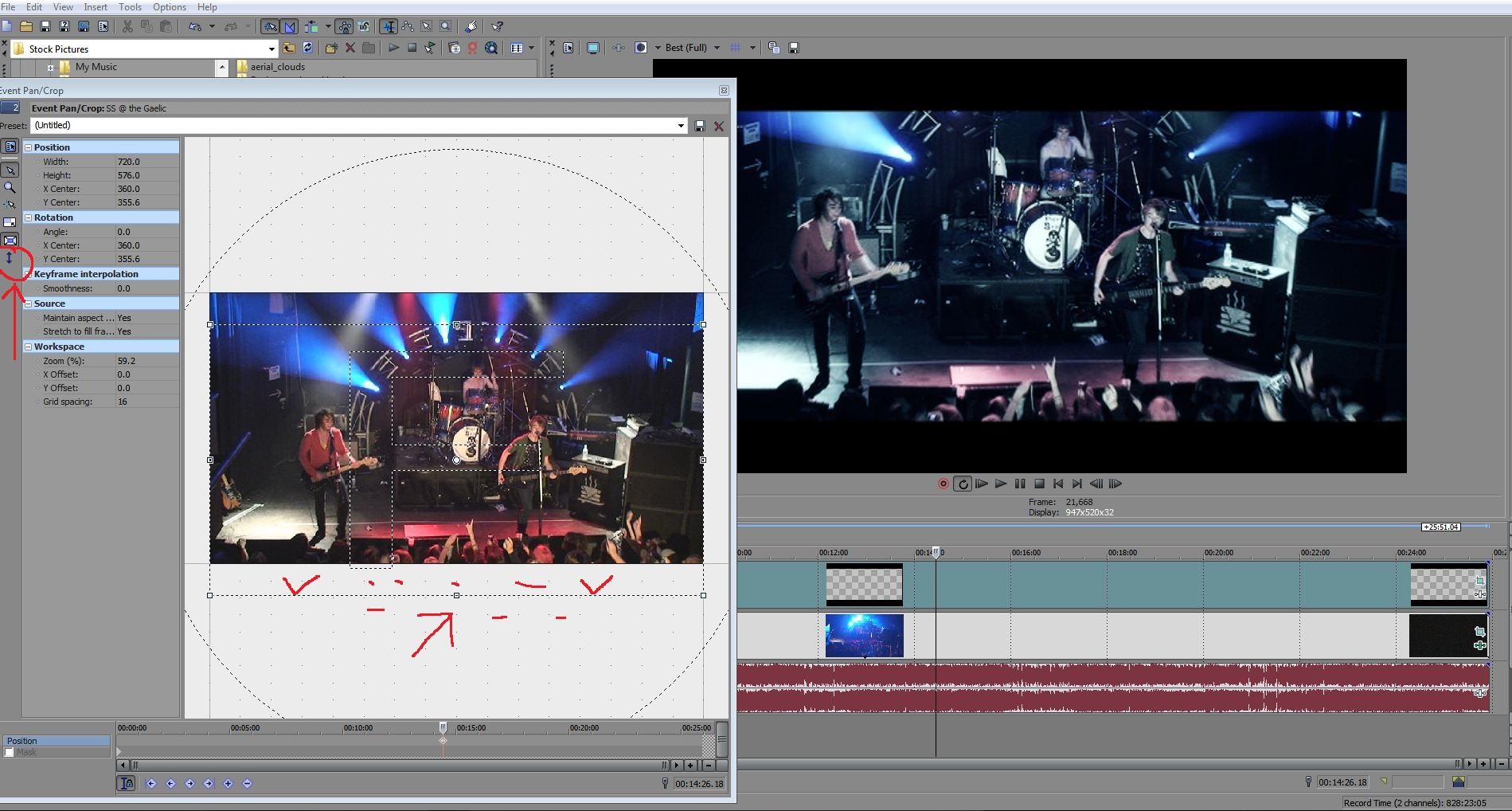

See the attached pic, you can do exactly what you want to do very easily.
Attached Thumbnails
Croping Full HD for Musiv Video look.-vegas-snip-2.jpg
__________________
http://vimeo.com/livewebvideo
Gerald Webb is offline   Reply With Quote
Old December 16th, 2010, 05:25 AM   #5
Regular Crew

Join Date: May 2010
Location: Riga,Latvia
Posts: 129
Thats exactly what im doing :) , for each clip individualy. W/o the Pic, right now, but i defenetely see where it will become a lot more handy latter on.

I gues i have to bouncy shots for ur method to give me a great benefit. Other than that, i do go Pan/crop for each clip and adjust the height of 781 and then adjust the position on Y axis with keyframes. :)


Can you tell me what Height you would get if you would crop the height on y axis from "centered" position to achieve those borders?


Edited: Ust noticed that the Borders i put with pan/crop dont effect the transition parts. Transition like "Soft Flash" simply owerrides the borders.

Last edited by Gustavs Repse; December 16th, 2010 at 06:06 AM.
Gustavs Repse is offline   Reply With Quote
Old December 16th, 2010, 06:43 AM   #6
Regular Crew

Join Date: May 2010
Location: Riga,Latvia
Posts: 129
Quote:
Originally Posted by Gerald Webb View Post
There is a much easier way to get the 2.39:1 look,
I did this for ages before I got First Light which has a framing preset to do it for you.
You dont want to be mucking about with aspects and cropping,
just grab your screen shot you said you took, drop a black solid media generator on the track above,
lower the opacity of the black to 50%,
open its pan crop window and select mask,
draw a mask along the edges of the black framing to match the framing of the original clip, just 4 mask anchors in a square,
When its neat, lift the opacity back to full.
You are done, now solo your new black border track, take a snapshot and save to file as a PNG
Now you always have it ready to drop over any video to give it that 2.39:1 look.
:)
I gues i dont get it how to do it.

I dont have a good screan shot, and i dont know how to make one . Yes, Msoft Paint does confuse me :/
Anyway, i did take a full hd video, croped the borders with 781 height (which is the look im looking for, compared to the Eminems vid) and then put a black solid on top of it. I croped the Black solid aswell with 781 height, lovered the opacity, went pan/crop and clicked mask. All i got wasa black square with no guid lines. Well, im missing something . And to the black solid, do i mask out the midle big square or the two smaller squares that are black ?
Gustavs Repse is offline   Reply With Quote
Old December 16th, 2010, 10:45 AM   #7
Regular Crew

Join Date: May 2010
Location: Riga,Latvia
Posts: 129
Crackt it :)


Thanks Gerald, got it solved.
Gustavs Repse is offline   Reply
