Old March 22nd, 2011, 10:02 AM   #1
Major Player

Join Date: Feb 2009
Location: Philadelphia, pa
Posts: 705
? about Chroma Key

Are the chromakey abilites the same in both Movie Studio HD and the professional version of Vegas? I'm tring to determine if the chroma key abilites are more robust and offer more options then the Movie Studio version.
Kevin Lewis is offline   Reply With Quote
Old March 22nd, 2011, 10:07 AM   #2
Sponsor: JET DV

Join Date: Dec 2001
Location: Southern Illinois
Posts: 7,873
Re: ? about Chroma Key

I believe they are the same. Many prefer using a more powerful keyer, though, such as those found in NewBlueFX or Boris.
__________________
Edward Troxel [SCVU]
JETDV Scripts/Excalibur/Newsletters
Edward Troxel is offline   Reply With Quote
Old March 22nd, 2011, 01:57 PM   #3
Major Player

Join Date: Feb 2009
Location: Philadelphia, pa
Posts: 705
Re: ? about Chroma Key

Ed, I just looked at the New Blue fx site. The Chroma key is 99.00 and comes with other features. The price seems low, do you think that the results will be much better than what Vegas can do?
Kevin Lewis is offline   Reply With Quote
Old March 22nd, 2011, 02:09 PM   #4
Inner Circle

Join Date: May 2005
Location: Windsor, ON Canada
Posts: 2,765
Re: ? about Chroma Key

The price seems low, do you think that the results will be much better than what Vegas can do?

Don't let the low price fool you.
I have read only good things about the NewBlue keyer and yes, it is much better than the one in Vegas.
Mike Kujbida is offline   Reply With Quote
Old March 22nd, 2011, 02:18 PM   #5
Regular Crew

Join Date: Dec 2009
Location: Encinitas California
Posts: 121
Re: ? about Chroma Key

almost all my work involves CK and I've used New Blue extensively. I much prefer it to the native Vegas capabilities.

However, I just recently purchased Boris CC7, and it is so superior that I'll never use New Blue again. Pricey, but you won't regret it if you want good quality keys.

You can see a sample that I recently put on the web at physics. The CK is the talking head shot that begins at 1-min. 16 seconds into the video.

The New Blue CK was used for the waist-up shots. It's not bad; but because of a dark halo to the left, I put a semi-dark background behind the New Blue CK.

In order to assess the CK quality, be sure to click the Full Screen button.
Larry Reavis is offline   Reply With Quote
Old July 5th, 2011, 09:34 PM   #6
Inner Circle

Join Date: Jan 2006
Posts: 2,290
Re: ? about Chroma Key

Just wanted to throw out a plug for the keyer in Boris. It puts the Vegas keyer to shame and functions from within Vegas. Great tool.
Brian Luce is offline   Reply With Quote
Old July 6th, 2011, 08:59 PM   #7
Regular Crew

Join Date: Aug 2010
Location: Wilmington, DE
Posts: 129
Re: ? about Chroma Key

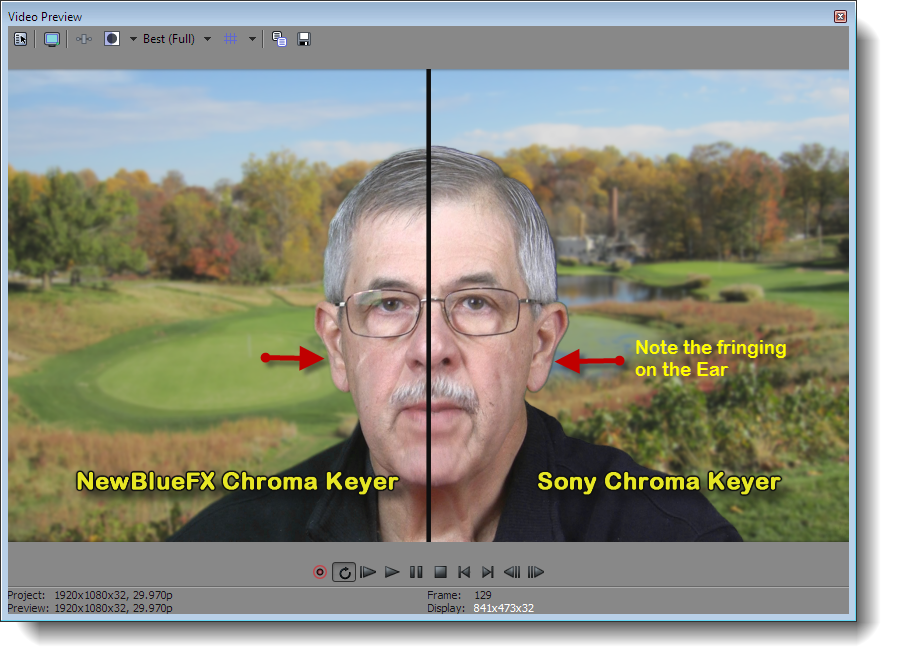

fwiw, here's a comparison of the Sony Chroma Keyer vs. the NewBlueFX Chroma Keyer.

...Jerry
Attached Thumbnails
? about Chroma Key-chromakeycompare.png
Jerry Amende is offline   Reply With Quote
Old July 8th, 2011, 04:23 AM   #8
Inner Circle

Join Date: Jan 2006
Posts: 2,290
Re: ? about Chroma Key

Quote:
Originally Posted by Jerry Amende View Post
fwiw, here's a comparison of the Sony Chroma Keyer vs. the NewBlueFX Chroma Keyer.

...Jerry
Big improvement Jerry! I think NewBlue is more affordable than Boris. But still, anyone seeking to supercharge their Vegas, consider Boris.
Brian Luce is offline   Reply With Quote
Old July 11th, 2011, 10:38 AM   #9
New Boot

Join Date: Jun 2011
Location: Miami
Posts: 6
Re: ? about Chroma Key

One more endorsement for Boris.

There is a complicated workflow in Vegas, stringing together a bunch of FX to key with the built-in tools. I wasted a few hours doing that. Then wound up buying BCC and accomplished even better results in a few minutes. The price is steep, but keep an eye for deals, especially during big events. NAB sale was almost half price.
Brian Wagner is offline   Reply With Quote
Old July 12th, 2011, 08:48 AM   #10
Major Player

Join Date: Aug 2004
Location: Clermont, FL.
Posts: 941
Re: ? about Chroma Key

Boy do I have to fight to get a good key no matter which software I use.

Here's my assessment of the three options that I know about: Vegas, New Blue and BCC7

Vegas keyer: solid key in the middle, but a nasty dark halo around the edges that you can't get rid of.

New Blue: Nice around the edges for the most part, but it isn't precise enough for things like feathered hair, and by the time you really tune in the edges, bits of the middle are disappearing.

BCC7- Gorgeous around the edges (including feathered hair), but when you view it moving the edges look like they are crawling with motion. I was initially so exited, then disappointed with this keyer.

I'm sure that in a studio with a larger green screen area and bigger lights I would have better luck, but for what I do, the only thing that is practical is a little pop out chromakey screen and small luggable lights.

Anyway, the way i get around these limitations is to do it in two passes. I use the stock Vegas and put the action against a generated pure green background. This gives me an image with a black halo around it against a solid green. At least there are no holes in the middle.

I take that image and run it through the New Blue keyer using the choke function to get rid of the halo and put that image over the new background. It looks great.

Here is a bit of a promo for a faith healer that I did this way. In this case it would have destroyed the effect if the dubbed in background was obvious.

Resurrection Weekend Miracle Services in Tampa Bay

I could only get that good a key from my two pass approach.
Laurence Kingston is offline   Reply With Quote
Old July 14th, 2011, 09:05 AM   #11
Inner Circle

Join Date: Jan 2006
Posts: 2,290
Re: ? about Chroma Key

Ouch that is disappointing! I've only done a little testing so far with Boris.
There is a lengthy Boris tutorial out there, I'll try and link it, it demonstrates keying using a variety of the tools in Boris -- not just the chroma key tool.
Brian Luce is offline   Reply With Quote
Old July 14th, 2011, 10:09 PM   #12
Inner Circle

Join Date: Nov 2005
Location: Elk Grove CA
Posts: 6,838
Re: ? about Chroma Key

In a thread I started about Vegas and what needs to be added to it, some one turned me on to Lightworks. Definitely a bit of a throwback in terms of workflow, and I was not liking it too much until I tried the keyer. If only for that purposed it may be a good find and worth learning about. Check it out here, and don't forget to download instruction manuals and even look in Vimeo or Youtube for tutorials.

Lightworks
__________________
Chris J. Barcellos
Chris Barcellos is offline   Reply With Quote
Old July 17th, 2011, 07:06 PM   #13
Trustee

Join Date: Oct 2009
Location: Rhinelander, WI
Posts: 1,209
Re: ? about Chroma Key

Quote:
Originally Posted by Chris Barcellos View Post
some one turned me on to Lightworks.
Well, I just checked your link and it says it requires a codec (Matrox VFX) which does not exist. Apparently it used to exist, but the link to download it does not work. And a quick web search shows it has not worked for at least four months!
Adam Stanislav is offline   Reply With Quote
Old July 19th, 2011, 05:05 PM   #14
Inner Circle

Join Date: Nov 2005
Location: Elk Grove CA
Posts: 6,838
Re: ? about Chroma Key

Download the program, and I believe it provides a link for what you need during download. I just download it all about 3 weeks ago.

Correction: link is provided during installation, if I recall right.
__________________
Chris J. Barcellos

Last edited by Chris Barcellos; July 19th, 2011 at 05:06 PM. Reason: correction of information.
Chris Barcellos is offline   Reply With Quote
Old July 19th, 2011, 08:01 PM   #15
Trustee

Join Date: Oct 2009
Location: Rhinelander, WI
Posts: 1,209
Re: ? about Chroma Key

Quote:
Originally Posted by Chris Barcellos View Post
Download the program
Thanks, but Iíll pass for now. Their web site is very vague on what the software does and you have to register to get the download. That always raises my antennae. I already get tons of spam every day, so I refuse to give out my email address unless Iím convinced itís worth it.

As for chroma keyers, there is no such thing as the best. Anyone who wants to do chroma keying owes it himself to read Digital Compositing for Film and Video by Steve Wright. It is much more involved than using a keyer.
Adam Stanislav is offline   Reply
