June 7th, 2010, 06:14 AM | #16 |
Inner Circle
Join Date: Sep 2007
Location: Cambridge UK
Posts: 2,853
|
Rycote Invision Hot Shoe Shock Mount - Pictures
Well the Rycote Invision Video Hot Shoe Shock Mount arrived about 5 minutes ago. Just tried mounting the NTG-3 and it's WS7 on it and seems pretty good - only a hint of a droop with the weight of all that hanging out front. I prefer the design and it seems very rugged yet wonderfully isolating for the microphone - which I'm sure experience will confirm.

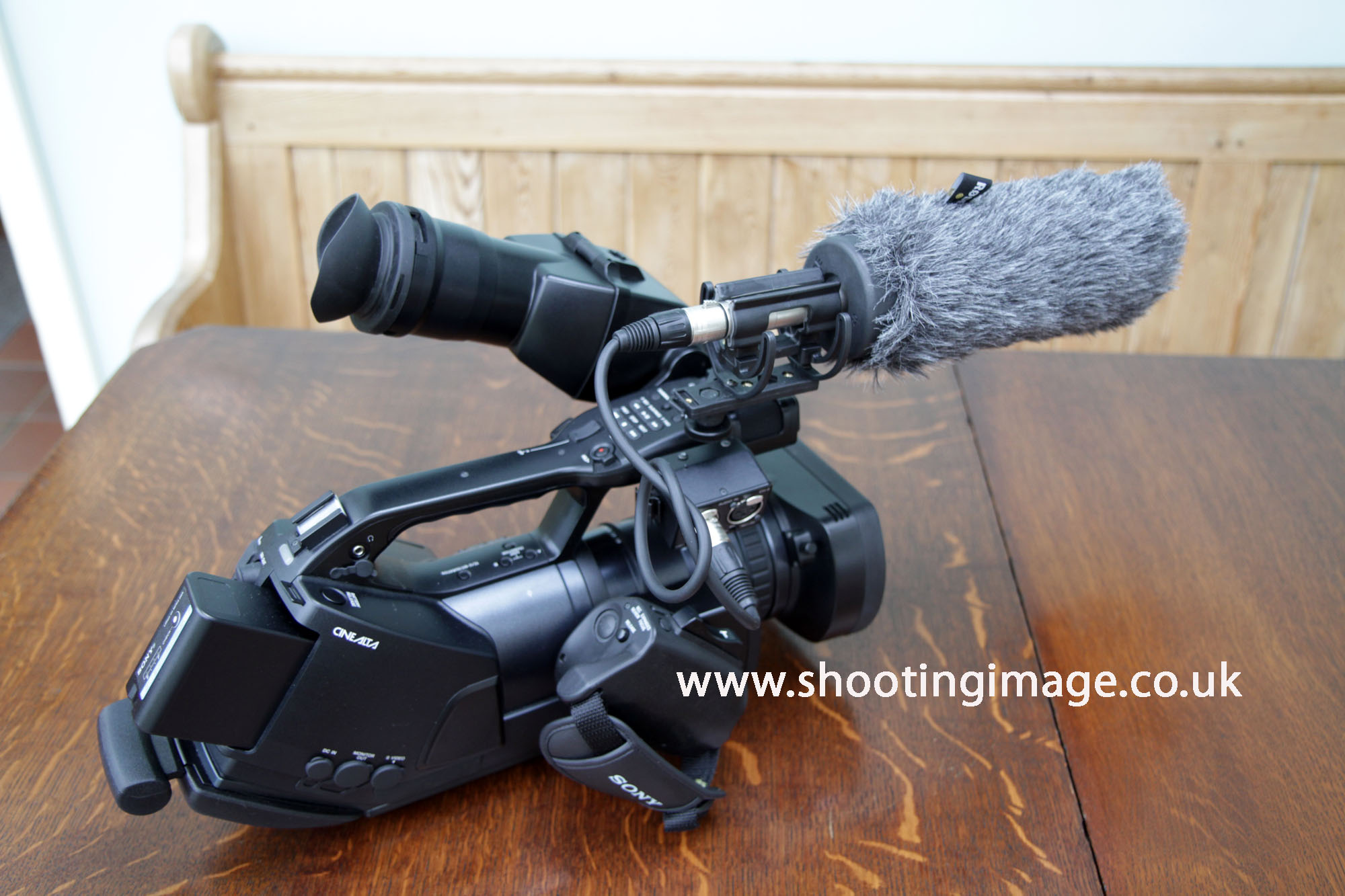

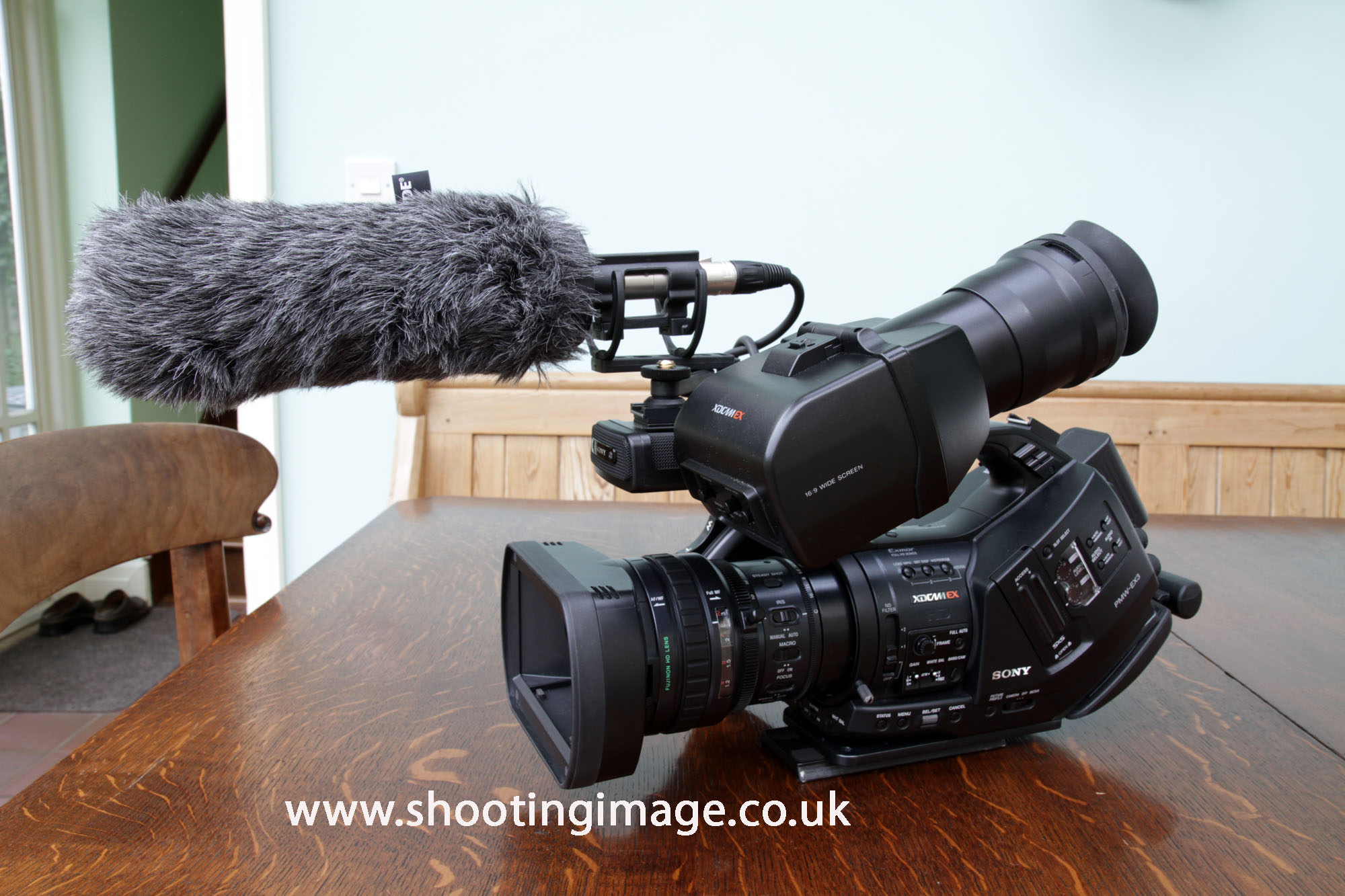

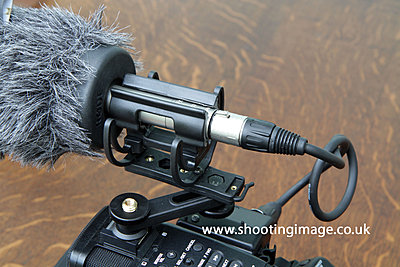

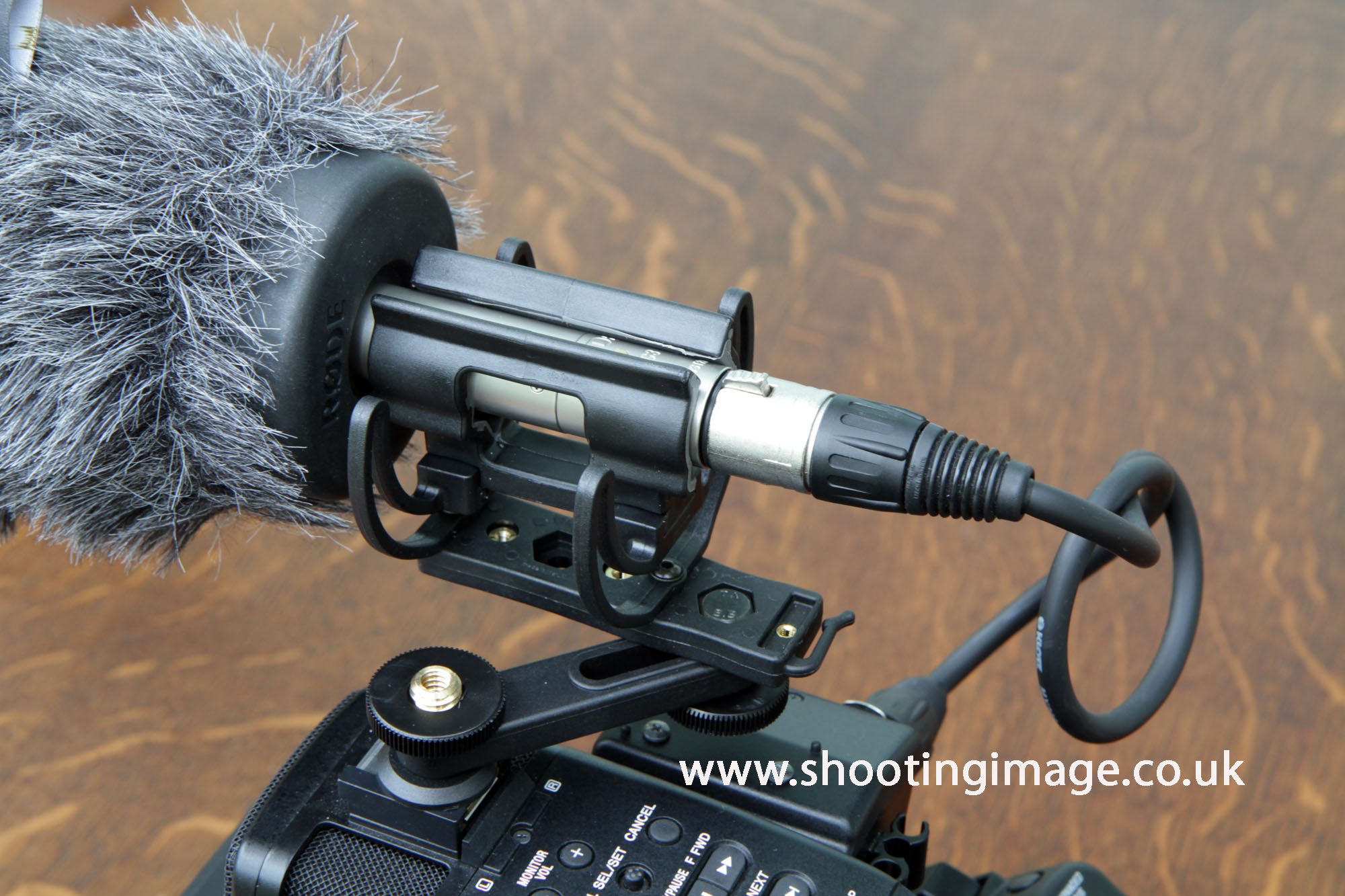

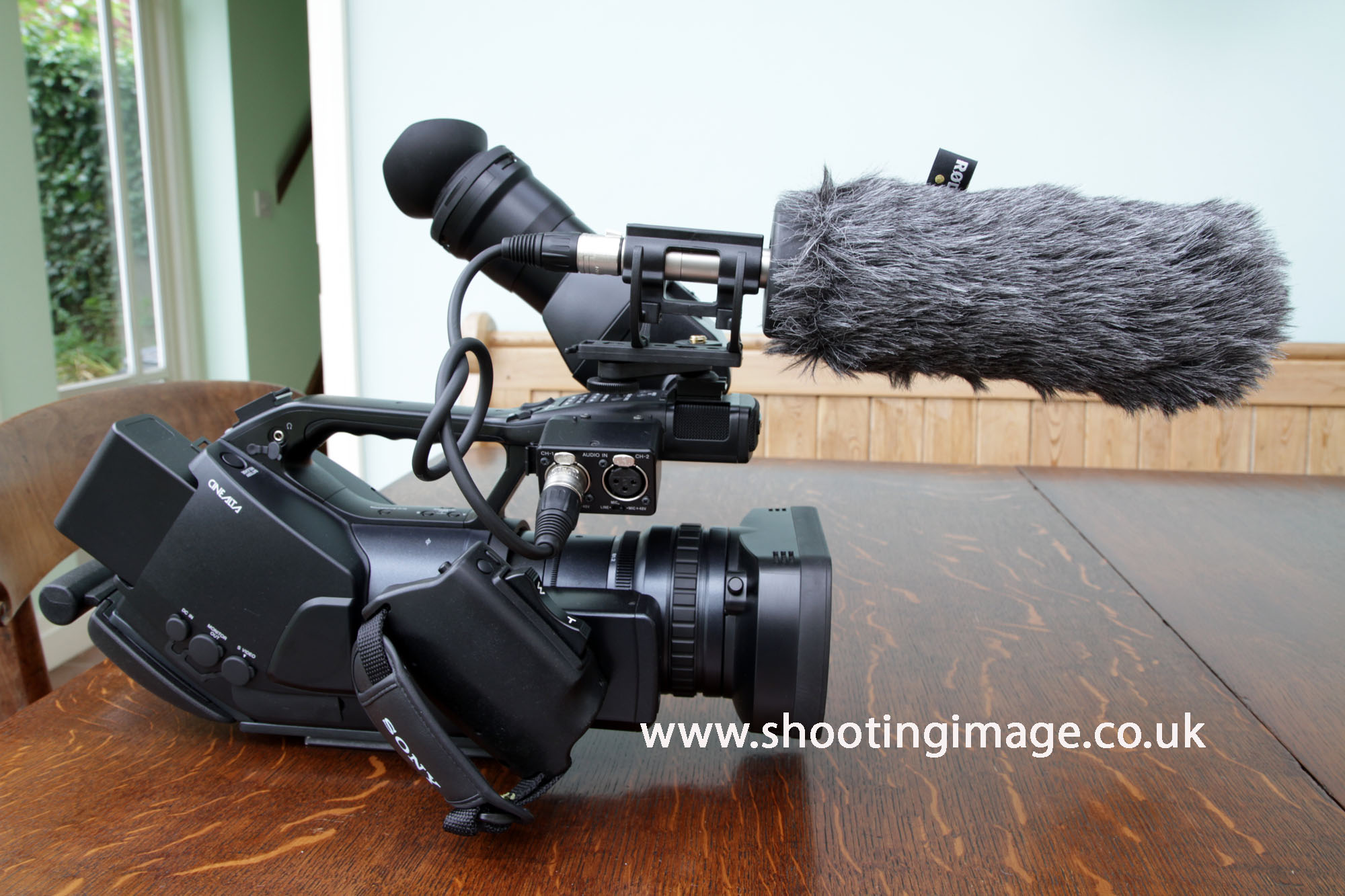

I'll post some pictures shortly - if I get time! EDIT: Snaps below.
__________________
Andy K Wilkinson - https://www.shootingimage.co.uk Cambridge (UK) Corporate Video Production Last edited by Andy Wilkinson; June 7th, 2010 at 06:58 AM. Reason: Adding snaps |
June 7th, 2010, 07:12 PM | #17 |
Major Player
Join Date: Nov 2006
Location: Northern New Jersey
Posts: 391
|
called Rode today b/c I had a little time - they said they're sending me out a replacement SM3 .. hopefully the part is better on the new ones (called the # on their support page on their US site) ... we'll see when it arrives, I called months ago but no shock mount .. I'll post when it does come in.... at least they didn't give me any difficulty when I called, just took my name & address and said they'd send it out
|
June 16th, 2010, 12:31 PM | #18 |
Major Player
Join Date: Nov 2006
Location: Northern New Jersey
Posts: 391
|
replacement arrived from Rode .. entire new SM3 shockmount ... that's excellent service!!
|
September 25th, 2010, 12:03 AM | #19 |
Inner Circle
Join Date: Sep 2007
Location: Cambridge UK
Posts: 2,853
|
UPDATE: I've posted more information about the Rycote Invision Video here (rather than extend a thread that has the Rode NT-SM3 as its title).
http://www.dvinfo.net/forum/all-thin...ml#post1572639
__________________
Andy K Wilkinson - https://www.shootingimage.co.uk Cambridge (UK) Corporate Video Production |
September 25th, 2010, 08:17 AM | #20 | |
Major Player
Join Date: Oct 2008
Location: Oxfordshire, UK
Posts: 976
|
Quote:
I like your suggestion of the little spring. Regarding your complaint about the clip - I use the Rycote S-series XLR tail with all my mounts. Vibration easily travels up the cable to the mic. and the thin and flexible S-series tail effectively eliminates this noise - and the clip is perfect for that cable - retails at only £15 +VAT in the UK so is pretty cheap.
__________________
John Willett - Sound-Link ProAudio and Circle Sound Services President: Fédération Internationale des Chasseurs de Sons |
|
September 25th, 2010, 07:12 PM | #21 |
Major Player
Join Date: Apr 2009
Location: Arcata, Ca
Posts: 750
|
I see you've already done it, but I was going to suggest you write Rode. I did the same thing and they sent me out a new one, and didn't ask for the old one.
I also recently got the Rycote Universal Camera kit for my EX1 and NTG-3, it seems good, though I don't like the drooping in the front. I haven't tested it yet. I plan on making a video. The price is cheaper than a mount and a softie, yet it's got more mounting options and cuts the wind better. YouTube - Rycote
__________________
My Work: http://www.youtube.com/ChadWork1 Sony FS5 :: Panasonic GH4 :: Sony PMW-EX1 :: FCPx :: AT4053b :: Rode NTG-3, |
November 21st, 2013, 08:04 AM | #22 |
Inner Circle
Join Date: Nov 2004
Location: Baltimore, MD USA
Posts: 2,337
|
Re: Another Rode NTSM3 Shock Mount Broken
I helped Rycote when they were developing the Lyre for the TLM 103. From that, I learned that the mass of the microphone has to be taken into careful consideration when designing the Lyre specs. There's a sweet spot where the suspension works very, very well. If the mic is too heavy or two light, it doesn't work anywhere near as well. Choose carefully for best results.
Regards, Ty Ford |
November 22nd, 2013, 12:35 PM | #23 |
Trustee
Join Date: Jun 2007
Location: Toronto
Posts: 1,414
|
Re: Another Rode NTSM3 Shock Mount Broken
this is hilarious:)
I just today took a look at this thread, i had the same mount and after about a month of use it got broken at the same very spot as it is on the first picture:))
__________________
I love this place! |
November 23rd, 2013, 11:34 AM | #24 |
Major Player
Join Date: Oct 2008
Location: Oxfordshire, UK
Posts: 976
|
Re: Another Rode NTSM3 Shock Mount Broken
Ahh - so did I - I went to some meetings there with Chris Woolf and Hugh Robjohns and the Rycote crowd.
__________________
John Willett - Sound-Link ProAudio and Circle Sound Services President: Fédération Internationale des Chasseurs de Sons |
November 28th, 2013, 11:28 AM | #25 |
Regular Crew
Join Date: Feb 2006
Location: Eastern Tennessee USA
Posts: 28
|
Re: Another Rode NTSM3 Shock Mount Broken
I'm late to this discussion as well, but wanted to confirm I've experienced the same breakage issue with the Rode shock mount. There is a design deficiency with the plastic material used in the pivot joint. Rode needs to consider changing the material spec. It could be a decent mount. In its current state I would advise using something different. I'm using the Rycote Mike (first page) referenced and it is good except its hard to get tightened enough to stay put. Ended up using some small o-rings to make it grip better.
|
| ||||||
|
