Old December 9th, 2020, 06:38 PM   #1
Major Player

Join Date: Apr 2003
Location: mahopac, NY
Posts: 293
New XF400/405 firmware...CLOG3!

FYI...version 1.0.5.0 opens up CP options, including CLOG-3.
__________________
www.AbsoluteMotionVideo.com
Mike Meyerson is offline   Reply With Quote
Old December 10th, 2020, 07:02 PM   #2
Major Player

Join Date: Oct 2005
Location: Canada
Posts: 421
Re: New XF400/405 firmware...CLOG3!

Appears that the XA50 and XA55 also get CLog3 along with EOS Standard and Production Camera color matrices, with Firmware 1.0.1.0

https://www.canon.co.uk/press-centre...on-camcorders/

The HF-G50 and HF-G60 also gain some of the new 'Custom Picture' feature settings for fine tuning sharpness, saturation, skin detail, and noise reduction. And all six models receive improved auto-focus accuracy on zoom.

No updates for the GX10 though, which I guess signals that Canon are phasing it out.

Edit: Actually, checking the updated online manual (for firmware 1.0.1.0) it appears that the HF-G60 does also get CLog3 and the EOS and Production Camera color matrices.

I nearly sprang for a GX10 in the summer when B&H were offering refurbished units for quite a bit less then the HF-G60. Glad I didn't now.

Last edited by Bryan Worsley; December 10th, 2020 at 10:57 PM.
Bryan Worsley is offline   Reply With Quote
Old December 13th, 2020, 11:05 PM   #3
Major Player

Join Date: Oct 2005
Location: Canada
Posts: 421
Re: New XF400/405 firmware...CLOG3!

No onboard waveform/parade monitor on any of these models though, as far as I can tell from the updated manuals.

Edit:
Quote:
Originally Posted by Bryan Worsley View Post
....the new 'Custom Picture' feature settings for fine tuning sharpness, saturation, skin detail, and noise reduction.
Also, contrary to that press release, I don't see any 'Skin Detail' (softening filter) settings in the CP options. The available options are:

Gamma Curve/Color Space
Color Matrix
Black (Pedestal, R,G,B)
Black Gamma
Low Key Saturation
Knee
Sharpness
Noise Reduction
Color Matrix Tuning
White Balance
'Over 100%" - option to pass-through, clip or compress 'super-white' data.

Last edited by Bryan Worsley; December 14th, 2020 at 08:29 PM.
Bryan Worsley is offline   Reply With Quote
Old December 23rd, 2020, 09:38 PM   #4
Tourist

Join Date: Nov 2015
Location: Detroit, MI, USA
Posts: 2
Re: New XF400/405 firmware...CLOG3!

Anyone have any luck getting 100% zebras to work? I'm not sure how I'm suppose to shoot with CLog3 if I can't see what's clipping...
Al Dolega is offline   Reply With Quote
Old December 31st, 2020, 02:25 AM   #5
Tourist

Join Date: Nov 2015
Location: Detroit, MI, USA
Posts: 2
Re: New XF400/405 firmware...CLOG3!

Just as an FYI, in case anyone else has this problem, I discovered that you have to turn the View Assist feature on, when in CLog3, for the 100% zebras to work properly.
Al Dolega is offline   Reply With Quote
Old January 3rd, 2021, 12:43 PM   #6
Major Player

Join Date: Oct 2005
Location: Canada
Posts: 421
Re: New XF400/405 firmware...CLOG3!

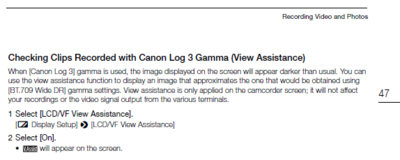

That's interesting - the User Manual states that View Assist displays an image on screen that 'approximates to the one that would be obtained using BT.709 Wide DR gamma settings' (see attachment).

In the absence of a WFM, and for run-&-gun, I guess that's the best you can hope for.

Presumably Canon assume that people would use an external WFM for setting exposure when shooting CLog3 under controlled lighting conditions.
Attached Thumbnails
New XF400/405 firmware...CLOG3!-xf400-view-assistance.png
Bryan Worsley is offline   Reply
