crop an sd clip for pip in hd video

Well Its been ages sense Ive been here. Im trying to do something I did in the past and darn if I can figure it out today.

I have a sd wide screen shot that I want to place in my hd video shrunken up to go in top left corner.
I get the two black bars on the side of the video and I want to cut them out mask them or something so I just seen the widescreen video with out the bars.

Thank you for taking the time.
__________________
DATS ALL FOLKS
Dale W. Guthormsen
Dale Guthormsen is offline   Reply With Quote
Old August 24th, 2020, 03:09 PM   #2
Regular Crew

Join Date: Feb 2015
Location: Lafayette, Colorado
Posts: 84
Re: crop an sd clip for pip in hd video

Perhaps combine the pan/crop tool with the Cookie Cutter plugin.
Patrick Tracy is offline   Reply With Quote
Old August 24th, 2020, 06:14 PM   #3
Regular Crew

Join Date: Aug 2012
Location: Northwest Chicago, IL
Posts: 59
Re: crop an sd clip for pip in hd video

you might have to adjust the video to be the same aspect ratio as your project... in the Pan/Crop Tool, right click on the image and select "Match Output Aspect".
Roberto Diaz is offline   Reply With Quote
Old August 24th, 2020, 06:49 PM   #4
Regular Crew

Join Date: Feb 2015
Location: Lafayette, Colorado
Posts: 84
Re: crop an sd clip for pip in hd video

Another way to do it is to use the pan/crop tool to crop it then render to a new track.

Edit: Then pan/crop it again to the desired size and position.

Last edited by Patrick Tracy; August 24th, 2020 at 11:14 PM.
Patrick Tracy is offline   Reply With Quote
Old August 24th, 2020, 07:59 PM   #5
Major Player

Join Date: Jun 2003
Location: Fredericksburg, VA
Posts: 282
Re: crop an sd clip for pip in hd video

pan/crop the clip to eliminate the black bars,
then use track motion to resize & position it on the screen?

PIP would be on a track above the full screen clip.
Maybe.
Sam Houchins II is offline   Reply With Quote
Old August 25th, 2020, 11:29 PM   #6
Trustee

Join Date: Apr 2008
Location: Sydney Australia
Posts: 1,233
Re: crop an sd clip for pip in hd video

Quote:
Originally Posted by Dale Guthormsen View Post
I want to cut them out mask them or something so I just seen the widescreen video without the bars.

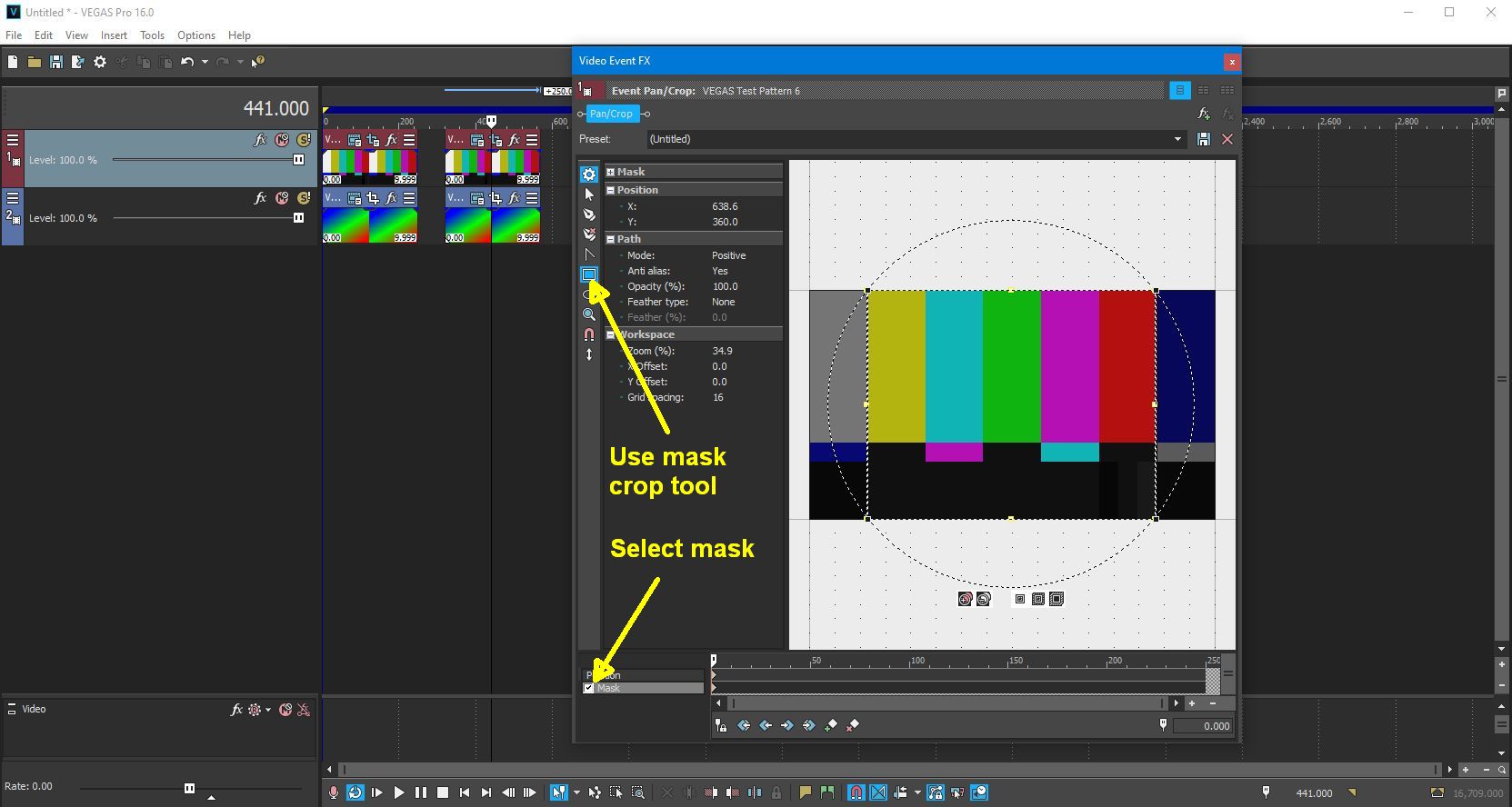

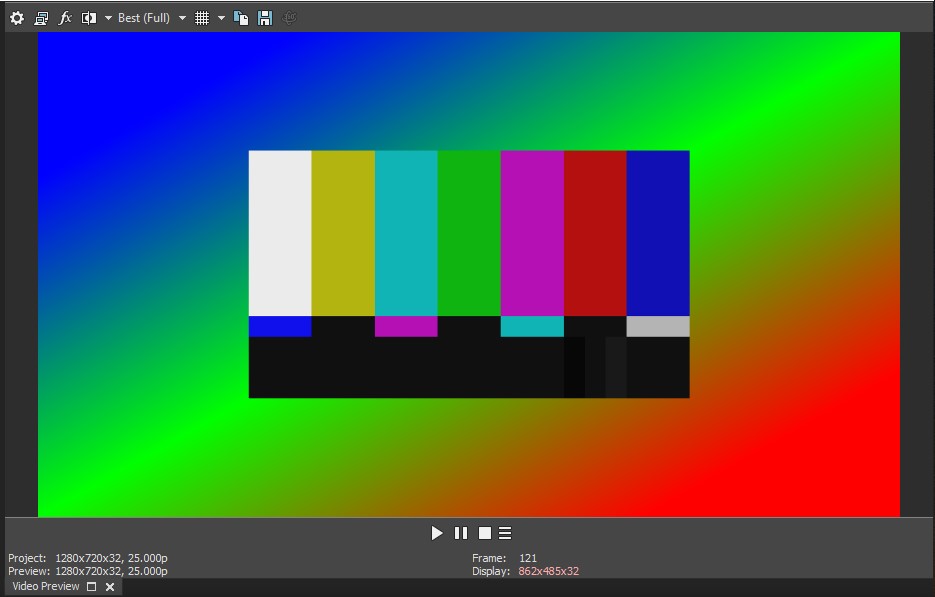

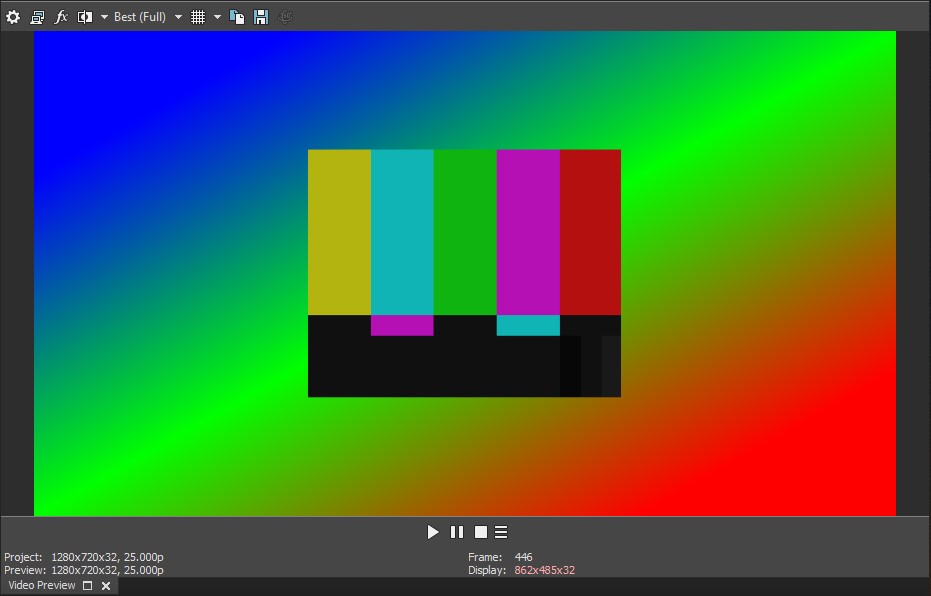

I think doing the following is probably the simplest solution. Place your top track Pan & Crop image where you require it to be. Now open up the P&C window for that clip and go down in the P&C window and check the box marked "Mask." Now use the square mask tool to select just the section of the image section you require. In the example below I have an image #1, color bars P&C'd over a color grad. In image #2 it is exactly the same thing but with the White and Blue bars masked out.

Chris Young
Attached Thumbnails
crop an sd clip for pip in hd video-pan-crop-top-track.jpg   crop an sd clip for pip in hd video-pan-crop-top-track-mask.jpg

crop an sd clip for pip in hd video-mask-crop-pan-crop.jpg
Christopher Young is offline   Reply
