Old September 7th, 2010, 10:31 PM   #16
Major Player

Join Date: Aug 2009
Location: Nashville, TN.
Posts: 581
So here attached is a short first section of the audio with the 70-200 IS stabilizer noise. Sounds kinda like a geiger counter noise.
Attached Files
File Type: wav aMVI_0013s.wav (6.14 MB, 37 views)
__________________
Nashville TN using Canon 5D MK3, Canon 550D, RODE SVM mic, 70-200 f2.8L II IS, 24-105 f4L IS, 50 and 85 f/1.8, Vegas Pro 11, Zoom H4n, Blackbird, Lilliput Monitor, Lightroom
Harry Simpson is offline   Reply With Quote
Old September 9th, 2010, 12:22 AM   #17
Trustee

Join Date: Nov 2005
Location: Sauk Rapids, MN, USA
Posts: 1,675

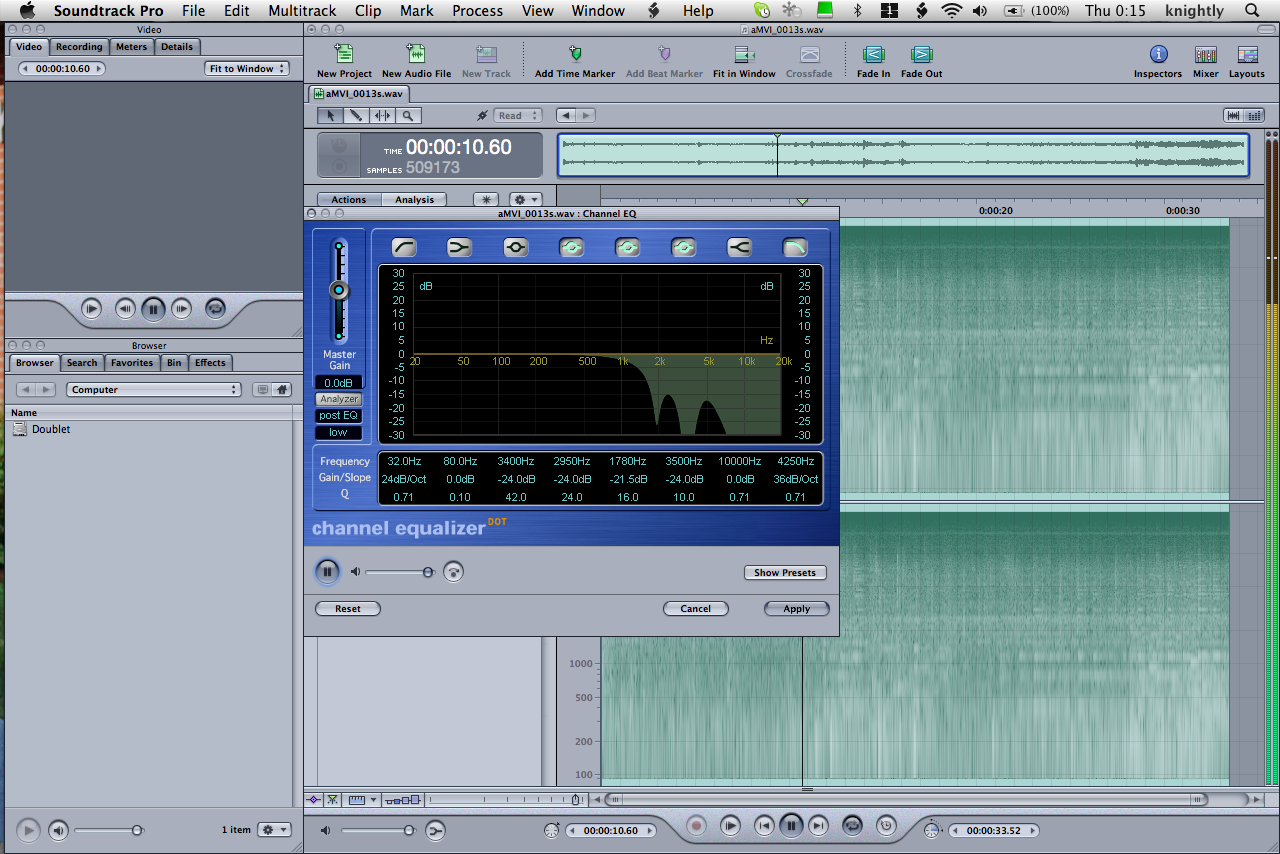

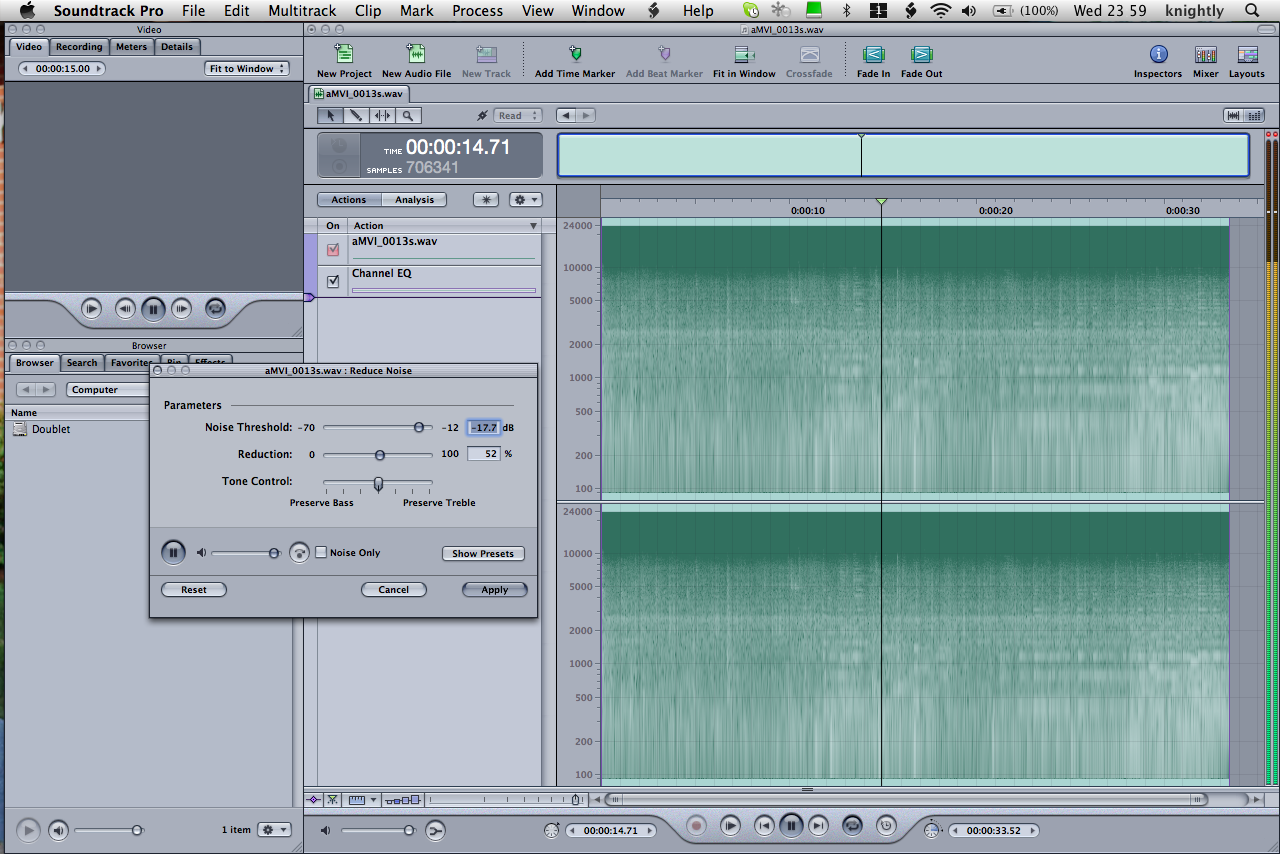

OK, the noise is relatively high frequency, and overlaps the guitar and ambiance fairly heavily... here's my results both with an EQ and a Noise Reduction filter in STP:
Attached Thumbnails
Way to remove stabilizer noise?-picture-1.png   Way to remove stabilizer noise?-picture-2.png

Attached Files
File Type: wav aMVI_0013s.nr.wav (6.14 MB, 36 views)
File Type: wav aMVI_0013s.EQd.wav (6.14 MB, 36 views)
__________________
Web Youtube Facebook
Cole McDonald is offline   Reply With Quote
Old September 9th, 2010, 08:06 PM   #18
Major Player

Join Date: Aug 2009
Location: Nashville, TN.
Posts: 581
Thanks Cole

James in AZ tried too but the audio is doomed i'm afraid. the client is satisfied with the photographs I got the the video was kind oof a value added thing anyhow.....
1. 70-200 f4L IS is NOISE
2. off camera mic now on if acoustic or interview.....
3. IS off unless really needed while video capturing.......

thanks
Harry
__________________
Nashville TN using Canon 5D MK3, Canon 550D, RODE SVM mic, 70-200 f2.8L II IS, 24-105 f4L IS, 50 and 85 f/1.8, Vegas Pro 11, Zoom H4n, Blackbird, Lilliput Monitor, Lightroom
Harry Simpson is offline   Reply With Quote
Old September 9th, 2010, 08:25 PM   #19
Inner Circle

Join Date: Feb 2007
Location: Tucson AZ
Posts: 2,207
Hi Cole

I've been talking with Harry via e-mail and I also couldn't get this clean enough to use - I think I had different clips - the one I worked on was fairly long.

Just for the forum record I tried using Izotope's noie reduction and I also got a clean noiseprint (ie just the IS noise by itself when he was just moving the camera around) from Harry and used this to train the Izotope NR. I pretty well got rid of the frying noise, but there was still a lot of other noise in the clip.

I'll post a couple of short excerpts later tonight when I get a little more time.
Jim Andrada is offline   Reply With Quote
Old September 9th, 2010, 09:53 PM   #20
Major Player

Join Date: Apr 2009
Location: Arcata, Ca
Posts: 750
I can't help ya on the noise that's on there, but I can suggest the Rycote Lyre type shock mount with is designed for such noises. InVision Video » Rycote
It may not fit the SVM, but for when you get a proper shotgun for outside, or hyper for inside, this will help kill the vibration.
__________________
My Work: http://www.youtube.com/ChadWork1
Sony FS5 :: Panasonic GH4 :: Sony PMW-EX1 :: FCPx :: AT4053b :: Rode NTG-3,
Chad Johnson is offline   Reply With Quote
Old September 9th, 2010, 10:04 PM   #21
Major Player

Join Date: Aug 2009
Location: Nashville, TN.
Posts: 581
Crazy thing is - the lens IS is that loud. It's not vibration as much as the motor is loud. The RODE SVM is suspended and all.
__________________
Nashville TN using Canon 5D MK3, Canon 550D, RODE SVM mic, 70-200 f2.8L II IS, 24-105 f4L IS, 50 and 85 f/1.8, Vegas Pro 11, Zoom H4n, Blackbird, Lilliput Monitor, Lightroom
Harry Simpson is offline   Reply With Quote
Old September 11th, 2010, 05:54 AM   #22
Inner Circle

Join Date: Mar 2005
Location: Hamilton, Ontario, Canada
Posts: 5,742
Quote:
Originally Posted by Harry Simpson View Post
Thanks Cole

James in AZ tried too but the audio is doomed i'm afraid. the client is satisfied with the photographs I got the the video was kind oof a value added thing anyhow.....
1. 70-200 f4L IS is NOISE
2. off camera mic now on if acoustic or interview.....
3. IS off unless really needed while video capturing.......

thanks
Harry
IS should really be off most of the time anyway, unless you're shooting handheld. Most of the time video would be shot from a tripod and you'd never use stabilization when the camera is on a tripod, either for still work or for video. On a tripod it can actually introduce blur! For handheld, about the only time it really does much to improve sharpness is when your shutter speed is between 1/f and 1/2f where f is the lens focal length. Slower than 1/f it's impossible to get critically sharp even with IS on and faster than 1/2f it doesn't add anything.
__________________
Good news, Cousins! This week's chocolate ration is 15 grams!
Steve House is offline   Reply
